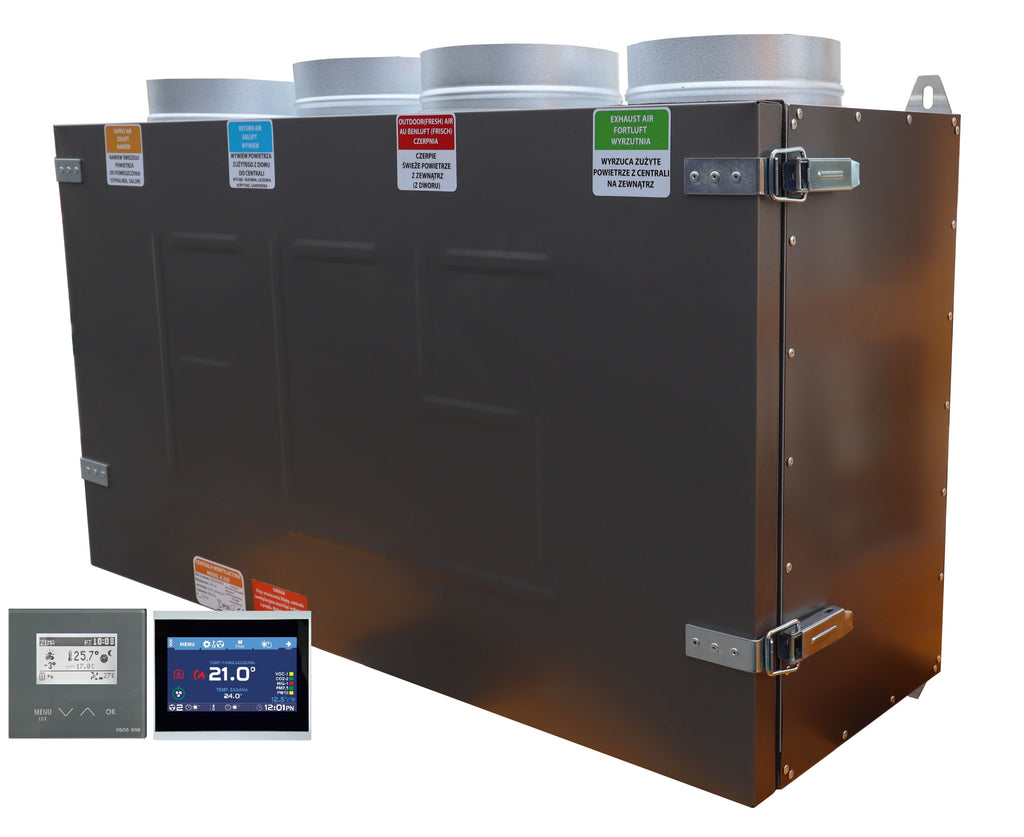

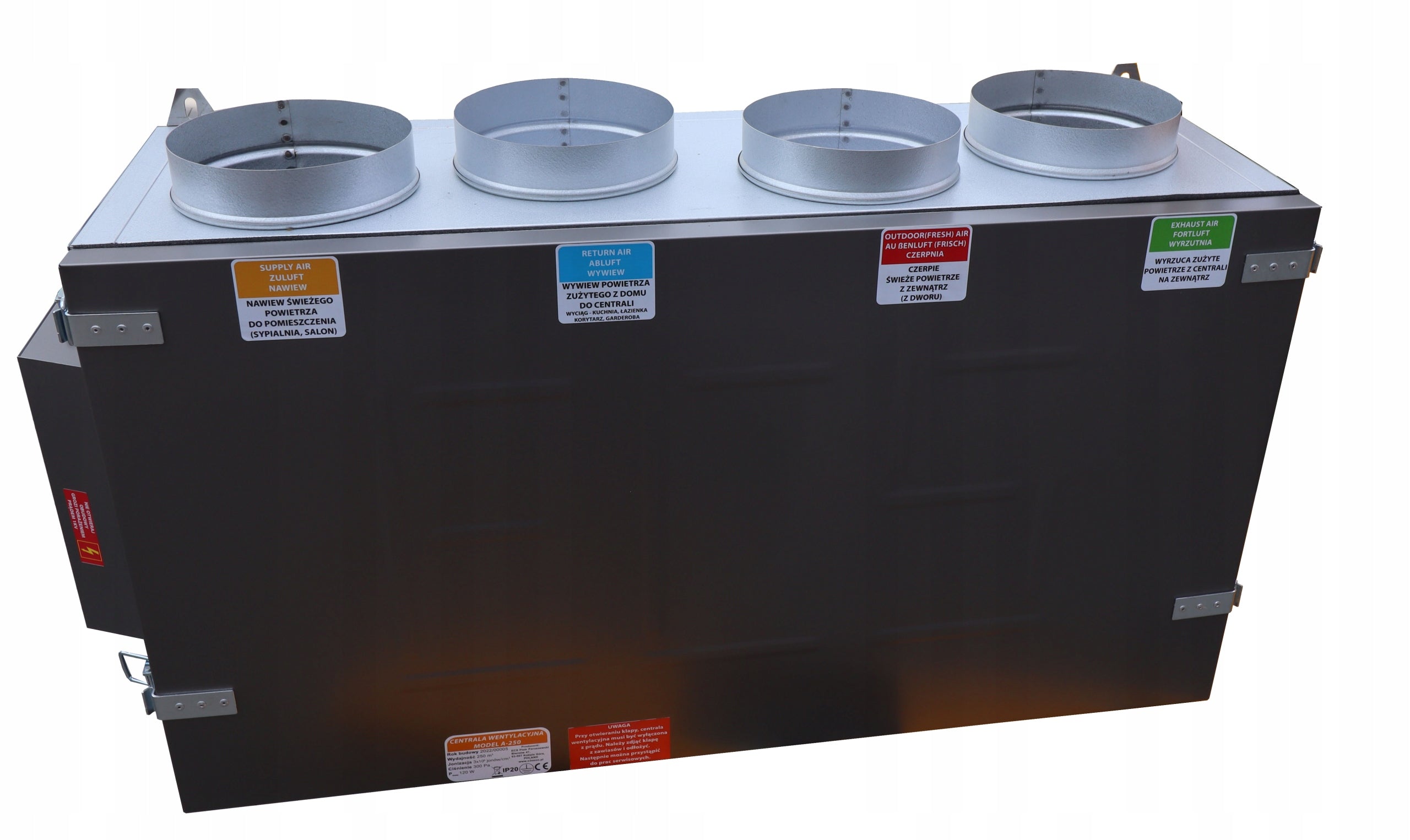

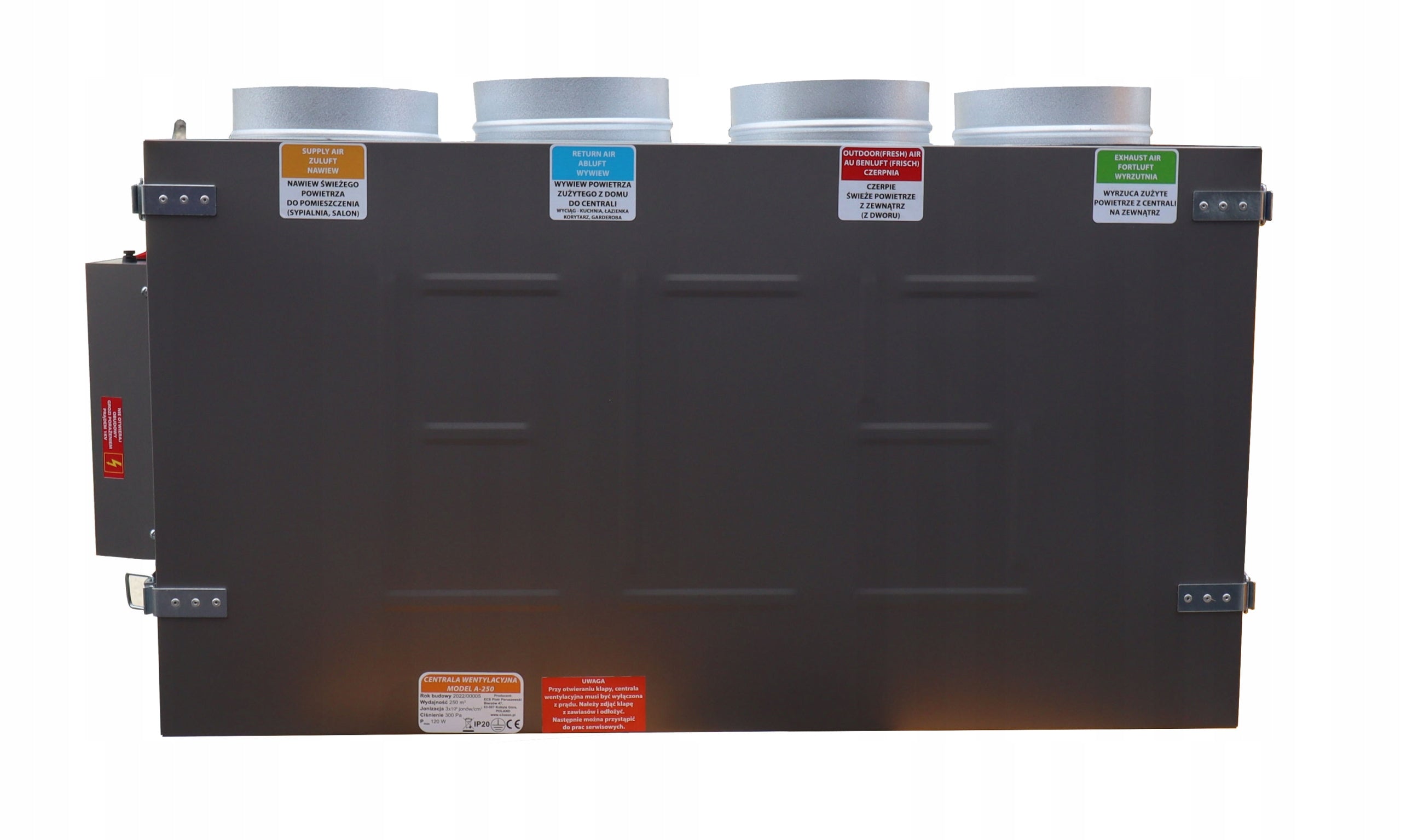

Vėdinimo rekuperatorius, 250 m³/val., iki 100 m² patalpoms

Trumpai apie prekę

Prekė: Vėdinimo rekuperatorius, 250 m³/val., iki 100 m² patalpoms. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: A-250 górna

15 years of experience

Before you buy, watch the video https://www.youtube.com/watch?v=m8BvSsrRX5w

Built-in negative ionizer

Negative ions help:

• Kill bacteria, viruses and fungi
• Facilitates breathing
• Clean and refresh the air
• Accelerate rest
• Increases concentration
• Helps in learning
• Improves fitness

Contains:

• FAN "3 speed " made in germany
• BUILT-IN IONIZER
• DIAMETER OF THE STUB 200 mm
• CLASS G4 FILTERS
• COUNTERCURRENT RECUPERATOR PULL-OUT EASY TO WASH
• RECUPERATOR EFFICIENCY FROM 65% to 92% (parameter depends on the difference temp.przepływu )
• POWER OF THE DEVICE FROM 80 TO 115W
• BUILT-IN AIR PURIFIER SYSTEM (MICRO PARTICLES)
• ANTI-ELECTROSTATIC SYSTEM
• DIRTY FILTER INFORMATION SYSTEM
• BY-PASS ELECTRONIC OR MECHANICAL
• HOUSING MADE OF SHEET METAL 0,7 mm ALUM-ZINC
• INSULATION THICKNESS 30 mm=3cm
• SOUND INSULATION
• FIREPLACE THERMAL INSULATION RESISTANT TO HIGH TEMPERATURES. WITH ALUMINIUM JACKET
• DRAINAGE OF LIQUEFIED WATER!!!
• VERY GOOD VALUE FOR MONEY
• CONTROL PANEL

PRODUCT Polish

ECS has over 16 years of experience in the production of equipment for industry, produces for the largest companies reputable, international.

Each model of the air handling unit is created on the basis of well-thought-out solutions and proven technology.

Filter- cartridge made as G4 class nonwoven fabric You do not have to buy expensive filters!!! . You can combine several filters eg G4+F9+H14 ps smog will be reduced in 80-90%

Fans made in germany

The use of larger fans increases their service life, and soundproofs the ventilation system

Case

The housing is made of thin alum zinc sheets galvanized on both sides, which are specially shaped on numerical machine tools and permanently mounted with galvanized rivets to create a rigid self-supporting structure. The alum zinc material provides excellent protection for surfaces that come into contact with ventilation air and seals all housing components. In terms of acoustic and thermal, the casing is protected with a 30 millimeter layer of wool

The task of the ionizer is to naturally clean the air of impurities, such as: , mites, anaerobic bacteria, cigarette smoke dust, pollen, etc.

The ventilation system with recuperation allows up to 8 times reduction of ventilation heat losses.

Filter:

Nonwoven fabric G4 (exhaust and supply)

• Very tannin filter, possibility of replacing the non-woven fabric itself, cost PLN 2-4
• Possibility to configure any filter from G1 to U15 (filters used in the operating room)
• Possibility to combine several filters at the same time
• Industrial work

• Possibility of control in facilities with intelligent installations
• Possibility to adjust optimal fan operating parameters

Specification:

• CAPACITY MAX 220m3/h SEE CHARACTERISTICS BASED ON THIS SELECTS THE CONTROL PANEL
• Power min 85W max 115W
• VOLTAGE 230 V 50 Hz

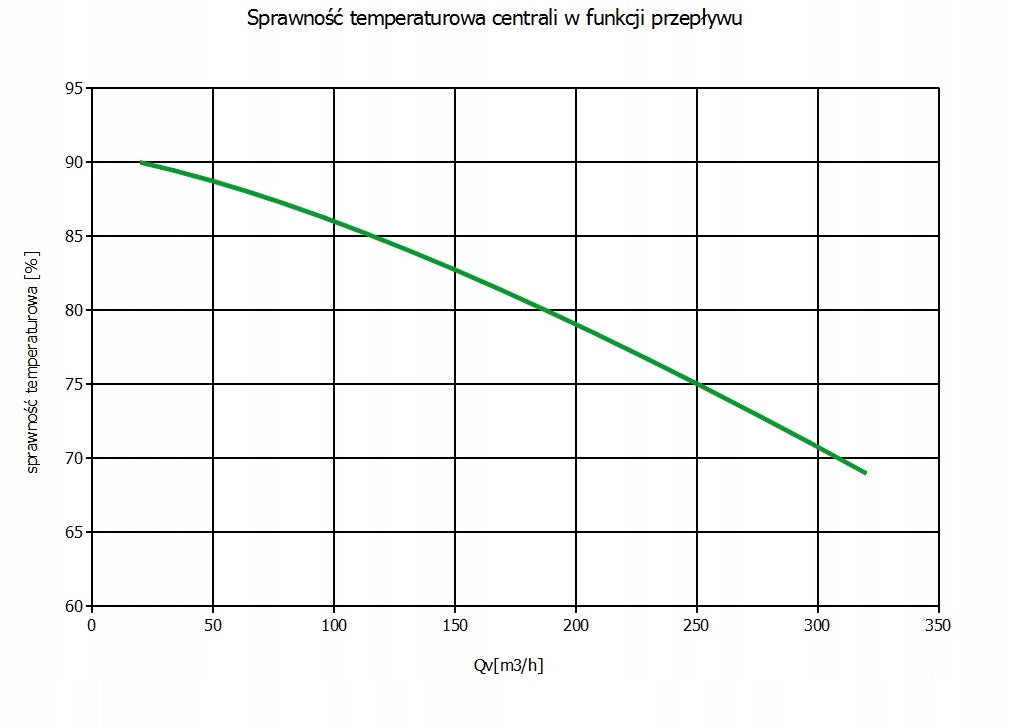

• Heat recovery efficiency from 65% to 92%
• Noise level db/(A)3m 24-40
• Maximum operating speed up to 45C
• Housing material alumcynk sheet 0,7mm
• Wool 30mm
• Air supply filter G4
• Filter extractor G4
• Diameter of stubs 200 mm
• Recuperator efficiency up to max 92%
• COUNTERCURRENT recuperator
• Recuperator PLASTIC
• Dirty filter signalling system
• By-pass electronic OR 100% MECHANICAL, POSSIBILITY OF BUYING AN ACTUATOR
• Anti-freeze system
• Weight about 30 kg QUALITY MUST WEIGH COMPARE WITH OTHER PRODUCTS OF THIS CLASS

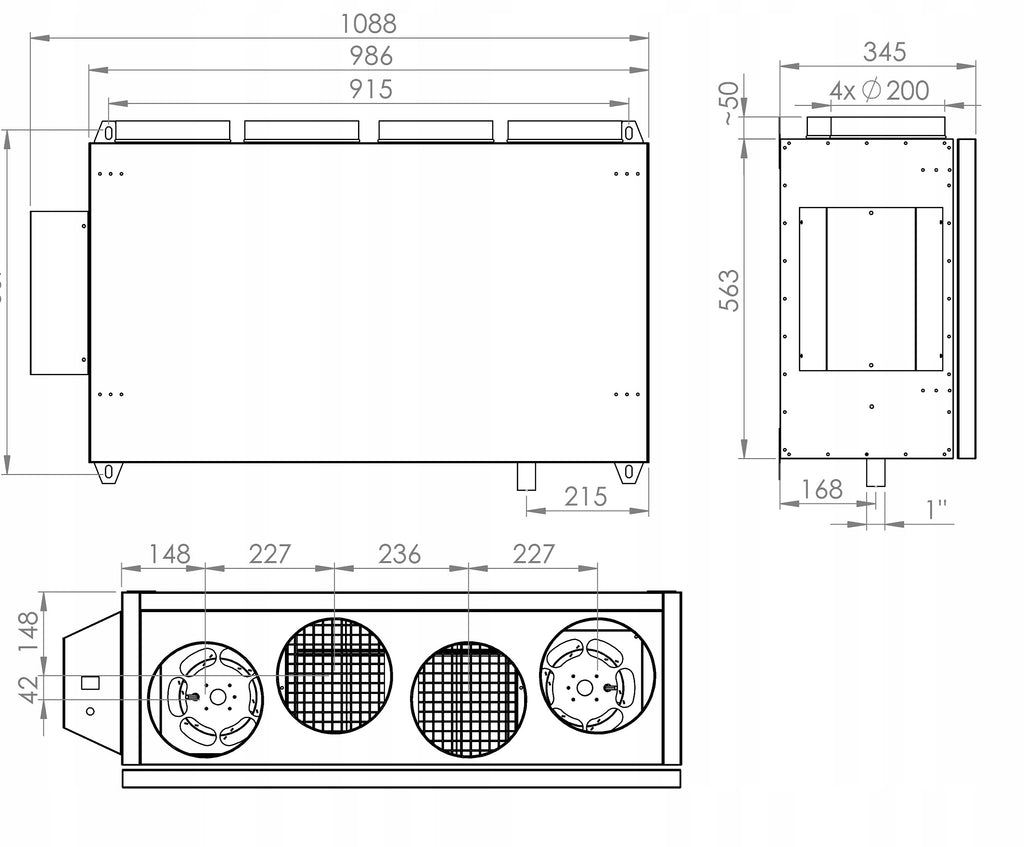

• Dimensions 350x650x950 mm

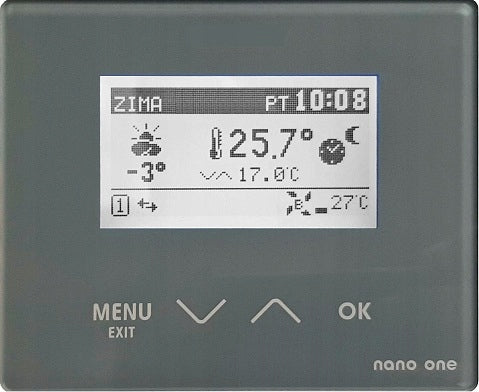

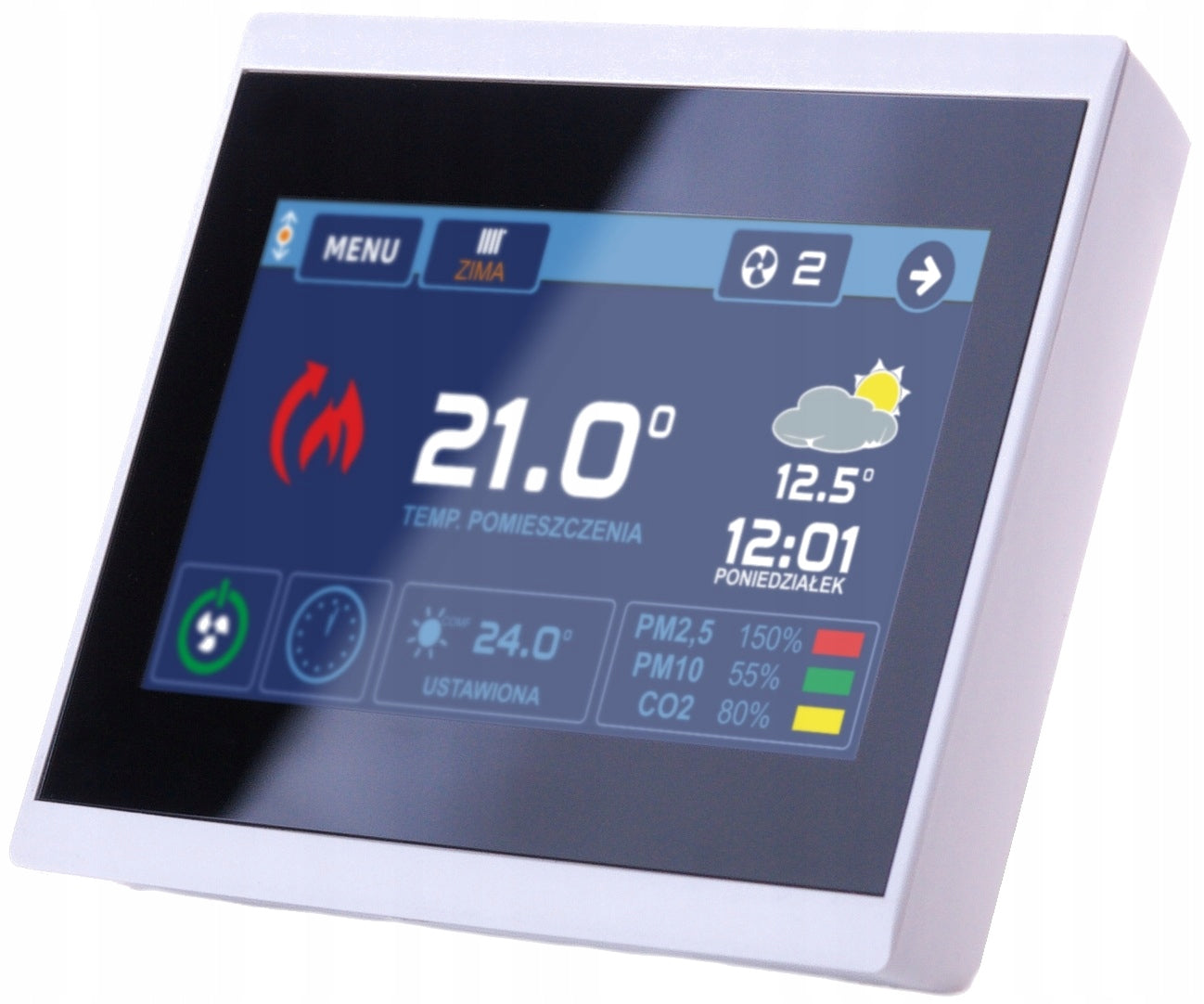

• PANEL

• temperature measurement
• regulation of the supply force
• by-pass control
• setting a schedule
• heater control
• Configuration of secondary radiator control
• switching on the preheater
• indication of soiled filter
• GWC control
• e.t.c......

POSSIBILITY OF CONNECTION TO THE GROUND RAIL

(PROTECTION AGAINST ATMOSPHERIC DISCHARGES)

One of the best exchangers available in the world

100%, bypass

See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself

• System presentation: ▶ https://youtu.be/zwnY-pdrwj8
• Presentation of the entire GWC duct air conditioning: ▶ https://youtu.be/m8BvSsrRX5w
• Durability of our products: ▶ https://youtu.be/a3_OZIj2fLI
• See recuperation assembly course: ▶ https://youtu.be/ZMhyH29QXEY
• How to choose an exchanger for the air handling unit: ▶ https://youtu.be/PQYRlMa0cU4
• How to select and make intakes and launchers: ▶ https://youtu.be/JaYdZvX_Jl0
• How to choose a recuperator, ventilation units: ▶ https://youtu.be/T4-kbpZCiRg
• Great anemostat theory for ventilation recuperation: ▶ https://youtu.be/hmj_Zri58Wo
• Linear diffuser mezzanine how to do: ▶ https://youtu.be/zW6ewKM40F4
• Great theory of ventilation recuperation: ▶ https://youtu.be/TUGCt0jLmsk
• Theory of anemostat distribution: ▶ https://youtu.be/2DrL7inP8xA
• Anemostat distributions according to PN-83: ▶ https://youtu.be/tT88G79NqjE
• Connecting distribution boxes: ▶ https://youtu.be/Uq1FjNinR7U
• Anemostat placements according to FASHION FACEBOOK: ▶ https://youtu.be/qKcPhyyynKM
• Distribution of anemostats Paruszewski's ideas: ▶ https://youtu.be/TzhaNNL84hU

See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...

See the installation course of ventilation system recuperation in the MAX-VENT system and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to install devices, how to choose, how to design ventilation with recuperation and channel air conditioning

▶ https://youtu.be/PQYRlMa0cU4

How to choose an exchanger for the ventilation unit, recuperator recuperation course odc1

▶ https://youtu.be/JaYdZvX_Jl0

How to select and make intakes and launchers , recuperator course of recuperation assembly odc1a

▶ https://youtu.be/T4-kbpZCiRg

How to choose a recuperator, ventilation units, installation course of ventilation recuperation odc3

▶ https://youtu.be/hmj_Zri58Wo

Great anemostat theory in ventilation recuperation, installation course of ventilation recuperation odc4

▶ https://youtu.be/zW6ewKM40F4

Linear diffuser mezzanine how to make , installation course of ventilation recuperation section 4a

▶ https://youtu.be/TUGCt0jLmsk

Great theory of ventilation recuperation , installation course of ventilation recuperation odc5

▶ https://youtu.be/2DrL7inP8xA

Theory of anemostat distribution , installation course of ventilation recuperation section 6 part 1

See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...
