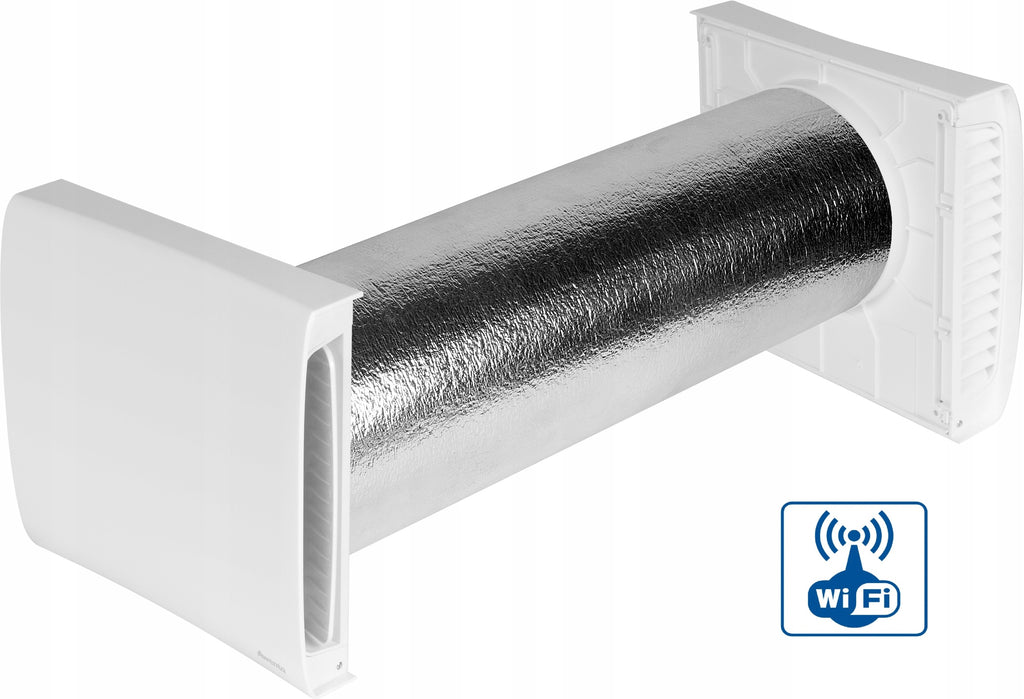

Vėdinimo rekuperatorius AWENTA AHRE160 su WIFI valdymu

Trumpai apie prekę

Prekė: Vėdinimo rekuperatorius AWENTA AHRE160 su WIFI valdymu. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Awenta
• Modelis: AHRE160

AHRE160 is a new generation of decentralized ventilation devices that enable ventilation of rooms while reducing heat loss. Thanks to the use of a ceramic accumulation exchanger, AHR retains and accumulates thermal energy, and then heats cooler, supplied air from the outside. The difference between the AHR series and HRV is in the solutions used to automate its work. The electronics used control the operation of the device and adjust its parameters depending on the conditions in the room where the AHR was installed.

AHRE160 has the ability to connect several devices installed in one or more rooms with the ability to pair them using wireless communication, without the hassle of connecting devices using a power cord. Pairing possible in different modes, e.g. Both units only supply, or only exhaust and alternating operation one unit of supply and the other exhausts.

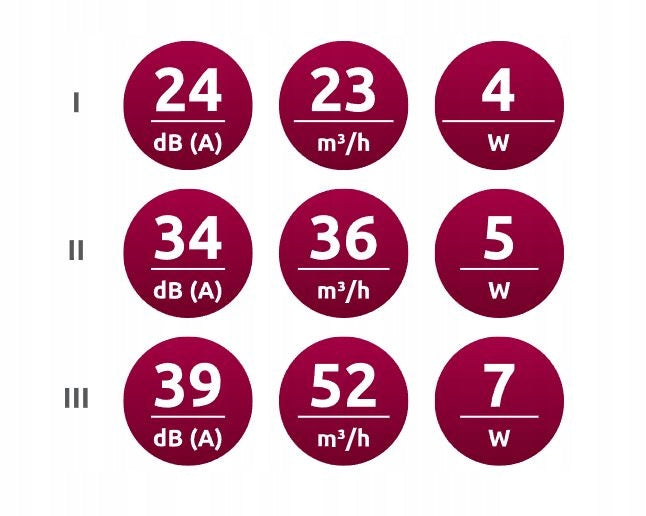

OPERATION IN THREE PERFORMANCE RUNNING MODES BELOW

PRINCIPLE OF OPERATION

The primary function of the AHR160 is to ensure air exchange in the room while reducing heat loss. Recovery of heat lost in the ventilation process is possible thanks to the use of a ceramic accumulation exchanger, which stops and accumulates heat energy, and then heats the cooler air supplied from the outside. If the supply air has a higher temperature than in the room, the exchanger will lower it using the exhaust air temperature.

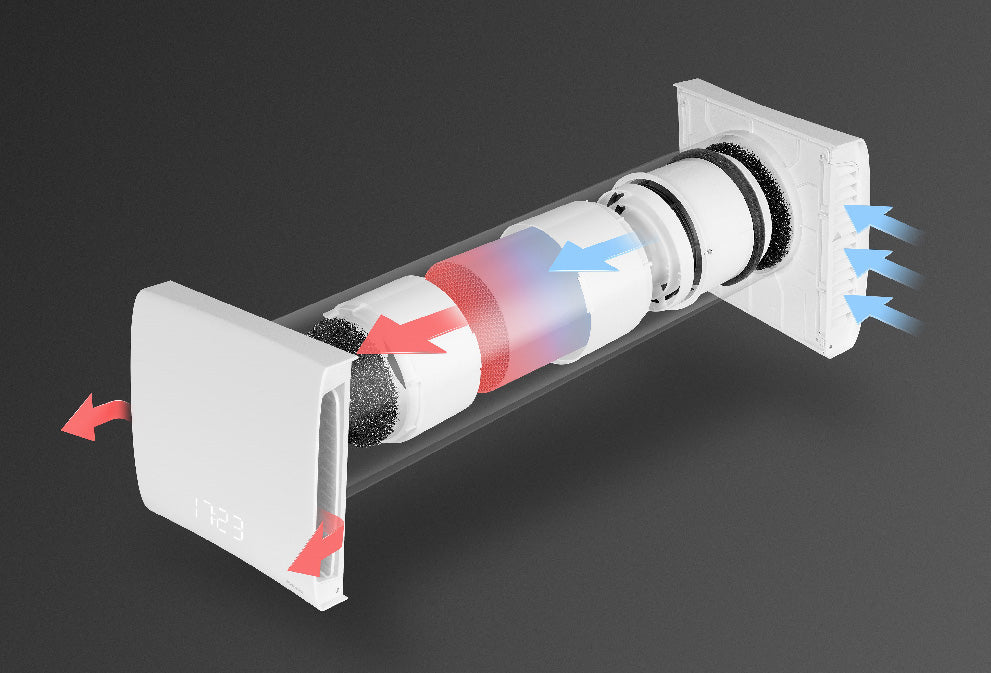

EXHAUST

When working in the exhaust direction, heat is stored in a ceramic exchanger. After the exchanger is fully heated, the direction of work is automatically changed.

The optimal operating time in one direction is determined on the basis of temperature readings from sensors located before and after the heat exchanger.

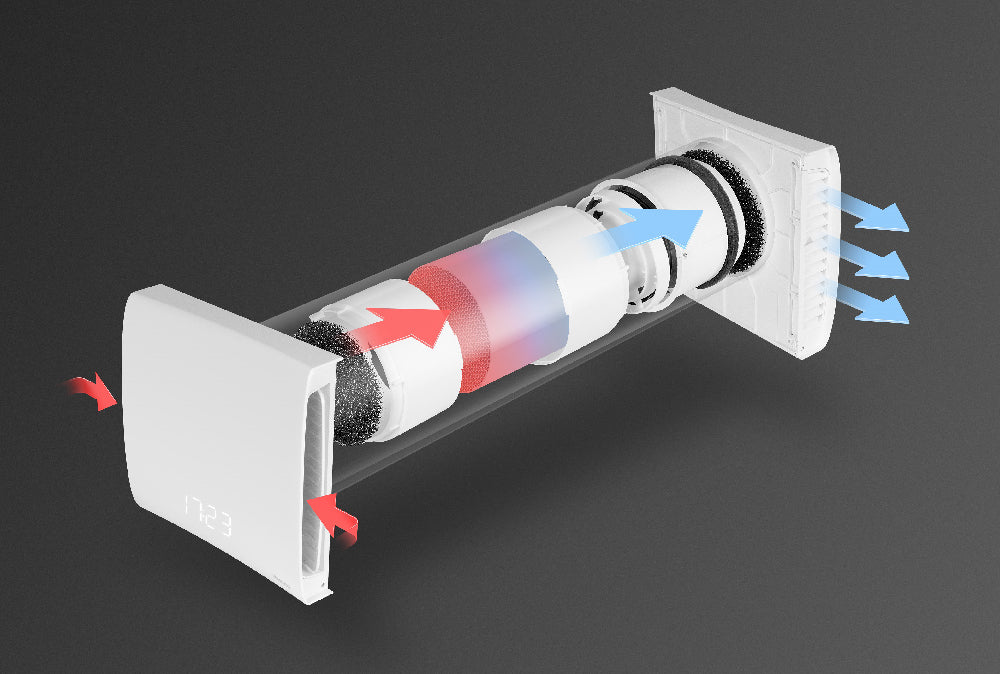

SUPPLY

The heat stored in the exchanger is received by the supply air stream and then transferred to the room. After cooling the exchanger, there is an automatic change of direction of work.

The optimal operating time in one direction is determined on the basis of temperature readings from sensors located before and after the heat exchanger.

Wireless communication

AHRE160 has the ability to connect several devices installed in one or more rooms with the ability to pair them via wireless communication. No need to cumbersomely connect devices with a power cord. Pairing possible in different modes, e.g. Both units only supply, or only exhaust and alternating operation one unit of supply and the other exhausts.

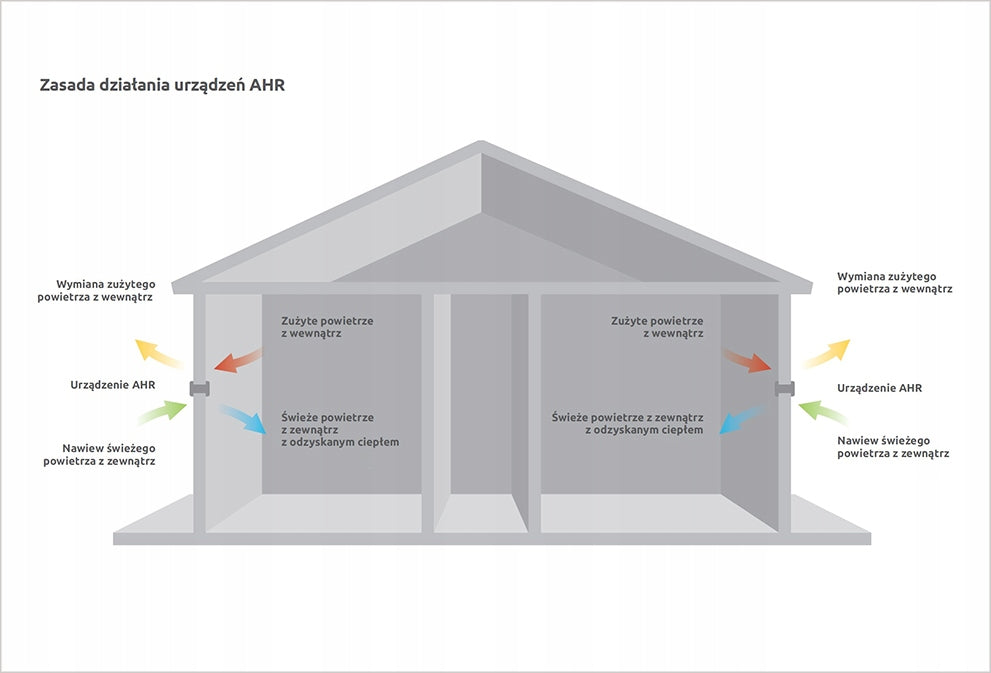

Example of deployment

The AHR160 has been designed so that it is possible to create a network of devices operating simultaneously in multiple rooms of one house. The more of them are installed, the more fresh air is delivered to the interior and the lower the heating costs in heating seasons.

DIMENSIONS TECHNICAL DRAWING (mm)

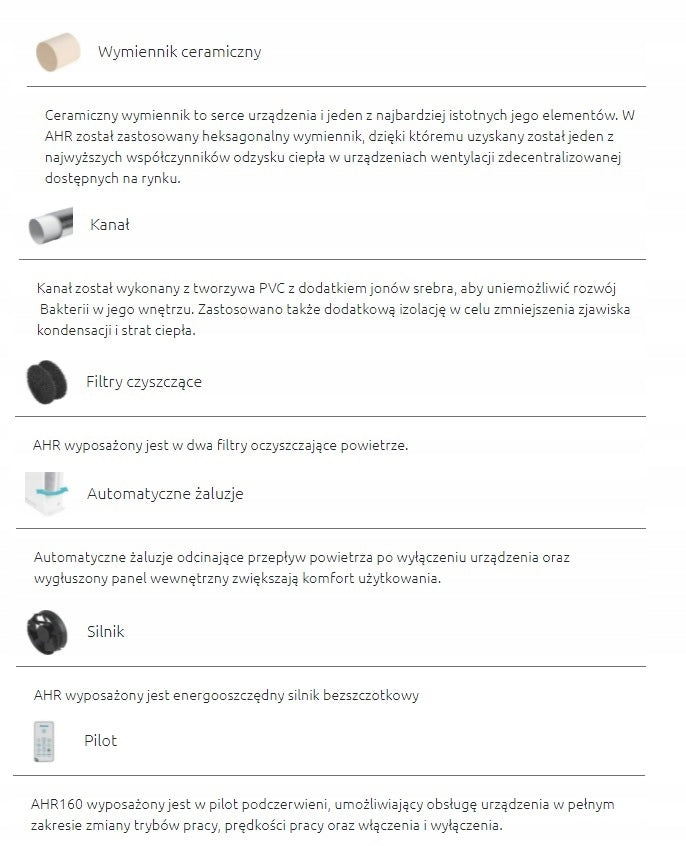

ELEMENTS OF THE DEVICE

EQUIPMENT

Awenta AHR application available

on Android.

With the mobile app, you can

remotely manage your

fans from the AHR family

Easy operation

Simplified interface for quick and easy

device management AHR160

Specifications
