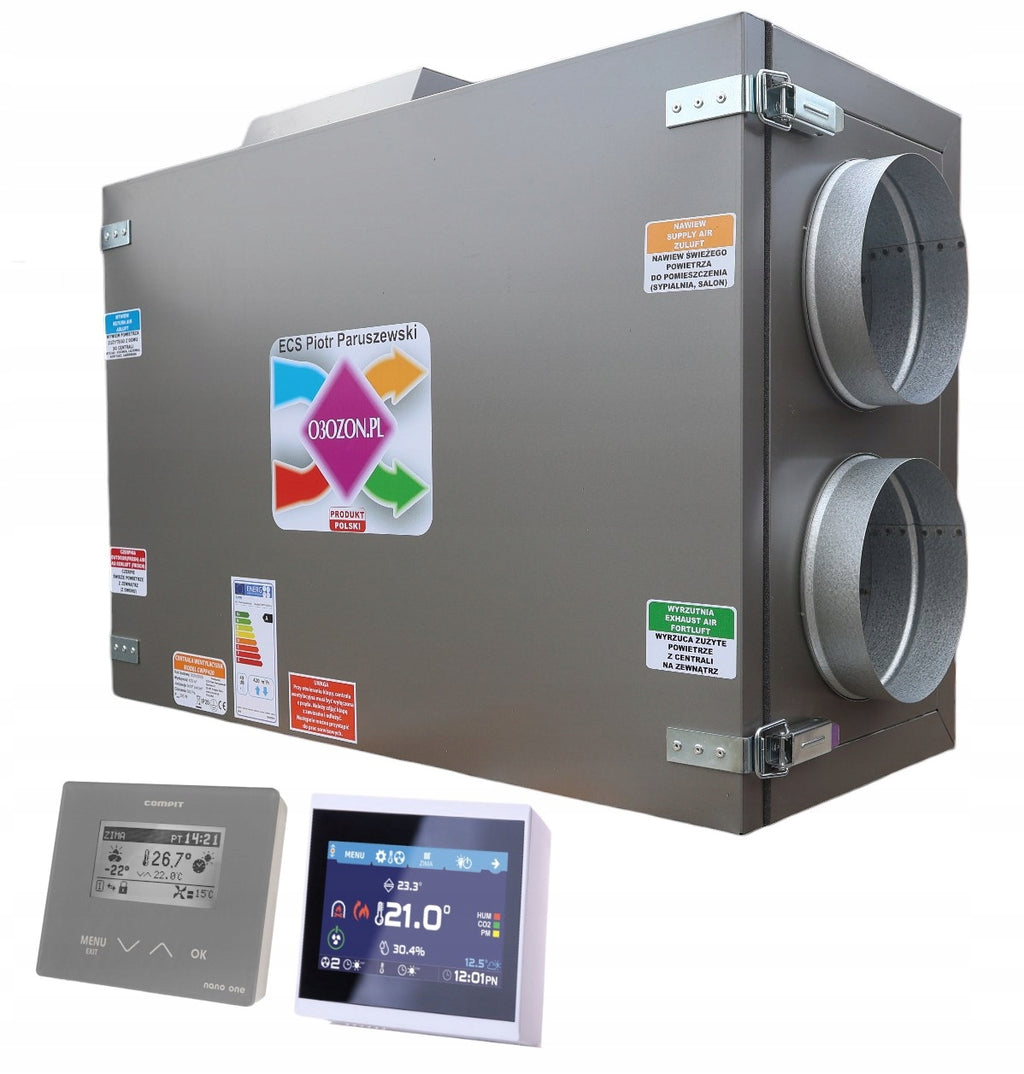

Vėdinimo rekuperatorius CWPP 420/200 ECO, 420 m³/val.

Trumpai apie prekę

Prekė: Vėdinimo rekuperatorius CWPP 420/200 ECO, 420 m³/val.. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: CWPP 420/200 ECO

15 years of experience

The headquarters meets the requirements of WFOŚiGW regarding the Clean Air program.

Before you buy, watch the video https://www.youtube.com/watch?v=m8BvSsrRX5w

POSSIBILITY OF CONNECTING AIR CONDITIONING (very effective if you make a recirculation system "at home works as an air conditioner in summer and in winter as heating -it is effective up to -2c outdoors" )

Built-in negative ionizer

Negative ion helps:

• Kill bacteria, viruses and fungi
• Facilitates breathing
• Clean and refresh the air
• Accelerate rest
• Increases concentration
• Helps in learning
• Improves fitness

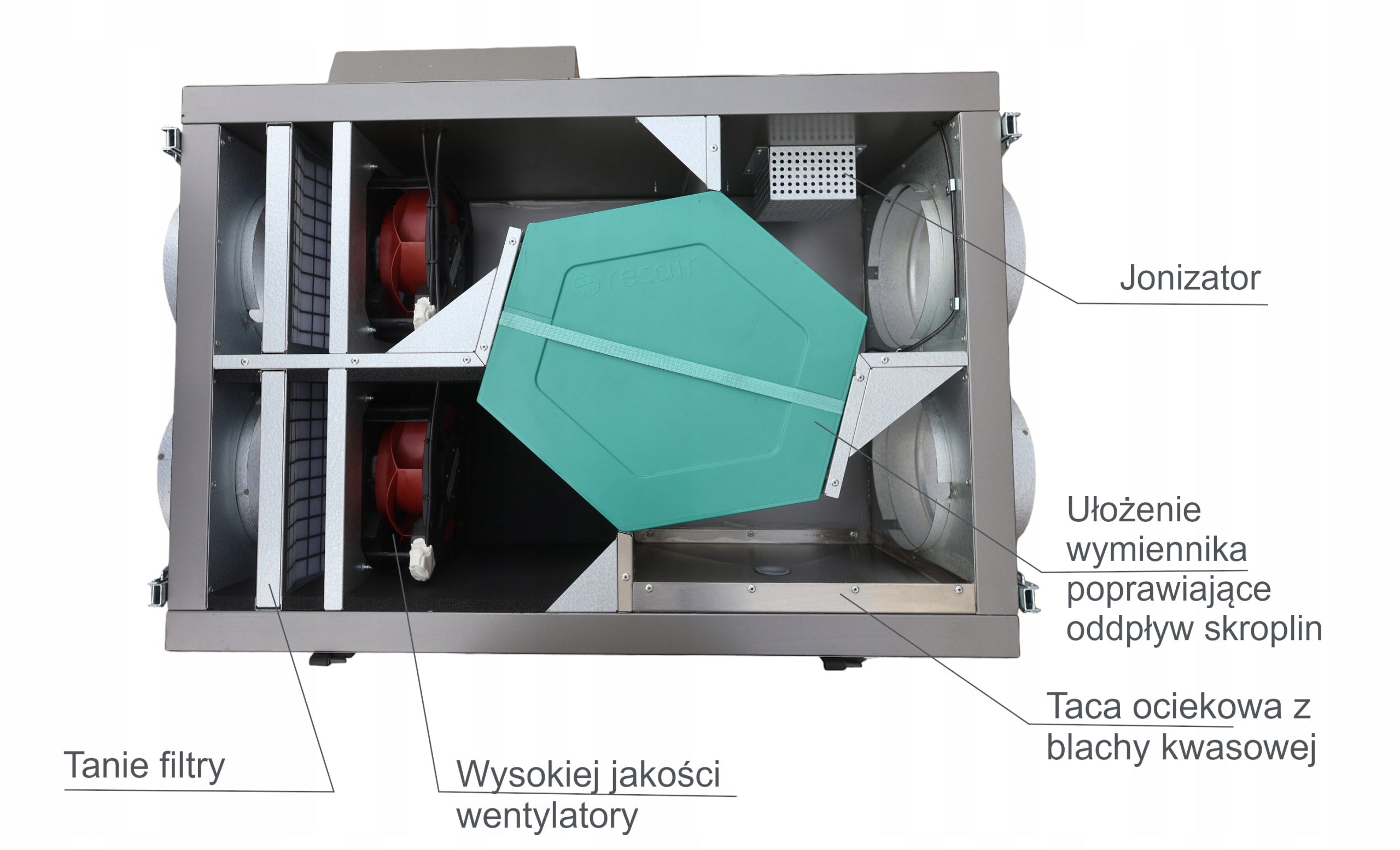

Contains:

• FAN "EC" WITH MAX CAPACITY UP TO 800m3/h Taiwanese company proven fans (this fan manufacturer is found in almost every air conditioning in Europe)
• BUILT-IN IONIZER
• DIAMETER OF THE STUB 200 mm
• RPM MAX 2400 rpm
• CLASS G4 FILTERS
• COUNTERCURRENT RECUPERATOR PULL-OUT EASY TO WASH
• RECUPERATOR EFFICIENCY FROM 65% to 92% (parameter depends on the difference temp.przepływu )
• POWER OF THE DEVICE FROM 30 TO 200W
• BUILT-IN AIR PURIFIER SYSTEM (MICRO PARTICLES)
• ANTI-ELECTROSTATIC SYSTEM
• DIRTY FILTER INFORMATION SYSTEM
• BY-PASS ELECTRONIC
• HOUSING MADE OF SHEET METAL 0,7 mm ALUM-ZINC
• INSULATION THICKNESS 40 mm=4cm
• SOUND INSULATION
• FIREPLACE THERMAL INSULATION RESISTANT TO HIGH TEMPERATURES. WITH ALUMINIUM JACKET
• DRAINAGE OF LIQUEFIED WATER!!!
• VERY GOOD VALUE FOR MONEY
• TOUCH PANEL
• control of heater, freon radiator - possibility of connecting air conditioning
• possibility to connect humidity sensor

PRODUCT Polish

ECS has over 14 years of experience in the production of equipment for industry, produces for the largest companies reputable, international.

Each model of the air handling unit is created on the basis of well-thought-out solutions and proven technology.

Filter- cartridge made as G4 class nonwoven fabric You do not have to buy expensive filters!!! . You can combine several filters eg G4+F9+H14 ps smog will be reduced in 80-90%

"EC" fans manufactured by MADE IN GERMANY were used

WITH A CAPACITY OF 680M3

The use of larger fans increases their service life, and soundproofs the ventilation system

Case

The housing is made of thin alum zinc sheets galvanized on both sides, which are specially shaped on numerical machine tools and permanently mounted with galvanized rivets to create a rigid self-supporting structure. The alum zinc material provides excellent protection for surfaces that come into contact with ventilation air and seals all housing components. In terms of acoustic and thermal, the casing is protected with a 30 millimeter layer of wool

The task of the ionizer is to naturally clean the air of impurities, such as: , mites, anaerobic bacteria, cigarette smoke dust, pollen, etc.

The ventilation system with recuperation allows up to 8 times reduction of ventilation heat losses.

Filter:

Nonwoven fabric G4 (exhaust and supply)

• Very tannin filter, possibility of replacing the non-woven fabric itself, cost PLN 2-4
• Possibility to configure any filter from G1 to U15 (filters used in the operating room)
• Possibility to combine several filters at the same time
• Industrial work

Control:

• Possibility of control in facilities with intelligent installations
• Possibility to adjust optimal fan operating parameters

Specification:

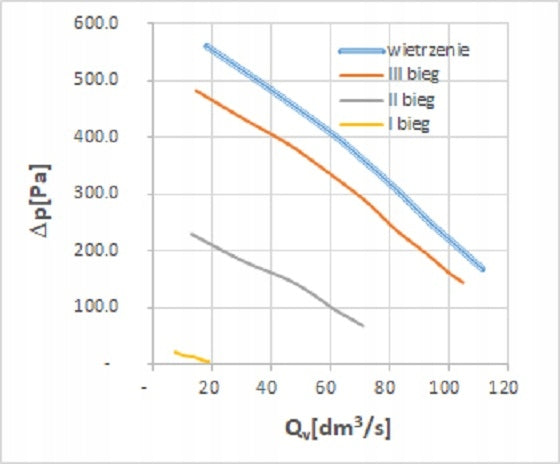

• CAPACITY MAX 380m3/h SEE CHARACTERISTICS BASED ON THIS SELECTS THE CONTROL PANEL
• Power min 30W max 200W
• FAN CAPACITY "EC" 2x880m3/h
• VOLTAGE 230 V 50 Hz

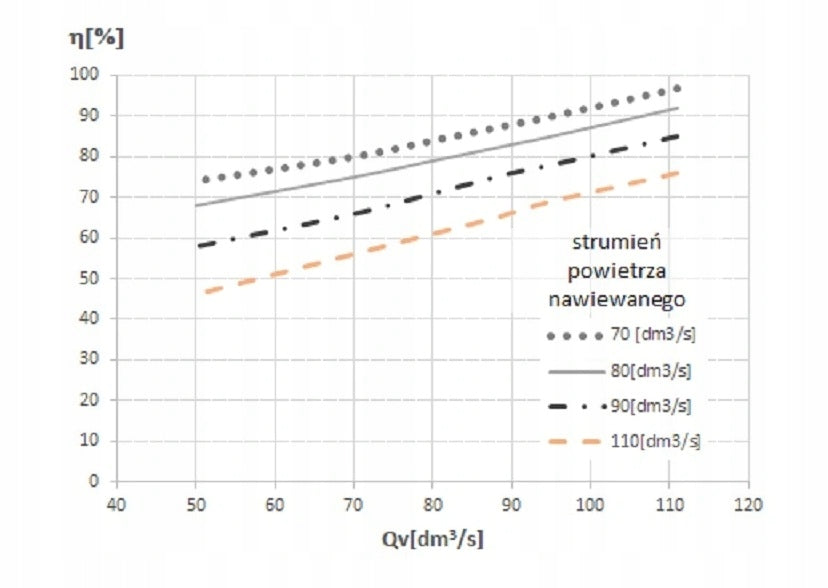

• Heat recovery efficiency from 65% to 92%
• Engine speed 2400 rpm
• Noise level db/(A)3m 24-40
• Maximum operating speed up to 45C
• Housing material alumcynk sheet 0,7mm
• Wool 40mm
• Air supply filter G4
• Filter extractor G4
• Diameter of stubs 200 mm
• Recuperator efficiency up to max 92%
• COUNTERCURRENT recuperator
• Recuperator PLASTIC
• Dirty filter signalling system
• Electronic Bapass
• Anti-freeze system
• Weight about 50 kg QUALITY MUST WEIGH COMPARE WITH OTHER PRODUCTS OF THIS CLASS

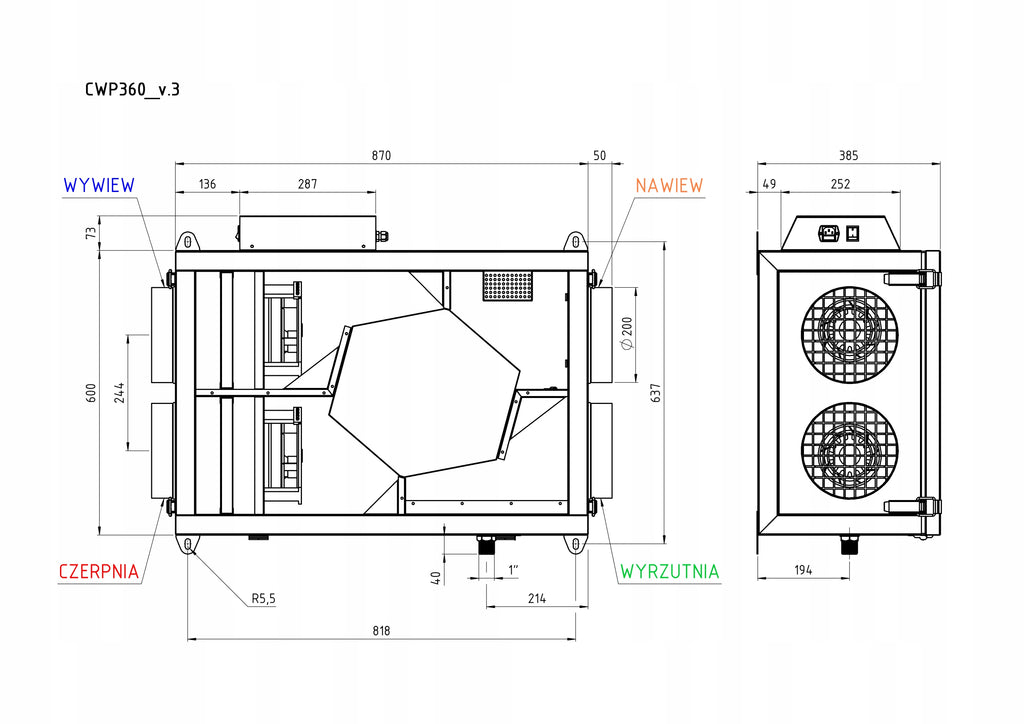

• Dimensions 370x820x1000 mm
• TOUCH PANEL

• temperature measurement
• regulation of the supply force
• by-pass control
• setting a schedule
• heater control
• GWC control switching
• Configuration of secondary radiator control
• switching on the preheater
• choice of background color
• indication of soiled filter
• FIREPLACE OPERATION MODE
• AUTOMATIC TEMPORARY DEHUMIDIFICATION OF THE EXCHANGER
• INTEGRATION WITH CONTROL PANEL AND AUTOMATION SYSTEMS (colour version only)
• PROGRAMMED CLOCK ZONES
• CHANNEL AIR CONDITIONING CONTROL-control of heater, freon radiator - possibility of connecting air conditioning (only color version)
• e.t.c......

• 1: Transition to thermostat and ventilation settings. A detailed description can be found in Chapter 6.1
• 2: Return to Home Screen
• TERMOSTAT: Operation of the thermostat is possible after enabling the option
• 3: Go to the thermostat information screen
• 4: Working with the schedule
• 5: Christmas work
• 6: Manual work
• 7: Enabling GWC in automatic operation mode or disabling. GWC support is possible after enabling the option earlier
• 8: Clicking sets simultaneous operation with the schedule for thermostat and ventilation
• 9: Clicking sets simultaneous Christmas work for thermostat and ventilation
• VENTILATION: Ventilation support is possible after connecting the AERO module
• 10: Transition to ventilation information screen
• 11: Working with the schedule
• 12: Christmas work
• 13: Manual selection of ventilation running, where 3 is the highest speed, STOP means turning off the fans
• 14: Attaches Outside the Home Program (NANO1)
• 15: Attaches a holiday program
• 16: Switches BY-PASS to automatic operation mode, continuously closes or opens it
• 17: Switches ventilation to airing mode. The option is invisible with the OFF-HOME (NANO1) or HOLIDAY mode enabled.

See the presentation of the MAX-VENT gen2 system, you can install it very easily, and from the channel on youtube Piotr Paruszewski you will learn how to do recuperation, how to mount devices, how to choose, how to design ventilation with recuperation and channel air conditioning--- ps it is not difficult, see and see for yourself

• System presentation: ▶ https://youtu.be/zwnY-pdrwj8
• Presentation of the entire GWC duct air conditioning: ▶ https://youtu.be/m8BvSsrRX5w
• Durability of our products: ▶ https://youtu.be/a3_OZIj2fLI
• See recuperation assembly course: ▶ https://youtu.be/ZMhyH29QXEY
• How to choose an exchanger for the air handling unit: ▶ https://youtu.be/PQYRlMa0cU4
• How to select and make intakes and launchers: ▶ https://youtu.be/JaYdZvX_Jl0
• How to choose a recuperator, ventilation units: ▶ https://youtu.be/T4-kbpZCiRg
• Great anemostat theory for ventilation recuperation: ▶ https://youtu.be/hmj_Zri58Wo
• Linear diffuser mezzanine how to do: ▶ https://youtu.be/zW6ewKM40F4
• Great theory of ventilation recuperation: ▶ https://youtu.be/TUGCt0jLmsk
• Theory of anemostat distribution: ▶ https://youtu.be/2DrL7inP8xA
• Anemostat distributions according to PN-83: ▶ https://youtu.be/tT88G79NqjE
• Connecting distribution boxes: ▶ https://youtu.be/Uq1FjNinR7U
• Anemostat placements according to FASHION FACEBOOK: ▶ https://youtu.be/qKcPhyyynKM
• Distribution of anemostats Paruszewski's ideas: ▶ https://youtu.be/TzhaNNL84hU

See the source of knowledge Learn a new profession, there are dozens of videos on the channel, hundreds of tips from a person with 20 years of experience, you will find a compendium of knowledge about ventilation, recuperation, etc...
