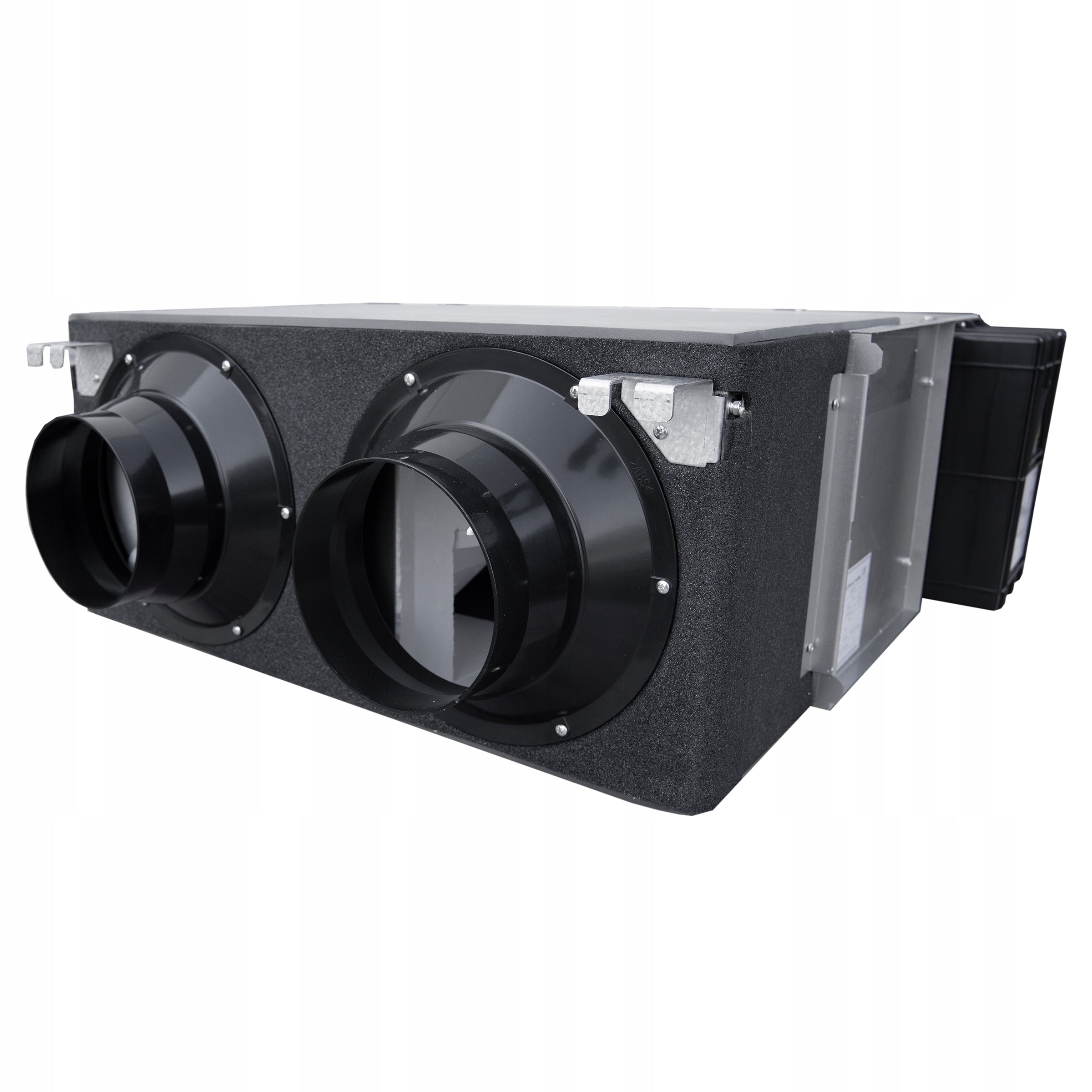

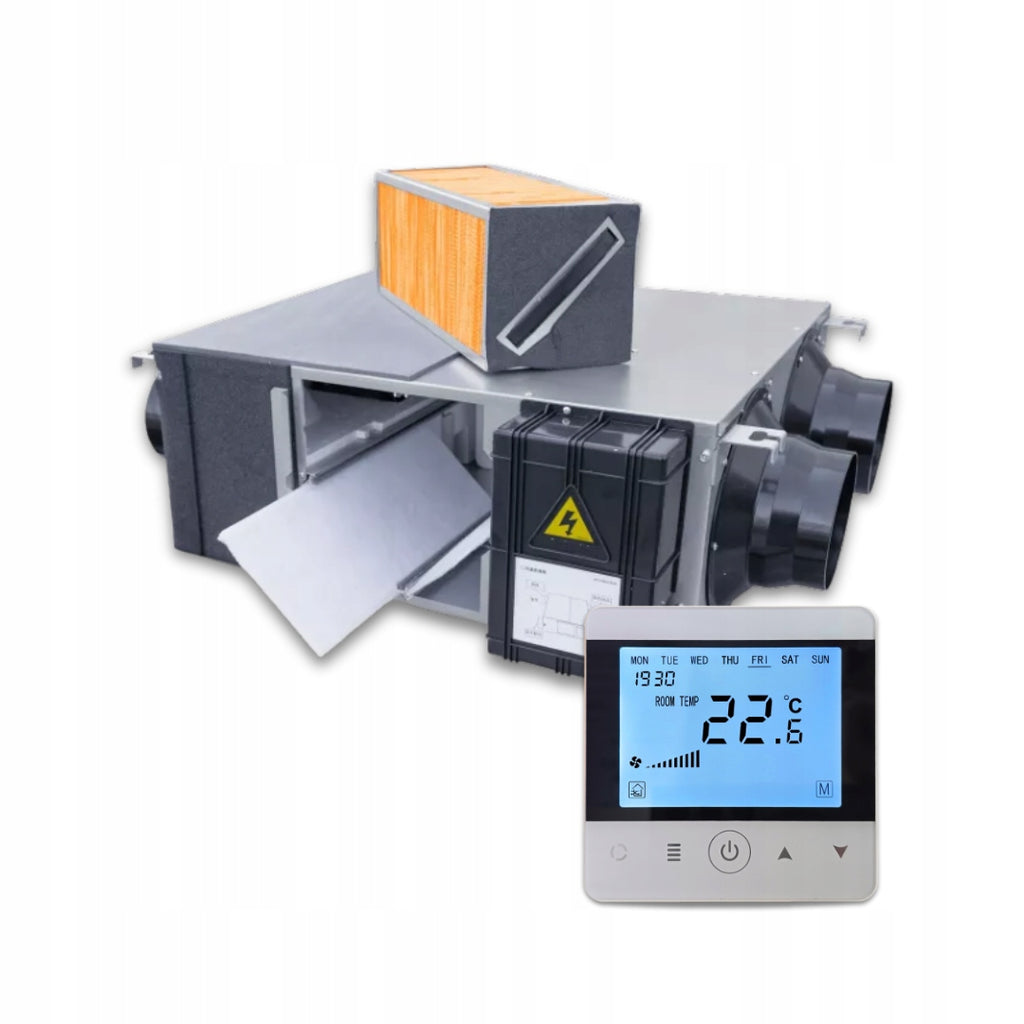

Vėdinimo rekuperatorius WEBER ECO, 200 m³/val.

Trumpai apie prekę

Prekė: Vėdinimo rekuperatorius WEBER ECO, 200 m³/val.. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: Weber
• Modelis: 04010053

Index: 04010053

Weber ECO is the basic segment of the WEBER series recuperators. The device is equipped with all functions enabling efficient ventilation of rooms in single-family houses, while minimizing heat loss and reducing harmful compounds and dust in the air supplied to the rooms.

BASIC ADVANTAGES OF THE WEBER ECO RECUPERATOR

• Enthalpic heat exchanger
• High efficiency of heat and moisture recovery
• No need to drain condensate
• Automatic Bypass
• Intuitive control
• Access to spare parts

The following yields are available in our auctions:

• Weber ECO 200 = 200 m³/h
• Weber ECO 300 = 300 m³/h
• Weber ECO 400 = 400 m³/h
• Weber ECO 600 = 600 m³/h

PRINCIPLE OF OPERATION OF THE RECUPERATOR WEBER ECO

FANS

They are responsible for forcing air flow through the device. The exhaust fan draws the used air out of the rooms and leads it outside the building, while the supply fan is responsible for sucking in fresh air from outside the building and introducing it into the rooms.

FILTERS

They are designed to eliminate pollutants and dust from the air entering the rooms, and additionally protect the recuperator exchanger from dirt, extending its life to the maximum.

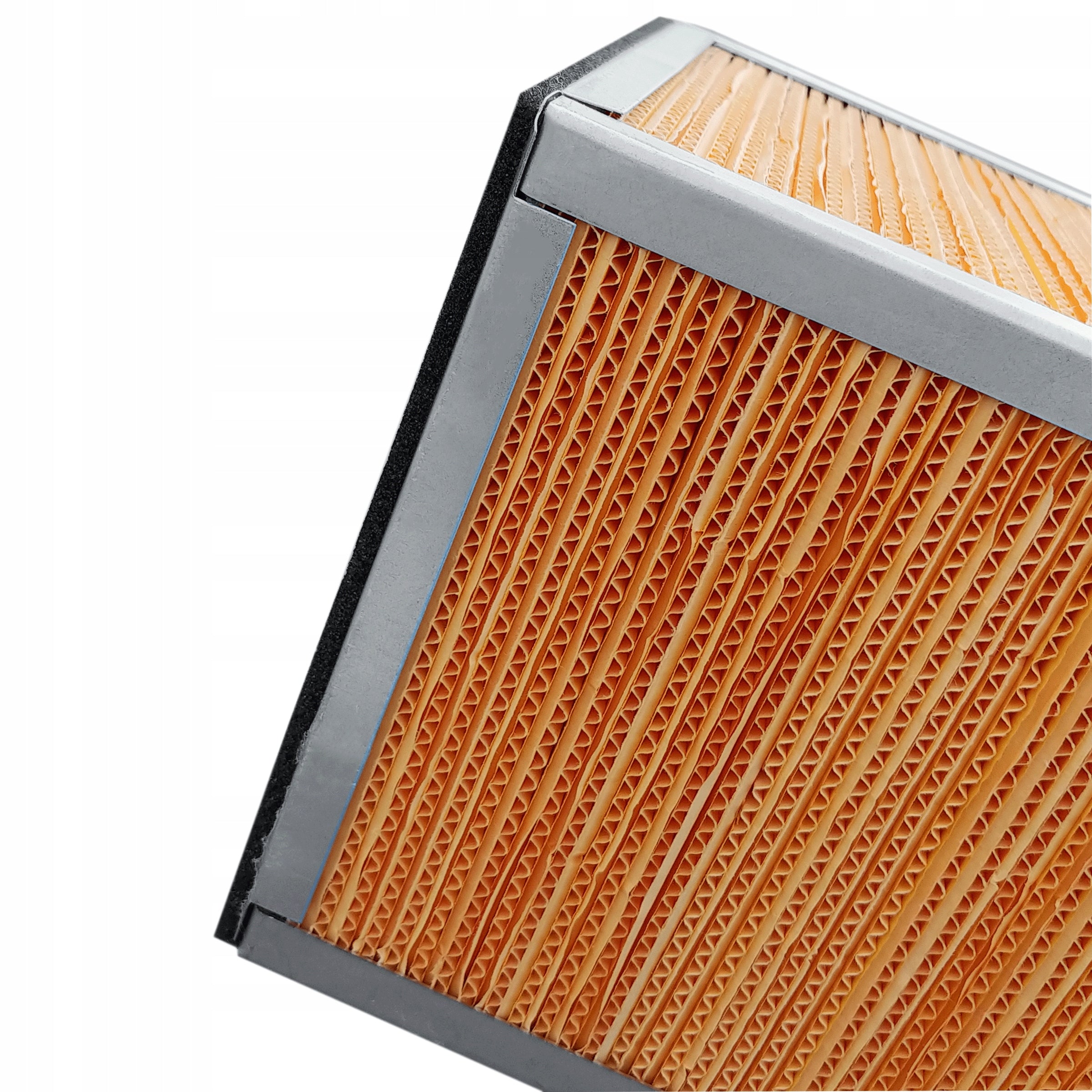

ENTHALPIC EXCHANGER

It is an element in which the air exhausted from the rooms gives heat and moisture to the air forced into the rooms. The transfer of heat and moisture is carried out through a special design of the exchanger, so that the used air does not mix with fresh air. This phenomenon results in the proper exchange of air consumed in rooms for fresh, pollution-free air with minimal energy losses.

BYPASS

It's a different way around the heat exchanger. Activation of the bypass causes that the stream of air sucked from the outside bypasses the heat exchanger, thanks to which fresh air with the temperature currently prevailing outside enters the rooms. This solution enables natural cooling of rooms without any air conditioning system. The bypass function is usually used during the summer, at night, i.e. when the outside temperature is ideal to cool the air inside the building.

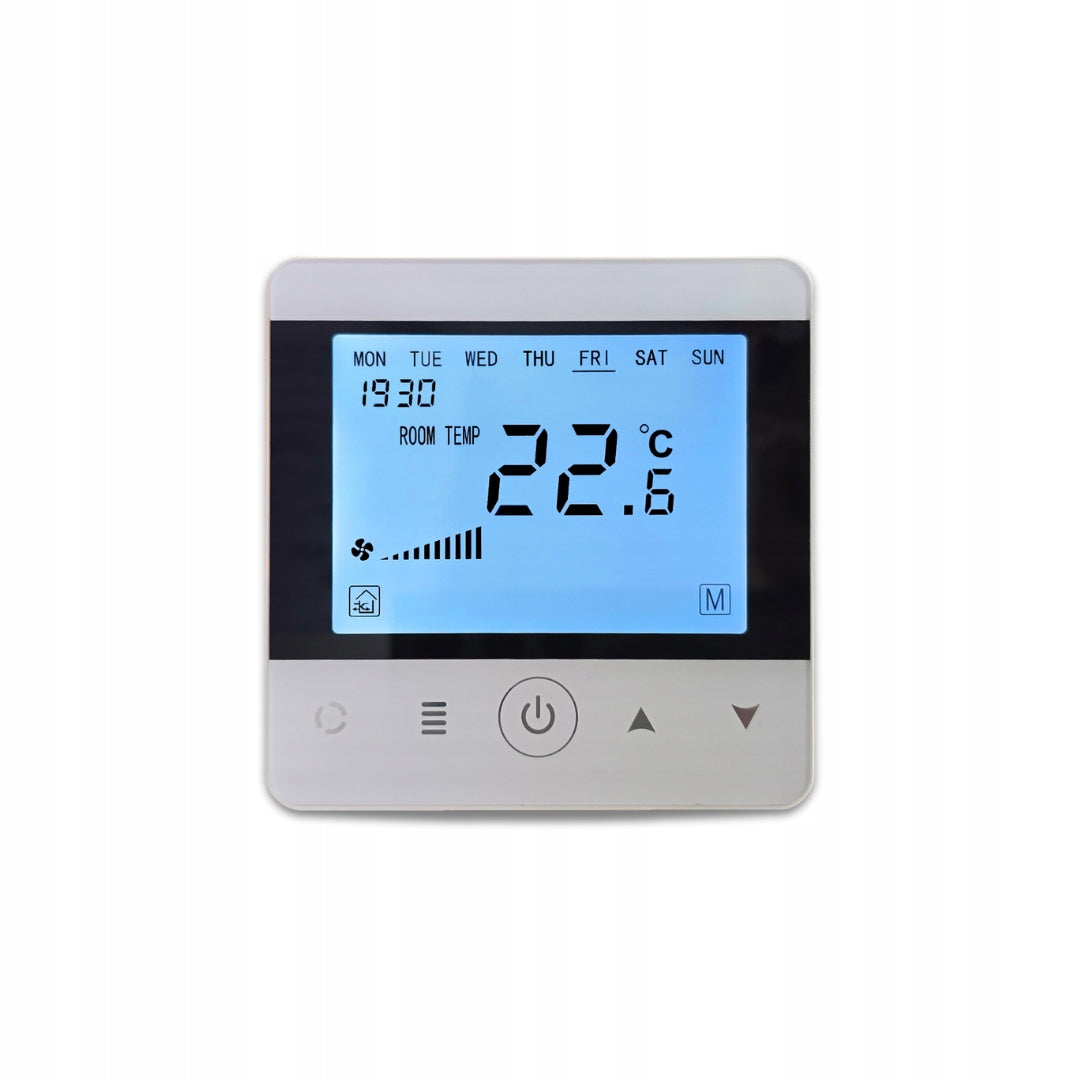

CONTROL SYSTEM

Responsible for controlling the operation of the entire device. Changing the settings is done through the control panel, which allows you to set the operating mode, turn the bypass on or off, set the power of the fans. In the ECO version, the controller also periodically informs about the need to replace filters.

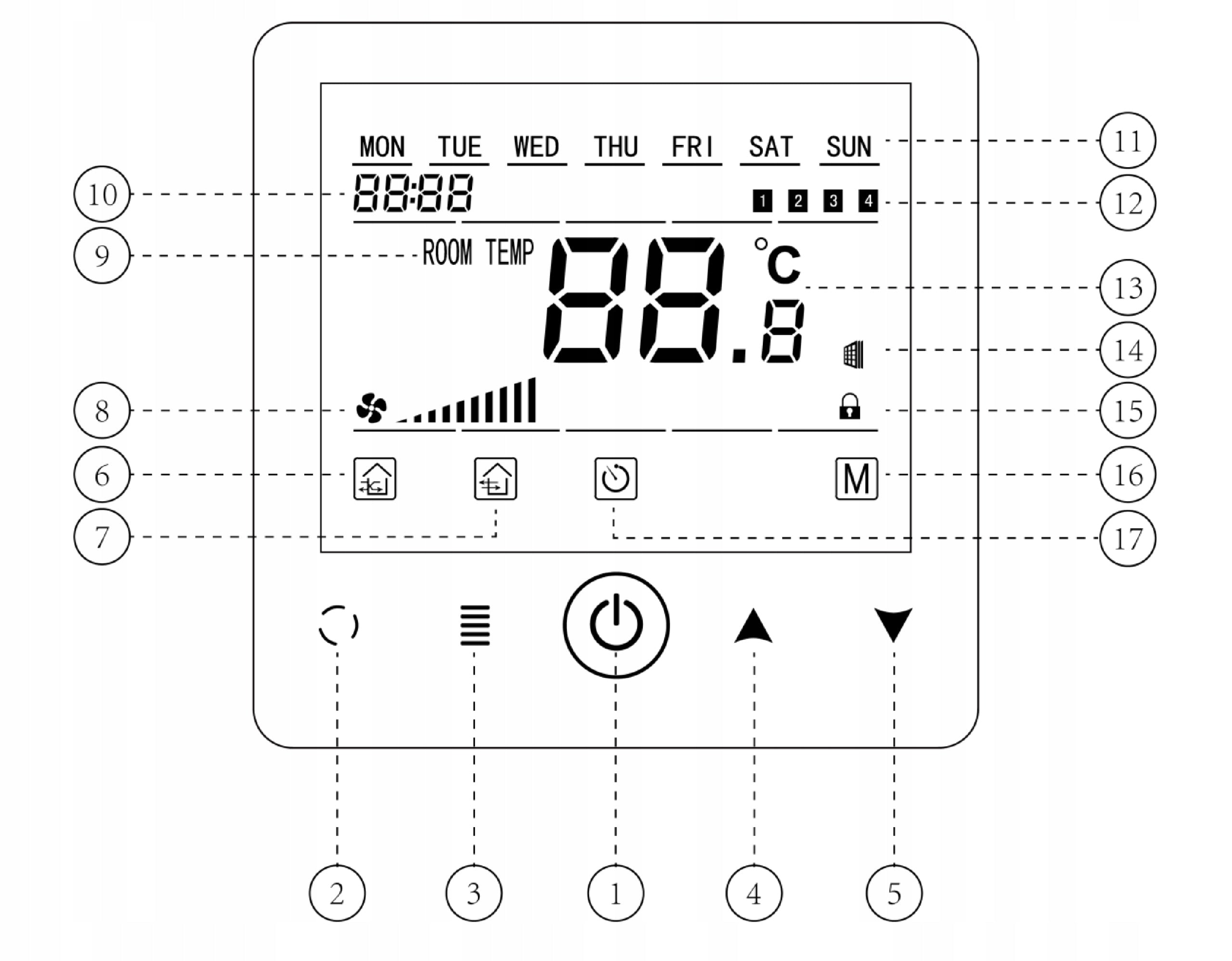

CONTROL PANEL DIAGRAM

1. Enable/Disable
2. Mode
3. Function key
4. Mountain
5. Down
6. Energy recovery mode
7. Bypass mode
8. Fan gear
9. Internal temperature
10. Time
11. Day of the week
12. Period of day
13. Temperature
14. Filter alarm
15. Screen lock
16. Manual mode
17. Automatic mode

FOR EXAMPLELOAD ASSEMBLY DIAGRAM OF THE STANDARD RECUPERATOR

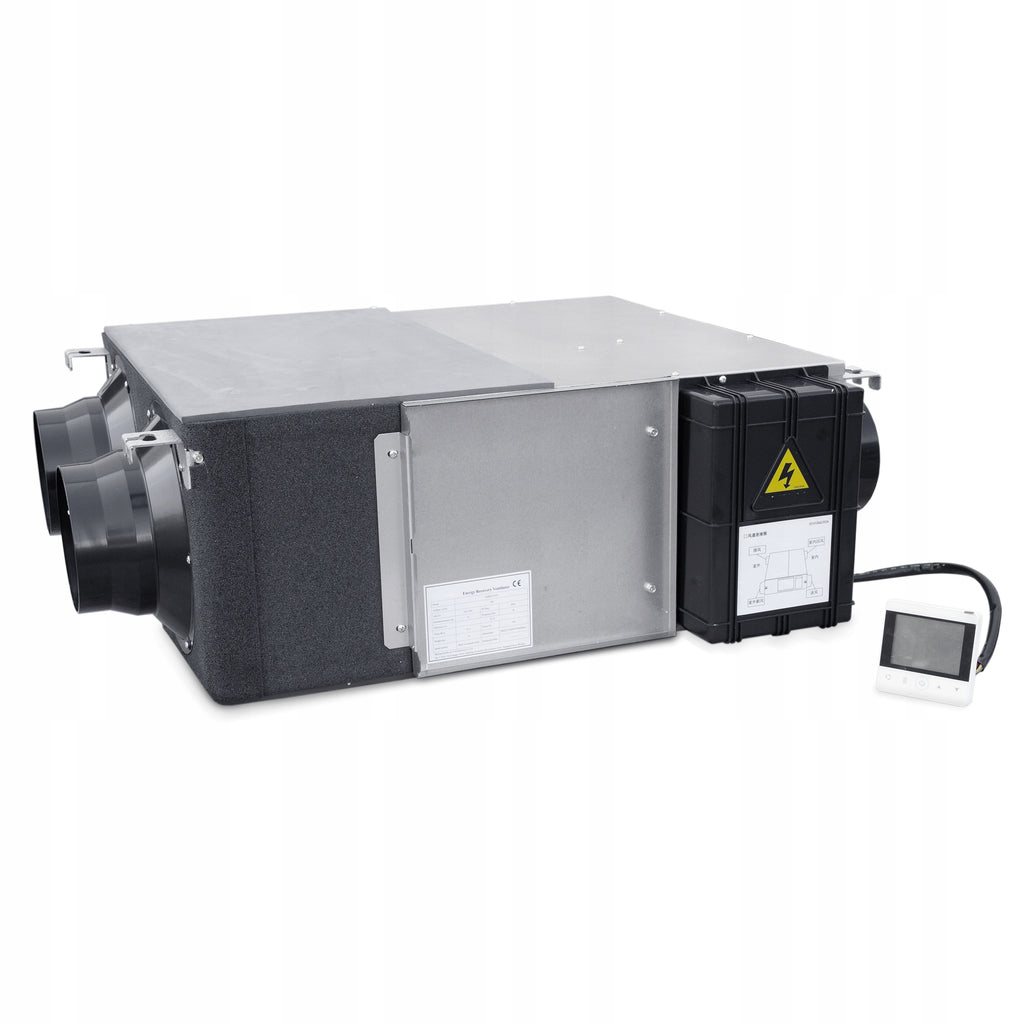

CONTENT OF THE SET

• Ventilation unit
• Control panel
• Instructions with warranty card
• Packaging

COMPONENTS OF THE WEBER ECO RECUPERATOR

• Housing, 2 fans (air and exhaust)
• Filters, enthalpic heat exchanger
• Bypass
• Control system

Air recuperators are the heart of recuperation - a ventilation unit with heat recovery, powered by electricity. Its main tasks include supplying fresh air to the interior of the house and exhausting the used one outside. Therefore, as soon as the recuperator is connected to a properly performed mechanical ventilation system, we are sure that heat recovery from previously used air will translate into lower costs associated with heating fees.

The proposed air recuperator is a device that has been designed so that its commissioning and operation itself is efficient and trouble-free, and thus gives a full guarantee of full satisfaction during its use.

TECHNICAL DATA

• Air recuperator WEBER : 200 / 300 / 400 / 600
• Producer: WEBER
• Model: ECO
• Air flow for model 200 (low / medium / high): 150 / 200 / 200 (m³/h)
• Air flow for model 300 (low / medium / high): 150 / 300 / 300 (m³/h)
• Air flow for model 400 (low / medium / high): 350 / 400 / 400 (m³/h)
• Air flow for model 600 (low / medium / high): 500 / 600 / 600 (m³/h)
• Pressure level for model 200 (low / medium / high): 60 / 70 / 75 (Pa)
• Pressure level for model 300 (low / medium / high): 75 / 82 / 85 (Pa)
• Pressure level for model 400 (low / medium / high): 80 / 85 / 88 (Pa)
• Pressure level for model 600 (low / medium / high): 89 / 92 / 97 (Pa)
• Enthalpy efficiency (heating) for model 200 (low / medium / high): 60 / 55 / 55 (%)
• Enthalpy efficiency (heating) for model 300 (low / medium / high): 62 / 57 / 57 (%)
• Enthalpy efficiency (heating) for model 400 (low / medium / high): 62 / 57 / 57 (%)
• Enthalpy efficiency (heating) for model 600 (low / medium / high): 63 / 59 / 59 (%)
• Effect. enthalpy (cooling) for model 200 (low / medium / high): 63 / 59 / 59 (%)
• Effect. enthalpy (cooling) for model 300 (low / medium / high): 65 / 61 / 61 (%)
• Effect. enthalpy (cooling) for model 400 (low / medium / high): 65 / 60 / 60 (%)
• Effect. enthalpy (cooling) for model 600 (low / medium / high): 67 / 61 / 61 (%)
• Temperature efficiency for model 200 (low / medium / high): 75 / 70 / 70 (°C)
• Temperature efficiency for model 300 (low / medium / high): 73 / 68 / 68 (°C)
• Temperature efficiency for model 400 (low / medium / high): 74 / 69 / 69 (°C)
• Temperature efficiency for model 600 (low / medium / high): 76 / 70 / 70 (°C)
• Volume for model 200 (low / mid / high): 25 / 30 / 31,5 dB(A)
• Volume for model 300 (low / mid / high): 27 / 34 / 34,5 dB(A)
• Volume for model 400 (low / mid / high): 31 / 37 / 37,5 dB(A)
• Volume for model 600 (low / mid / high): 29 / 35 / 39 dB(A)
• Output power for model 200: 105 W
• Output power for model 300: 117 W
• Output power for model 400: 150 W
• Output power for model 600: 200 W
• Voltage (for all models): 220 W
• Intensity for model 200: 0,5 A
• Intensity for model 300: 0,56 A
• Intensity for model 400: 0,72 A
• Intensity for model 600: 0,96 A
• Weight (net) for model 200: 23 kg
• Weight (net) for model 300: 25 kg
• Weight (net) for model 400: 31 kg
• Weight (net) for model 600: 36 kg
• Dimensions for model 200 (length x height width): 725 x 580 x 264 mm
• Dimensions for model 300 (length x height width): 675 x 599 x 270 mm
• Dimensions for model 400 (length x height width): 675 x 804 x 270 mm
• Dimensions for model 600 (length x height width): 754 x 904 x 270 mm
