Vėdinimo vamzdis su antibakterine danga, 75 mm

Trumpai apie prekę

Prekė: Vėdinimo vamzdis su antibakterine danga, 75 mm. Kategorija: Dalys.

• Gamintojas: Heatpex
• Modelis: ARIA_DUCT_75

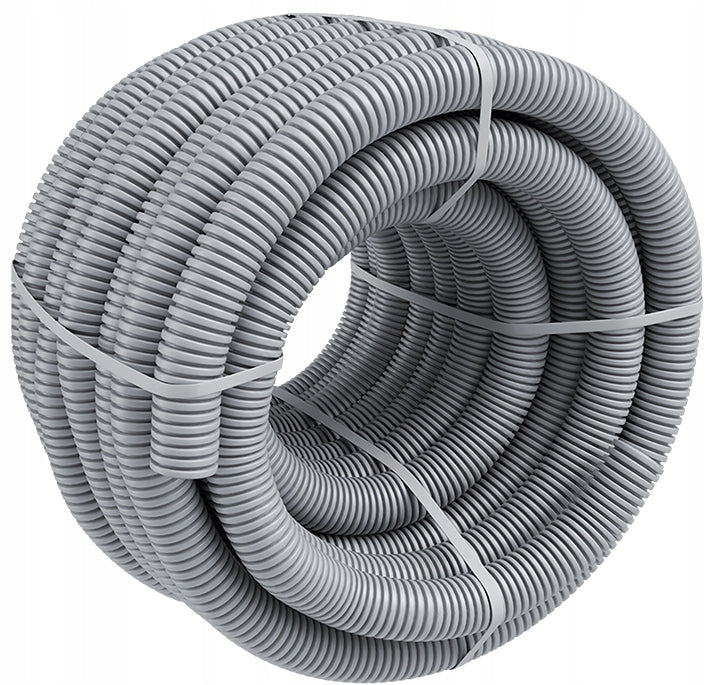

Ventilation pipe Heatpex Aria corrugated made of high quality high density polyethylene (PE-HD).

Length: 50mb

Properties:

• Antibacterial inner layer with an effectiveness of 99,99%, confirmed by independent tests. Ultrafresh® supplement completely safe for health.
• High flexibility allows for easy routing of ventilation ducts, freely shaping their course, adapting to the assembly requirements without the need for fittings and connectors.
• Smooth inner surface minimizes flow resistance. Additionally, it reduces contamination and makes it easier to clean the channel.
• Very good attenuation of noise generated by the transported air thanks to the double-walled construction of the pipe.
• The system is the only one on the market that has the highest tightness class – ATC 1 according to PN-EN 17192, ensuring lower noise level and energy-saving recuperation system.
• High mechanical resistance 500N.

HEATPEX ARIA recuperation system

It is the only system on the Polish market that meets the requirements of the highest tightness class ATC1 (according to PN-EN 17192) confirmed by tests. Combined with the high 99% effectiveness of the antibacterial coating, it is an essential element of ventilation installation in every home. The product is also PZH certified. High quality of materials used in the production and the latest technologies increase the durability of the installation and improve air quality. Guaranteed properties of the installation elements give a sense of security, and the fresh air provided by the system means health and well-being of your loved ones. The HEATPEX ARIA system means better air for you and your family.

Recuperation - the best way to effectively ventilate your home!

The answer to the shortcomings of gravity ventilation is recuperation, i.e. mechanical ventilation with heat recovery. Recuperation is able to provide continuous exchange of used air for fresh, regardless of weather conditions or season and heat recovery, thanks to which we save on heating.

What does recuperation give us?

• Continuous ventilation, with effectiveness independent of weather and season
• Always fresh, pollution-free air in every room
• Energy savings by reducing heat loss
• Ventilation intensity tailored to the needs of the user

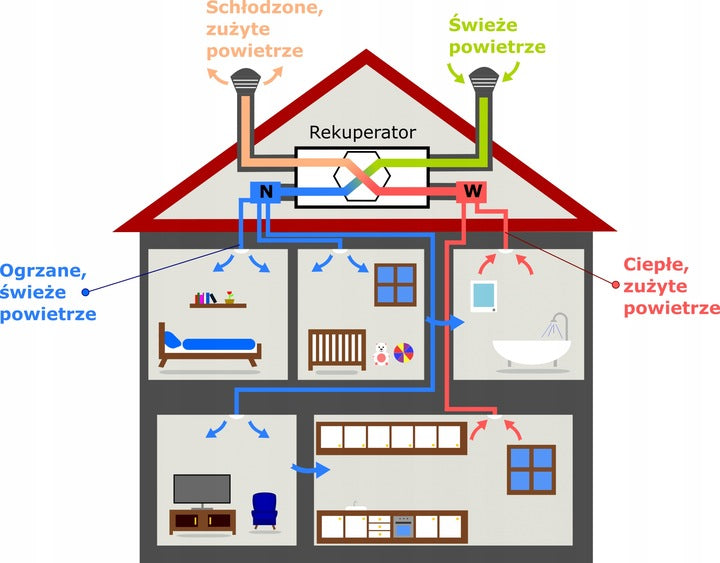

How does it work?

A ventilation unit with heat recovery, otherwise known as a recuperator, is responsible for putting air into motion. It sucks fresh air into the building from the outside, depriving it of pollutants thanks to the installed filters and draws the used air from the rooms.

Inside the recuperator there is a heat exchanger in which heat exchange takes place between the air streams supplied and removed, without mixing. However, the recuperator itself could not function without an air distribution system.

The HEATPEX ARIA system will effectively distribute air throughout the house, delivering it to “clean” rooms such as the living room or bedrooms and receiving it from “dirty” kitchens and bathrooms.

Easy and quick installation

The proprietary connection system allows you to easily connect all elements of the system without the use of tools. If changes need to be made during assembly, individual parts can be easily disconnected without the risk of damage.

Low noise

Optimally designed air flow through the system elements and the use of a double-walled pipe reduces noise levels, which is especially important during sleep and rest.

Low pressure losses

The well-thought-out shape of each of the system elements and the smooth inner wall of the pipe allows you to maintain low pressure losses throughout the installation.

High configurability

The modular design of the system allows it to be freely configured to best fit any building. This reduces the number of unused items while minimizing the space needed for installation and investment cost.

Hygiene

For the production of the pipe and elements of the HEATPEX ARIA system, Ultra - Fresh® coating was used, ensuring complete bactericidal activity of the pipe (99%), confirmed by an independent laboratory on the basis of the ISO 22196 test.

High strength

The system components are made of durable and lightweight plastic that ensures reliable performance for years to come, without the risk of mechanical damage or corrosion.

Small size

The small size of the HEATPEX ARIA system allows it to be hidden on the ceiling in the insulation layer under the screed or in the suspended ceiling.

Highest tightness class ATC 1

The materials used and the patented system of connection of elements allows to achieve the highest class of tightness - ATC 1 according to PN-EN 17192. This means three times higher tightness than the class D marked. It is achieved without the use of additional sealing materials during installation.

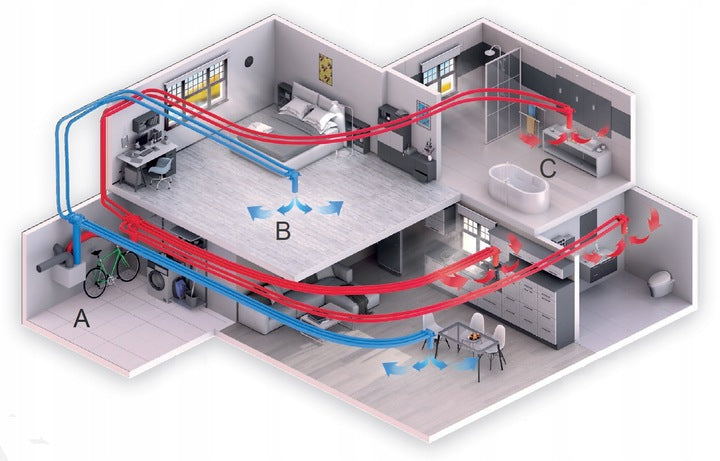

A - Extracting and filtering air from outside. Drainage of used air outside the building

B - Distribution of fresh air indoors

C - Collection of polluted air and discharge to the outside of the building

Specifications
