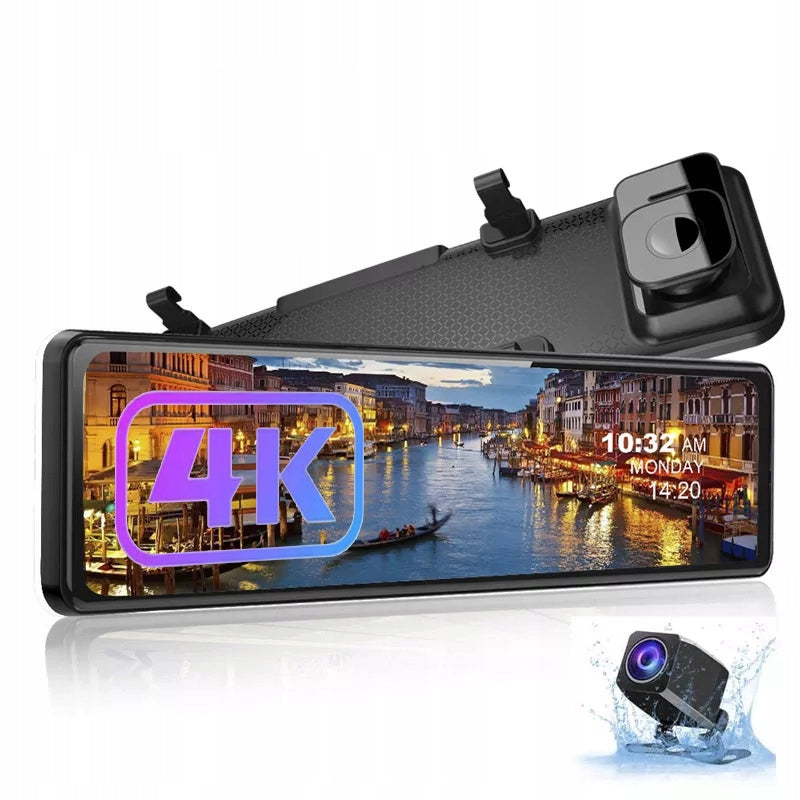

Veidrodinis 4K DVR vaizdo registratorius su WiFi, GPS ir galinio vaizdo kamera

Trumpai apie prekę

Prekė: Veidrodinis 4K DVR vaizdo registratorius su WiFi, GPS ir galinio vaizdo kamera. Kategorija: Vaizdo registratoriai.

• Gamintojas: Home Automation
• Modelis: HA410

HA410 at a glance:

DVR, Rear-view mirror (camera cable 6m), video recorder,reverse camera, touch screen 11,22 inch,camera, automatic start, parking monitoring mode,motion sensor, audio recording, 3-axis overload sensor - G-Sensor,parking mode, GPS position recording, WiFi wireless communication,loop recording, built-in microphone and speaker,TF/SD memory card reader 256GB max., USB-C connector,excellent night vision, front camera viewing angle170° (4K UHD) and rear camera 140° (1080P), HDR, WDR, as well as:

• MENU in Polish,
• INSTRUCTION in Polish,

Model HA410:

• Maximum ease of use
• Reliability
• Uncompromising quality and aesthetics
• Highest possible camera parameters
• Unrivalled recording resolution
• GPS location via external antenna
• Large, crystal clear image on the touch screen
• Gesture control
• WiFi wireless communication

Even without additional ANDROID software, it is worth having a reversing camera and a rearview mirror not obscured by any obstacles. Neither splashed with rain or snow, nor soiled rear window, or packed up to the roof, the car will not be an obstacle to have a full-screen, twelve-inch view of what is happening in the back.

Whether day or night there can always be a crash, scratch or act of vandalism and it is worth having hard evidence in the form of clear video recording revealing the perpetrator.

1. Automatic start of recording - The recorder starts automatically and starts recording when the car ignition is turned on and automatically turns off when the ignition is turned off (with a delay of several seconds). The recorder must be constantly connected to the power supply from the car cigarette lighter socket.

2. Rearview camera with cable 6 or 10 meters (surcharge) - real-time image, undisturbed weather conditions, vehicle length irrelevant.

3. The 12-inch full-format touchscreen display provides crystal clear images without any lag. HDR, WDR and Auto Adjusting Brightness Streaming Mirror systems make the user experience amazing.

4. Recording in 4K, the front camera captures 2160P image, and the rear camera 1080P. The wide dynamic range of the systems controlling the adaptation of image parameters allow you to record optimally even in poor visibility by adjusting the exposure time to make the recording readable.

5. In parking lot monitoring mode, the device starts recording when any movement is detected in the field of view of the cameras, and then the recording system secures the recording in memory automatically when shock or impact is detected by the shock sensor (G-sensor).

6. The GPS Logger function ensures that each frame of the video is marked with the GPS position coordinates in which the vehicle was at the moment, along with a satellite-synchronized timestamp.

7. In driving mode, the G-Sensor is activated in the event of a collision or sudden manoeuvre. The device records the material recorded during the accident and protects it for later use.

8. Loop recording replaces old recordings with new ones when the memory is full, only previously secured recordings are not overwritten.

9. Automatically change the way the rearview camera is presented when the parking manoeuvre begins. The display shows the correspondingly enlarged lower part of the rearview camera frame.

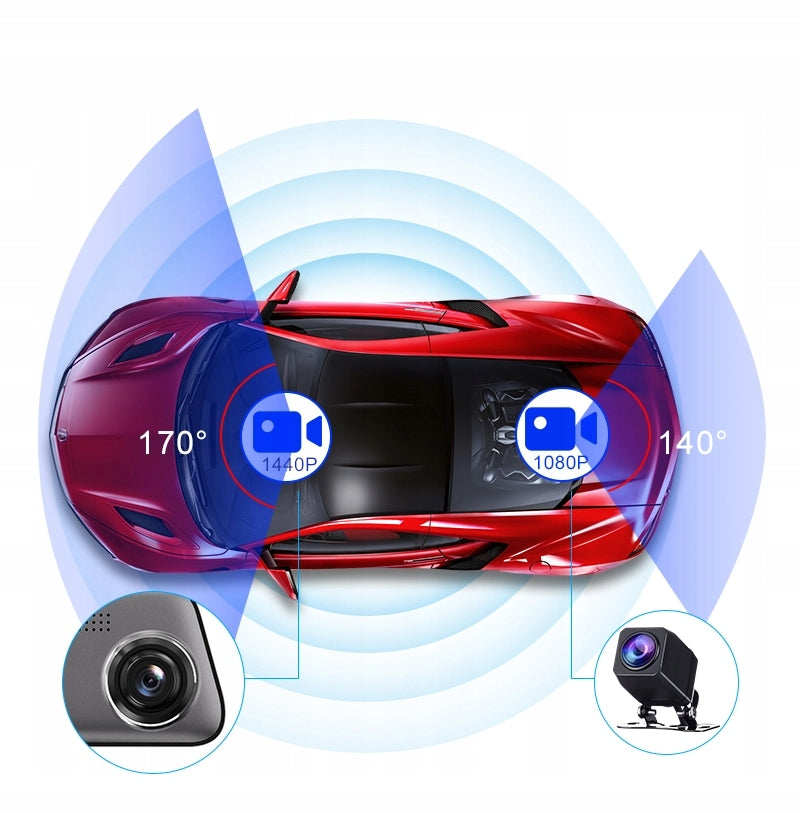

10. The wide-angle lenses of the 170° and 140° cameras significantly expand the driver’s field of view and allow you to capture every road event from a wider perspective. This allows you to record details even outside the driver’s eye area.

11. Wireless transmission of Audio-Video streams from both cameras using WiFi technology enables remote operation of a device within network range using a smartphone or other device based on Android or iOS and remote reception of image (from both cameras) and sound (from the front camera, where a microphone is also mounted).

> 12 inch full screen panoramic camera image. It allows you to monitor the road in front of and behind the car in 16:9 format, and when switched to stand-by mode, it becomes a wide rearview mirror with very good image quality.

> Loop recording. One of the main and most important features of car DVRs, the inclusion of this function allows you to set the length of recorded individual video materials (2 min, 3 min, 5 min). Disabling this option will result in continuous recording of the video material (not recommended), however, please note that the maximum length of the video is limited by the size of the 2GB file resulting from the limitations of the file format.

> Screen split 1:1. Full-screen image from the front camera, or full-screen image from the rear camera, and when you want it, image from both cameras at the same time, on one half the view from the front, and on the other the view from the back. Recording of both video channels.

> Touch screen in capacitive technology on the entire surface of the mirror. Six times the range of view compared to a traditional rear-view mirror. Instead of external tiny buttons that are always wrong, operate with clear, large and intuitive touch screen icons.

> 3-axis overload sensor (G-sensor). When the three-axis shock sensor detects sudden changes in overload (sharp braking, collision, sudden steering), the device immediately saves the recording to a protected catalog protecting against automatic overwriting. All dangerous situations will be recorded automatically and will remain available for inspection as evidence if necessary, without the need for any interference from you.

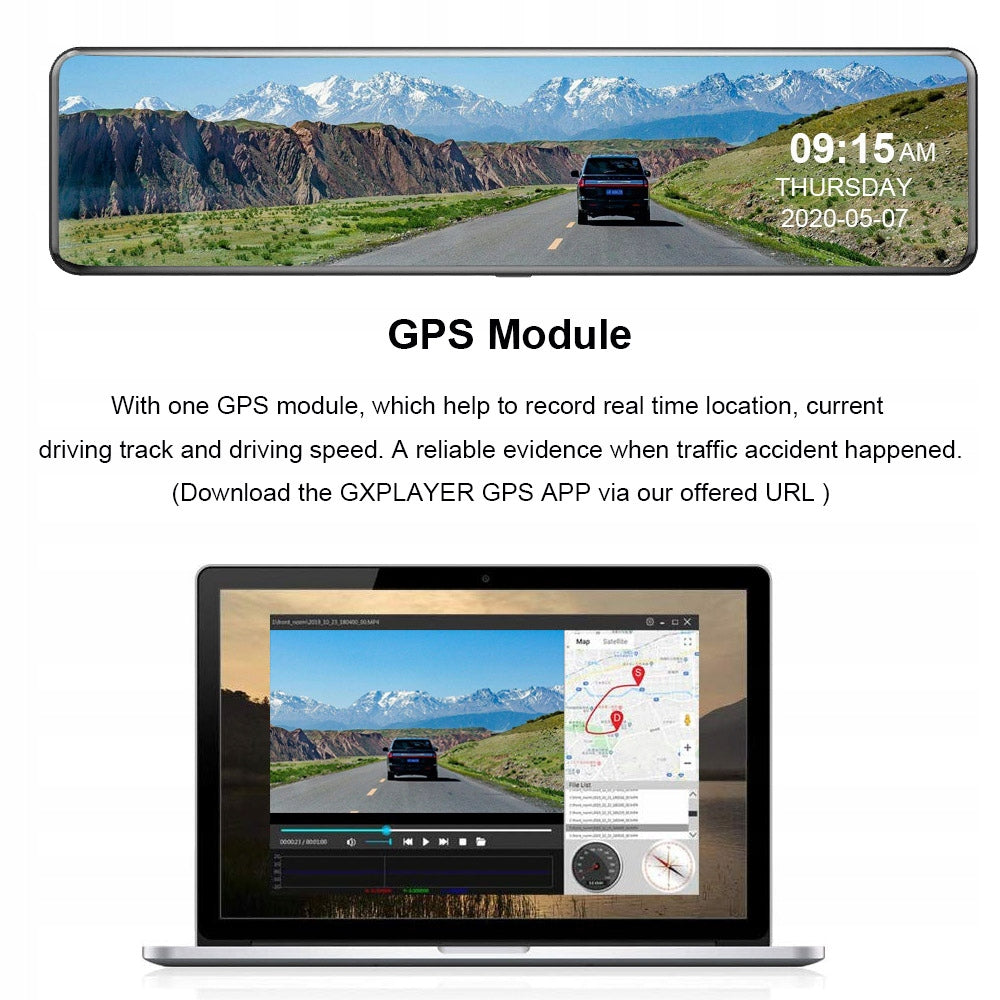

GPS positioning - the exact value of the instantaneous speed of the car is displayed and recorded, and GPS coordinates of the current location of the vehicle along with the speed are recorded on each frame of video material.

In the event of a collision or police control, information about the exact position of the vehicle or its speed is often needed at a given moment, which is why the recorder is also equipped with the ability to record these parameters. Each recorded frame of video material is accompanied by information about the speed and GPS coordinates of the vehicle.

> UHD 4K 2160P Video. The front camera captures images with full-hd 4K 2160p (3840×2160) resolution. The wide adaptive range of aperture size and exposure time (WDR) allows the recorder to optimize and sharpen the image in all lighting conditions.

> 170° and 140° wide-angle lens. The convex lens greatly expands the driver’s field of vision and allows you to capture any road event from a wider perspective. It allows you to record details even outside the driver's eye area.

> Night mode.

The highest image quality at night is ensured by specialized SONY cameras from the IMX series (F/1.8, F/2.0) and WDR (Wide Dynamic Range) and HDR systems.

The best video sensors available on the market for consumer electronics from Sony IMX series guarantee the highest quality of recorded image.

HDR-WDR in car cameras works by using appropriate algorithms to analyze image exposure and dynamically changing the values of underexposed and overexposed pixels of monitored scenes to show underexposed elements in the image. Thanks to this, we have the ability to accurately record the scene despite high contrast. Thanks to the wide lens and WDR technology, the device performs well even in difficult lighting conditions. The extended dynamic range of the image allows for a clear and detailed image, thanks to the skilful leveling of both too bright and darkened fragments of the recording. Thanks to the WDR function, it is possible to maintain the readability of the entire observed scene.

> Parking mode. Automatic start recording after activating the system with any shock and recording evidence for the police.

Specification:

• Screen size: full screen, rectangular, 11,22 inch HD IPS touch screen, 1920x380P
• Front Resolution: 4K 2160P@30fps (F/1.8),
• Back resolution: 1080P@30fps (F/2.0), cable: 6m/10m (extra charge)
• Processor: Huawei Hisilicon Hi3559V200
• External memory: max. 256GB micro SD, Class 10
• Video Recording Format: MP4
• Video compression: H.264/H.265
• Static Image Recording Format: JPG
• Camera Viewing Angle: Front 170°, rear 140°
• Speaker and Microphone: Built-in
• Number of Video Channels: 2
• GPS antenna: Supported
• Battery: Lithium - Polymer 750mAh
• Temperature range: -20°C to 70°C
• Product Dimensions [mm]: 283 x 70 x 18

1. Video recorder HA410

2. Fastening bands

3. Instruction manual in language. Polish

4. Rearview camera with 5,6 m cable (or 10m at extra charge)

5. USB-C power supply for cigarette lighter socket (wire about 4m)

6. GPS antenna with cable about 3,5m

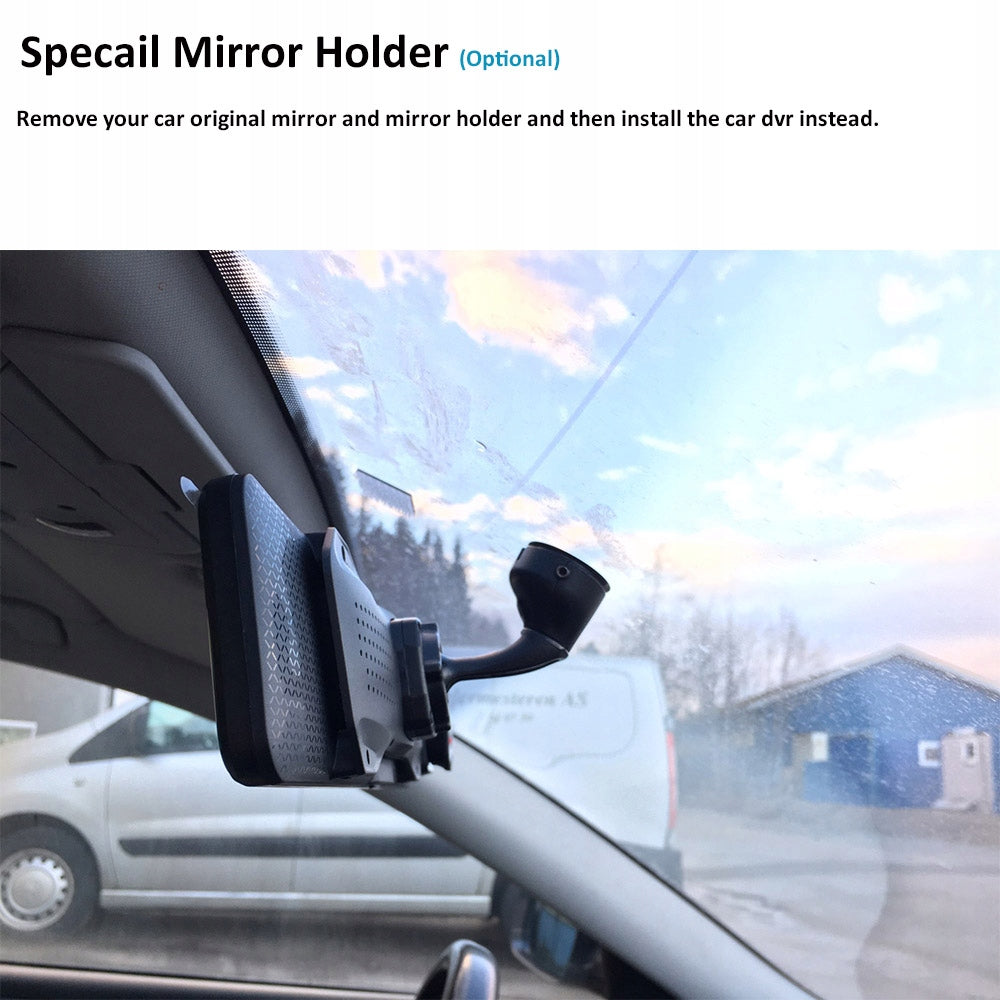

Optionally, handles are available allowing for alternative forms of mounting (to be purchased in a separate offer)
