Vejapjovė CEDRUS FM70-W, 70 cm

Trumpai apie prekę

Prekė: Vejapjovė CEDRUS FM70-W, 70 cm. Kategorija: Benzininės vejapjovės.

• Gamintojas: no brand
• Modelis: FM70-W
• Galia: 9 kW

CEDRUS Poland

5906434288753

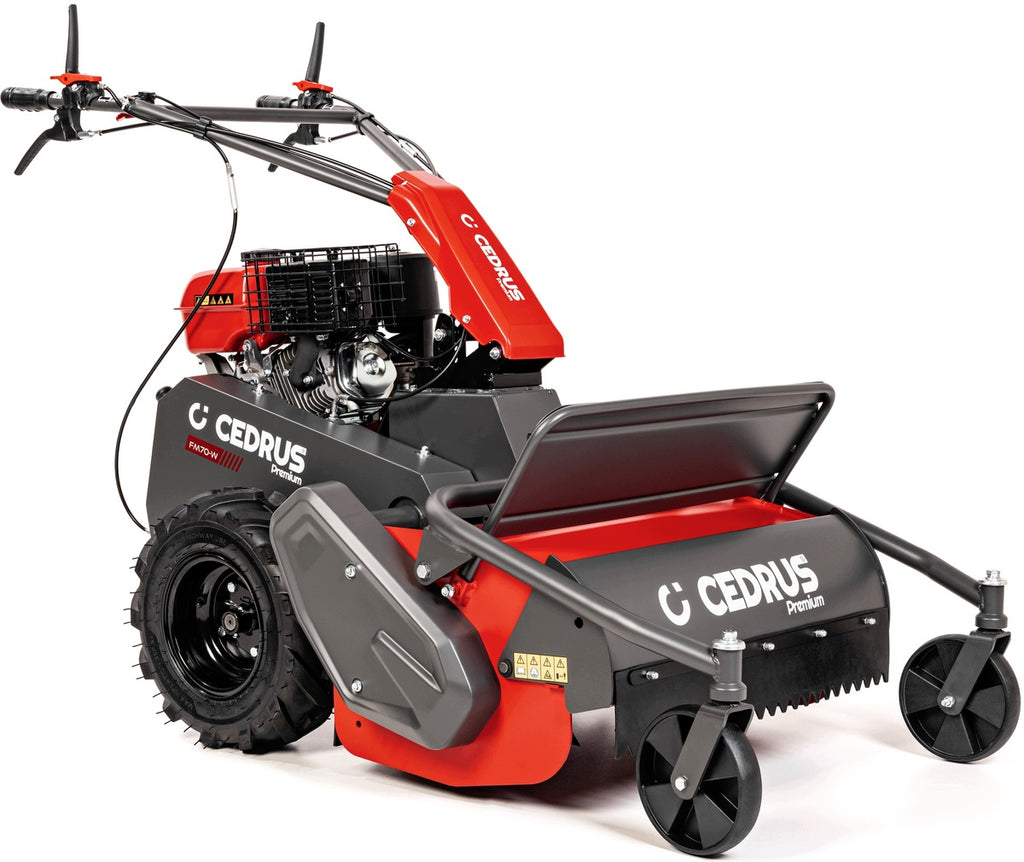

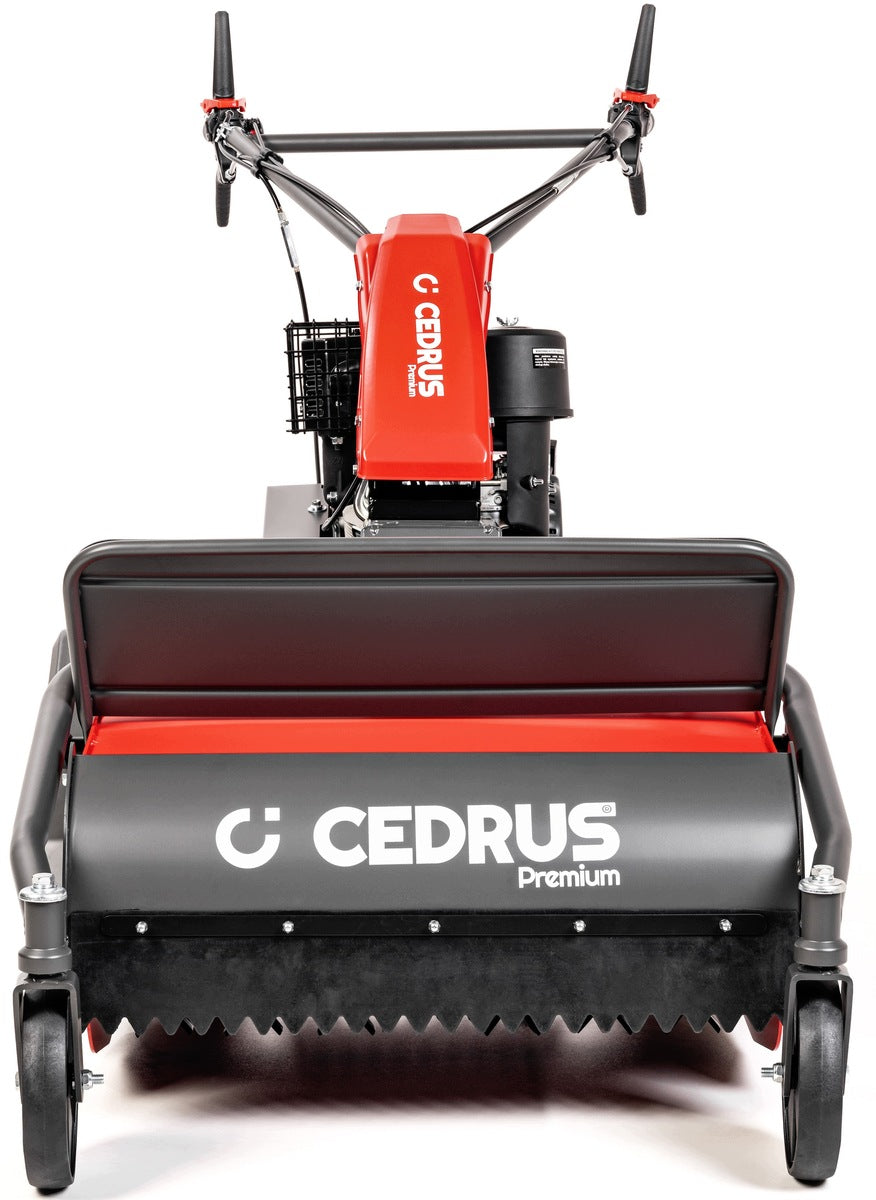

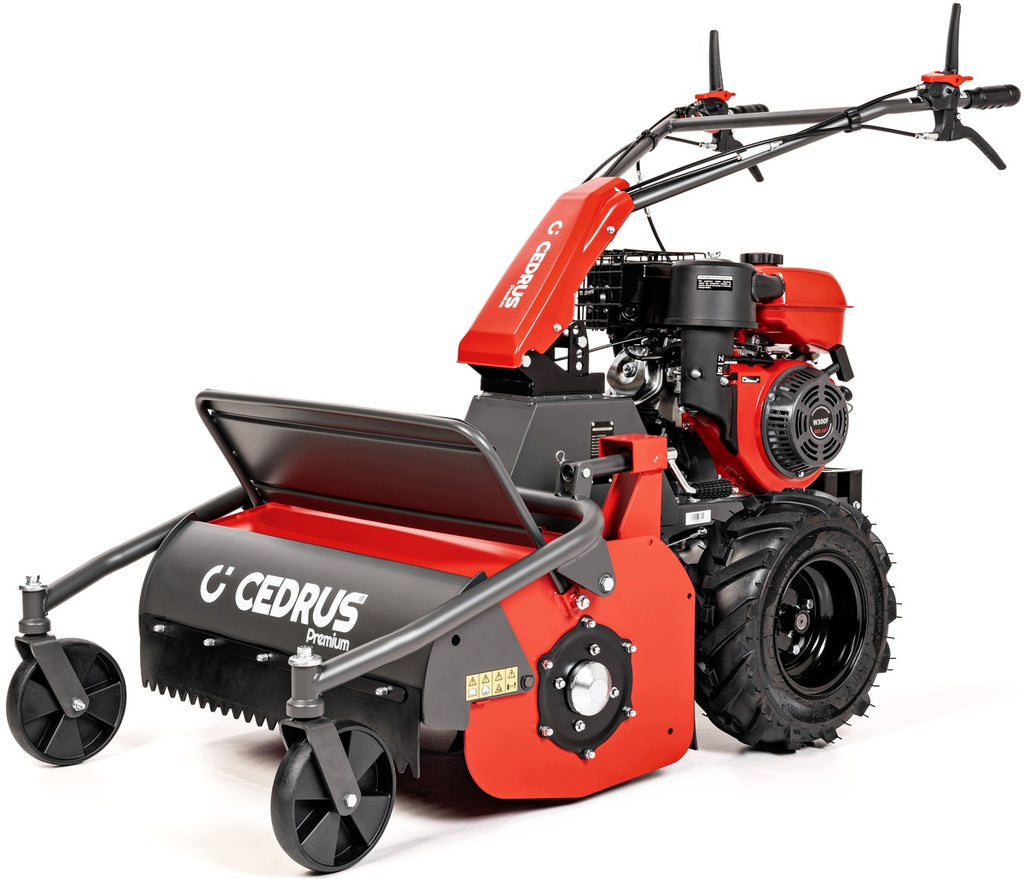

The CEDRUS FM70-W 302cc 70cm mower is a solid machine for grass, weeds and brush on plots and wastelands. Equipped with 36 flail knives, rear-wheel drive and central height adjustment, it will work where classic mowers fail.

CEDRUS FM70-W GRUBLESS FLAIL MOWER FOR GARDEN BRUSH 70 CM

CEDRUS FM70-W - 302cm3 – Powerful flail mower for heavy duty work

The CEDRUS FM70-W flail mower is a machine designed for intensive mowing of grass, weeds and dense brush in private areas, recreational plots and wastelands. Thanks to its design, it works especially where traditional mowers can not cope with high and uneven vegetation. This model allows you to effectively remove both fresh and less regularly mowed greenery.

Are you looking for a machine that can handle where regular lawn mowers fail? The CEDRUS FM70-W is a professional flail mower designed for the most demanding tasks. Thanks to the powerful 302 cm³ motor, this device easily grubs tall grasses, dense thickets and woody shoots on wastelands.

Why choose the CEDRUS FM70-W?

• Extreme performance: Equipped with a powerful motor, the mower guarantees smooth operation even in very dense vegetation.
• Flashing system: The use of durable flail knives allows not only to mow, but also to precisely shred vegetation, which quickly turns into natural fertilizer.
• Solid construction: The reinforced frame and durable suspension system make the machine ideal for uneven, difficult terrain.
• Mowing height adjustment: Allows you to adjust the operating parameters to the specifics of the terrain and the type of vegetation.

Key features and benefits

• Working width 70 cm – allows efficient mowing of larger areas in a shorter time, which is important on plots and wastelands.
• Flash knife system (36 pcs. ) – allows for efficient shredding of grass, weeds and brush. 36 knives, 18 sections of 2 knives in the Y system ensures effective cutting of even harder vegetation.
• Rear wheel drive – makes it easier to drive the mower on uneven, steep or muddy terrain.
• Central cutting height adjustment – allows you to precisely adjust the cutting level to the conditions and type of vegetation.
• Adjustable steering wheel vertically and horizontally – improves the comfort of work, allowing you to adjust the machine to the height and preferences of the operator.
• Change of gears and rotations from the position of the operator – improves handling when working on diverse terrain.

Ideal mower for wastelands and large areas

The CEDRUS FM70-W is a favorite choice of greenery professionals, owners of large plots and fruit growers. It is a machine that turns a weeded field into an orderly area in just a few moments.

Technical data:

• Manufacturer Cedrus
• Model FM70-W
• Engine manufacturer Weima
• Engine model W300F
• Engine type Single cylinder, four stroke, OHV
• Type of air filter Oil, wet type
• Fuel Gasoline
• Engine capacity 302 cm3
• Max. Engine power 9 HP
• Startup Manual proven and easy to use startup system
• Fuel tank capacity 6,5 l
• Oil pan capacity 1,1 l
• Driving drive Yes
• Driving system Wheel
• Number of forward gears 3
• Number of reverse gears 1
• Transmission of drive Mechanical transmission with belt drive
• Transmission of the drive of the working system Belt
• Type of clutch Mechanical
• Transmission capacity 1,6 l
• Working width 69 cm
• Working height 8 – 50 mm
• Cutting height adjustment Mechanical, with crank knob
• Type of knives Flash knives
• Configuration of knives 36 knives, 18 sections of 2 knives in Y layout
• Rotation speed of the working shaft 3000 rpm /min
• Working speed 0,1 – 0,3 m/s
• Working efficiency approx. 400 m2/h
• Vertical guide handle adjustment
• Wheel Size 6.5-8
• Dimensions (L. × W. × H. ) 173 × 81 × 95 cm
• Net / gross weight 155 / 182 kg
• Knife type: Bijakowe (for brush and tall grasses)
• Application: Uses, orchards, photovoltaic farms, roadsides.
• Wet air filter – more effective protection of the engine when working in dusty conditions

Flail mower with a compact design, designed for mowing grass and brush. Mowing grass, weeds and green brush on plots, private areas, wastelands.

Drive system and gears

• Rear wheel drive – improves traction on more difficult terrain
• 2 forward and 1 backward gears – easier to maneuver in tight spaces and when reversing
• Belt-tooth drive transmission – ensures smooth operation and easier service
• Oil capacity in gearbox: 1,6 l (GL-4 / 80W90)
• Drive: for rear wheels
• Drive Transmission: Belt-Toothed
• Transmission oil: GL-4 / 80W90

Working system – flail knives

• Total 36 knives, 18 sections of 2 knives in Y system – effective shredding of vegetation of different hardness
• Mowing width 700 mm – allows quick coverage of larger areas of land
• Central precise height adjustment – allows you to adjust the height to the type of terrain and the degree of weed infestation

Ergonomics:

• Steering wheel adjustment in two planes – adjustment to height and preferences
• The ability to change gears and rotations from the operator’s position – increases the convenience and safety of everyday work
• Horizontal steering wheel adjustment
• Vertical steering wheel adjustment
• Regulation of rotation from the operator position
• Shifting gears from the operator position

The CEDRUS FM70-W flail mower is especially recommended for maintaining areas where vegetation is sometimes neglected or regularly unmowed, as well as for eliminating weeds and thickets. It will also work well in cleaning works in municipal areas and in agritourism farms. With a working width of 70 cm and an efficient knife system, you can effectively take care of a variety of surfaces. It is worth remembering to choose the right engine oil, e.g. LONCIN 10W30 and for gearbox (GL-4 / 80W90), as well as regular control of the condition of filters and knives.

Effects of flail mower operation

The flail mower is a device that offers exceptional performance and efficiency during landscaping. Below we present the main effects of the work of the flail mower, which make it an indispensable tool in gardening and agriculture.

1. Accurate shredding of vegetation

The flail mower, equipped with serrated shredding knives, effectively shreds both tall grass and dense vegetation, including shrubs and branches. Thanks to this, the area is evenly trimmed and the plant residues are finely fragmented, which facilitates their biodegradation.

1. Better fragmentation and even distribution of material

Thanks to the use of beaters that cut vegetation into small pieces, the shredded material is evenly distributed over the surface of the terrain. This helps in the natural fertilization of the soil, because shredded plant residues quickly decompose, enriching the soil with nutrients.

1. Elimination of weeds and pests

Regular mowing with a flail mower helps eliminate weeds and reduces pest populations. Shredding vegetation makes it difficult for weeds to take root again, which contributes to a healthier and more aesthetically pleasing appearance of the terrain.

1. Preparation of the site for further work

Preparing the terrain for further work, such as sowing or planting, is much simpler after using a flail mower. Thanks to the thorough fragmentation of vegetation, the soil is better prepared for the next stages of care.

1. Reduction of waste

The operation of the flail mower significantly reduces the amount of plant waste that needs to be removed or composted. Shredded residues remain in place, reducing the need for additional waste management activities.

1. Applicability

The flail mower is an extremely versatile tool that will work both in lawn care and in more difficult conditions, such as meadows, pastures or wastelands. Thanks to this, it can be used in various places, adapting the work to the specific needs of the terrain.

Practical operating instructions

Regular inspection of the oil level in the engine and gearbox and cleaning of the air filter extend the life of the machine. Thanks to the use of commonly available types of oil and fuel, servicing is not difficult even for less experienced users. When working in very dense vegetation, it is recommended to check the condition of the knives and replace them regularly to maintain optimal mowing efficiency.

Check also other garden machines Cedrus

If you are looking for other equipment for the care of green areas or need a machine with different parameters, see the full offer in the category Garden and construction machinery or check out other models of the CEDRUS brand

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Internal combustion engine power	9 KM
Parametry	Power	9 kW
Parametry	Drive	all-wheel drive
Parametry	Brand	no brand
Parametry	Basket	without a basket
Parametry	Basket capacity	0 l
Parametry	Mowing height adjustment	with adjustment
Parametry	Mowing width	70 cm
Parametry	Motor manufacturer	Weima
Parametry	European emissions standard	EURO 5
Parametry	Engine displacement	302 cm³
Parametry	Method of fixing wheels	ball bearings
Parametry	Mowing height adjustment type	central
Parametry	Mowing height adjustment range	8–50 cm
Parametry	Tool weight	98 kg
Parametry	Product weight with unit packaging	182 kg
Parametry	Functions	mulching
Parametry	Manufacturer code	CEDFM70-W
Parametry	Packaging status	original
Parametry	Product width	81 cm
Parametry	Model	FM70-W
