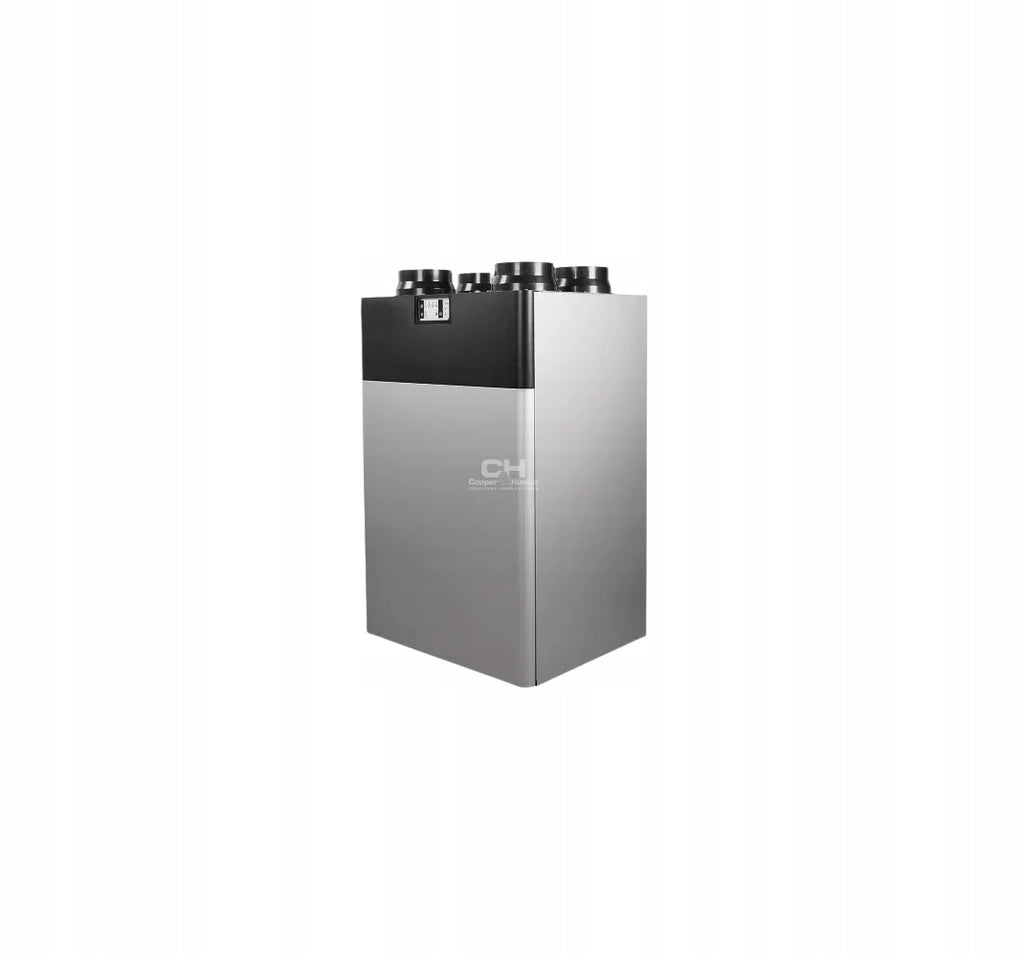

Vertikalus rekuperatorius COOPER&HUNTER CH-HRV2.5TKEC

Trumpai apie prekę

Prekė: Vertikalus rekuperatorius COOPER&HUNTER CH-HRV2.5TKEC. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: CH-HRV2.5TKEC

Manufacturer:

Condition: new

Packaging: original

Origin: official distribution

Warranty: manufacturer

COOPER&HUNTER CH-HRV2.5TKEC Vertical Heat Recovery Unit

This heat recovery ventilation unit is designed for ventilating apartments, offices, and other rooms. It's an easy-to-install system that can recover up to 95% of the energy used for heating or cooling your spaces.

• Top Ported, Compact Design
• 4 Operating Modes
• Supply Air Option: Left or Right Side
• EPP Internal Structure
• Counter-flow Heat Exchanger, Washable
• Heat Recovery Efficiency: Up to 95%
• EC Fans
• Automatic Bypass
• Wired or Wireless Control Capability
• Optional Left or Right Unit Configuration for Installation

Reliability

Auto-Restart Function

In case of a power failure or outage, the unit remembers its last settings and automatically resumes operation with those settings once power is restored.

Easy Maintenance

Replacing components and maintaining the unit is made simpler.

Wide Temperature Range

The unit operates within a broad voltage and power supply range, significantly reducing the impact of ambient temperature fluctuations.

Comfort and Health

High-Quality Motor

High-quality motors ensure consistent and quiet operation of the unit.

High Efficiency

The air conditioner is designed for high performance and energy-saving operation.

Energy Saving Function

When this function is active, temperature settings are limited to conserve energy.

Auto Mode

Construction Elements

Al DC Inverter

Compact Design

Smaller unit dimensions facilitate easier installation and transport, while also reducing service costs.

Multiple Fan Speeds

With a wide range of fan speeds, the unit can adjust its speed to meet current needs and conditions.

Unit with Static Pressure Capability

The ducted unit has adjustable static pressure capabilities.

Fresh Air Function (Optional)

External Electric Heater (Optional)

Option to control an additional electric heater.

Control

Turbo Function

Function for quickly adjusting the temperature to user requirements.

Centralized Control

Ability to control the unit remotely.

Remote Monitoring (Optional)

Ability to monitor the unit remotely.

Safety Features

Self-Diagnosis

Unit malfunctions are indicated on the display using error codes, making it easier to diagnose the causes.

Low Voltage Start

The unit safely starts up even with reduced voltage.

Protections

The unit is equipped with multiple features to ensure reliable operation.

Wide Voltage Range

The unit operates across a wide voltage range, reducing the impact of voltage fluctuations on its performance.

Intelligent Defrost System

If necessary, the unit automatically defrosts itself, increasing heating efficiency and saving energy.

Technical Specifications Model CH-HRV2.5TKEC CH-HRV3.5TKEC CH-HRV5TKEC Airflow m3/h 250 350 500 ENTHALPY Heating % 70 70 69 Cooling % 63 63 66 Temperature Recovery at Rated Flow % 85 85 85 Maximum Temperature Recovery % 95 95 95 Sound Pressure Level dB(A) 35 37 39 Static Pressure Pa 130 150 160 Power Supply V/Hz/F 230V/50Hz 230V/50Hz 230V/50Hz Power Consumption W 170 320 480 Current Consumption A 1.5 2.4 3.2 Energy Class / A A A Power Cable mm2 2x1.5 mm2 2x1.5 mm2 2x1.5 mm2 Communication Cable mm2 2x0.5 mm2 2x0.5 mm2 2x0.5 mm2 Net Weight kg 40 40 50 Dimensions [W x H x D] mm 595x480x975 595x480x975 655x625x1085 Connection Ports mm 160 160 200 OPERATING RANGE Standard °C -10 to 40 -10 to 40 -10 to 40 With Additional Heater °C -20 to 40 -20 to 40 -20 to 40

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Kind	heat recovery ventilator
Parametry	Manufacturer code	CH-HRV2.5TKEC
Parametry	Range of energy efficiency classes	A+ - G
Parametry	Energy efficiency class	A+
Parametry	Batteries included	no
