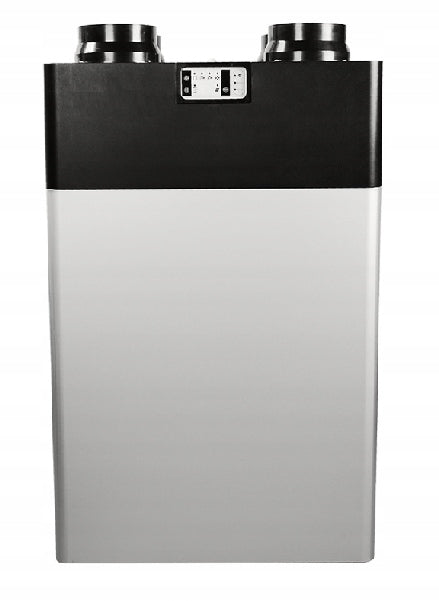

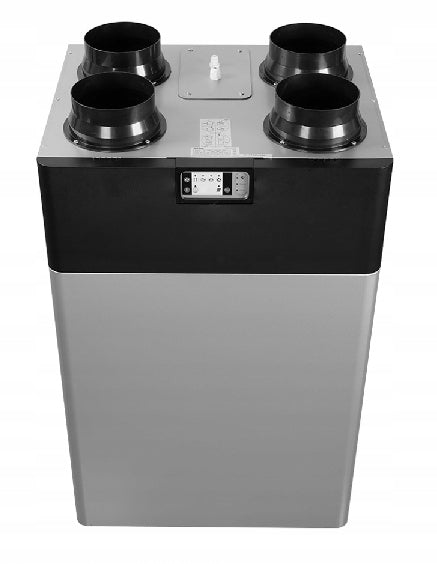

Vertikalus vėdinimo įrenginys NOXA NXCFA-350TV1, 350 m³/val., su WiFi

Trumpai apie prekę

Prekė: Vertikalus vėdinimo įrenginys NOXA NXCFA-350TV1, 350 m³/val., su WiFi. Kategorija: Rekuperacinės vėdinimo sistemos.

• Gamintojas: no brand
• Modelis: NOXA Rekuperator NXCFA-350TV1 z WiFi

Recuperator, ventilation unit NOXA 350 m3/h with 3D countercurrent exchanger, touch controller and WiFi module.

A device designed for vertical mounting on the wall.

The NXCFA series recuperator is designed to work in supply and exhaust systems with heat recovery for applications in residential and public buildings. The device has a number of high-quality components that make it meet the highest requirements of energy-efficient buildings.

- Model: NXCFA-350TV1

- Power supply: 230V/1ph/50Hz

- Maximum value of air flow rate: 350 m3/h

- Compress max.: 150 Pa

- Number of fan gears: 4 + 1 (boost)

- Air supply:

• 1 gear = 100 m³/h
• 2 gear = 130 m³/h
• 3 gear = 180 m³/h
• 4 gear = 245 m³/h
• 5 gear (boost) = 350 m³/h

- Max. Electrical power consumption: 272 W

- Temperature recovery efficiency: 85%

- Sound pressure level: 37 dB(A)

- Weight: 40 kg

- Dimensions (W) × H. × D. ): 595 x 975 x 480 mm

- Channel dimensions (diameter): 160 mm

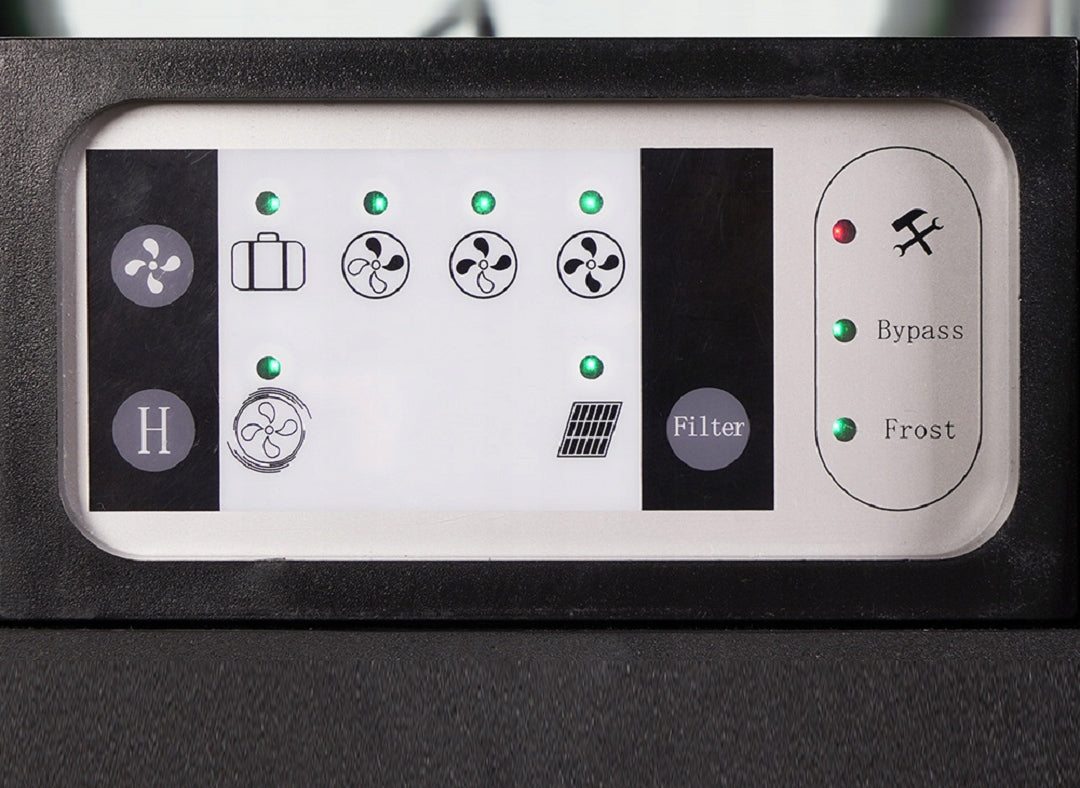

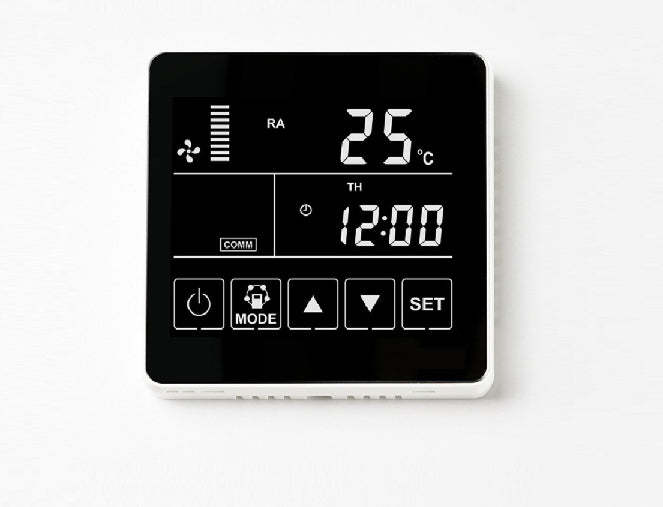

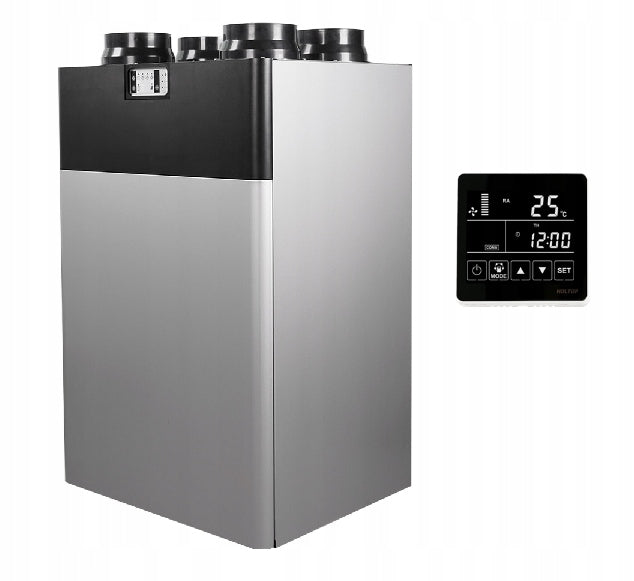

- Built-in controller and wall controller included

- Built-in WiFi module as standard

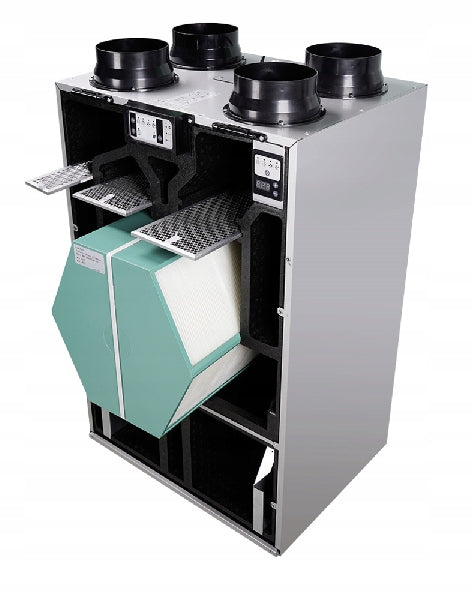

- 3D countercurrent heat exchanger

- Filtration system based on air filters with G4 class supply/exhaust included

- By-pass feature

- Defrost function

- Cooperation with BMS system: Modbus RS485

Are you looking for an efficient recuperator, ventilation unit for your home or business?

Please contact us by phone or e-mail: phone 888*055*347 or sell@ogwent . pl , in order to confirm the availability of the storage capacity of the device.

Free dos tawa in PL.

We advise and help you choose the right device for you.

ADVANCED FILTRATION SYSTEMS

The recuperator has a filtration system based on filters of class G4 supply / exhaust and By-pass. To ensure clean and safe indoor air, the device can optionally be equipped with a filter with filtration class F7.

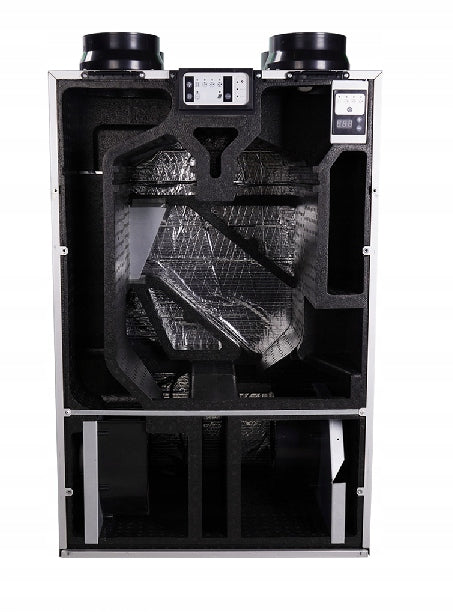

INNOVATIVE 3D HEAT EXCHANGER

The internal structure of the triangle-shaped exchanger channels will ensure heat exchange on three planes.

EFFICIENT EC FANS

Modern EC motors with a compact design are characterized by high efficiency and low noise. The use of EC motors guarantees low electricity consumption, which not only contributes to reducing the operating costs of the recuperator but also to environmental protection.

WIFI AS STANDARD - CONVENIENT CONTROL OF THE DEVICE

As standard, the device is equipped with a WiFi module, just connect the unit to the home network, download the Smart Life application to easily control the operation of the device from anywhere.

ADDITIONAL PCB CONNECTORS

NXCFA device motherboard – has a number of additional connectors thanks to which you can extend the functionality of the device. The possibility of connecting CO2 sensors and a heater increases the level of user comfort. In contrast, the Alarm, Fire Alarm connectors increase the level of safety.

Cooperation with BMS: Modbus RS485

EXTREMELY QUIET

The modern design of the device and the highest quality insulation materials (EPP) perfectly dampen sounds and provide excellent thermal insulation.

We help you choose the device for your needs.

We also sell heat pumps, other recuperators (ventilation units), air conditioners and accessories for these devices.

Please contact us by phone or e-mail: phone 888*055*347 or sell@ogwent . pl , in order to confirm the availability of the storage capacity of the device.
