Vibracinė siurbtukas plytelių lyginimui su 4 Ah akumuliatoriumi ir įkrovikliu

Trumpai apie prekę

Prekė: Vibracinė siurbtukas plytelių lyginimui su 4 Ah akumuliatoriumi ir įkrovikliu. Kategorija: Plytelėms skirtos siurbtukai.

• Gamintojas: GRAPHITE

• 18V Energy+ GRAPHITE 58GE148 Tile Suction Cup
• Energy+ 18V Li-Ion Battery 4.0Ah BOOST UP 58G001-1 GRAPHITE
• Battery charger Energy+ 58G002-1 GRAPHITE

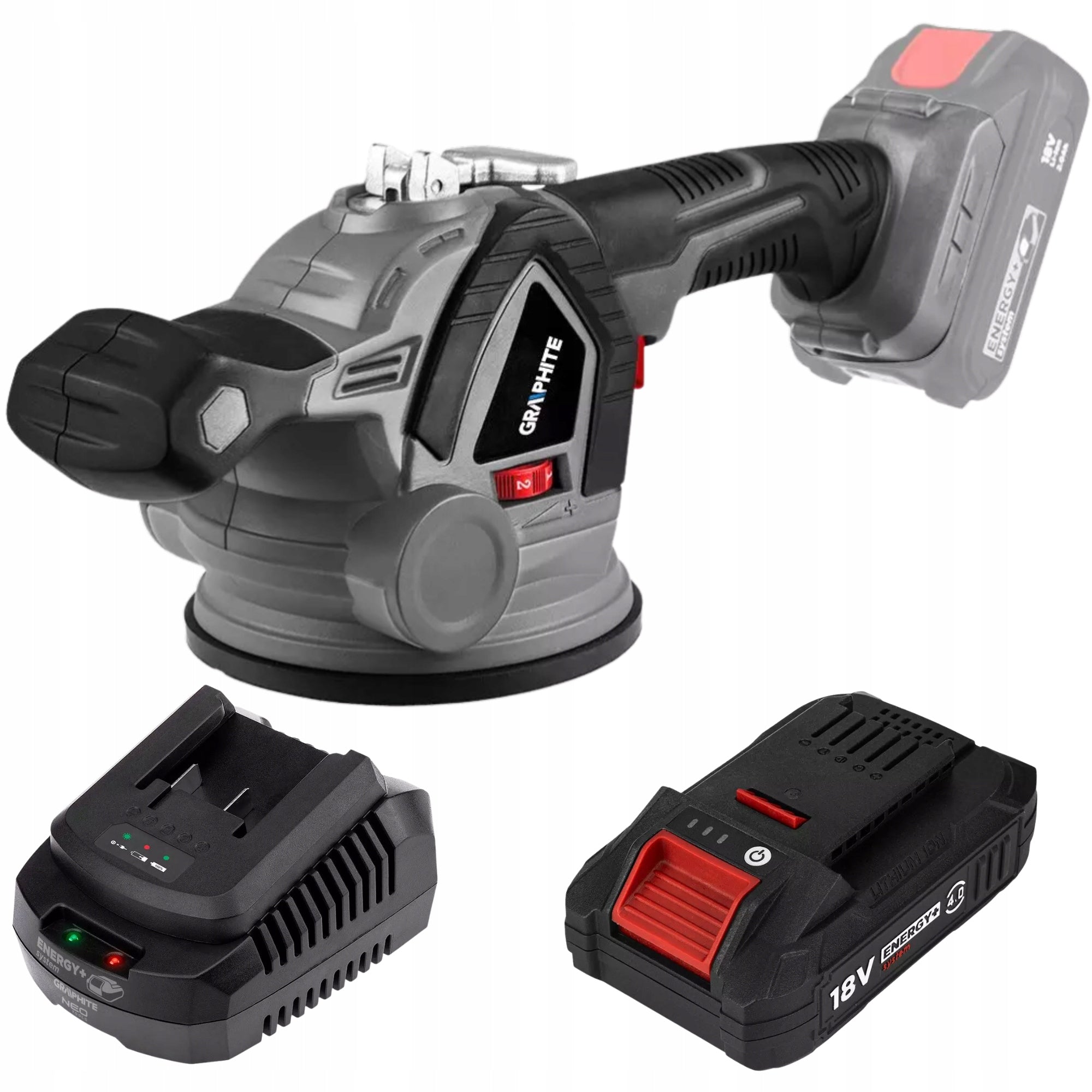

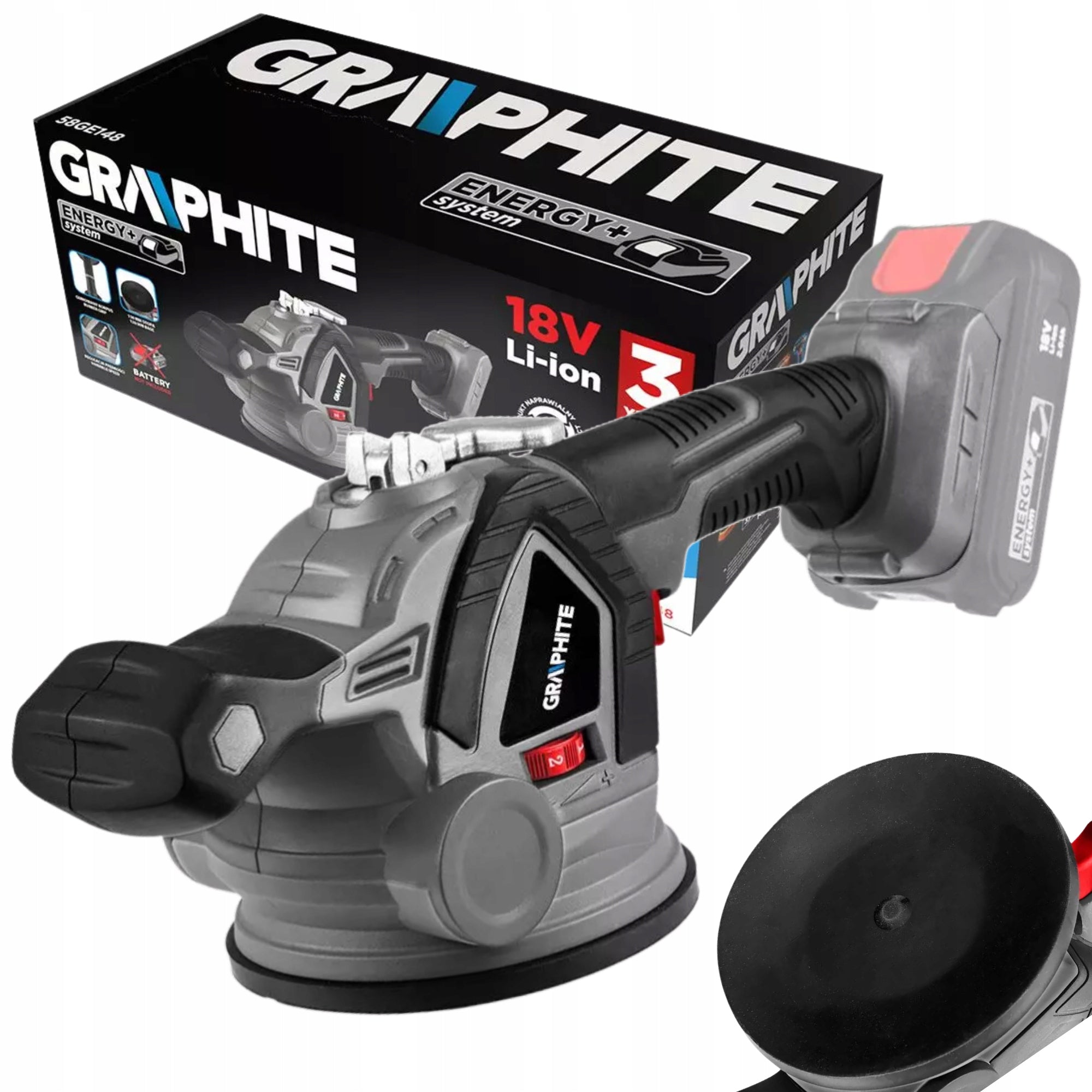

The 18-Volt Energy+ tile suction cup, without battery 58GE148 by GRAPHITE is a versatile tool designed to effectively support glazing work and other applications requiring precise handling and positioning of flat elements. The device, belonging to the ENERGY+ battery system, combines mobility with high functionality, enabling both safe transport and effective compaction of mortar.

Key features and technical specifications

☑ Power supply: The device operates as part of the ENERGY+ battery system, which provides wireless freedom of operation. It is compatible with GRAPHITE batteries with the following numbers: 58G001-1 (2 Ah), 58G004-1 (4 Ah), 58G086-1 (6 Ah) and 58GE152 (8 Ah).

☑ Working efficiency: The working time of the suction cup depends on the capacity of the battery used and is approximate:

• 2 Ah: about 55 minutes
• 4 Ah: about 110 minutes

☑ Suction cup parameters:

• Foot diameter: 130 mm
• Maximum lifting capacity: up to 50 kg
• Vibration frequency: 0-7500 min⁻¹

☑ Vibration adjustment: Smooth, multi-stage adjustment from min-1-2-3-4-5-max, allowing you to adjust the vibration intensity to suit your specific task.

☑ Design:

• Weight: 1,1 kg, which promotes comfortable work.
• Materials: The body made of reinforced PA6GF30 fiber guarantees durability, while rubberized TPE elements provide a secure grip and ergonomics of use.

Application and functionality

Thanks to its design and technical capabilities, the GRAPHITE 58GE148 suction cup is widely used in a variety of works:

➡ Thickening of mortar under tiles: Vibration function and the ability to adjust the vibration frequency make the device effectively distribute mortar under the tiles, eliminating air bubbles and ensuring optimal coverage. The slim shape and rubberized body make it easy to handle the tool with precision.

➡ Precise tile fitting: Vibration helps to gently move and level tiles on fresh mortar, which is crucial for achieving a perfectly even surface.

➡ Material handling and positioning: The ability to generate vacuum with a lifting capacity of up to 50 kg makes the suction cup ideal for safe handling and stacking:

• Ceramic tiles, especially large format tiles.
• Mirrors.
• Glass panes.
• Other flat and smooth materials.

Versatility, mobility and precision make the GRAPHITE 58GE148 suction cup a valuable tool for both professionals and DIYers.

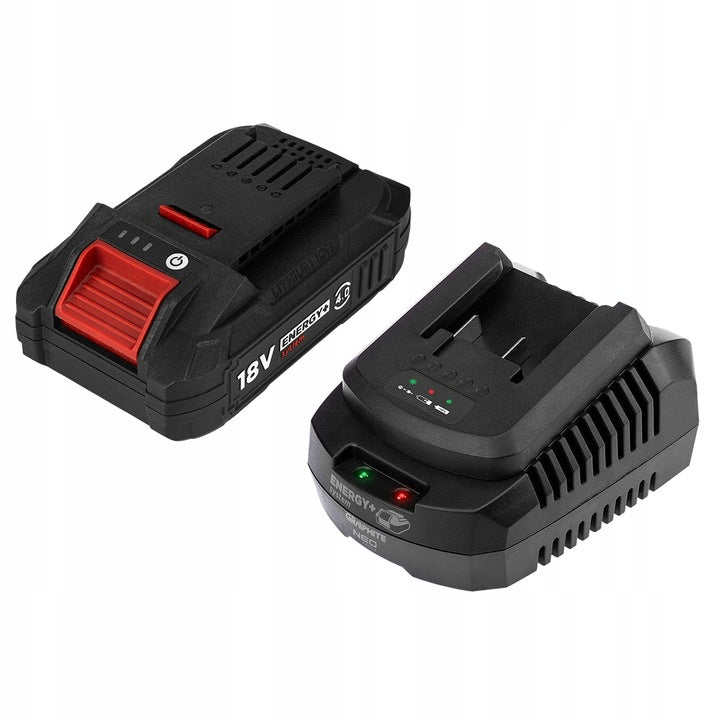

Energy+ 18V Battery, Li-Ion 4.0Ah BOOST UP

The GRAPHITE Energy+ 4 Ah (58G004-1) battery is a reliable power source for cordless tools. With lithium-ion cells, the 21700 offers 18V voltage and 4.0 Ah capacity, ensuring long and stable operation. Compatible with Energy+ series devices and chargers.

Key technologies:

• BOOST UP System – Full power without delay and longer work between charges.
• BALANCE SYSTEM – Optimal use of energy from each cell, extending the service life.
• SLEEP SYSTEM – Sleep mode minimizes energy loss during storage.

In addition, the battery is distinguished by compact design, no memory effect and charge level indicator. Electronic temperature and current control system protects cells from overheating and overloading, increasing safety and durability.

Technical parameters:

• Capacity: 4.0 Ah
• Cell type: Li-Ion
• Voltage: 18V
• Charging time: 100 min.
• Charge Indicator: Yes
• Mass: 0,66 kg

Energy+ 18V Charger – Fast and Safe Charging

The Energy+ 18V charger is a reliable device for charging lithium-ion batteries compatible with GRAPHITE and NEO tools. With a maximum charging current of 2,4 A and a voltage and temperature control system, it ensures efficient and safe charging of batteries of different capacities.

Charging time depending on battery capacity:

• 2.0Ah (58G001) – approx. 50 min
• 4.0Ah (58G004) – approx. 100 min
• 6.0Ah (58G086) – approx. 150 min
• 8.0Ah – approx. 200 min

Functions and advantages:

• LED – informs about the charging status.
• Voltage and temperature control system – full battery protection.
• Sturdy power cord – resistant to harsh conditions.
• Working range from 4°C to 40°C – reliability in various conditions.
• Compact and lightweight design – only 0,3 kg.

Technical specification:

• Power: 65 W
• Charging current: 2,4 A
• Voltage: 18V
• Operating temperature range: 4-40°C
• Weight: 0,3 kg
