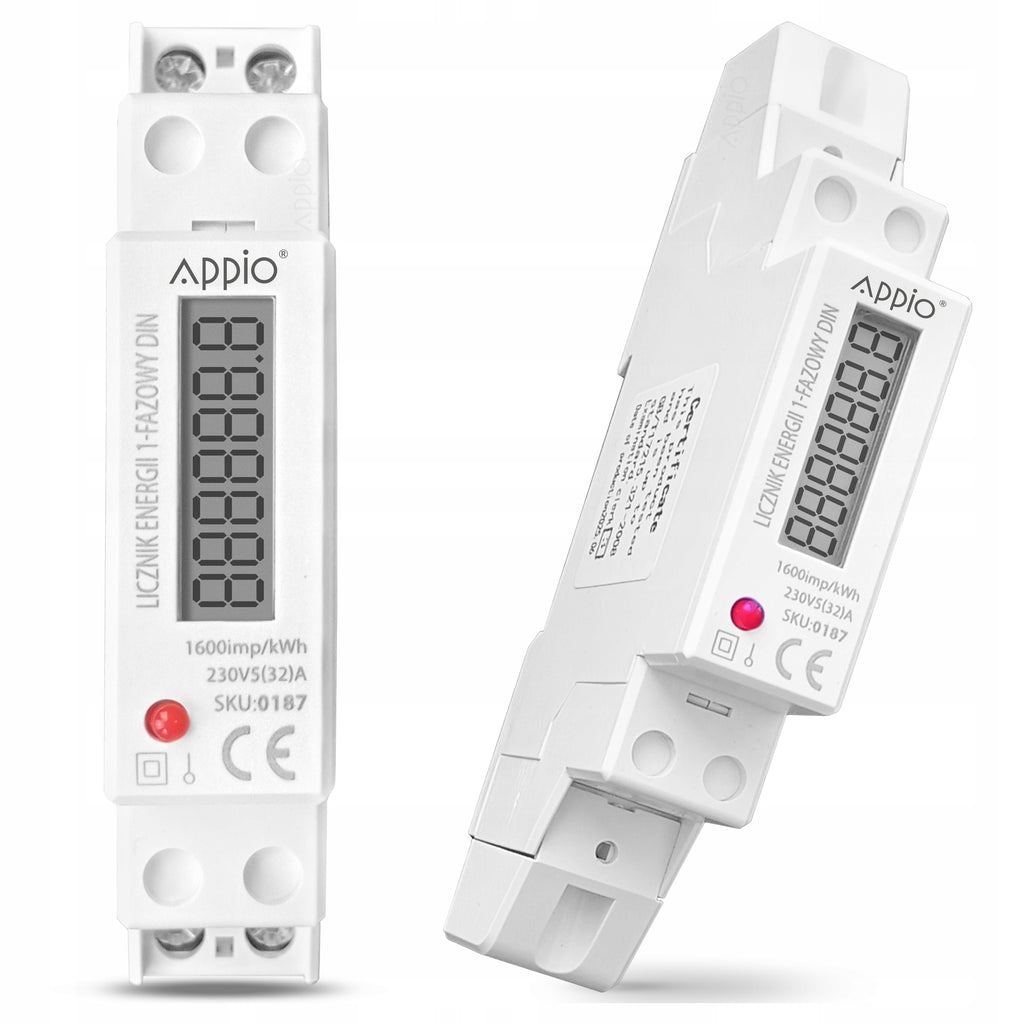

Vienfazis energijos skaitiklis DIN bėgiui

Trumpai apie prekę

Prekė: Vienfazis energijos skaitiklis DIN bėgiui. Kategorija: Automatizavimo moduliai.

• Gamintojas: Appio
• Modelis: 0187 MIERNIK LCD 1-FAZOWY ZUŻYCIA 230V 1F

1-PHASE WATT METER Electricity Meter DIN Meter

The watt meter allows you to measure the energy consumption of your home. Thanks to it, you can check which devices consume the most energy and easily eliminate exactly those devices that use electricity unnecessarily. The measured energy consumption is displayed in kWh.

⭐⭐⭐⭐⭐

Invest in savings! Monitor your energy consumption, analyze data and optimize your electricity bills.

Main features of the product:

✔ single-phase eclectic energy meter

✔ DIN rail holder

✔ built-in memory - saves your settings even in the event of a power outage

✔ real-time view of energy consumption so that energy theft can be prevented

✔ LCD display

✔ ideal for: single-family houses and larger farms, companies and workshops, production halls and warehouses, power switchgears

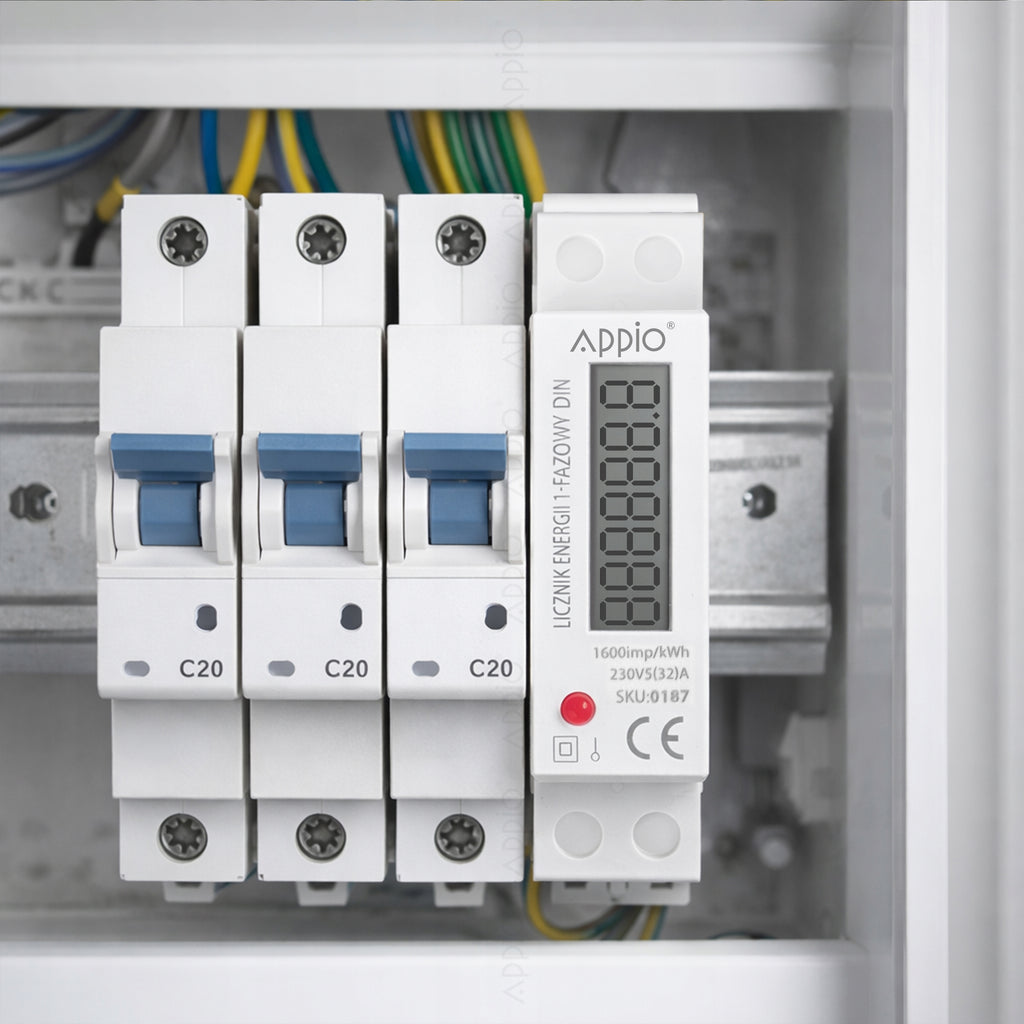

✅Compact and easy installation

The 35 mm DIN rail design allows for quick installation in the switchgear without unnecessary wires. The device takes up minimal space, which spares space in electrical panels. It can be easily mounted in electric cabinets or connected to an external power source.

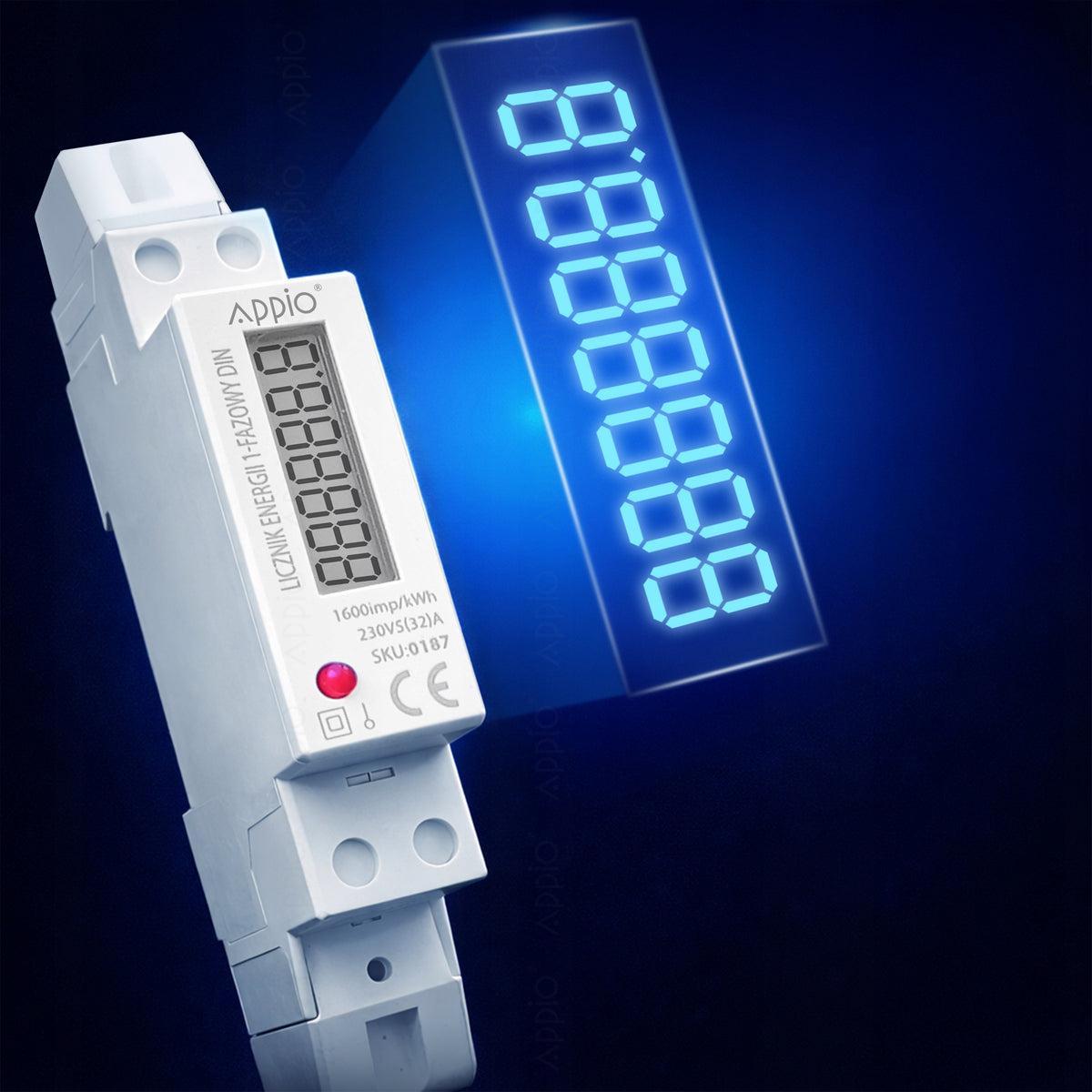

✅Readable display

The large LCD display presents values in kWh in 5+2 digits format, and the LED flashes according to the current consumption – allows immediate identification of energy consumption.

Specification

• Single-phase electricity meter
• Product code: 0187
• Max current: 5(32)A
• Voltage: 120/127/220/230/240V +/-10%
• Frequency: 50/60Hz
• Power consumption of the device: < 2W/10V A
• Measurement type: one-way (energy consumption)
• Degree of protection: IP20
• Operating temperature: –20 °C to +55 °C
• Pulse frequency: 1600imp/kwh
• Display: LCD 5+2 / 6+1
• Dimensions: 65x91x18mm
• DIN rail: 35mm

Contents of the pack:

• Wattmeter
• Instruction in Polish
• Original packaging

❓ What is this watt meter used for?

The watt meter is used for accurate measurement of electricity consumption in single-phase installations. With it, you can check which devices or circuits generate the most power consumption and consciously reduce those that cause unnecessary costs. It is a practical tool for controlling and optimizing your energy bills.

❓ Is it a single-phase meter?

Yes, the device is a single-phase electricity meter, designed for standard 1-phase installations. Ideally suited for single-family houses, apartments, workshops, companies, as well as power switchgears.

❓ What data does the counter show?

The meter measures and displays electricity consumption in kilowatt hours (kWh). The data is presented continuously, which enables ongoing monitoring of consumption and analysis of energy consumption over a longer period of time.

❓ Can I check my energy consumption in real time?

Yes. The device allows to view current energy consumption in real time, which allows you to quickly detect excessive power consumption or unwanted loads. In addition, the flashing LED signals the current energy consumption.

❓ Does the meter remember data after a power outage?

Yes. The watt meter has built-in memory, which saves settings and readings even in the event of a temporary power outage. When the power returns, the meter continues to work without losing data.

❓ How does the installation of the device look like?

The counter is designed to be mounted on a standard DIN 35mm rail, which ensures quick and aesthetic installation in the switchgear. Thanks to its compact design, it takes up little space and saves space in electrical cabinets.

ATTENTION! Installation should be done by a person with appropriate electrical permissions.

❓ Is the display readable?

Yes. The device is equipped with a large LCD display, which presents energy consumption in the format 5+2 digits (kWh). The wide viewing angle and clear numbers allow for quick and convenient reading of data.

❓ What applications is it best suited for?

The counter is perfect for:

• single-family houses and apartments
• companies and workshops
• production halls and warehouses
• power switchgears

It is a universal solution for control of energy consumption in various types of installation.

❓ Does the meter help in saving energy?

Definitely yes. Constant monitoring of energy consumption allows you to consciously manage power consumption, identify energy-intensive devices and reduce unnecessary consumption. This is an effective way to really reduce electricity bills.

❓ Is the device durable and reliable?

Yes. The counter is designed for continuous operation, offering stable and accurate measurements for a long time. The robust design makes the device suitable for both home and semi-professional applications.
