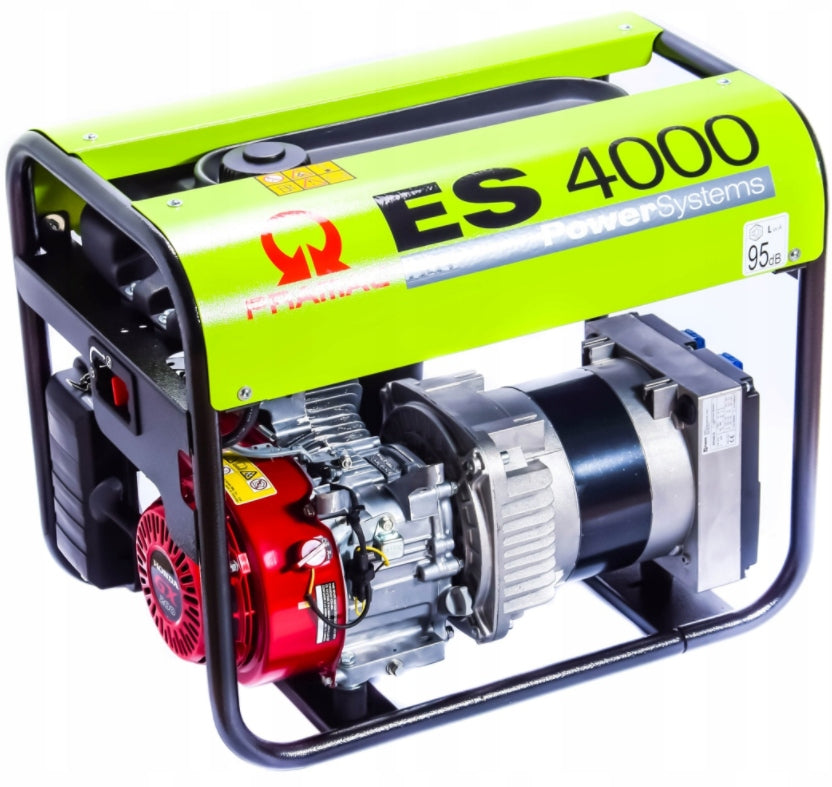

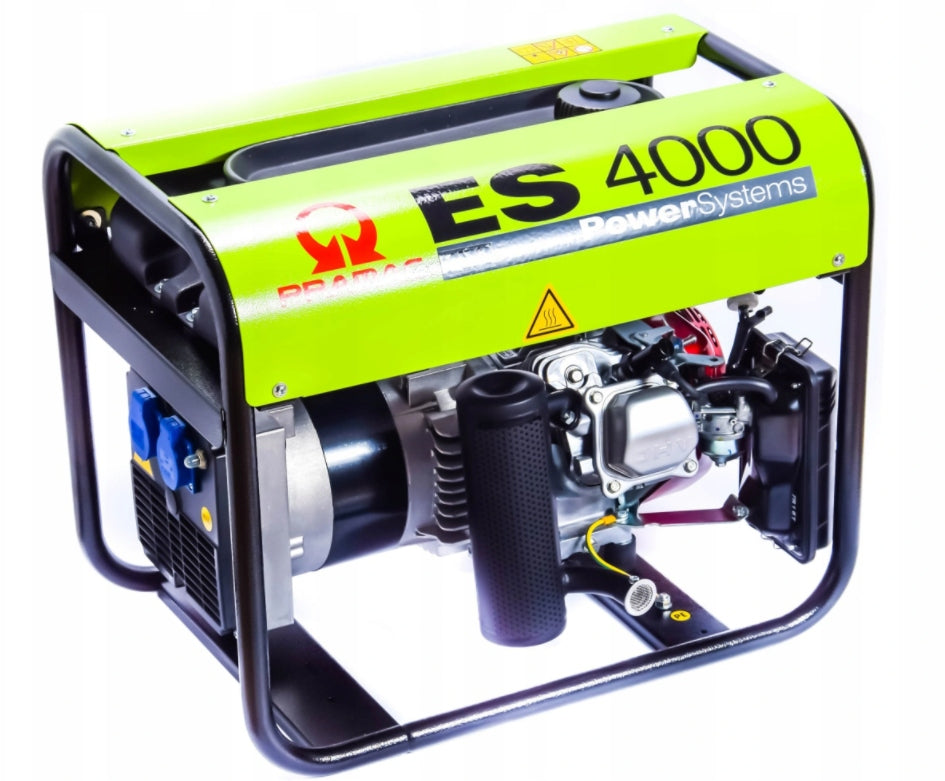

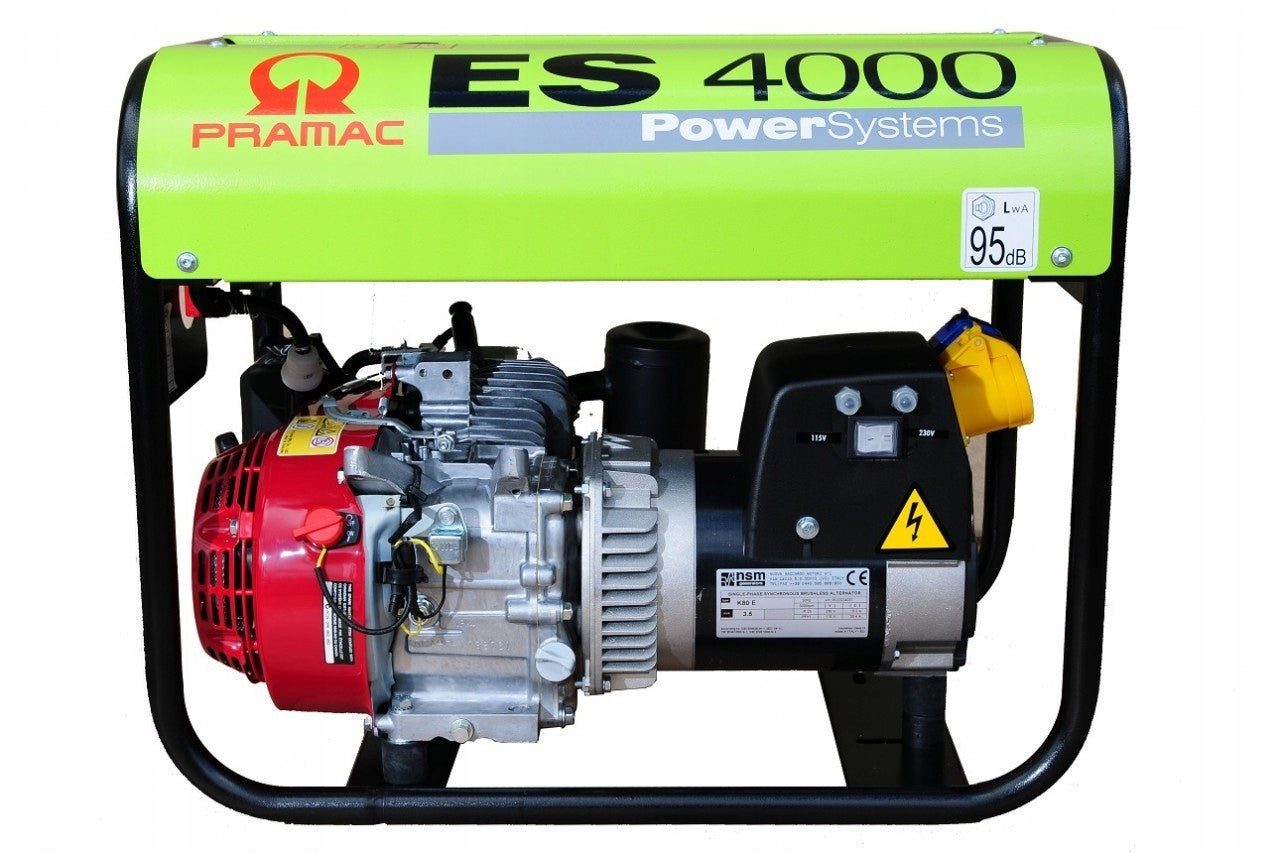

Vienfazis generatorius Pramac ES4000 Honda GX200, 3,1 kW

Trumpai apie prekę

Prekė: Vienfazis generatorius Pramac ES4000 Honda GX200, 3,1 kW. Kategorija: Elektros generatoriai.

• Gamintojas: Pramac
• Modelis: ES4000AVR
• Įtampa: 230 V

Legendary HONDA GX200 engine – Japanese reliability for years

Are you looking for a device that will start the first time in all conditions? The Pramac ES4000 generator set is equipped with the iconic original Honda GX200 power unit. GX series engines are the absolute premium class in the world of construction machinery and professional emergency power supply. They are famous for their legendary durability, overload resistance and extremely low failure rate. By choosing a Honda engine, you can be sure of your performance at the most important moments.

Long-distance ES series – forget about frequent refueling

The key advantage of the Pramac ES4000 compared to standard units is the powerful, enlarged fuel tank with a capacity of up to 11 liters. Thanks to this solution, the device can work without interruptions for more than 7 hours on a single refueling (with a high load of 75%). It is an ideal choice as an independent source of emergency power for home, construction site, workshop or renovation teams, where continuity of work is a top priority.

Unmatched power of 3,1 kW and simple, armored design

With a maximum power of 3,1 kW (3100 W) and a power rating of 2,6 kW, the unit can easily handle powering demanding power tools (grinders, pumps, drills, concrete mixers) and key household appliances during power outages. The whole is mounted on a strong, open frame made of high-quality steel, which protects key components from mechanical impacts and provides excellent engine ventilation during long hours of work.

Advanced engine protection and fuel efficiency

The Honda GX200 engine is characterized by a great working culture and extremely low combustion. The device is protected by an integrated oil level sensor (Oil Guard). If too low lubrication status is detected, the system will automatically turn off the engine, 100% protecting it from accidental blurring. The device generates a stable, safe voltage of 230V, matched to standard single-phase receivers.

Main parameters:

• Frequency: 50 Hz
• Voltage: 230 V
• Power factor: 0.9 cos ϕ
• Number of phases: 1

Power:

• Maximum ESP power: 3.4 kW
• Maximum ESP power: 3.1 kW
• Continuous power COP: 2.9 kVA
• Continuous power COP: 2.6 kVA

ESP – Maximum power: It is defined as the maximum power that a generator is able to provide in the event of a power failure under certain operating conditions for a maximum of 200 hours per year and while maintaining the service periods recommended by the manufacturer. The permissible average output power within 24 hours of operation does not exceed 70% ESP.

COP – Continuous power: This is defined as the maximum power that the generator set is able to deliver continuously for an unlimited number of hours, with maintenance interruptions and procedures carried out in accordance with the manufacturer’s recommendations.

Engine data:

• Engine manufacturer: Honda
• Model: GX200
• Engine cooling system: Air
• Capacity: 196 cm³
• Power supply: Free-aspirated
• Rated rotation: 3000 rpm
• Rotation controller: Mechanical
• Fuel: Gasoline
• Lubrication system capacity: 0.6 l
• Boot system: Manual

Prądnica:

• Generator manufacturer: NSM
• Type: Without brush
• Insulation class: H
• Class: IP 23
• Poles: 2
• Frequency: 50 Hz
• Voltage: 230 V
• Voltage regulator: Capacitor
• Voltage tolerance: +5; -10 (cosϕ1) %

Dimensional data:

• Length (L): 623 mm
• Width (W): 409 mm
• Height (H): 500 mm
• Weight (dry): 43 kg
• Fuel tank capacity: 11 l

Working time:

• Fuel consumption at 75% load: 1.18 l/h
• Fuel consumption at 100% load: 1.57 l/h
• Working time At 75% Load: 9.32 h
• Working time At 100% Load: 7.01 h

Noise level:

• Guaranteed noise level (LWA): 95 dBA
• Sound pressure level with 7 m: 67 dBA

Control:

• OFF-ON start switch
• Fuel Tap

Security

• Installation circuit breaker
• Oil level sensor

Sockets:

• SCHUKO 230V 16A IP54: two

You buy equipment for years – choose proven solutions. The Pramac ES4000 is a powerful combination of Italian build quality and Japanese Honda reliability with a huge fuel tank. Protect your home or business from unexpected power outages. Click "Buy Now" and work without interruptions or restrictions!
