Vienfazis inverterinis 3800W generatorius, varinė apvija, su alyva

Trumpai apie prekę

Prekė: Vienfazis inverterinis 3800W generatorius, varinė apvija, su alyva. Kategorija: Elektros generatoriai.

• Gamintojas: Tagred
• Modelis: TA3800I

❇ TAGRED TA3800I GENERATOR SET

The TAGRED inverter aggregate will protect the power supply at home, on the plot, camping, yacht or construction site. TAGRED inverter units use the latest current generation technology based on an inverter-inverter, which gives a "clean" alternating current then converted into direct currents. After minimizing distortion waves to the lowest limit, it initially reflects the "smoothed" alternating current. For the user, this means that the inverter unit is efficient, but can retain its smaller size and is relatively quiet.

Our inverter unit is the perfect choice for powering household appliances, computers, electronics, and even sensitive medical devices.

➡ Technical data

• Model: TA3800I
• Engine: 4-stroke, air-cooled
• Fuel: petrol PB95
• Oil: SAE30
• Fuel tank capacity: 9 L
• Oil tank capacity: 600 ml
• Fuel level indicator: Yes
• Frequency: (Hz) 50
• Noise level: 79dB
• Voltage: 230V
• Engine power: 5500W(7,5hp)
• Nominal power of generator: 3,5 kW
• Maximum generator power: 3,8 kW
• Engine displacement: 212cc
• Working time at 50% load: 12 h
• Has a 12V socket
• Start: Manual

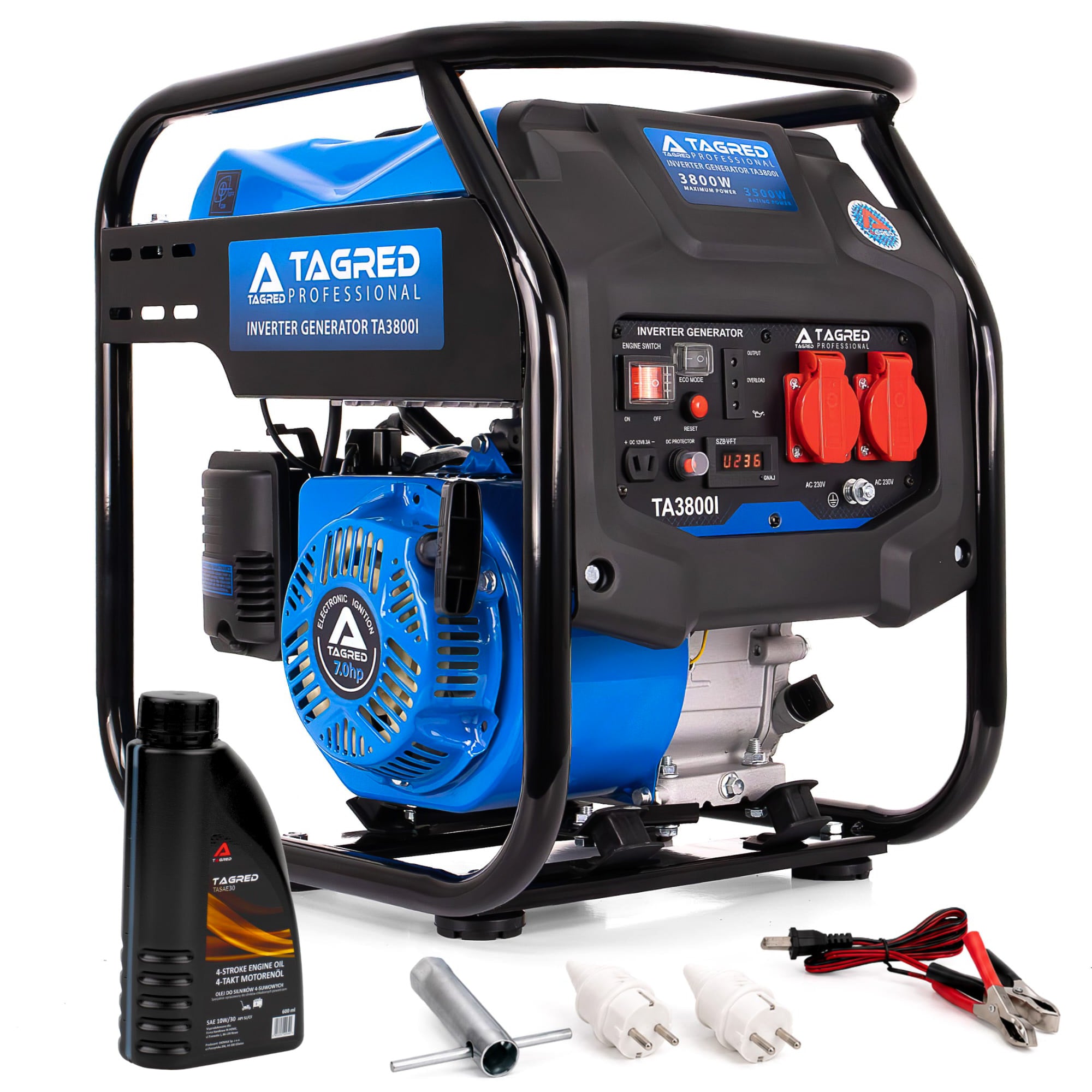

➡ Composition of the set

• Inverter Generator TAGRED TA3800I
• The Key to Candles
• 2x 230v plug
• 12V Cables for Battery Charging
• User manual in Polish
• 0,6 L of oil dedicated specifically for engines operating in aggregates

❇ NOTE: ACCESSORIES ARE LOCATED BETWEEN THE ENGINE AND THE FUEL TANK IN THE STRING BAG!

❇ BEFORE STARTING, REPLENISH THE OIL - 600 ML (ONE BOTTLE - is included).

✔ Free! Oil 1 x 0,6L

As gratis you will receive a modern oil TAGRED dedicated specifically for engines in generator sets operating in extreme conditions.

It contains additives that prevent sediment formation inside the engines of devices, which provides them with a much longer service life.

➡ Dimensions in the package

• Width: 40 cm
• Depth: 48 cm
• Height: 51 cm
• Weight: 27 kg

➡ Dimensions after folding

• Width: 39 cm
• Depth: 47 cm
• Height: 50 cm
• Weight: 26,5 kg

➡ Power and efficiency – up to 3800W!

Thanks to the maximum power of the 3800W generator, the unit will work perfectly in situations requiring power to powerful devices, such as refrigerators, stoves or construction tools.

➡️ Generator Made of Copper!

The generator is made from the highest quality copper with very good electrical conductivity.

This results in better work efficiency and reliability, significantly extending the device's service life.

☝ Ideal for powering household appliances, computers, electronics and even sensitive medical devices☝

➡ 100% smoothed sine wave

TAGRED inverter units produce 100% pure wave sinusoidal, they are ideal for powering a wide range of electrical appliances including household appliances, computers, electronics and even sensitive medical devices.

➡️ Japanese Engine Design

It features a solid construction, high power, and relatively low fuel consumption.

The engine is mounted on rubber mounts that dampen engine operation and reduce vibrations.

The muffler used in this series has been additionally soundproofed, making the generator significantly quieter than competing generators.

The generator is equipped with CDI ignition, which, combined with a Japanese carburetor, ensures easy starting and stable operation.

The engine is also equipped with an oil sensor, preventing startup without oil, which protects the engine from seizing.

☝ A product that exceeds expectations! ☝

➡ Rubber anti-vibration dampers

The unit is mounted on four rubber anti-vibration dampers, which very effectively reduces vibrations!

➡ Versatile use!

TAGRED inverter units are ideal for emergency power supply of electrical devices, including sensitive electronics, computers, household appliances:

• home, office,
• plot
• vehicle,
• motorhomes,
• trucks,
• tractors,
• cars,
• on boats,
• yachts,
• in industrial equipment

☝ Reliable power supply wherever you need it! ☝

➡ What devices can you connect?

The unit is perfect for powering:

• Home appliances: refrigerators, freezers, lighting, TVs, electric kettles
• Workshop equipment: angle grinders, drills, jigsaws, paint stirrers
• Construction equipment: water pumps, impact hammers, small concrete mixers.
• Other devices: electric heaters, aprons, industrial vacuum cleaners

Note: When connecting devices with high starting current, such as refrigerators or pumps, remember about the temporary increased demand for power – the unit can handle such a load!

➡ Why choose this unit?

• Stronger, more efficient - reinforced version
• Chrome fuel stopper
• Clear indicator of the level of fuel
• Fuel filter
• Confirmed increased true power max. generator up to 3800W!
• Equipped with suppressor which makes it quieter
• 100% Copper current generator
• It is ideal for emergency power supply: home, office, vehicle, in motorhomes, trucks, tractors, cars, in campsites, on boats, yachts, in industrial equipment.
• Reliable and simple in operation.
• Ergonomic and economical.
• Manual start.
• CHARGING 12V!
• MUTED muffler chamber
• Eco mode – less combustion and quieter operation
• + Oil included!

❓ Frequently Asked Questions ❓

1 Where can I use the TAGRED TA3800I aggregate?

The TAGRED TA3800I is suitable for use at home, in the office, camping, in motorhomes, on boats, yachts and on construction sites.

2 Can I connect sensitive devices such as a computer?

Yes, pure sine wave allows for secure connections of sensitive electronic devices.

3 Is the unit loud during operation?

The model is equipped with a muted silencer chamber and silencer, thanks to which it works quieter than traditional aggregates of similar power.

4 Does the unit have security features?

Yes, the device has overload protection and an oil level control system for increased safety of use.

5 Is oil included?

Yes, the set with the unit includes 1 bottle of oil (with a capacity of 0,6 L). The oil is dedicated specifically to generator motors, which ensures their optimal protection and longer lifespan. One bottle is enough to fully replenish the oil (600 ml) before the first start of the device.

The choice of generator set should depend on your needs regarding the voltage and the type of equipment you want to power. Here are some tips:

➡ How to choose an aggregate for your needs?

First of all, we have to decide what voltage we need 240 v, i.e. a single-phase or 400v unit, i.e. a three-phase unit. If we typically care about single-phase devices, then we should choose such a unit due to the full power on the 230v socket, such a unit will work well with power supply, e.g. Angle grinders, lighting and most rtv devices, agd, so it will be a good choice for emergency power supply to your home. Three-phase aggregates will be an excellent choice for users who need to power devices requiring 400v voltage, such as a table saw, compressor and various construction tools.

Selection of the unit according to demand:

• Single-phase aggregate – maximum power of 3,5 kW, nominal power of 3kW, this power is available both on one socket and on the other. After connecting the device with a power of 1kW to one of the sockets, the power on the second socket is reduced by the given value, i.e. we have to use 2,5kW of starting power and 2kW of nominal power.

• Three-phase aggregate- maximum power 3,5 kW, nominal power 3kW, this power is available on a 400v socket. Most three-phase aggregates on the 230v socket have only 33% of the power because each of the individual phases is transferred to a separate socket and in this case on the 230v socket we would have available only 1000watt of nominal power and 1170 Watt of maximum power, our aggregate is equipped with a power processing system
• "DOUBLE POWER" MEANS ON ONE PHASE WE HAVE 80% OF POWER, AND ON THREE PHASES 100% OF POWER!!!
• It is equipped with a switch that allows you to choose the type of power supply, between 230v and 400v, while obtaining more power on a single-phase socket than competing aggregates, so we have to use 2800Watt of starting power and 2400Watt of nominal power 230V!!!

If we have already chosen the type of aggregate, we should remember that each device draws inrush current of different coefficient.

Devices in relation to inrush current are divided into three types.

1– heat gun, drill, lighting, radio, TV, furnace controllers, in the case of these devices, the power consumed at start-up is equal to the nominal power.

2- angle grinder, fridge, kettle, lawn mower, shears, water pump, for these devices the starting power is twice the nominal power

3- concrete mixer, flow water heaters, compressors, electric motors, pressure washer, air conditioning, in the case of these devices, the starting power is three times the nominal power.
