Vienfazis inverterinis generatorius 5000W, varinė apvija, su alyva

Trumpai apie prekę

Prekė: Vienfazis inverterinis generatorius 5000W, varinė apvija, su alyva. Kategorija: Elektros generatoriai.

• Gamintojas: Tagred
• Modelis: TA5000I

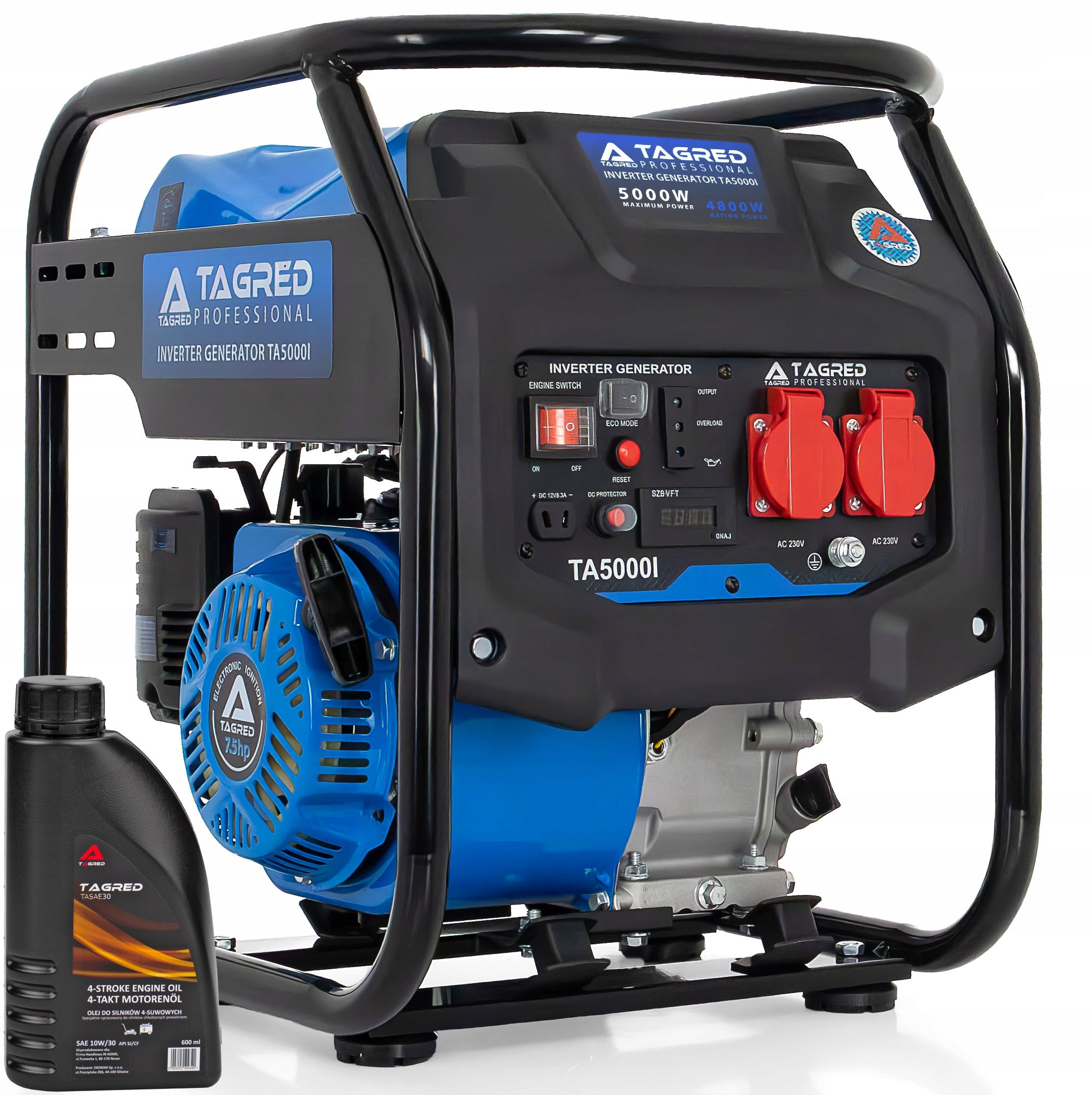

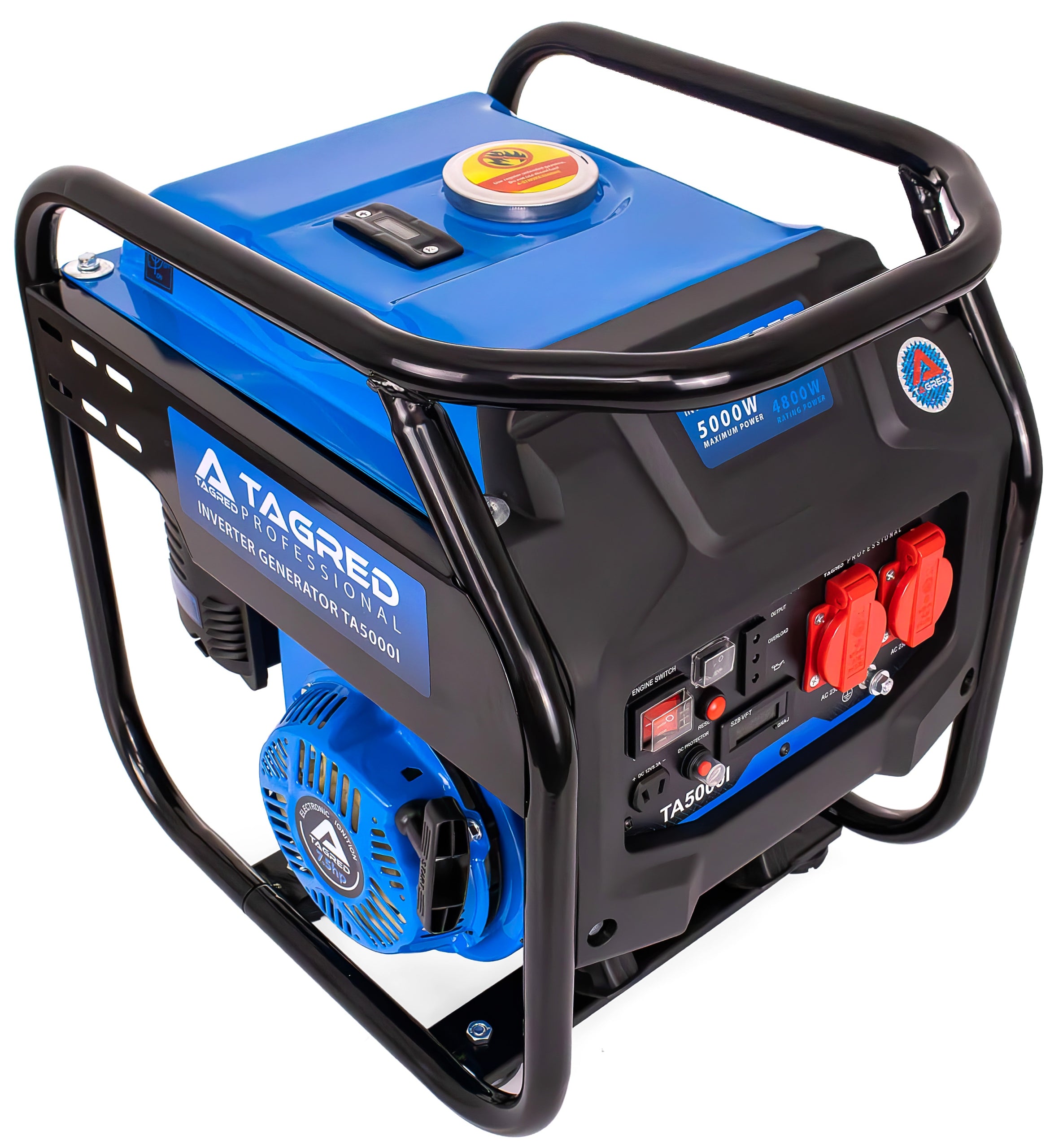

⚡ TAGRED TA5000I GENERATOR SET

The TAGRED TA5000I inverter unit provides a stable and safe source of energy at home, on the plot, during trips, construction works and wherever independent power supply is needed. Thanks to the inverter technology, it generates a pure sine wave, i.e. current with parameters similar to that available in a standard 230V power outlet.

The electronic system used controls the output voltage, thanks to which the unit can power both power tools and sensitive electronic devices, such as computers, laptops, TVs, CO furnace controllers, heat pumps or medical equipment.

Thanks to the maximum power of 5000 W, the engine with a power of 5500 W (7,5 HP) and a large fuel tank with a capacity of 8 liters, the unit will work both during short-term power failures and long hours of field work.

⚡ Composition of the set

• Inverter Generator TAGRED TA5000I
• The Key to Candles
• 2x 230v plug
• 12V Cables for Battery Charging
• User manual in Polish
• 0,6 L of oil dedicated specifically for engines operating in aggregates

❇ NOTE: ACCESSORIES ARE LOCATED BETWEEN THE ENGINE AND THE FUEL TANK IN THE STRING BAG!

❇ BEFORE STARTING, REPLENISH THE OIL - 600 ML (ONE BOTTLE - is included).

⚡ Technical data

• Model: TA5000I
• Engine: 4-stroke, air-cooled
• Fuel: petrol PB95
• Oil: SAE30
• Fuel tank capacity: 8 L
• Oil tank capacity: 600 ml
• Fuel level indicator: Yes
• Frequency: (Hz) 50
• Noise level: 97dB
• Voltage: 230V
• Engine power: 5500W(7,5hp)
• Nominal power of generator: 4,8 kW
• Maximum generator power: 5,0 kW
• Engine displacement: 225cc
• Working time at 50% load: 12 h
• Has a 12V socket
• Start: Manual
• Weight: 29,5 kg

⚡ Dimensions:

• Height: 47 cm
• Width: 38 cm
• Depth:.48 cm

✔ Free! Oil 1 x 0,6L

As gratis you will receive a modern oil TAGRED dedicated specifically for engines in generator sets operating in extreme conditions.

It contains additives that prevent sediment formation inside the engines of devices, which provides them with a much longer service life.

➡ High power for demanding applications

The maximum power of 5,0 kW and continuous power of 4,8 kW allow you to power multiple devices at the same time.

The unit is perfect for construction, renovation, service work and as an emergency source of energy for your home or business.

➡️ Generator Made of Copper!

The generator is made from the highest quality copper with very good electrical conductivity.

This results in better work efficiency and reliability, significantly extending the device's service life.

➡️ Pure Sine Wave - Safe for Electronics

Inverter technology provides stable voltage with a pure sine wave, allowing the generator to power devices that require high-quality electricity. Computers, laptops, TVs, furnace controllers, heat pumps, or modern home appliances can operate without the risk of damage from unstable voltage.

☝️ Ideal for Powering Home Appliances, Computers, Electronics, and Even Sensitive Medical Devices☝️

➡️ Japanese Engine Design

Features a robust design, high power, and relatively low fuel consumption.

The engine is mounted on rubber mounts that absorb engine vibrations and reduce shaking.

The muffler used in this series is additionally soundproofed, making the generator significantly quieter than competing generators.

The generator is equipped with CDI ignition combined with a Japanese carburetor, ensuring easy startup and stable operation.

The engine also has an oil sensor that prevents startup without oil, protecting the engine from seizing.

☝ A product that exceeds expectations! ☝

➡ Possibility of charging 12V batteries

The additional 12V output allows you to use the unit not only as a 230V energy source, but also to charge batteries used in cars, motorcycles, quads or agricultural machinery.

➡ Security system for increased work safety

The unit is equipped with controls and protections to protect the device from improper operation. Overload signaling and oil level control help to avoid damage and increase engine life.

➡ Long working time on one refueling

The large fuel tank with a capacity of 8 liters and an efficient 4-stroke engine allow operation up to 12 hours at 50% load. This means less frequent refueling and greater comfort during long-term work.

➡ Intelligent adjustment of engine operation

The control system automatically adjusts the engine speed to the current load. Thanks to this, the unit consumes less fuel, works more efficiently and reduces unnecessary load on components.

➡ Rubber anti-vibration dampers

The unit is mounted on four rubber anti-vibration dampers, which very effectively reduces vibrations!

➡ Universal use all year round

The TAGRED TA5000I unit is suitable for:

• Emergency home power supply
• Operation of CO pumps and furnaces
• powering power tools
• construction and renovation works
• field service activities
• work on farms
• supply of water pumps
• handling of outdoor events
• use on the plot
• motorhome trips
• work of mobile workshops
• power supply for electronics and household appliances

☝ Reliable power supply wherever you need it! ☝

➡ What devices can you connect?

The unit is perfect for powering:

• Home appliances: refrigerators, freezers, lighting, TVs, electric kettles
• Workshop equipment: angle grinders, drills, jigsaws, paint stirrers
• Construction equipment: water pumps, impact hammers, small concrete mixers.
• Other devices: electric heaters, aprons, industrial vacuum cleaners

Note: When connecting devices with high starting current, such as refrigerators or pumps, remember about the temporary increased demand for power – the unit can handle such a load!

➡ Why choose the TAGRED TA5000I inverter generator set?

• Stronger, more efficient - reinforced version
• Confirmed increased true power max. generator up to 5000W!
• Maximum power of 5000 W – allows you to power multiple devices at the same time, both at home and when working in the field.
• Nominal power 4800 W – ensures stable, long-lasting operation under load.
• Inverter technology with pure sine wave – safe power supply for computers, laptops, TVs, CO furnace controllers and other electronic devices.
• 100% Copper current generator
• Chrome fuel stopper
• Fuel filter
• Equipped with suppressor which makes it quieter
• Ergonomic and economical
• Manual start
• 5500W 4-stroke engine (7,5 HP)
• Large fuel tank 8L
• Up to 12 hours of operation at 50% load
• Intelligent ECO mode
• CHARGING 12V!
• MUTED muffler chamber
• Readable fuel level indicator
• Low oil level indicator
• Overload protection
• Stable voltage 230V / 50Hz
• Compact and mobile design
• Perfect for home, business and mobile work
• Reliable and easy to use
• Rich equipment included
• Ready for emergencies
• Eco mode – less combustion and quieter operation
• + Oil included!

❓ Frequently Asked Questions and Answers ❓

❓ What devices will be powered by the TAGRED TA5000I generator set?

The unit with a maximum power of 5000 W can power, among others, refrigerators, freezers, CO pumps, central heating furnaces, TVs, computers, laptops, power tools, LED lighting, Internet routers, workshop devices and many other 230V receivers. Be sure to take into account the starting power of devices equipped with electric motors.

❓ Is the TAGRED TA5000I suitable for powering the CO furnace and heat pump?

Yes. Thanks to inverter technology and generating pure sine wave, the unit can power devices equipped with control electronics, such as gas furnaces, boiler controllers, circulation pumps or selected heat pumps. Before connecting, check the requirements of a particular device for power.

❓ Is an inverter unit better than a regular generator set?

The inverter unit generates a more stable output voltage than traditional designs. This makes it safer for computers, TVs, consumer electronics, controllers and modern household appliances. This is especially important when powering your home.

❓ Is a 5 kW generator enough to power your home?

In many cases, yes. The 5000 W unit allows you to power basic household appliances such as a refrigerator, freezer, CO furnace, lighting, TV, router or computer. In the case of more receivers, their power should be added up and inrush currents taken into account.

❓ How much fuel does the TAGRED TA5000I generator consume?

Actual fuel consumption depends on the degree of load of the device. With less load, the unit consumes less fuel, while when operating at a power close to the maximum combustion will be correspondingly higher. The tank with a capacity of 8 liters allows for long operation without frequent refueling.

❓ Can the unit be used on the plot or during a motorhome trip?

Yes. Thanks to its compact design and relatively light weight, the unit is perfect for recreational plots, campsites, motorhomes, caravans and off-road trips.

❓ Can the unit charge the car battery?

Yes. The TA5000I has a 12V output that allows charging of batteries used in passenger cars, motorcycles, quads and some agricultural machinery.

❓Is the oil included?

Yes, the set with the unit includes 1 bottle of oil (with a capacity of 0,6 L). The oil is dedicated specifically to generator motors, which ensures their optimal protection and longer lifespan. One bottle is enough to fully replenish the oil (600 ml) before the first start of the device.

❓ Is the inverter unit suitable for powering a laptop and computer?

Yes. Inverter technology provides stable voltage and sinusoidal waveform similar to mains current, thanks to which the unit can safely power computers, laptops, monitors, routers and other electronic equipment.

❓Is the unit loud during operation?

The model is equipped with a muted silencer chamber and silencer, thanks to which it works quieter than traditional aggregates of similar power.

❓ Does the unit have security features?

Yes, the device has overload protection and an oil level control system for increased safety of use.

The choice of generator set should depend on your needs regarding the voltage and the type of equipment you want to power. Here are some tips:

➡ How to choose an aggregate for your needs?

First of all, we have to decide what voltage we need 240 v, i.e. a single-phase or 400v unit, i.e. a three-phase unit. If we typically care about single-phase devices, then we should choose such a unit due to the full power on the 230v socket, such a unit will work well with power supply, e.g. Angle grinders, lighting and most rtv devices, agd, so it will be a good choice for emergency power supply to your home. Three-phase aggregates will be an excellent choice for users who need to power devices requiring 400v voltage, such as a table saw, compressor and various construction tools.

Selection of the unit according to demand:

• Single-phase aggregate – maximum power of 3,5 kW, nominal power of 3kW, this power is available both on one socket and on the other. After connecting the device with a power of 1kW to one of the sockets, the power on the second socket is reduced by the given value, i.e. we have to use 2,5kW of starting power and 2kW of nominal power.

• Three-phase aggregate- maximum power 3,5 kW, nominal power 3kW, this power is available on a 400v socket. Most three-phase aggregates on the 230v socket have only 33% of the power because each of the individual phases is transferred to a separate socket and in this case on the 230v socket we would have available only 1000watt of nominal power and 1170 Watt of maximum power, our aggregate is equipped with a power processing system
• "DOUBLE POWER" MEANS ON ONE PHASE WE HAVE 80% OF POWER, AND ON THREE PHASES 100% OF POWER!!!
• It is equipped with a switch that allows you to choose the type of power supply, between 230v and 400v, while obtaining more power on a single-phase socket than competing aggregates, so we have to use 2800Watt of starting power and 2400Watt of nominal power 230V!!!

If we have already chosen the type of aggregate, we should remember that each device draws inrush current of different coefficient.

Devices in relation to inrush current are divided into three types.

1– heat gun, drill, lighting, radio, TV, furnace controllers, in the case of these devices, the power consumed at start-up is equal to the nominal power.

2- angle grinder, fridge, kettle, lawn mower, shears, water pump, for these devices the starting power is twice the nominal power

3- concrete mixer, flow water heaters, compressors, electric motors, pressure washer, air conditioning, in the case of these devices, the starting power is three times the nominal power.

Specifications
