Viengubas Inverto Black Ultra 4K UHD konverteris Canal+, Polsat, Cyfra televizijai

Trumpai apie prekę

Prekė: Viengubas Inverto Black Ultra 4K UHD konverteris Canal+, Polsat, Cyfra televizijai. Kategorija: Keitikliai.

• Gamintojas: Inverto
• Modelis: BLACK Ultra

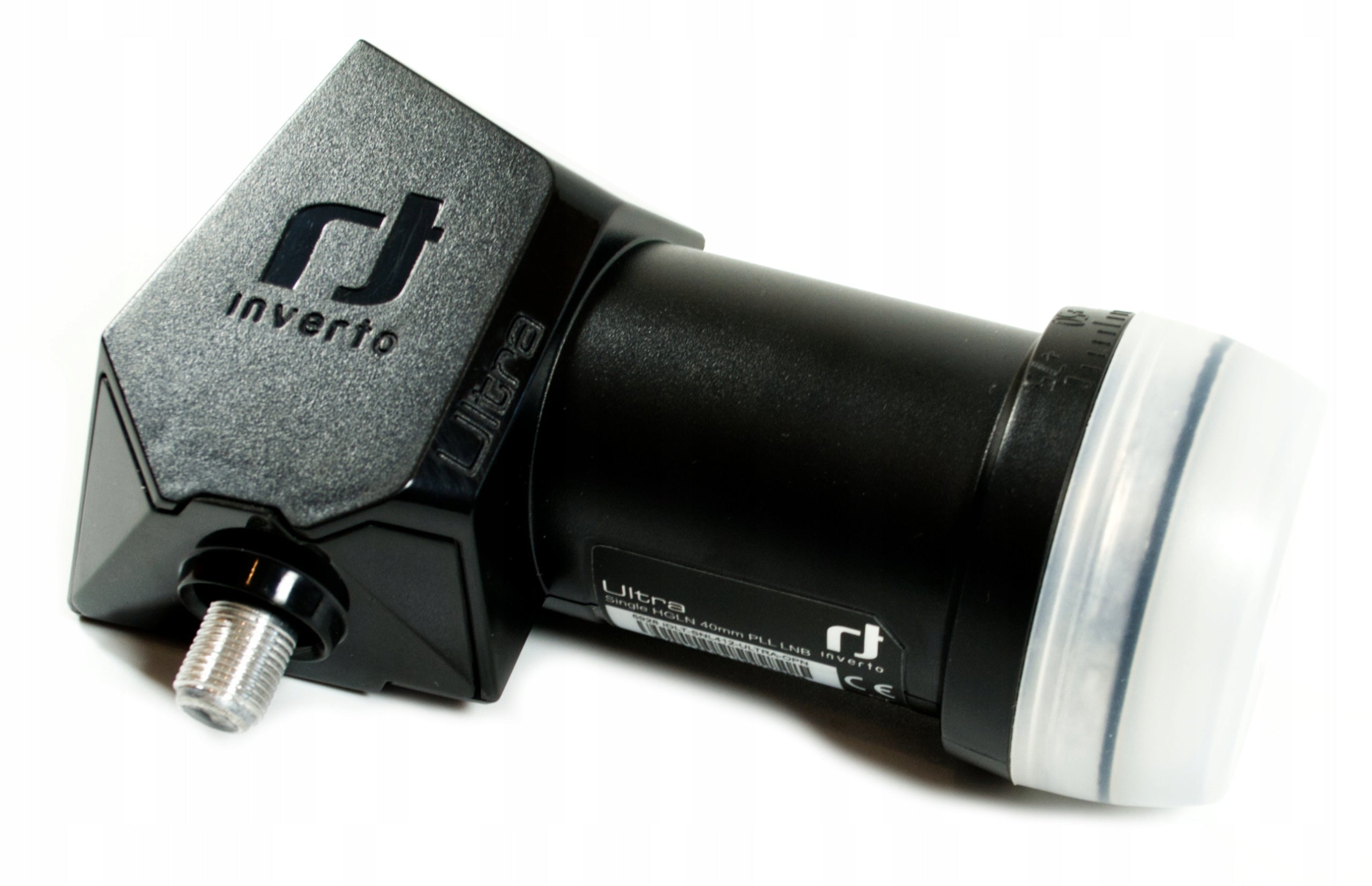

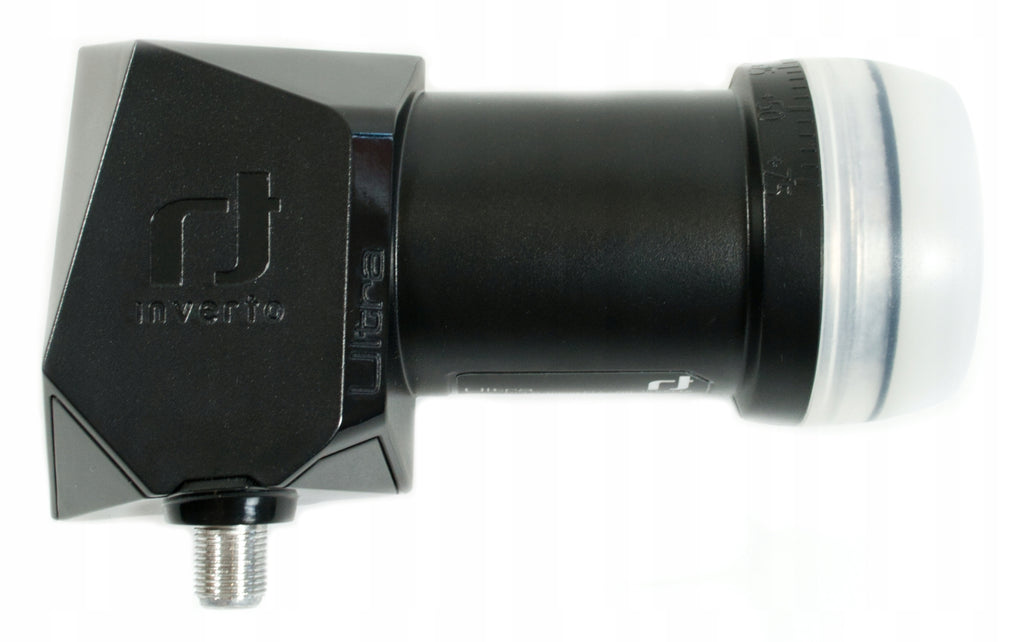

High quality single converter of the Luxembourg brand Inverto from the new limited series Ultra Black. The Single converter is used to receive a signal from one satellite via one tuner. It has a rain cover. It allows you to receive digital and analogue TV and radio programs via satellite in SD and HD quality (including Ultra HD 4K).

The ULTRA BLACK series is particularly recommended dfor receiving DVB-S2 programs, due to the very low phase noise. DVB-S2 uses more efficient 8PSK modulation. The 8PSK modulation uses twice as many symbols as the QPSK.

The converter works perfectly with all digital tuners, e.g. NC+ / Canal+, Cyfrowy Polsat, including 4K and HD.

• Manufacturer's product symbol: N-ULTRA-SNL412-IDLT
• Lower band input: 10,7-11,7GHz
• Lower band output: 950-1950MHz
• Lower oscillator: 9,75GHz
• Upper band input: 11,7-12,75GHz
• Upper band output: 1100-2150MHz
• Upper Oscillator: 10,6GHz
• Own noise: 0,2dB (0,7dB)
• Oscillator temperature drift: +/-3MHz max
• Phase noise: -90dBc/Hz max
• Gain: 60dB min
• Wave gain characteristics: +/-0,75dB/27MHz
• Polarity control: V11.0~14.0 V
• Polarity control: H16.0~20.0 V
• Lower band control: 0kHz
• Top band control: 22kHz +/-4kHz, 0,4~0,8 Vpp
• VSWR 2.5:1
• Separation between polarities: 22dB min
• Current consumption: 120mA max @11~20V
• Output Impedance: 75Ohm
• Operating temperature: -30...+60C
• Neck Diameter: 40mm
• Connector: F
• Item Weight: 0,151 kg

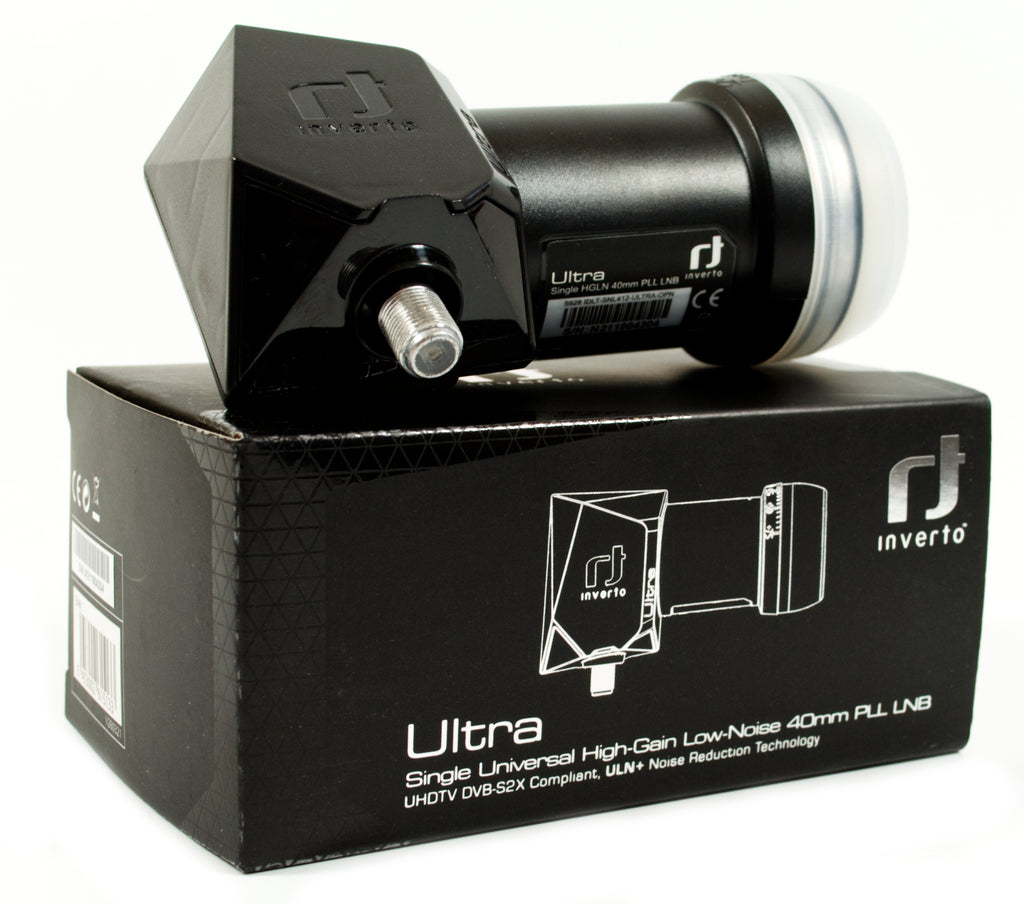

• Single Inverto Black Ultra Converter
• Packaging

KONS0300

Specifications
