Vieno kanalo radijo siųstuvas RSU-Z01/2, 180 m, GORKE

Trumpai apie prekę

Prekė: Vieno kanalo radijo siųstuvas RSU-Z01/2, 180 m, GORKE. Kategorija: Išoriniai moduliai.

• Gamintojas: Gorke
• Modelis: 4359

RSU-Z01/2 1-channel radio line 180 m GORKE

GORKE is a Polish manufacturer of high-end radio equipment for a wide range of applications. The devices are own developments and are created on their own production line.

RSU-Z01/2 is a well-known, economical, ready-to-use set of 1-channel receiver RSU-K01 and two 1-key remote controls PUK-151 with a sliding safety flap.

The working range of this set is approx. 180 meters in open space.

Main applications of radio controllers:

- remote control of devices connected to receiver outputs, e.g. garage and entrance doors, blinds and blinds, electromagnetic locks, lighting, pumps, air conditioning, etc.

- in alarm systems - as an anti-pad button, control of the selected zone, etc.

Installation of wireless systems is economical and fast, does not require the use of wires, at any time it can be disassembled and moved to another place.

The transmission between the remote control and the receiver is based on variable code, which ensures high safety of use and resistance to radio signals from other devices. Each pilot has its own individual code. The receiver responds only to those signals that come from transmitters programmed into its memory. An undoubted advantage of GORKE devices is their compatibility. This means that:

- at any time the set can be enlarged by any remote control of the sA series

- the remote control from the set can be encoded to another GORKE receiver.

• frequency 433,92 MHz
• encoding variable code
• range of the set 180 meters

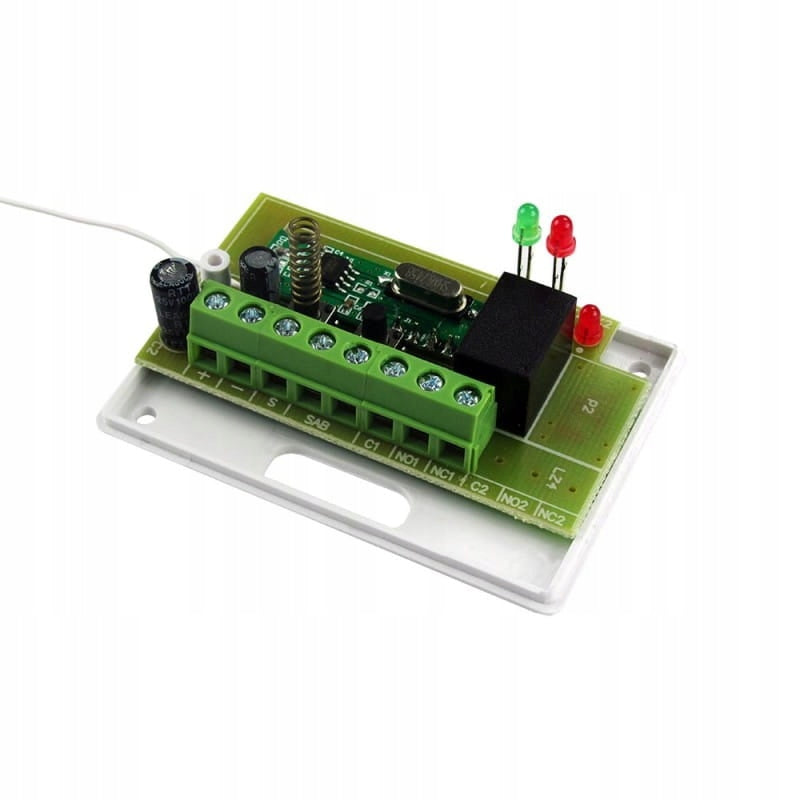

• receiver type RSU-K01
• heterodine H1 receiving module (sensitivity -108 dBm)
• memory capacity of 113 transmitters
• number of relays 1
• mono or bistable operating mode
• monostable time range ~1s - 256s (4min 16s)
• 12V DC power supply (10-15V DC)
• Resting current consumption 17 mA
• maximum current consumption 40 mA
• 1A/ 30V DC relay output
• signal output 0,5A/ 12V DC
• 50mA/ 12V DC tamper output
• temperature operating range -10 ÷ +55 °C
• dimensions (mm) 68*48*26
• cooperation of any sA series transmitter
• Number of remote controls included 2
• transmitter type pilot PUK-151
• number of keys 1
• power supply battery 12V/ MN21, 23A
• Operating temperature -10 ÷ +55 °C
• humidity max. 93% ± 3%
• cooperation of any receiver of the sA series
