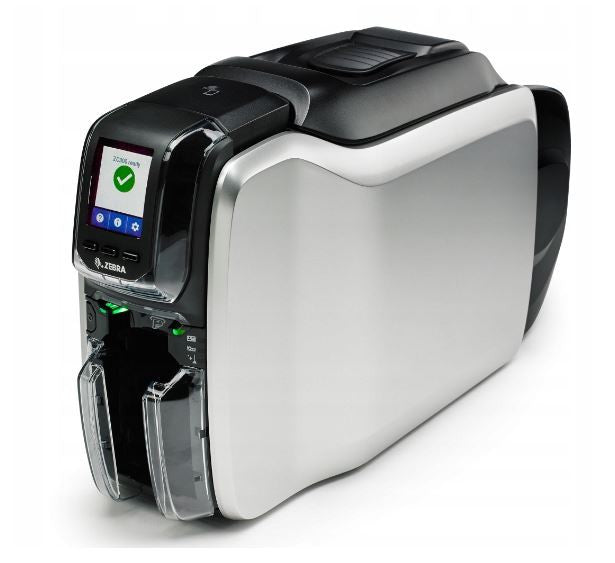

Vienpusė kortelių spausdintuvė Zebra ZC300, USB, Ethernet, Quikcard

Trumpai apie prekę

Prekė: Vienpusė kortelių spausdintuvė Zebra ZC300, USB, Ethernet, Quikcard. Kategorija: Kiti spausdintuvai.

• Gamintojas: Zebra
• Modelis: ZC300

EAN: | SKU: DRUZEB/ZC300

Design and print virtually any card in a revolutionary easy way

No matter what type of cards your business prints – identification, membership, credit, debit cards, or object access cards or event admission – the ZC300 will help you do it better, faster and easier. You can print it with anything your imagination suggests – one-sided, in color, black and white or with special color effects. It even allows you to quickly equip the card with security elements – this is the first printer in this price range to provide such a feature. You can add a magnetic strip to the card or create a contact or contactless card. The ZC300 will make your work easier regardless of the level of card complexity – when creating the ZC300 printer, the team of industrial designers from Zebra made efforts to solve and eliminate virtually all sources of card printing problems. And with a revolutionary case that can fit anywhere, you get the ability to securely print cards wherever you need them.

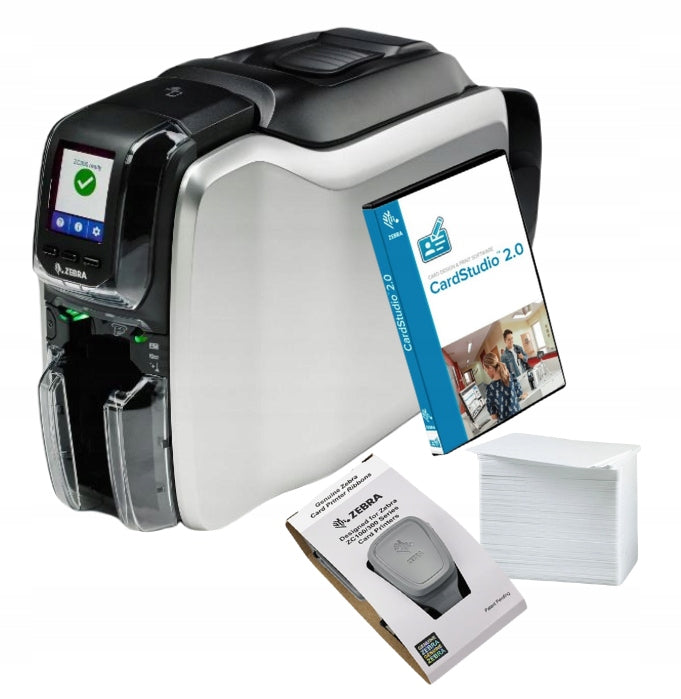

The set includes:

• Zebra ZC300 card printer
• Software Zebra Card Studio 2.0 Standard
• YMCKO color tape for 200 cards
• 200pcs white PVC cards
• USB cable
• Power cable

The world's simplest card printer

Highly graphical LED/LCD interface

ZC300 provides thoroughly tested, intuitive icons, animations and text messages in the user’s native language, which allows every person using the printer to easily understand commands and messages and instructions to help perform virtually any activity – including removing the printer lock, troubleshooting tape, loading tape or cards, and many other activities.

The new, ingeniously designed card feeder quickly and efficiently handles cards of various thicknesses

The card feeder quickly adjusts to the thickness of each card – you no longer need to adjust it separately for each batch.

Easy plug-and-play deployment

The ZC300 is designed so that it can be used right out of the box. The time-consuming and complicated setup process has been eliminated – just plug in the device and you can start enjoying the benefits they provide on the day of purchase.

Revolutionary new driver with graphical user interface

The intuitive interface in the re-developed driver from scratch makes printing cards never so easy. The settings are grouped into logical tabs where they are easily accessible with a single click. Previewing the card makes printing simple monochrome cards and complex color cards just as easy and allows you to quickly see what the card looks like – this eliminates the cost of printing a series of test copies and the associated time.

Breakthrough construction of a new feeder and receiver

Redesigned, completely from scratch, the feeder and receiver make loading and receiving cards easier than ever before. Thanks to the tilting doors, you do not have to open anything – just take one card or their entire stack. And the feeder and receiver have the same capacity, which reduces the need to empty the receiver and charge the feeder.

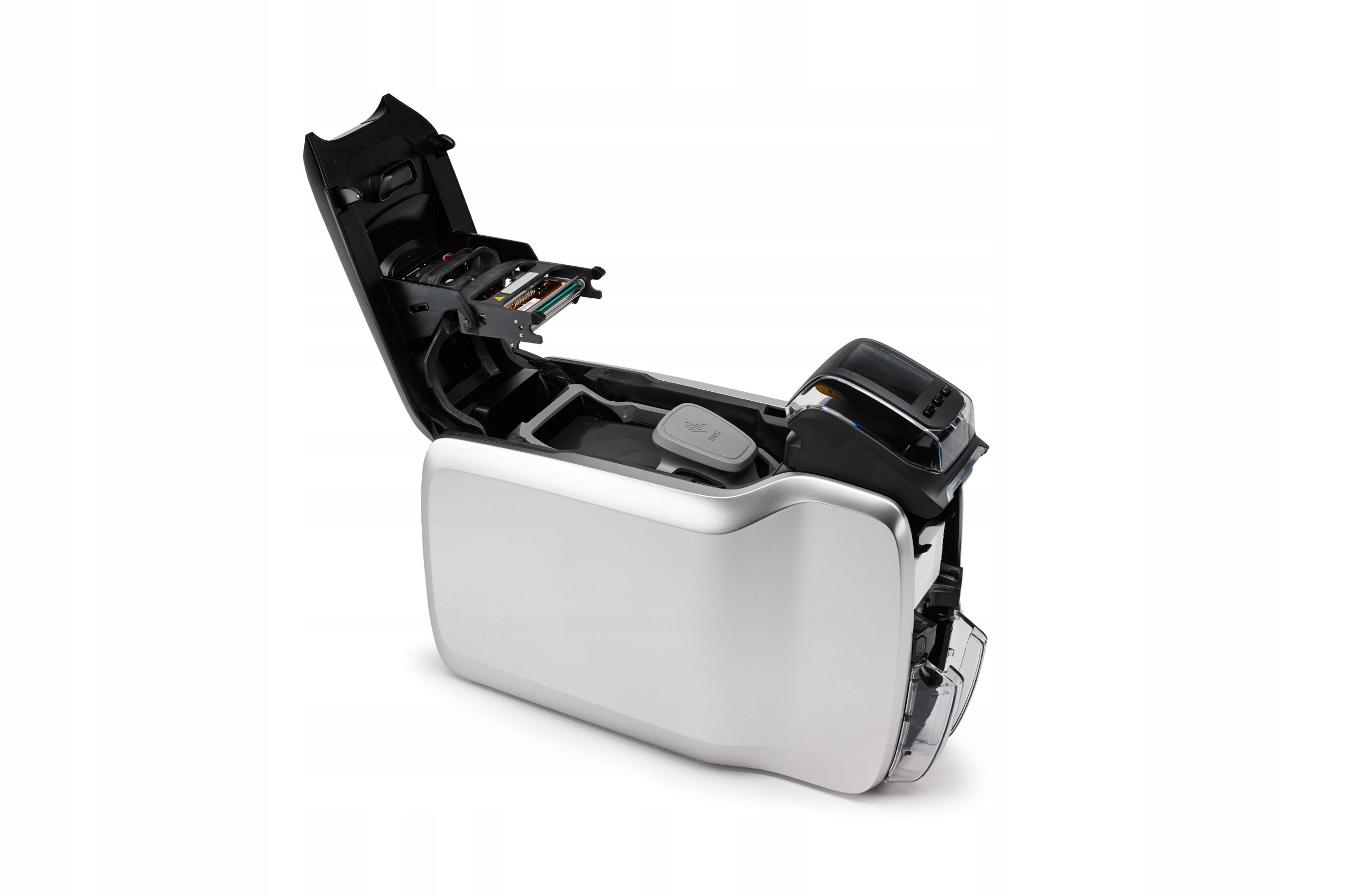

Effortless tape replacement

Replacing the dyeing tape has never been so easy and easy – you don’t even need any instructions for it. Redesigned from scratch, the tape tray door opens in one motion. Thanks to the unique design of the door handle, the user has no doubt about how the tape is removed and put on. Built-in smart chips inform about the need to replace the tape.

We speak your language

Thanks to support for a number of different languages on the LCD display and in the controller interface – English, French, Italian, Spanish, Portuguese (Brazilian dialect), German, Polish, Russian, Simplified Chinese and Arabic – employees using the ZC300 printer can operate it in their preferred language.

Simple manual card feeding

The process of manually feeding cards can be complicated – that’s why we’ve simplified it by providing the user with light cues that guide them in the same way that an ATM user leads.

Technical data

STANDARD FUNCTIONS

• Print resolution: 300 dpi (11,8 pts/mm)

• Flash Memory: 2 GB

• Image size: 1006 × 640 pixels

• Automatic tape calibration

• USB 2.0 and Ethernet 10/100 interface

• 100-card feeder (30 miles) with automatic adjustment

Receiver for 100 cards (30 miles)

• Manual card feeding function with LED backlight guide

• Color graphic LCD display

• Three three-color light printer status indicators

• Kensington® secure lock slot

• Print Touch (NFC) tag for access to online help resources and

printer documentation

• Printer host authentication

• Data encryption

• Three-year limited warranty on printer and print head

Print parameters

• Printing in thermosublimation and thermal transfer technology directly on the card

• Color or monochrome printing

• Single-sided printing

• Edge-to-edge printing on standard CR-80 media

Printer throughput (number of cards/hour) ) when connecting the printer serial printing mode

when using a USB connection. Time may vary depending on

computer configuration.

• 900 cards/hour (one-sided monochrome printing)

• 200 cards/hour (YMCKO single-sided printing)

Media parameters

Parameters of consumables: NOTE: The ZC300 printer is designed to work only with the original Zebra coloring tapes. The tapes come in an easy-to-charge and recyclable cartridge. Ribbon description Images per cartridge YMCKO* 200 YMCKO* 300 YMCKOK* 200 ½ YMCKO* 400 ½ YMCKOKO2 250 YMCKLL* 200 YMCPKO* 200 SrDYMCKO* 200 KrO* 700 KdO* 700 Monochrome black* 2000 Monochrome black 1500 Monochrome white* 1500 Monochrome red 1500 Monochrome blue 1500 Monochrome gold 1500 Monochrome silver 1500 Ribbon availability may vary by region.

* Intelligent technology from Zebra automatically detects and

authenticates the tape

• A cleaning roller is included with each tape

• Two cleaning kit options are available: there are two (2) or

five (5) cleaning cards with isopropyl alcohol (1000 images per card)

Supported cards:

NOTE: It is recommended to use Genuine Zebra original consumables as this allows you to achieve optimal print quality and printer performance.

• Card Thickness: 10-40 miles*

• Dimensions: format CR80 ISO 7810 ID-1, CR79*

• Material: PVC and composite PVC

• Cards with self-adhesive back surface and saveable back surface

*Please note: Spot or monochrome color printing is only recommended on cards >20 miles thick and CR79 cards.

Working parameters

Operating temperature 15ºC to 35ºC (59ºF to 95ºF) Storage temperature -5ºC to 70ºC (23ºF to 158ºF) Operating humidity 20% to 80% non-condensing Media storage – Temperature: 5ºC to 25ºC (41ºF to 77ºF)

– Humidity: 35% to 65%, non-condensing

Electrical parameters • Single-phase AC power supply with automatic switching

• Working range: 90-132 V AC and 190-264 V AC RMS

• Frequency range: 47-63 Hz

• FCC Class A

Physical parameters

Dimensions

One-sided printing

10,2 in. (height ) × 6,2 in. (lat. ) × 15,1 in. (main )

258 mm (H) ) × 157 mm (W) ) × 383 mm (D) )

Libra

One-sided printing

4,0 kg (8,8 lb)

Connectivity and interfaces

USB 2.0

Standard Built-in Ethernet 10/100 Standard 802.11ac Optional

Parameters and encoding options

Magnetic strip encoder – ISO 7811 (new and pre-coded cards; path 1, 2 and 3; high and low coercivity coefficient of the strip)

• Combined proximity card encoder MIFARE ISO 14443 A and B (13,56 MHz) with

1 SAM slot and optional iCLASS ISO 15693 and ISO 7816 card reading support

and ISO 7816 contact card encoder with Level 1 EMV certification and

PC/SC3 compatibility, 4

• ISO 7816 chip card contact station for external

Third-party contact card encoders3

• UHF EPCglobal 2 RFID encoder. generation3, 4

Printer drivers

Microsoft

Windows

Certified

Windows Server 2008 (32-bit and 64-bit)

Windows 7 (32-bit and 64-bit)

Windows 8 and Windows 8.1

(compatibility with 32-bit and 64-bit versions)

Windows Server 2012 (64-bit)

Windows 10 (32-bit and 64-bit)

Windows Server 2016

Windows drivers include:

• color-coded printer status indicators for the operator

• panel black extraction with control functions for specialized tape panels

with image preview

• configuration tool to limit access to functions that allow operators to change image quality settings and printer settings

• advanced printer configuration features, security settings

and diagnostics

Linux Ubuntu 16.X (64-bit) Apple MAC OS X 10.13.X (64-bit)

Additional optional equipment

• Key-lockable housing3

Footnotes

1. Availability of special coloring tapes depends on the region

2. 1/2 YMCKOKO tapes are only available in APAC region

3. Options installed at the customer

4. Single-wire communication available

Technical data are subject to change without notice.

• Printing technology: Printing in thermosublimation and thermal transfer technology directly on the card
• Print resolution - black [dpi]: 300 x 300 dpi
• Print speed - black [str/min]: 900 cards/h
• Print speed - colour [str/min]: 200 cards/h
• Automatic double-sided printing: no
• Capacity of feeder: 100
• Receiver capacity: 100
• Ethernet (LAN): yes
• Communication solutions: USB, Ethernet
• Warranty period [months]: 36
• Net weight [kg]: 3,9
• Series: ZC
• Automatic belt calibration: yes
• Product width [mm]: 157
• Product depth [mm]: 383
• Product height [mm]: 258
• Package width [mm]: 215
• Packaging depth [mm]: 590
• Packaging height [mm]: 435
