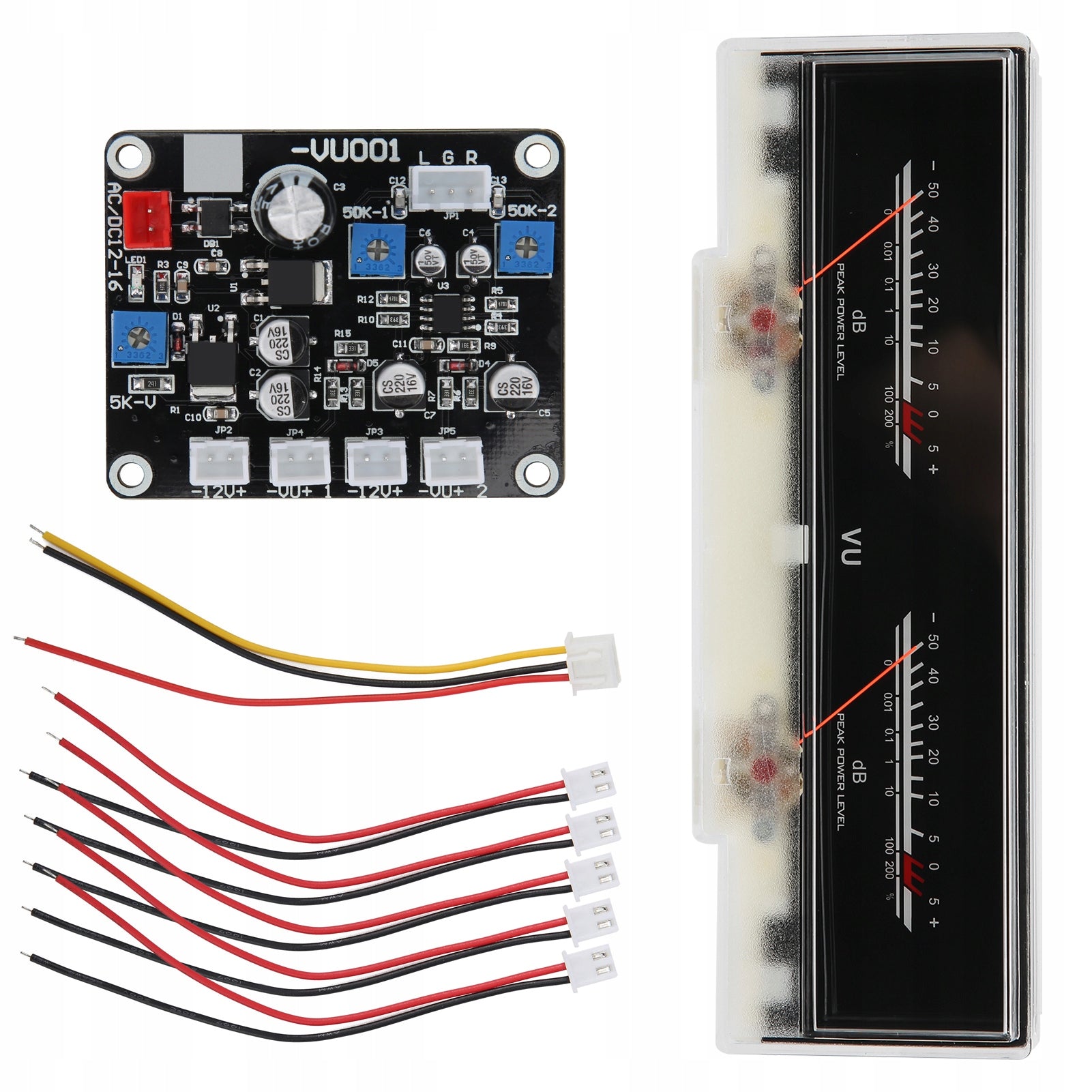

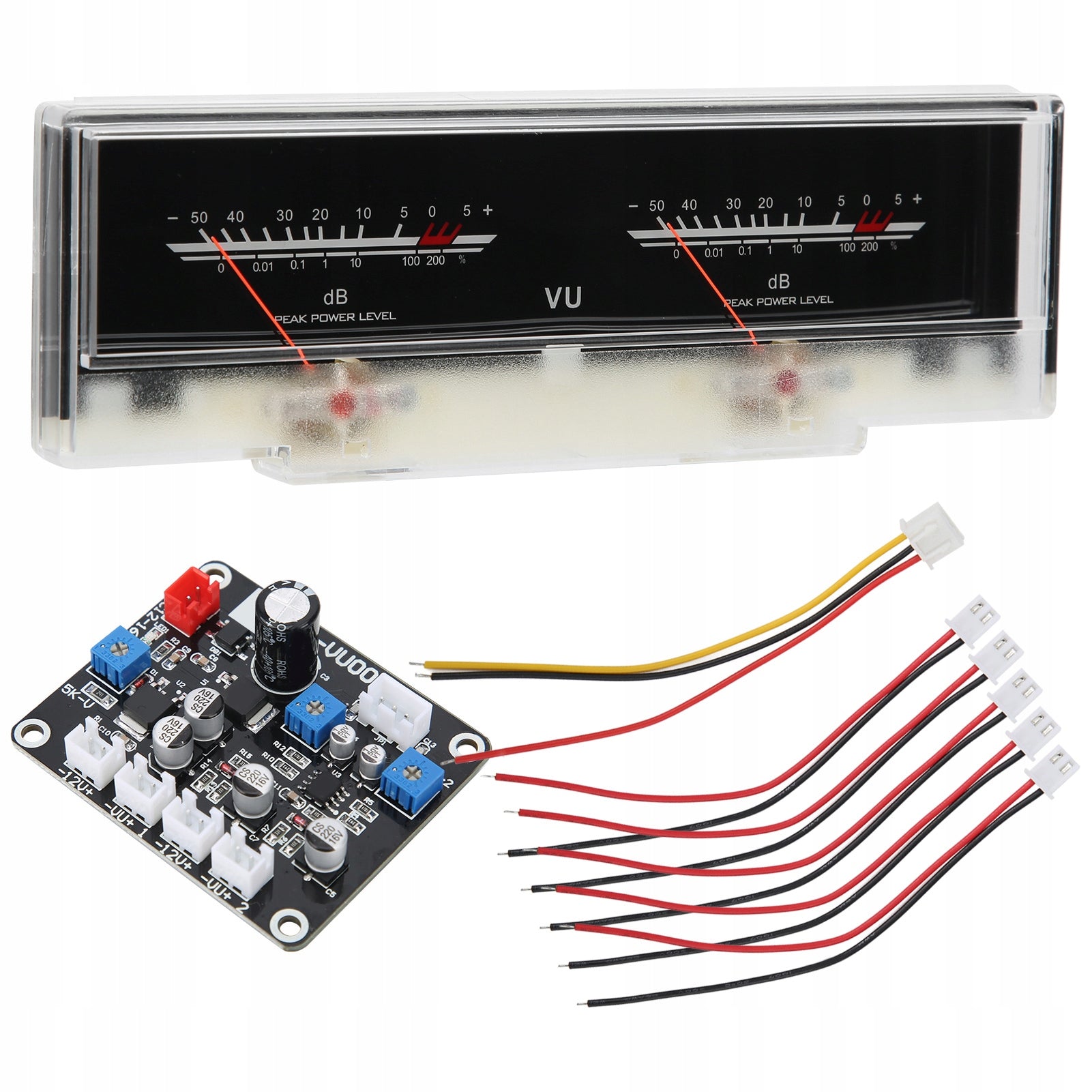

VU lygio matuoklis TS-DB78-W stiprintuvui

Trumpai apie prekę

Prekė: VU lygio matuoklis TS-DB78-W stiprintuvui. Kategorija: Matuokliai, signalo stiprintuvai.

• Gamintojas: no brand
• Modelis: 1110210002011

⭐Function:

✅ Thanks to the backlit display, you can achieve the effect even in poor environments.

✅The VU meter is equipped with a control board, which is compact and useful for introduction.

✅Cabling is simple, operation is used, and wiring can be used on time.

✅Wide application, DIY tax, utility audio equipment, audio to car conversion, etc.

✅Control board for adjusting the backlight and tilt amplitude of the indicator.

⏺Specification:

• Item Type: VU Meter
• Material: PCB ABS
• Color: as shown in the picture
• VU meter size: approximately 15,5 x 4,8 x 3 cm/6,1 x 1,9 x 1,2 inches
• Control board size: about 6x5x2.5cm/2.4x2x1in
• VU Meter:
• Current Sensitivity: 500uA ± 10%
• Internal DC Impedance: 650 Ω ± 10%
• Insulation resistance: 50MΩ
• Friction: ±1mm
• Indicator length: 30 ± 1 mm from needle end to axis
• Width gauge: 0,45 ± 0,05 mm
• Position installed: vertical
• Backlight Board: 3.0-3.3V 60mA
• Driver's plate:
• Power supply: AC/DC 12-16V ≥5W
• Receipt Input: ≤0,775 V
• Backlight Output Power: 1,25 V-11 V 50 mA

List of ingredients:

✅1 x VU meter

✅1 x control board

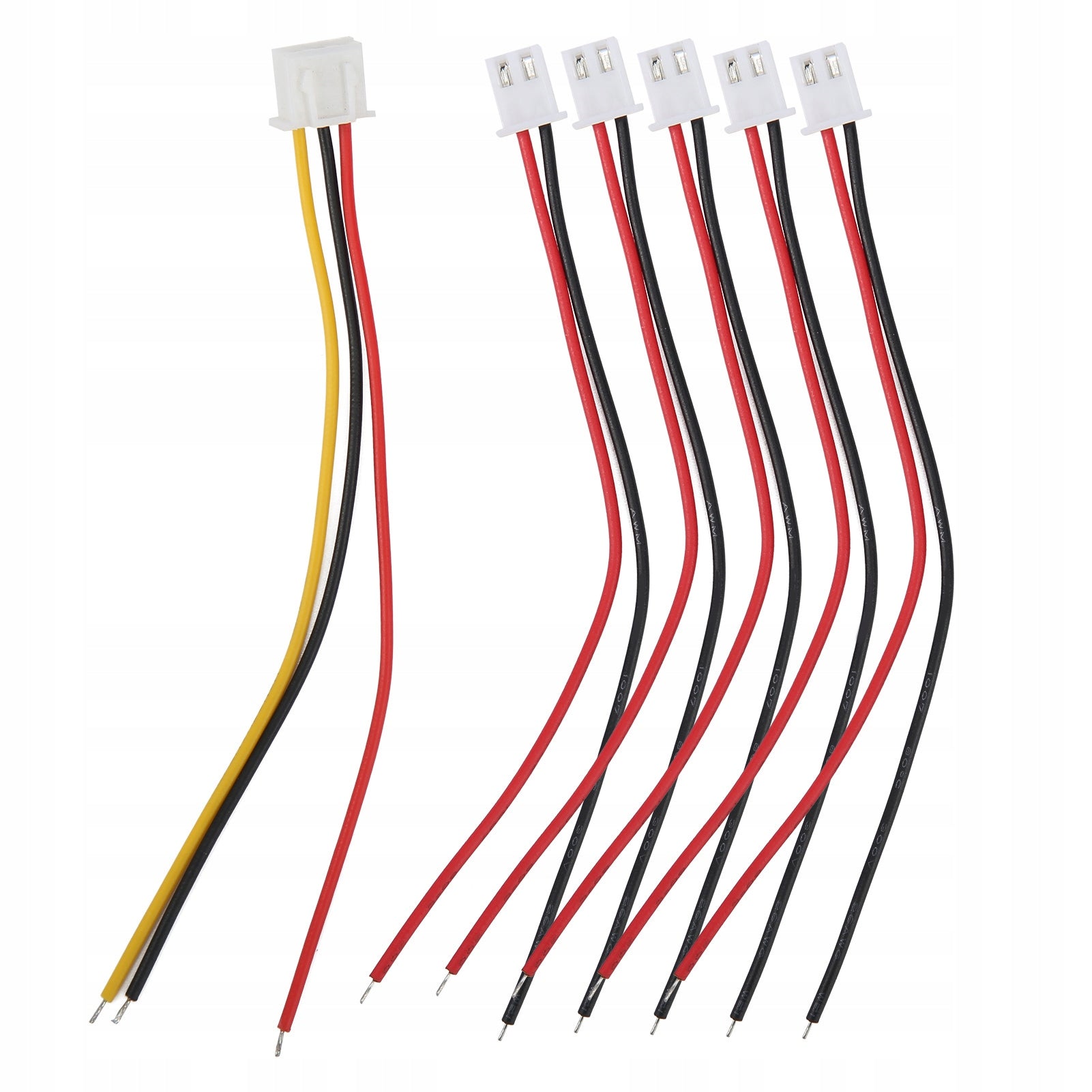

✅6 x flat cable
