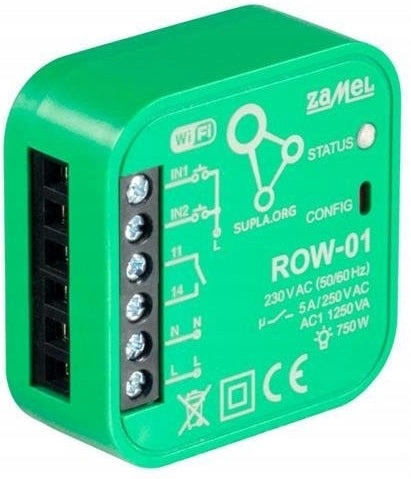

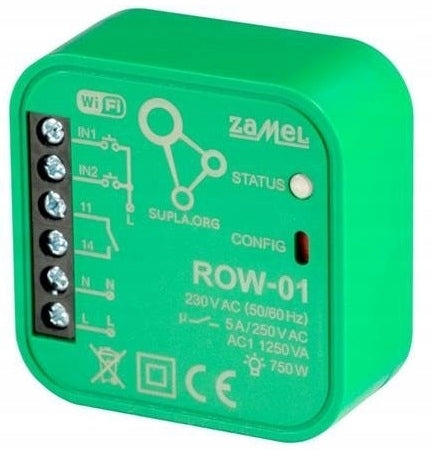

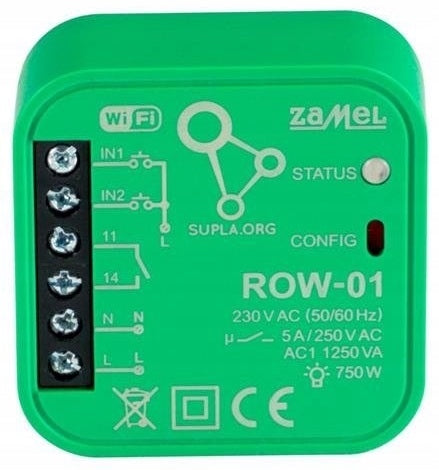

Wi-Fi imtuvas ROW-01, 1 kanalo

Trumpai apie prekę

Prekė: Wi-Fi imtuvas ROW-01, 1 kanalo. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: ROW-01

ROW-01 belongs to the family of smart home control products via wi-fi. The device uses SUPLA cloud technology. The ROW-01 module allows you to control lighting, turn on and off sockets and electrical devices using a smartphone or tablet. ROW-01 receipt modules are used both as elements for installation in sub- and surface-mounted installation boxes, and as actuators installed directly in the housings of lighting fixtures.

• Supla Zamel ROW-01 - technical data:
• Rated frequency: 50 / 60 Hz
• Rated Power Consumption: 0,45 W
• Transmission: Wi-Fi
• Operating range: up to 200 m in open area
• Number of external inputs: 2
• Cooperation with connectors: monostable (buttons), bistable (standard light switches without backlight)
• Number of Output Channels: 1
• Relay contact parameters: (voltage-free contact) 1 x NO 5A / 250 VAC
• Maximum output load capacity: 1 x 5A / 250 V AC:
• incandescent and halogen bulbs – 750 W
• CFL fluorescent lamps – 250 W
• LED bulbs – 60 W
• Number of connection terminals: 6 (wires up to 2,5 mm2)
• Housing mount: installation box? 60 mm
• Temperature operating range: -10 to +55 °C
• Degree of protection of the housing: IP20
• Protection Class: II
• Dimensions: 47,5 x 47,5 x 20 mm
• Weight: 0,04 kg
• Compliance with the following standards: PN-EN 60669, PN-EN 60950, PN-EN 61000, PN-ETSI EN 300 220-1
• Rated supply voltage: 230 VAC

The instructions for assembly, connection or operation of the product are presented in the instructional video of each ZAMEL product on the manufacturer’s website.
