Wi-Fi signalo įvesties modulis Supla Zamel INW-01

Trumpai apie prekę

Prekė: Wi-Fi signalo įvesties modulis Supla Zamel INW-01. Kategorija: Išoriniai moduliai.

• Gamintojas: Supla
• Modelis: INW-01

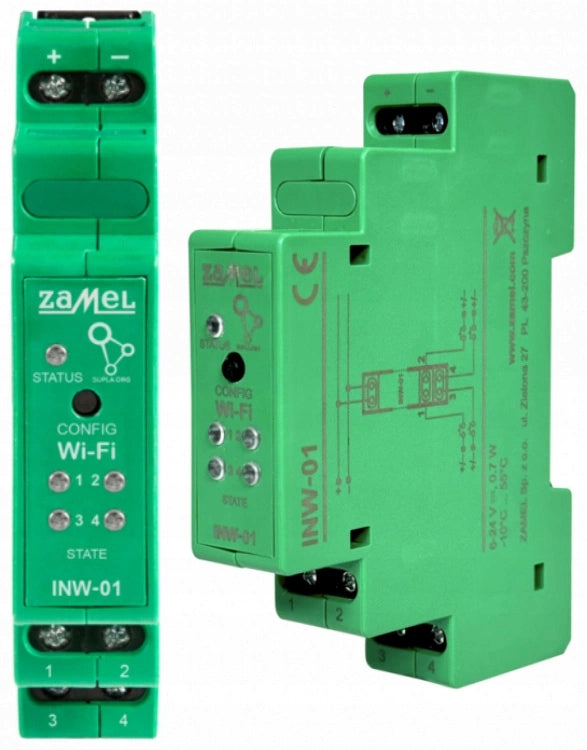

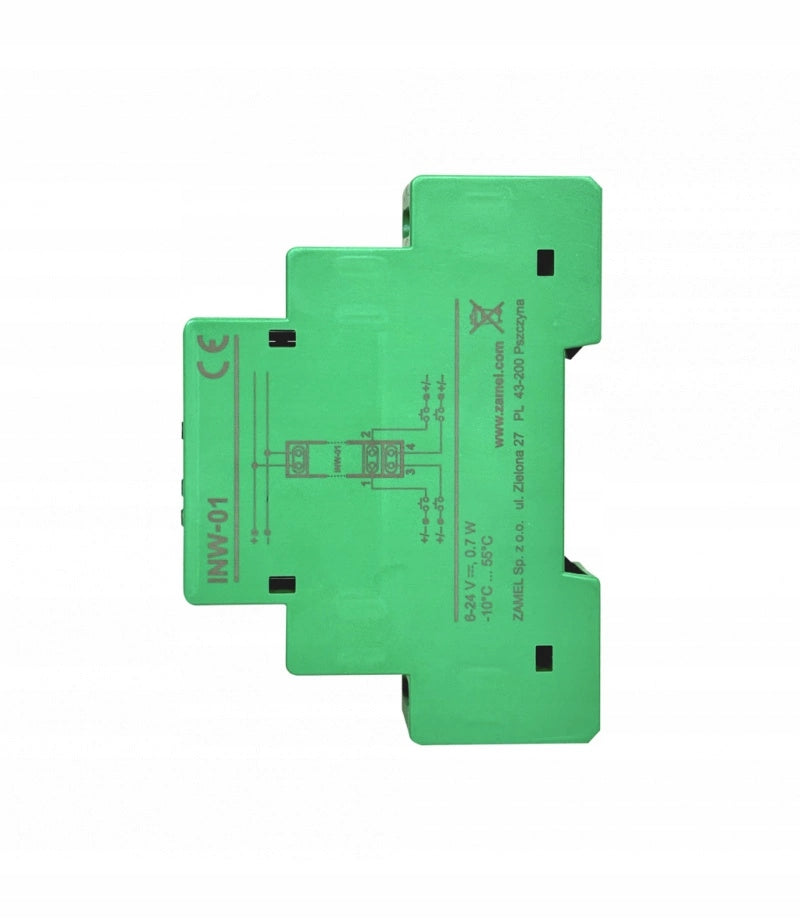

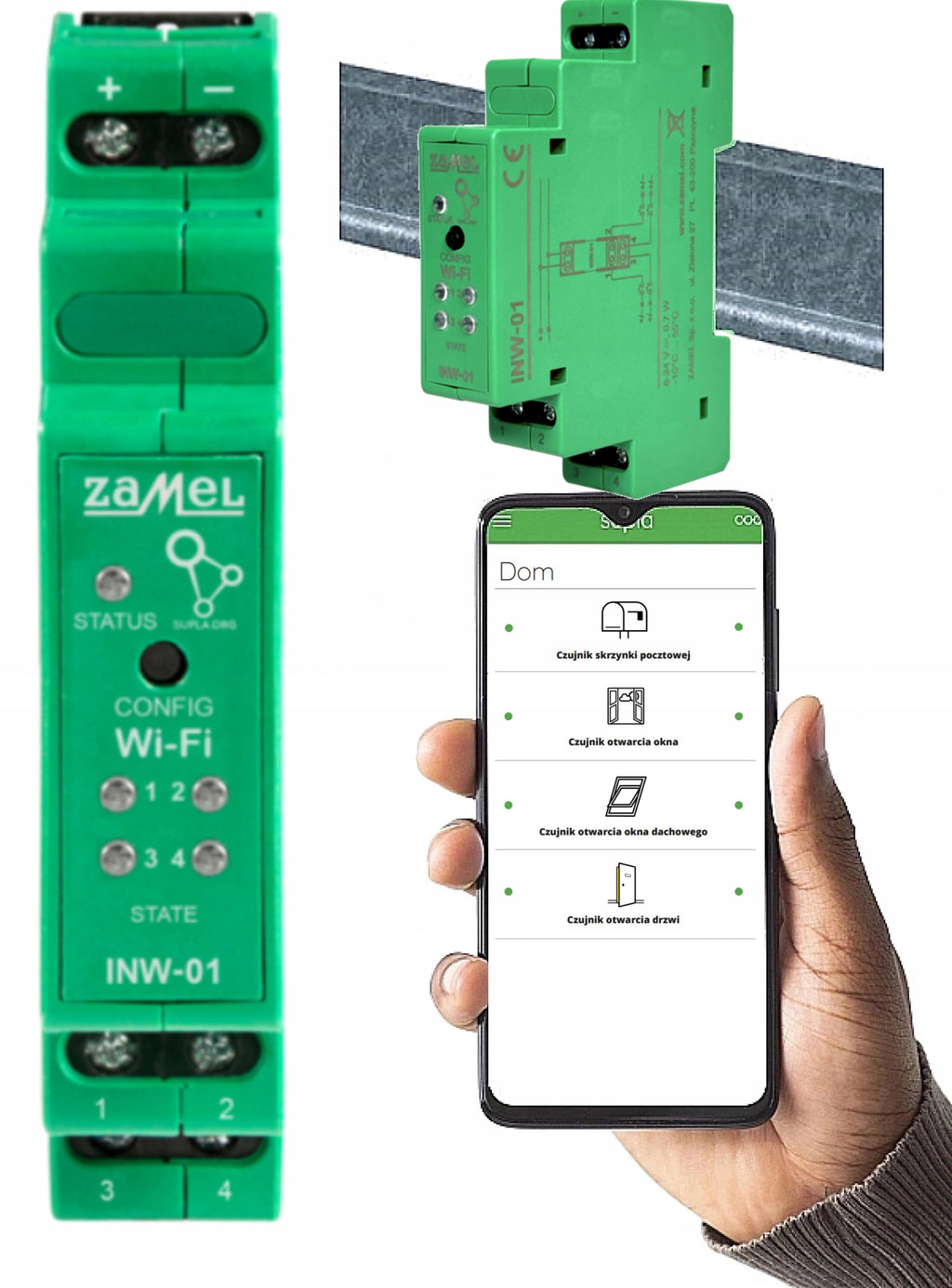

WI-FI Signaling Input Interface SUPLA

ZAMEL INW-01

✔ Interface INW-01 is a device that has four signal inputs.

✔ They are designed to connect building automation elements indicating a change in condition.

✔ With its help, it is possible to read states from reed sensors informing users, e.g. on opening windows, doors, etc.

✔ Using INW-01, the user can trigger actions or create logical functions based on the reaction mechanism available in Supla Cloud.

✔ The device allows remote viewing of whether windows or doors in the house are closed.

✔ The device is powered in the range of 6-24 V DC.

The set consists of

• 1 pc. Signaling input interface INW-01
• User manual in Polish

➡ Wide supply voltage range

➡ Mounting on the TH-35 rail

➡ Indication with input status LEDs

➡ Control of action triggers

➡ Ease of use

➡ The triggering of individual inputs is carried out using the positive and negative potential voltage supplying the INW-01 device.

➡ INW-01 offering a wide spectrum of integration via API and MQTT protocol support.

Technical data

• Rated voltage: 6÷24 V
• Rated power consumption: 0.7 W
• Transmission: Wi-Fi 2.4 GHz 802.11 b/g/n
• Operating range: Wi-Fi coverage
• Transmission power: ERP < 20 mW
• Input: 4 (voltage inputs)
• Operating temperature range: -10°C – 55°C
• Optical signaling powered bya: Green LED
• Environmental resistance: IP20
• Number of connection terminals: 6 (wires up to 2,5 mm²)
• Housing mounting: TH-35 rail
• Dimensions: 90 x 17.5 x 66 mm

SUPLA - Your Smart Home

Existing building automation systems on the market are typically very complex, closed, and expensive.

In many cases, they require installation during the building's construction phase.

With SUPLA, you can control lighting, turn appliances and electronics on and off, open and close gates and doors, and control the temperature in rooms, among other things.

You can do all of this with a single swipe of your finger.

SUPLA is available wherever you have internet access and a smartphone or tablet at hand.< ul>

Everything at Your Fingertips. Anywhere, Anytime.

We've all sometimes wondered if we turned off the lights, stove, or kettle after leaving home.

Now you don't have to worry about it anymore.

Just launch SUPLA on your smartphone, and you can immediately check if everything that should be off is indeed off.

If not, with a single swipe of your finger, you can turn off the lights/appliances, close the blinds, or close the gate.

Download the app to your smartphone and start your SUPLA adventure today.

< ul>

Note!!!

Shipping takes place up to two business days/48 hours

It is carried out depending on the time of purchase and the type of delivery, usually on the same day, but for various reasons, independent of us, it can be sent the next day. If it is given for a longer time than the given (2 days), i.e. that the product has sold out and we expect delivery, usually up to 3-7 days.

Pictures of products in our offers are illustrative, do not suggest the parameters placed on them. The offer description includes the full specification.

Our business is conducted on many sales channels, which may result in a possible delay in updating inventory and executing orders.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	other
Parametry	Series	INW
Parametry	Brand	Supla
Parametry	Power supply	mains
Parametry	Communication	WiFi
Parametry	Manufacturer code	INW-01
Parametry	EAN (GTIN)	5903669500261
Parametry	Product weight with unit packaging	0.046 kg
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE,WEEE
