Wi-Fi valdiklio modulis vartams

Trumpai apie prekę

Prekė: Wi-Fi valdiklio modulis vartams. Kategorija: Išoriniai moduliai.

• Gamintojas: Lamex
• Modelis: SMART02 - STEROWNI BRAMOWY DO BRAMY GARAŻU

• GARAGE DOOR
• ENTRY GATE
• WICKETS

The presented controller allows for integration with any gate drive and gate and allows remote control of the gate through the TUYA or SmarLife mobile application. The device is adapted to mount directly the eye of the controller in the gate drive or under the intercom. By connecting signals from limit switches to the controller inputs, we receive information about opening and closing the gate / gate.

✅ CONTROL ROOMS FROM ANYWHERE IN THE WORLD

✅ COMPATIBLE WITH VARIOUS APPLICATIONS

✅ POLISH MANUAL

✅ SMALL SIZE

✅ HISTORY OF EVENTS - OPENING AND CLOSING

✅ NOTIFICATIONS ABOUT THE STATUS OF THE DEVICE

✅ VOICE CONTROL Amazon Alexa and Google Assistant

✅ NO GATEWAY REQUIRED, JUST A HOME ROUTER

All you need to operate this device is your home WiFi router.

• The driver works with Google Assistant (Google Home) and Amazon Alexa(Echo).

• Thanks to this functionality, the user can enjoy the simplicity of controlling the device through the most well-known and widespread voice assistants.
• A simple voice command is enough to turn on and control the device, for example "open the entrance gate"

• The versatility of the integration with the voice assistant allows you to attach this outlet to your existing smart devices without worrying about them not being compatible with each other.

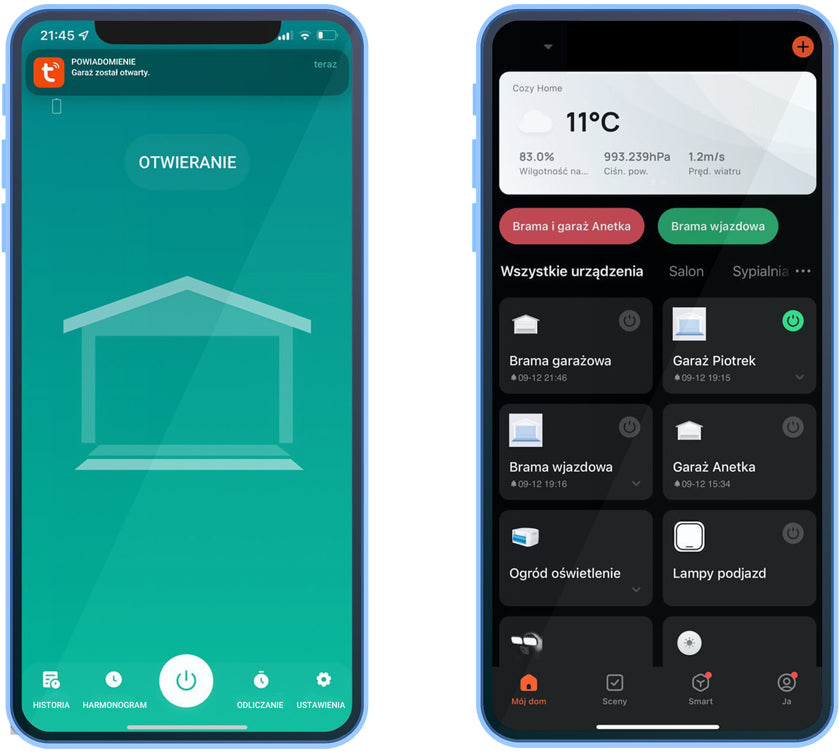

The controller easily pairs with home WiFi using the free SmartLife or Tuya apps for Android or iOS.

The controller allows you to support advanced automation with other products in the TUYA, SmartLife, Google Home, etc.

Connecting the device to work takes only a few moments. Just follow a few simple steps described below.

1. Connect the outlet to electricity.
2. Connect the signal cable that is responsible for opening and closing any gate or gate.
3. Optionally, you can connect a sensor that will indicate the status of the gate, whether the gate is in a closed or open position.
4. Download the free TUYA or SmartLife app to your phone, tablet or computer.
5. Create a free account in the installed application
6. Open the app and click "+" to add a new device you want to control. Remember that you will have to provide access data to the WiFi network to which you connect the outlet so that it always has access to the Internet, and you will be able to control it from anywhere in the world, at any time.
7. Complete the installation of the outlet - you can already use the device

When installing signal cables in the CAME HG600 garage door opener, use a cube with four sockets, two of which are designed to connect signal cables. These slots are PB and GND. The order of connection of cables in these sockets does not matter.

Before proceeding to connect the cables, make sure that the power supply of the device is turned off to avoid accidental damage to the equipment. Then, connect the signal wires from the S1 and S2 sockets in the controller to the corresponding PB and GND sockets on the cube in the CAME HG600 garage door opener.

Using these sockets, we can connect various control devices, such as bell switches or other elements of the gate control system, which allow you to open and close the entrance gate.

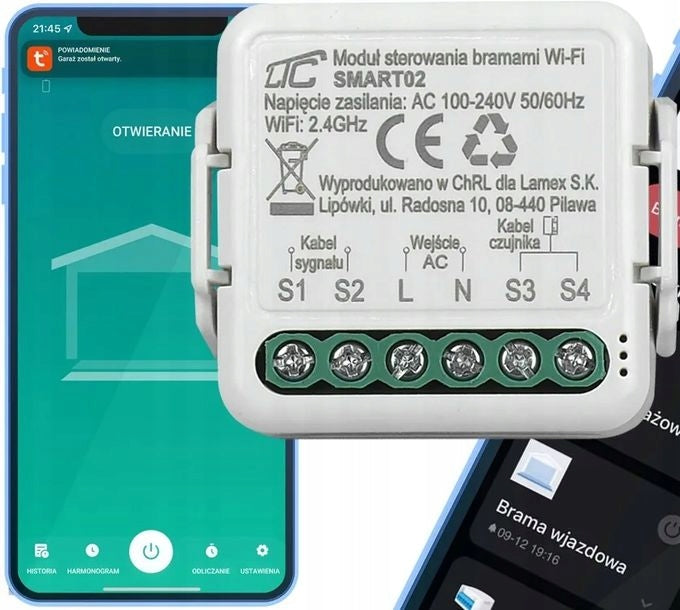

• S1 - Signal cable for GND sockets in cube (order irrelevant)
• S2 - Signal cable for cube PB sockets (order irrelevant)
• L - Brown cable (phase)
• N - Blue cable (neutral)

After connecting the device to the wifi point and adding it to Smart Life, Tuya or another application, we can control it from anywhere on earth where we have access to the Internet. The product can be assigned in the application to many users, so that control over the device can be exercised by all household members.

You can set different conditions for opening or closing the gate, e.g. If between 5:30 and 5:45 you know that you will be leaving for work, the controller will open the gate at 5:30 and close at 5:45. These capabilities will make your home smart!

Program several smart devices that will allow you to react automatically in any way you want. Suppose you have an advanced motion sensor - if the sensor detects that you have entered the garage, it will send the appropriate information to the controller, so that the gate will open itself. Create your own automations without limit!

• Automate the entire smart home
• Set Reactions Between Smart Devices

• Power supply: AC 100-240V 50/60Hz
• Operating frequency: 2.412GHz - 2.484GHz
• Operating temperature: -10°C - 40°C
• Protocol: WIFI IEEE 802.11b/g/n
• Working range: < 100m
• Sealing Class: IP20
• Dimensions without handle: 39,2 x 39,2 x 18 mm
• Dimensions with handle: 39,2 x 43 x 22,3 mm

Specifications
