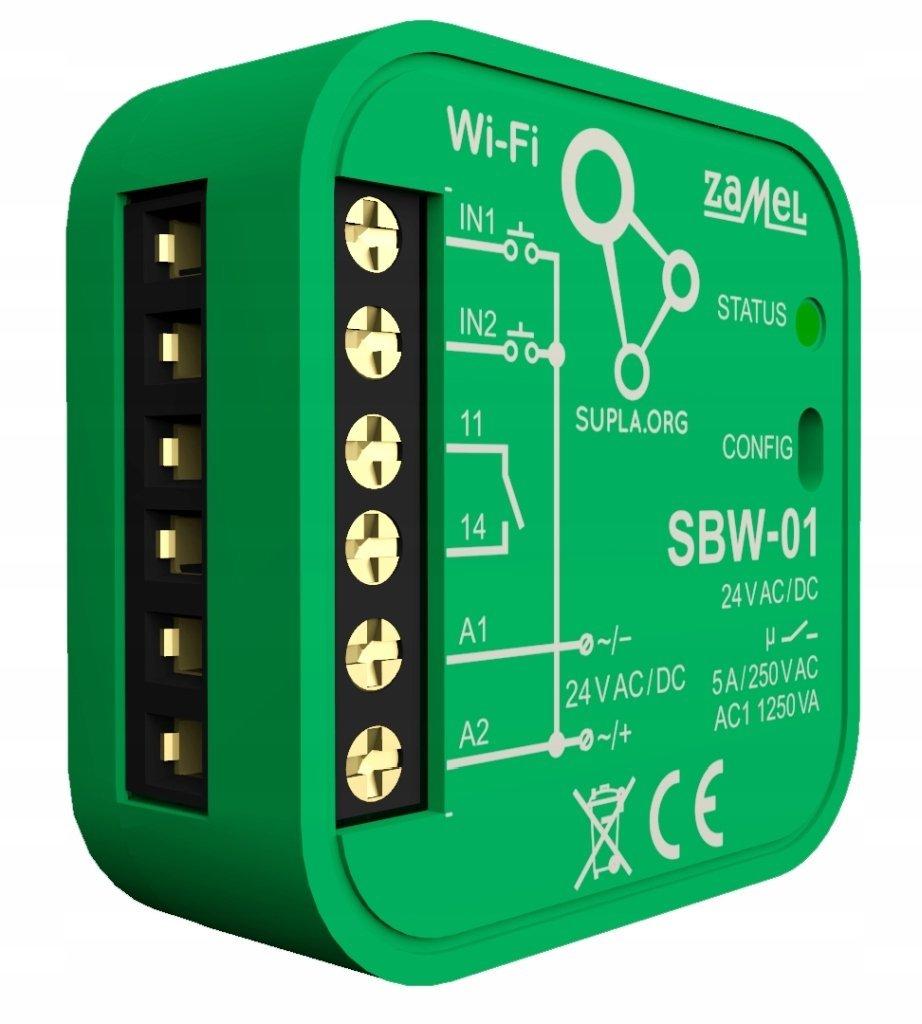

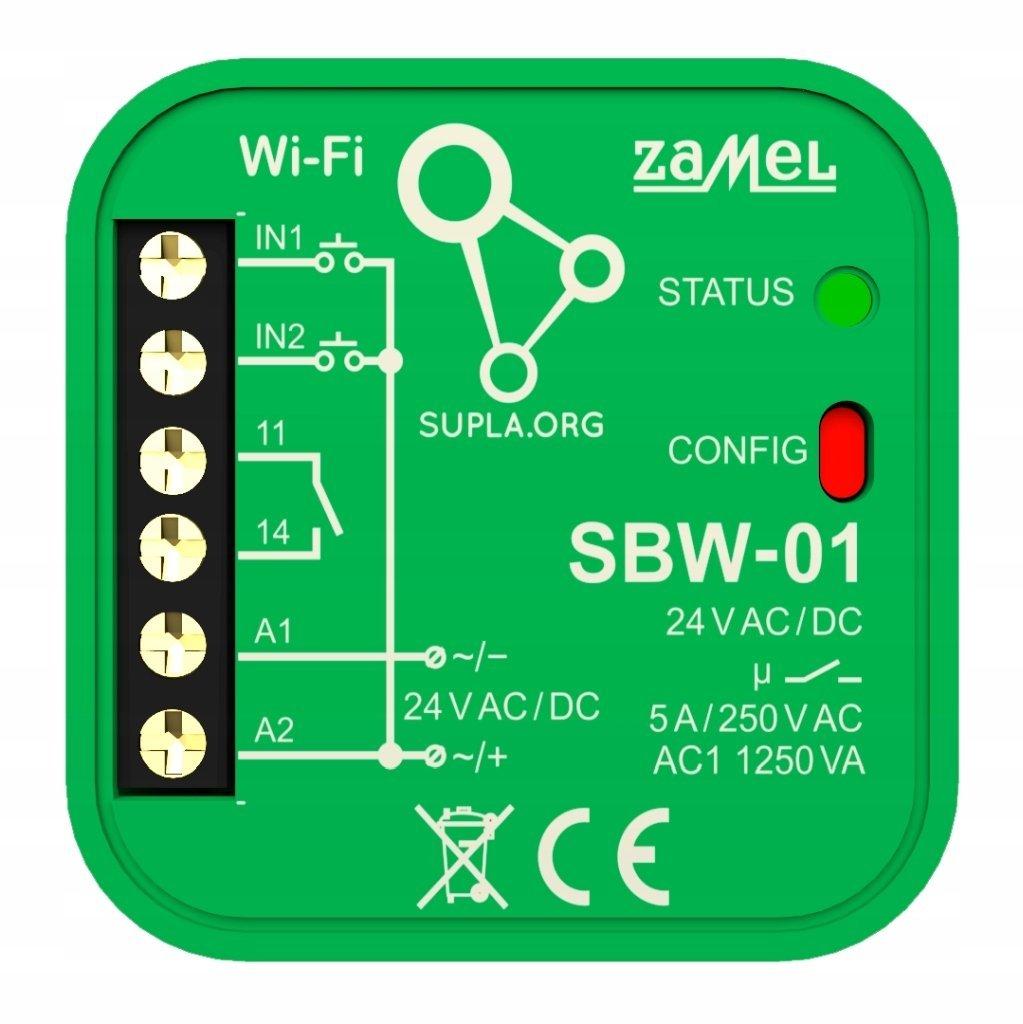

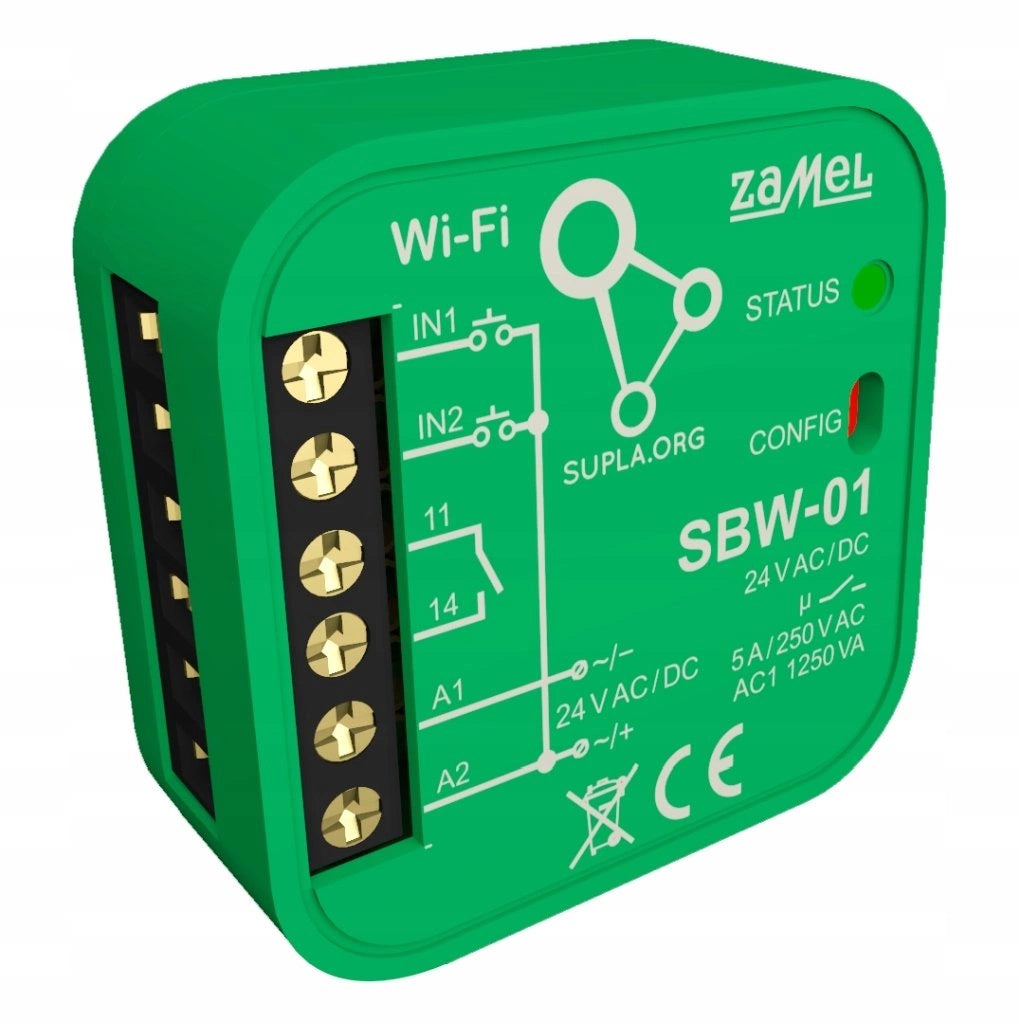

Wi-Fi vartai valdiklis SUPLA SBW-01, ZAMEL, 1 kanalo

Trumpai apie prekę

Prekė: Wi-Fi vartai valdiklis SUPLA SBW-01, ZAMEL, 1 kanalo. Kategorija: Išoriniai moduliai.

• Gamintojas: Zamel
• Modelis: SBW-01

The gate controller allows integration with any gate drive and gateway and enables remote control of the gateway through the Supla mobile application. The device is adapted to be mounted directly in the drive. With a universal 12 - 24V AC/DC power supply, it can be used in a variety of applications. By connecting signals from limit switches to the controller inputs, we receive information about opening and closing the gate / gate.

Technical data

• Rated Voltage: 12V - 24V AC/DC
• Frequency: 50 Hz
• Rated Power Consumption: 0,6 W
• Transmission: Wi-Fi 2.4 GHz b/g/n
• Operating Range: Wi-Fi coverage
• Number of Inputs: 2
• Number of Output Channels: 1
• Relay contact parameters (voltage-free contact): 2 x NO 3A / 250V AC
• Number of connection terminals: 8 (wires up to 2,5 mm? )
• Temperature operating range: -20 +55°C
• Degree of protection of the housing: IP20
• Dimensions: 47,5 x 47,5 x 20mm
• Weight: 0,04 kg
• Maximum output load capacity: 2 x 3A / 250V AC

FUNCTIONAL FEATURES OF THE PRODUCT:

• wireless control of the gate drive, or gates using wi-fi technology
• the ability to track the status of the gate by examining the status of limit switches

• the ability to control the controller via the supla mobile application from anywhere in the world

Assembly

• SBW-01 controller thanks to its small dimensions is adapted to be installed directly in the drive
• The module is designed for indoor installation. When installing outdoors, the device should be placed in an additional hermetic can.

⚙ Technical information

The device is designed for installation and configuration by people with appropriate knowledge, experience and qualifications in the field of electrical installations and automation.

For proper operation, the device requires connection to the electrical system, configuration with Wi-Fi network and saving individual user settings. During the configuration, the operating parameters, network settings and data necessary to communicate with the application are saved.

Violation of the control seal is treated as confirmation that the device was connected to the electrical system or interfered with its power terminals.
