WiFi garažo vartų valdiklis su TUYA Smart Life jutikliais

Trumpai apie prekę

Prekė: WiFi garažo vartų valdiklis su TUYA Smart Life jutikliais. Kategorija: Automatizavimo moduliai.

• Gamintojas: Blow
• Modelis: sterownik

❗ SMART CONTROLLER FOR WIFI GATEWAY ❗

✅ Remote control of the gate from anywhere

✅ Dedicated free phone app

✅ Powered by 230V!

✅ Possibility to use the voice control function

✅Opening and closing status monitoring

✅ Possibility to set working time by hours

✅ Work schedule during the week

✅ Easy setup

✅ Small dimensions

✅ Instruction in Polish

The intelligent controller for the Wi-Fi gateway thanks to the ability to connect to the Internet allows you to control the remote gateway using a mobile phone or tablet with a dedicated application installed. The voltage-free, potential-free garage door controller can be connected to a sliding, swinging or vertical gate. In addition, the opening/closing status is shown in the app.

• Open/close the remote gateway with the Tuya/Smart Life app
• Timer - setting the time to close or open the gate
• Schedule - opening/closing according to the set plan
• Scene - setting the control dependence on the time of day or other factors selected by us
• THE BLOW CONTROLLER PROVIDES A PREVIEW OF WHETHER THE GATEWAY IS OPEN (reeds required to install a reed - is included)
• Assembly in a can or at the gate mechanism
• Notification of opening
• Notification of closure
• Programmable gateway reminder is open (range:1 minute to 24 hours)

✅ Tuya Smart

Free application running on Android and iOS, thanks to which you can control the smart controller from anywhere. The application does not limit use to control one controller, you can configure any number of drivers and other smart devices. The application, which works in Polish allows you to manage access to a smart home for family members and gives you the ability to grant access permissions to individual members.

The app is available on the Play Store and the App Store!

✅ Smart Life

Thanks to this simple and intuitive application, we can use the phone to set the operating time of the device taking into account the days of the week and the time. Manage the controller from anywhere in the world. Prepare your own driver action plan. In addition, the application allows you to monitor the power consumption of the connected device.

The app is available on the Play Store and the App Store!

✅Assembly of the controller is very simple!

The module can be hidden in an electrical box or mounted on a mounting bracket/DIN rail.

1. AC100-240V power connection
2. Connecting the reed (state sensor) and fixing it
3. Installation of the closing sensor so that when the gate is opened, the sensors disconnect from each other
4. Connection of the signal cable to the gate machine (so-called. step control - pulse, if the entrance is already occupied - we plug into the same place in parallel).
5. Physical opening with the push of a button. Not always used. If it is connected, you can easily track the inputs in the machine to connect the driver.

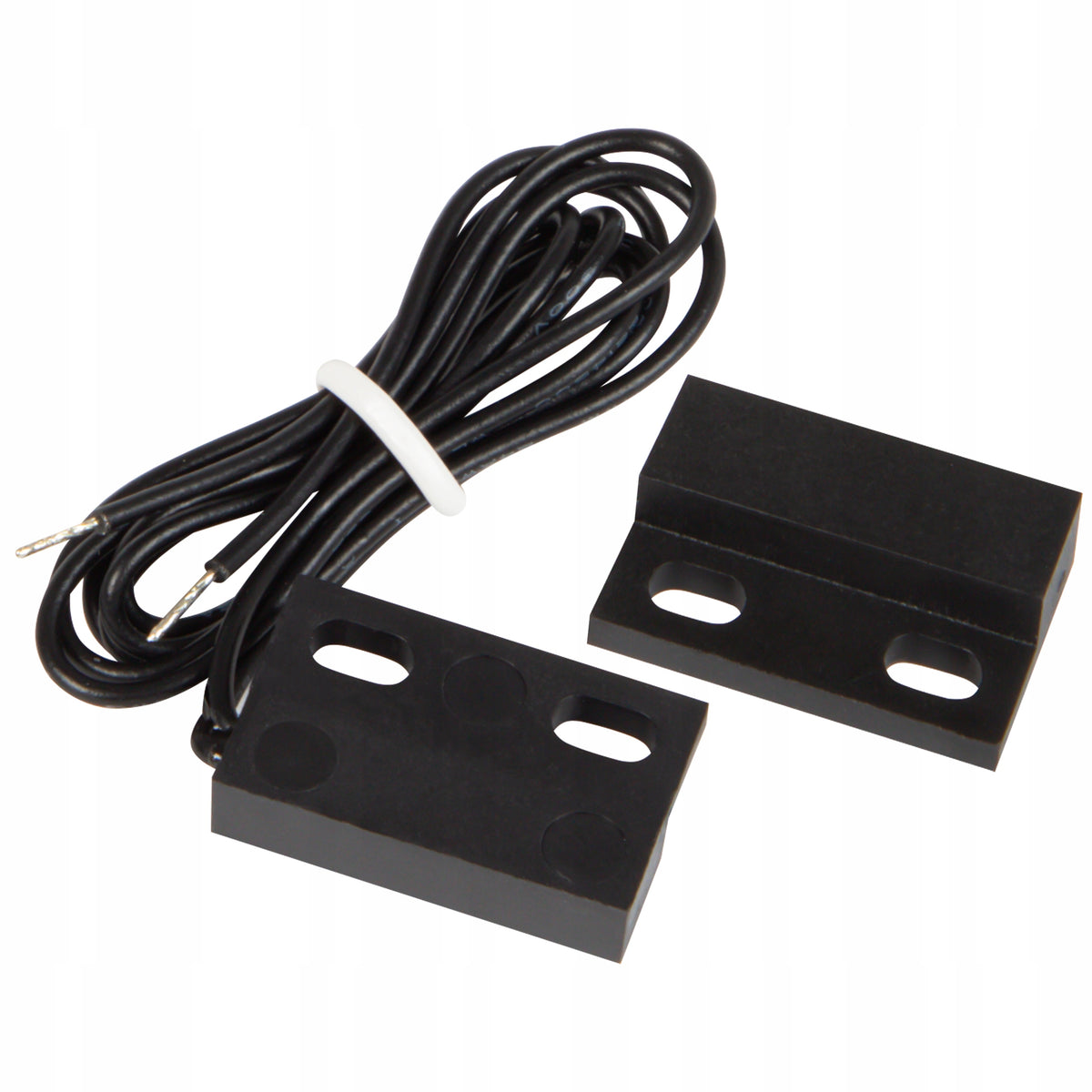

✅Contacts included

Contactor with cable of length approx. 15 cm allows to monitor the state of the gate. Thanks to it, the user can check whether the gate is closed / open, ensuring comfort and safety.

✅ Voice Control and Notifications

The BLOW smart gate controller is designed to work with the most popular voice control applications (Amazon Alexa, Google Home, IFTTT), making operation even easier and modernizing smart control of your home. In addition, you have the ability to receive up-to-date notifications from initiated devices, which guarantees security and constant control over your products.

✅ Schedule function

The schedule function using the application will allow you to exactly plan the on or off of devices connected to the outlet. The operation of the function is extremely simple, setting it at your discretion should not be a major problem. The schedule will not only allow us to control even more conveniently, but will also help reduce power consumption.

Specification:

• Input voltage: 100-240V AC / 50Hz
• Wi-Fi standard: 802.11 b.g/n
• Wi-Fi frequency: 2,4 GHz
• Driver dimensions: 46x46x18 mm (without mounting clip)
• Reed dimensions: 14x23 mm
• App to support: for Android and iOS
• Supported languages of Tuya App: Polish, English, German, French, Italian, Spanish, Portuguese, Russian
• Supported languages of the Smart Life App: Polish, English, Czech, Slovak, German, Slovenian, Lithuanian, Ukrainian, Latvian, French, Italian, Spanish, Portuguese, Dutch, Russian and many more

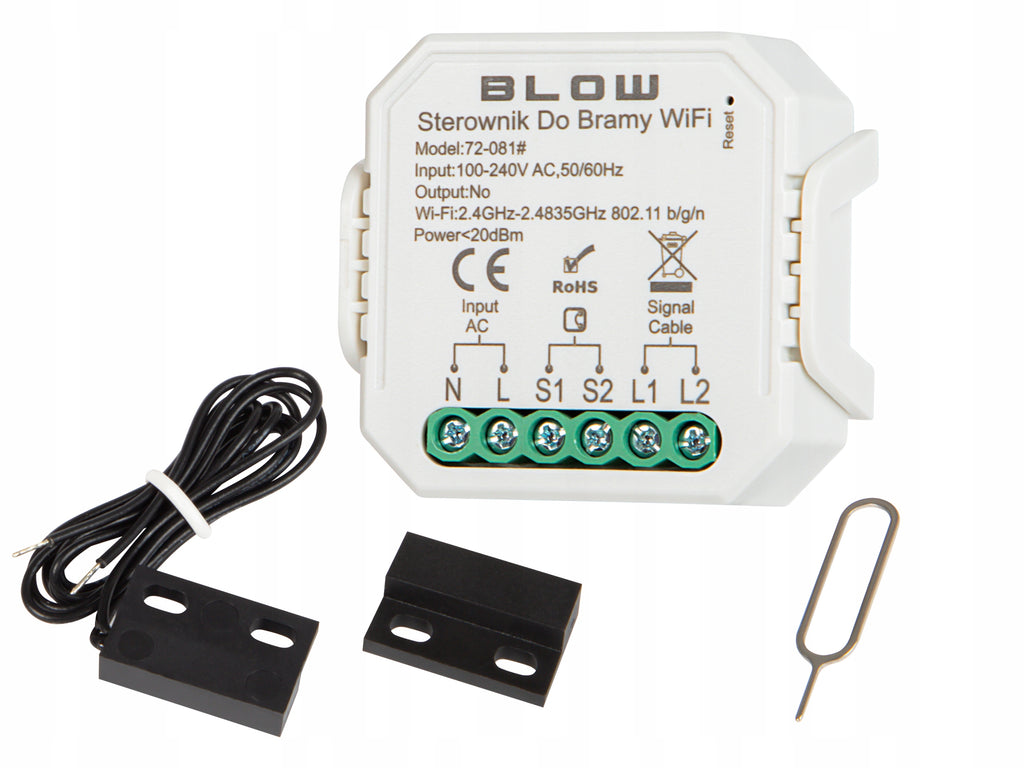

The package contains:

✅ Smart socket

✅ Instruction manual in Polish

✅ Reset Needle

✅ Contacts

✅Built-in Bluetooth module for easier pairing✅

1. Download and install Tuya Smart app,

2. Sign up or log in to the app, then click the "+" icon and add your device.

3. The application will search for the smart controller itself. Click "add" to open the list of available devices.

4. Click "Add" to add the BLOW driver to your application.

5. The addition process is underway, you can change the name of the device, which will allow you to identify its place, e.g. Controller BLOW garage

Instructional video presenting the installation of the device:

EN - https://youtu.be/nvF-cS9YIjg

ENG - https://youtu.be/s1RDxPkOPOc

CE and RoHS certified

BLOW products are CE and RoHS certified. These certificates confirm compliance with fully stringent European Union standards regarding, among others, health safety and environmental protection.
