WiFi išmanusis 2 kanalų 1600W Tuya valdiklis

Trumpai apie prekę

Prekė: WiFi išmanusis 2 kanalų 1600W Tuya valdiklis. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sone
• Modelis: SB1284

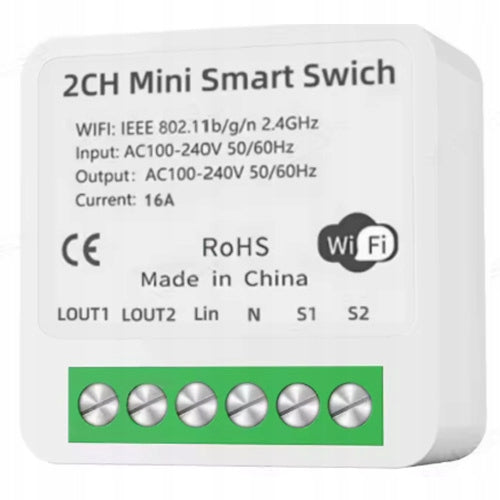

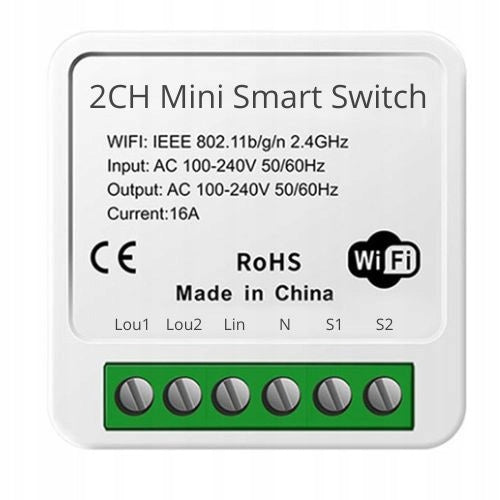

Sone dual-channel Wi-Fi in-wall module allows you to independently turn on and off two electrical circuits, e.g. two lighting points, wall lamps or LED strips. The device can be operated remotely using a smartphone and locally using traditional wall switches.

The controller connects directly to a 2.4 GHz Wi-Fi router, so it does not require an additional gateway. It works with the free Tuya Smart and Smart Life apps, which allow you to control every channel, create schedules, set timers, and connect the device to other smart home components.

The module supports monostable and bistable switches, and the appropriate mode is selected in the application. There is also a function for blocking channels – Interlock – and voice control via Amazon Alexa i (Tuya Smart and Smart Life) and Google Home. The compact housing allows the device to be mounted in an installation box behind the switch.

Key information

• 2 independent channels – control of two separate circuits
• Direct communication via Wi-Fi 2,4 GHz – no additional gateway required
• Works with Tuya Smart and Smart Life apps for Android and iOS
• Remote and local switching on and off of each channel
• Support for monostable and bistable switches – mode selected in the application
• Application features: schedules, timers, scenes and automation
• Voice control via Amazon Alexa and Google Home
• Interlock – turning on one channel automatically turns off the other
• Possibility to set the behavior of outputs after restoring power
• Power supply: 100 – 240 V AC, 50/60 Hz
• Maximum resistive load: 1600 W
• Maximum capacitive load: 600 W
• Maximum induction load: 300 W
• Wi-Fi standard: IEEE 802.11 b/g/n
• Compact dimensions: 41 × 41 × 24 mm
• Recessed mounting – for convenient installation, a can with a depth of 60 mm is recommended
• Preview the current status of each channel in your app

Remote control and compact size

Remote controlled Wi-Fi module for controlling lighting and other electrical devices. Maximum power depends on the type of receiver: up to 1600 W for heating devices and traditional incandescent bulbs, up to 600 W for LED lighting and devices with power supply and up to 300 W for motors, pumps and fans.

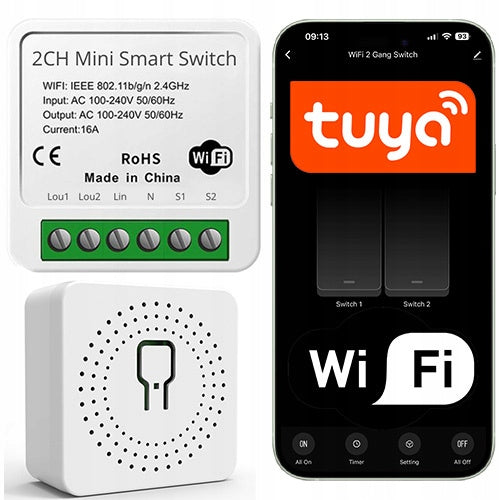

With the Tuya Smart or Smart Life app, you can turn each channel on and off, set schedules, timers, and create smart scenes. The control works both at home and from anywhere with internet access.

The compact size of 41 × 41 × 24 mm allows you to mount the module in a flush-mounted box. For convenient installation, we recommend a 60 mm deep can.

Connection diagram

Connection diagram with stair or cross connectors

The most popular applications

The dual-channel controller will work wherever you want to independently manage two circuits from the application or classic wall switches.

• Control two lighting points with one module
• Automatically turn on outdoor lighting at a specific time
• Turning off the light after the time set in the timer
• Turn off several lights at the same time when leaving the house or before bedtime
• Create scenes that combine lighting with sensors and other Tuya devices
• Control LED strips, sconces, lamps and other compatible receivers
• Applications requiring mutual channel blocking so that both outputs are not active simultaneously

Connected devices must be within the appropriate power limit specified for the type of load.

1. LED bulbs
2. Halogens
3. Classic bulbs
4. Floodlights
5. LED Strips
6. LED Hoses

Mutual locking function (Interlock Setting)

In the relay settings, the “Interlock Setting” function is available, i.e. the mutual channel locking mode. When activated, turning on one channel automatically turns off the other. This is particularly useful in situations where two circuits should not be active simultaneously – for example, when controlling two drive directions, selecting an operating mode or switching light sources. The function can be easily turned on or off directly in the Tuya or Smart Life app.

Supported functions:

• Turn on/off the remote light using the app
• Turn on/off the light local manually with the button
• Timer - setting the time to turn on
• Schedule - on/off according to the set plan
• Scene - setting the control dependence on the time of day or other factors selected by us
• OUR DRIVER PROVIDES A PREVIEW OF WHETHER THE LIGHT IS ON
• Assembly in flush-mounted box (for convenience - we recommend 60mm depth)
• State memory in case of power loss
• Support for monostable and bistable switches
• Interlock setting - automatic shutdown of one circuit when the other is turned on.

TUYA application and ecosystem and SMART LIFE

The device works with Tuya Smart and Smart Life – popular applications for IoT devices (Internet of Things)

Simple addition of the device - just hold down the button on it and search for it in the application.

The TUYA and SMART LIFE ecosystems are:

• The application works in Polish, you can add and control various smart devices in it
• The application works with a very wide range of devices
• Nearly 10 000 manufacturers
• 310 000 devices compatible with the app
• 30 categories that can include, among others: lighting, monitoring, air conditioning, heating
• The application is free and constantly developed with new features.
• Applications can be downloaded to iOS and Android devices.

Above all, it is intuitive operation and simple installation

Specifications
