WiFi jungiklis SONOFF DUAL R3, dviejų kanalų, dvigubas relė

Trumpai apie prekę

Prekė: WiFi jungiklis SONOFF DUAL R3, dviejų kanalų, dvigubas relė. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sonoff
• Modelis: SON-DUAL-R3-SUPLA

SONOFF DUAL R3 DUAL CHANNEL DUAL RELAY WIFI SWITCH SUPLA

Specifications:

• Producer : Sonoff
• Application supporting : SUPLA
• Model : Dual R3 Lite
• Wi-Fi : IEEE 802.11 b/g/n 2,4 GHz
• Resistance load : 2200 W / 10 A for each channel, 3300 W / 15 A total DIN rail 35 mm
• Input/output : AC 100-240 V 50/60 Hz
• Engine load : 10-240 W / 1 A
• Material : PC V0
• Dimensions housings : 54 x 49 x 24 mm
• Working temperature : -10-40°C

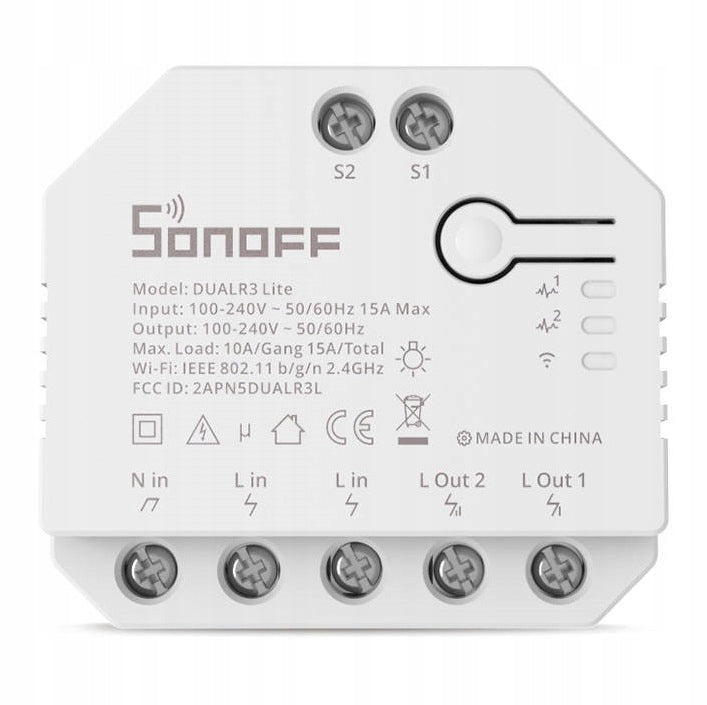

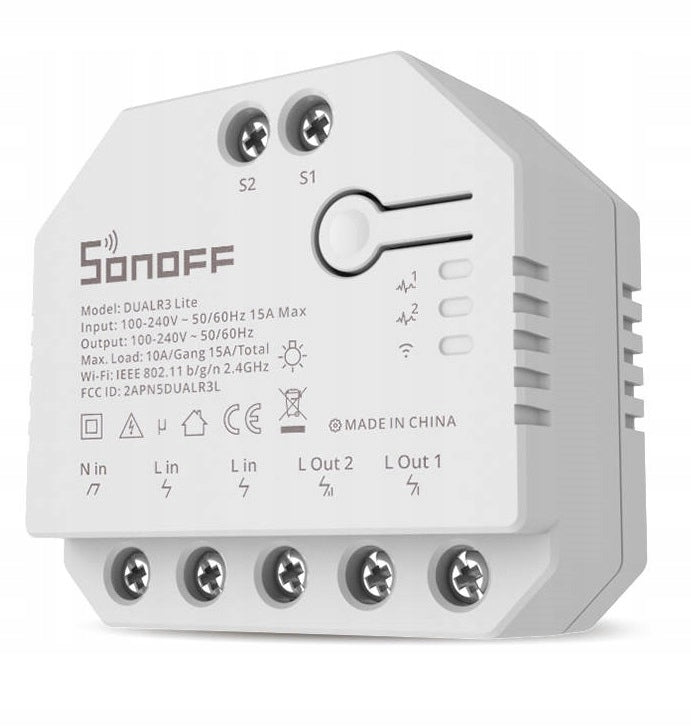

Sonoff Dual R3 Lite Smart Switch

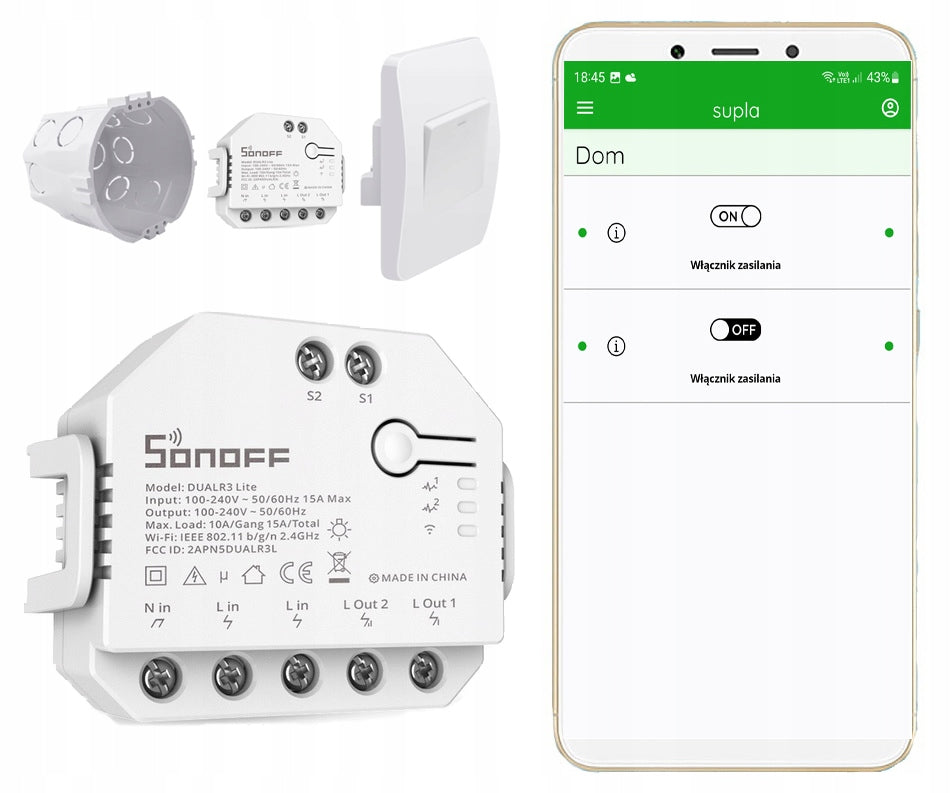

Conveniently control lighting or automatic blinds. The Sonoff Dual R3 Lite smart switch allows 2-way control of selected devices and allows you to create work schedules using the application.

Active roller shutter control function.

The device can also control the opening and closing of roller shutters.

After purchase, you will receive a detailed description of this configuration from us.

Connection diagram : Operation mode as dual relay \ light switch :

Connection diagram : Operation mode as roller shutter controller :

With the purchased product you will receive instructions!!

You will find a lot of valuable advice in it, including :

• How to add a device to SUPLA system.
• Information about device configuration.
• Detailed instructions for configuring the device to work with Roller Blinds

The instructions are constantly updated and new topics and advice are added!!

As soon as the shipment is sent - the instructions will be sent by e-mail.

The item offered is the following product:

• Sonoff Dual R3 - 1 piece

This offer is for a product with factory-installed firmware. This offer is NOT for a finished product with modified firmware.

The service of modifying the firmware / uploading publicly available OpenSource code and adapting the device is always performed after the device is purchased - at the customer's request. This service is provided free of charge. By purchasing, the buyer agrees to the adaptation (modification) of the device after purchase and to use the device with the consequences resulting from the modification.

The buyer can opt out of the modification and firmware upload by sending us a message after purchase.

Firmware modification is REQUIRED for the device to function. After purchase, please provide us with the name of your chosen OpenSource software, e.g., Supla....

The device may only be used for your own private use.

Supla software, the Supla logo, and the Supla name are the property of AC SOFTWARE SP. Z O.O.

The Supla name is used for informational purposes only. It is not intended to offer the sale of a Supla brand product. This offer is not for a Supla brand product.

In accordance with regulations, we must inform you: The buyer is aware of the risks associated with using this type of device. The buyer takes responsibility for connecting and using this device.

Safety and Installation:

• Device installation should be performed by individuals with appropriate qualifications.
• If using the device as a security measure, for certainty and safety, the device should not be the only security measure.

Source of OpenSource software:

• Supla : https://www.supla.org/pl/
• Supla Forum GUI-Generic Builder
