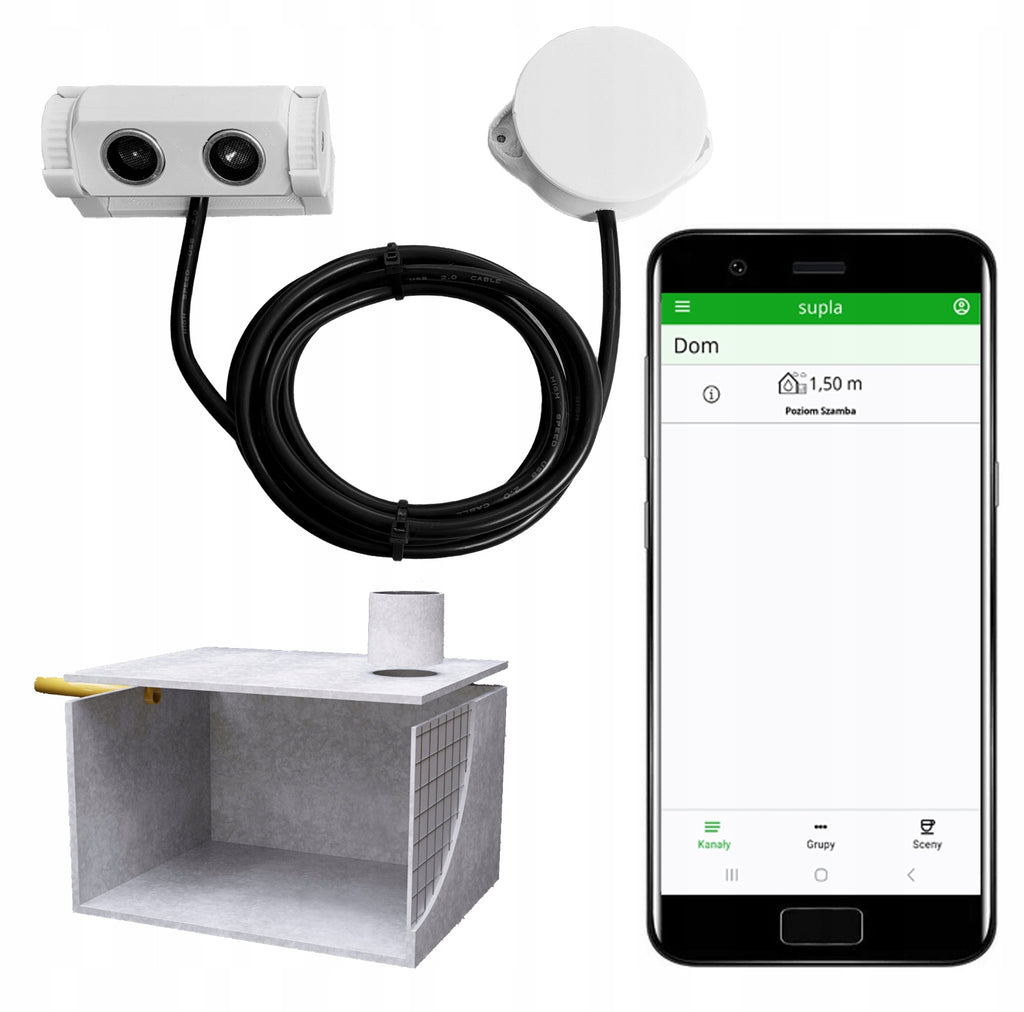

WiFi lygio jutiklis SUPLA, 3 m, septikui

Trumpai apie prekę

Prekė: WiFi lygio jutiklis SUPLA, 3 m, septikui. Kategorija: Jutikliai.

• Gamintojas: Supla
• Modelis: CPS-3M

Cable 3m

• Preloaded software : Supla
• Wi-Fi connectivity in 802.11 b/g/n standard
• Adjustable sensor housing angle
• Power supply: USB port - just plug in e.g. charger from the phone
• Sensor cable length: 3mb

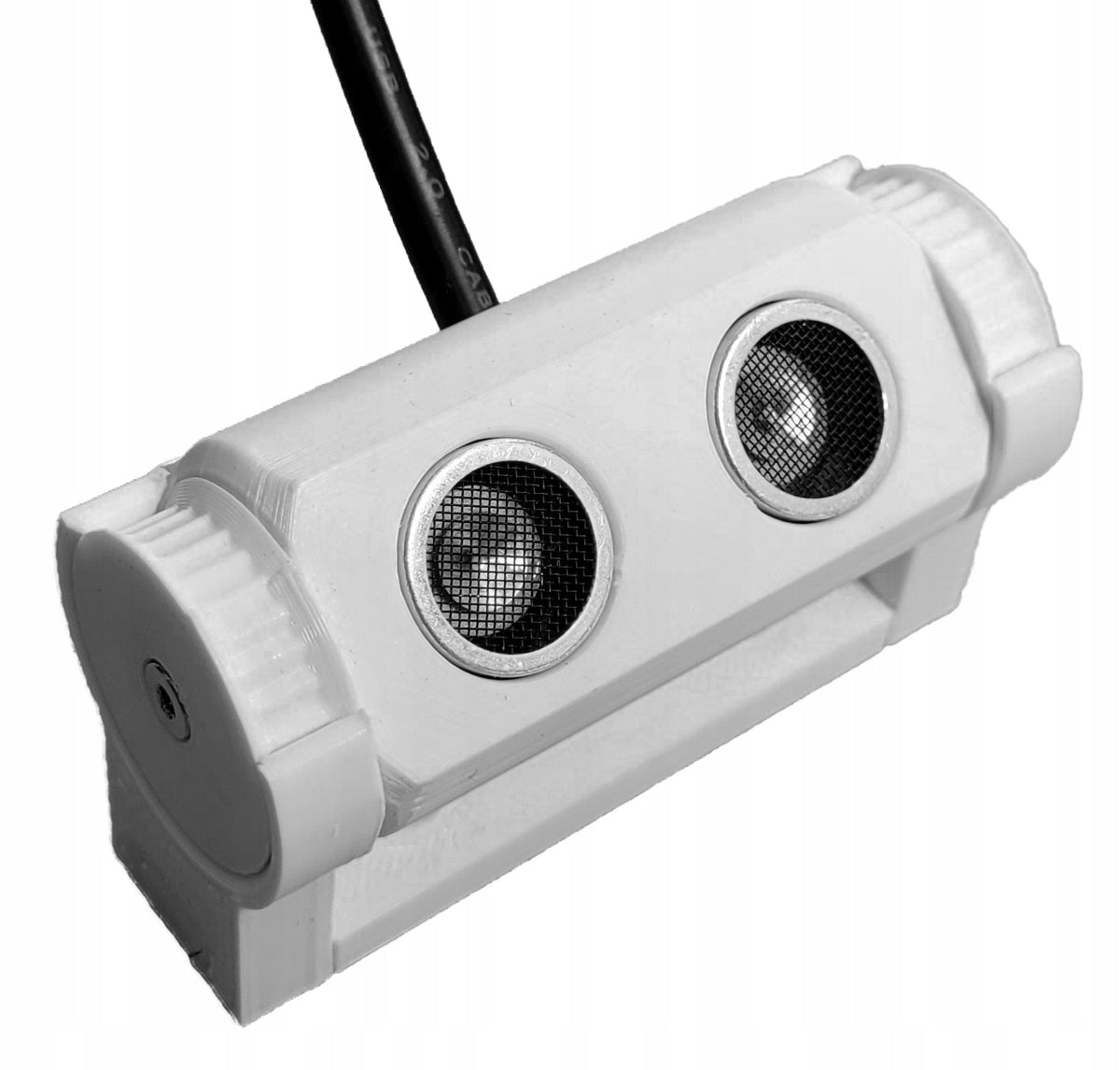

Sabre Level Sensor

It measures the distance from the water mirror to the sensor mounting location. Thanks to this, you can see the rising state of water in the tank on an ongoing basis.

The device provides continuous and accurate measurement of liquid levels.

Being within range of the WiFi network allows you to read the measurement on your laptop, phone, tablet.

The sensor is mounted on the cover of the septic tank, or on the side wall of the tank - parallel to the level of the septic tank in the tanks.

The sensor housing has an adjustable rotation angle , which makes it easy to mount and adjust the sensor to different types of tanks.

The device in the SUPLA application will show you to what extent your septic tank has been filled.

You can control its status on an ongoing basis.

At the first start of the device, it is necessary to specify the depth of the tank. On this basis, the sensor will give the amount of filling of the tank.

Cable length between sensor and control system: 3 mb.

Sensors with 10 mb and 5mb cable are also available - on our other offers.

NOTIFICATIONS :

Supla allows you to send notifications to your phone.

This will allow you to receive a notification on the phone when it remains, e.g. 30 cm before the tank is fully filled, or when the level of tank filling is reached.

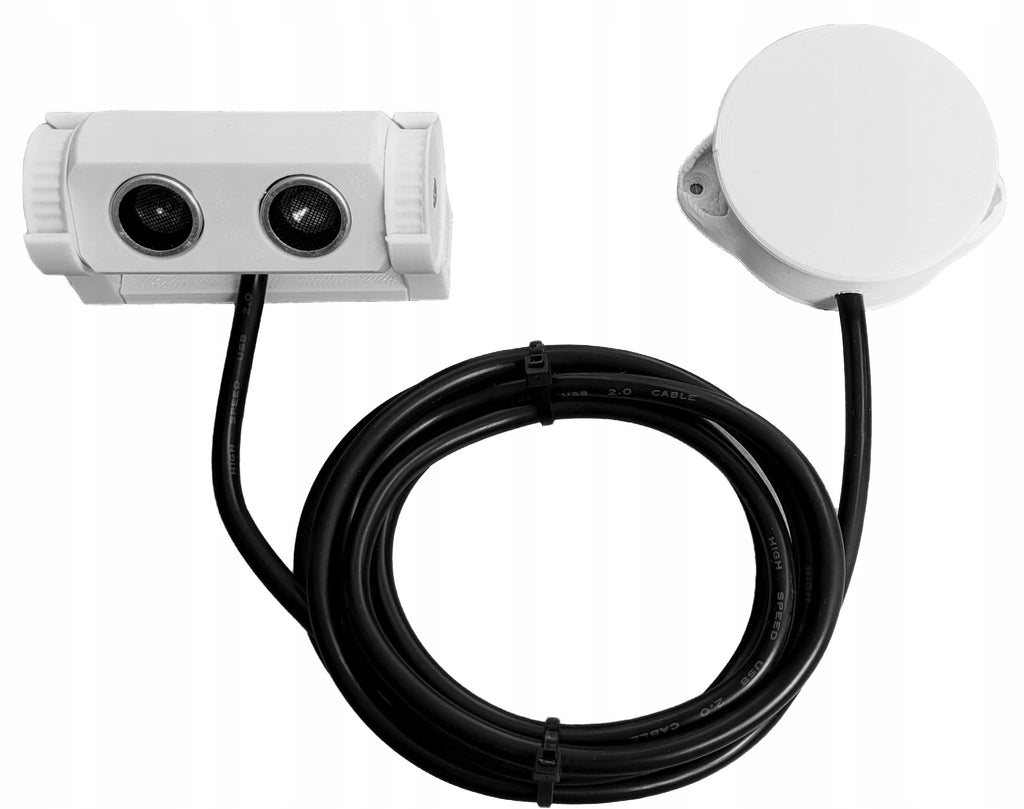

The control system which is responsible for the operation of the sensor is located in an ergonomic housing .

The case has a power socket, under which we connect the charger from the phone.

The housing has handles for mounting, e.g. on the wall.

The control system (round housing) must be within WiFi range. It must also not be exposed to weather conditions (water, moisture)

With the purchased product you will receive instructions!!

You will find a lot of valuable advice in it, including :

• How to add a device to the SUPLA system.
• Information about device configuration.

The instructions are constantly updated and new topics and advice are added!!

As soon as the shipment is sent - the instructions will be sent by e-mail.

Firmware/software modification is REQUIRED for the device to function.

After purchase, please provide us with the name of your chosen software, e.g., Supla.

The most important capabilities of the SUPLA application:

SUPLA is a project developed on the principles of open software and open hardware that allows you to build a simple building automation system and allows you to control the equipment of your home or business.

With Supla you can control:

• Lighting;
• Electrical equipment;
• Entry gate/garage gate/gate with notification of their open/closed condition;
• Roller shutters;
• Irrigation of the garden;
• Heating system;
• Emergency installation;
• Valves.

In your SUPLA account, you can change the names of devices, thermometer names.

It is possible to set schedules so that you can plan the day and time of operation of the devices.

In a word, anything could be built into a simple smart home system

Control module specification :

• Wi-Fi connectivity in 802.11 b/g/n standard
• WiFi Frequency: 2,4 GHz
• Power Supply: 5V via USB port
• 80MHz RISC processor (also operating at 160MHz)
• Humidity: 5%-70% RH, non-condensing
• Operating temperature: 0 o C-40 °

Sensor Specifications :

• Measurement angle " from 0 to 15 degrees
• Measurement range :from 2cm to 450cm
• Current consumption < 2mA
• Operating frequency ~40KHz
• Measurement accuracy: +5%

This offer includes the following:

• Wemos D1 Mini - 1pc
• HC-SR04 - 1pc

This offer includes a product with factory software. This offer does not include a ready-to-use final product with modified software.

The service of modifying the software / uploading publicly available OpenSource code and adapting the device is always performed after the device is purchased - at the customer's request. This service is performed free of charge. By purchasing, the buyer agrees to the adaptation (modification) of the device after purchase and to use the device with the consequences resulting from the modification.

The buyer can opt out of the modification and software upload by sending us information after the purchase.

The device may only be used for your own private use.

The Supla software, Supla logo, and Supla name are the property of AC SOFTWARE SP. Z O.O.

The name Supla is used for informational purposes only. It is not intended to offer the sale of a Supla brand product. This offer does not include a Supla brand product.

The device should be installed by a person with appropriate qualifications.

According to regulations, we must inform you: The buyer is aware of the risks associated with using this type of device. The buyer takes responsibility for connecting and using this device.

OpenSource software source:

• Supla : https://www.supla.org/pl/
• Supla Forum GUI-Generic Builder
