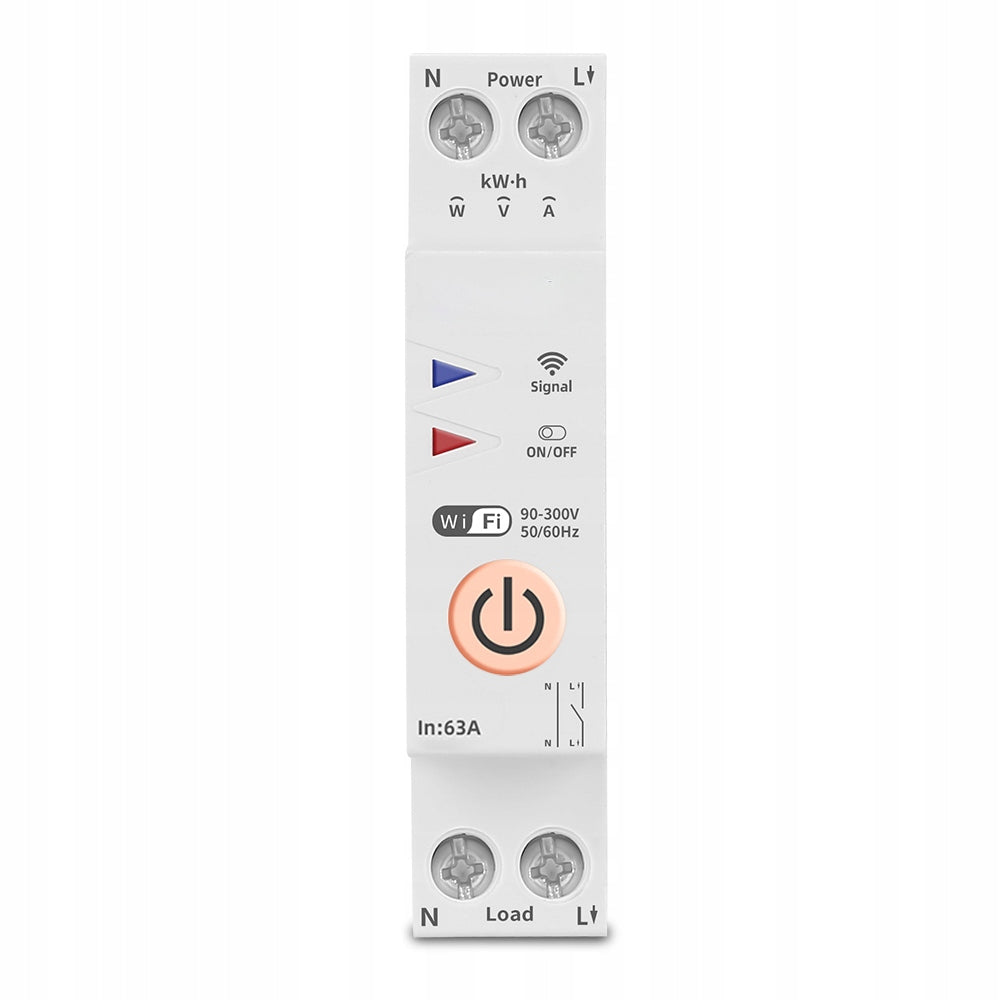

WiFi relė 16A, montavimas ant DIN bėgelio, suderinama su TUYA Smart Life

Trumpai apie prekę

Prekė: WiFi relė 16A, montavimas ant DIN bėgelio, suderinama su TUYA Smart Life. Kategorija: Automatizavimo moduliai.

• Gamintojas: pcblab.io
• Modelis: TXCB2-TW

for TUYA and Smart Life apps

Device for remote control of electrical devices and circuits.

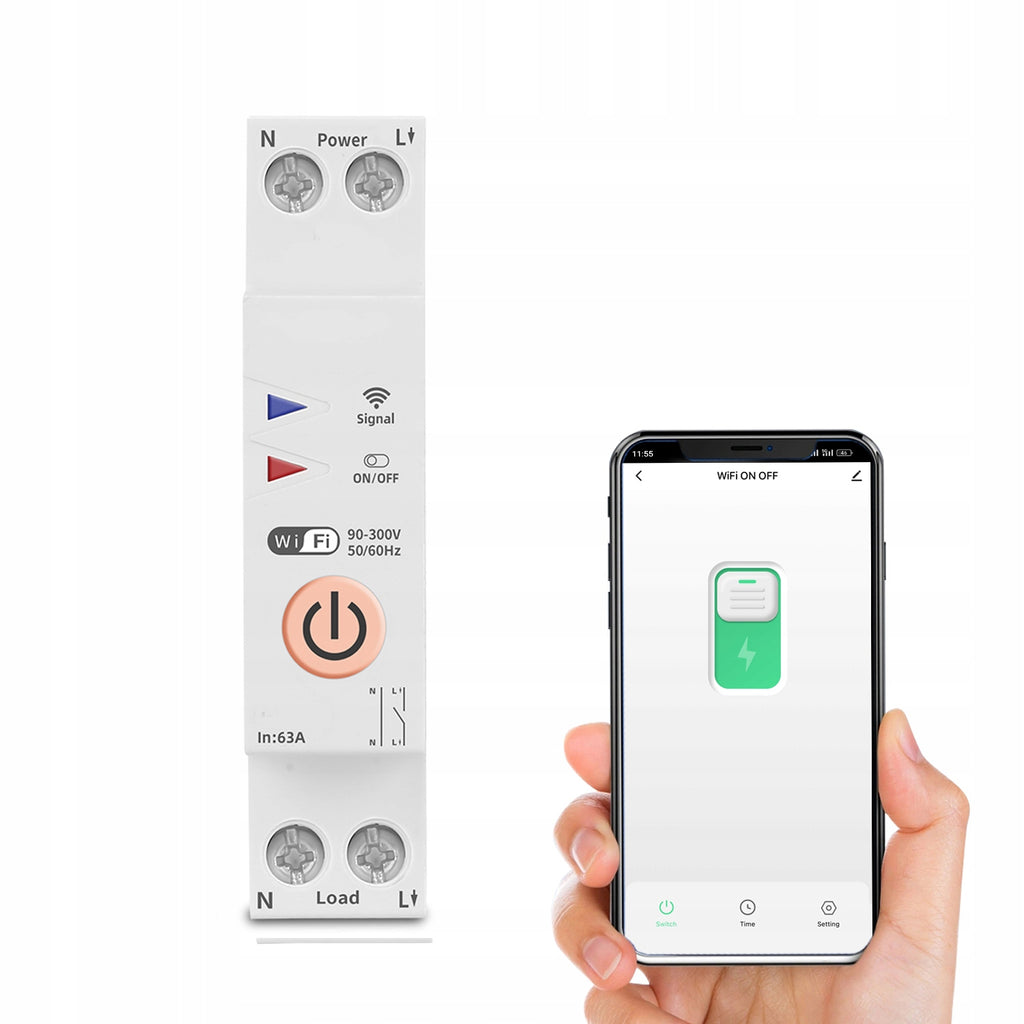

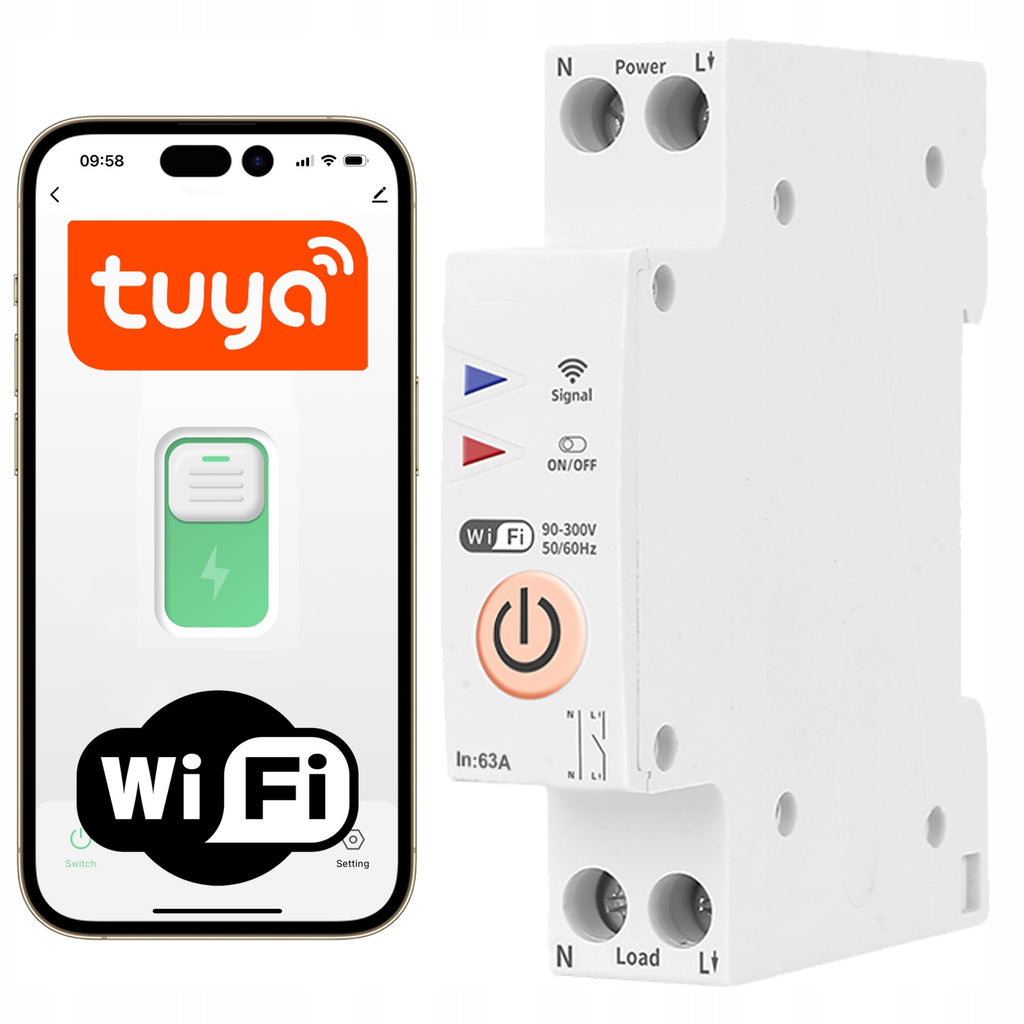

It communicates with the WiFi network so that it allows you to remotely control the power supply using the TUYA or Smart Life application.

• Relay 16A - remote control of devices or entire electrical circuits
• Wireless communication - the device can be connected to any 2,4GHz WiFi network
• Remote controlled - the ability to remotely turn on and off electrical devices using the TUYA or Smart Life application
• Manual control - the button on the device housing allows you to manually turn on and off the power supply,
• Wide compatibility - the application is available for Android and iOS devices.
• Automation and security - create ON/OFF automations based on parameters from other devices in the TUYA application
• Schedule - set the schedule according to which the device will work
• Event log - relay on and off log with the exact time of the event

• Supply voltage: AC 90V – 300V
• Rated current: 16A
• Frequency: 50/60Hz
• Power consumption of the device: < 0.3W
• Dimensions: 50 x 82 x 18mm
• DIN rail: 35mm
• Width: 1 module
• Operating temperature: -20C - +60C

The relay does not have an option to measure electricity

Do you want to fully automate the operation of your electrical appliances and not wonder if you have turned something on or off? Set an outlet schedule! You can choose from:

1. Countdown - countdown - one-time shutdown after a set time
2. Schedule - schedule - switching on and only at specific times of selected days.
3. Circulate - work in the on/off loop. For example: turned on for 1 minute, turned off for 2 minutes - in a continuous loop, at certain times and days.
4. Sunset and Sunrise - socket control based on sunrise and sunset. Possibility to set exactly at the time east/west, setting time before east/west, setting time after entry/west

The module has the ability to set the state of the relay after a voltage failure (e.g. temporary lack of electricity):

• relay off
• relay switched on
• condition before the loss of voltage

Module allows you to change the settings of the notification diode:

• relay operation signalling (on/off)
• highlights when off (switch location indication)
• backlight always off
• backlight always on

The device records every change:

• power supply - on or off
• alarms - notifications about the execution of the scene
• settings - registration of any change in the device setting

Specifications
