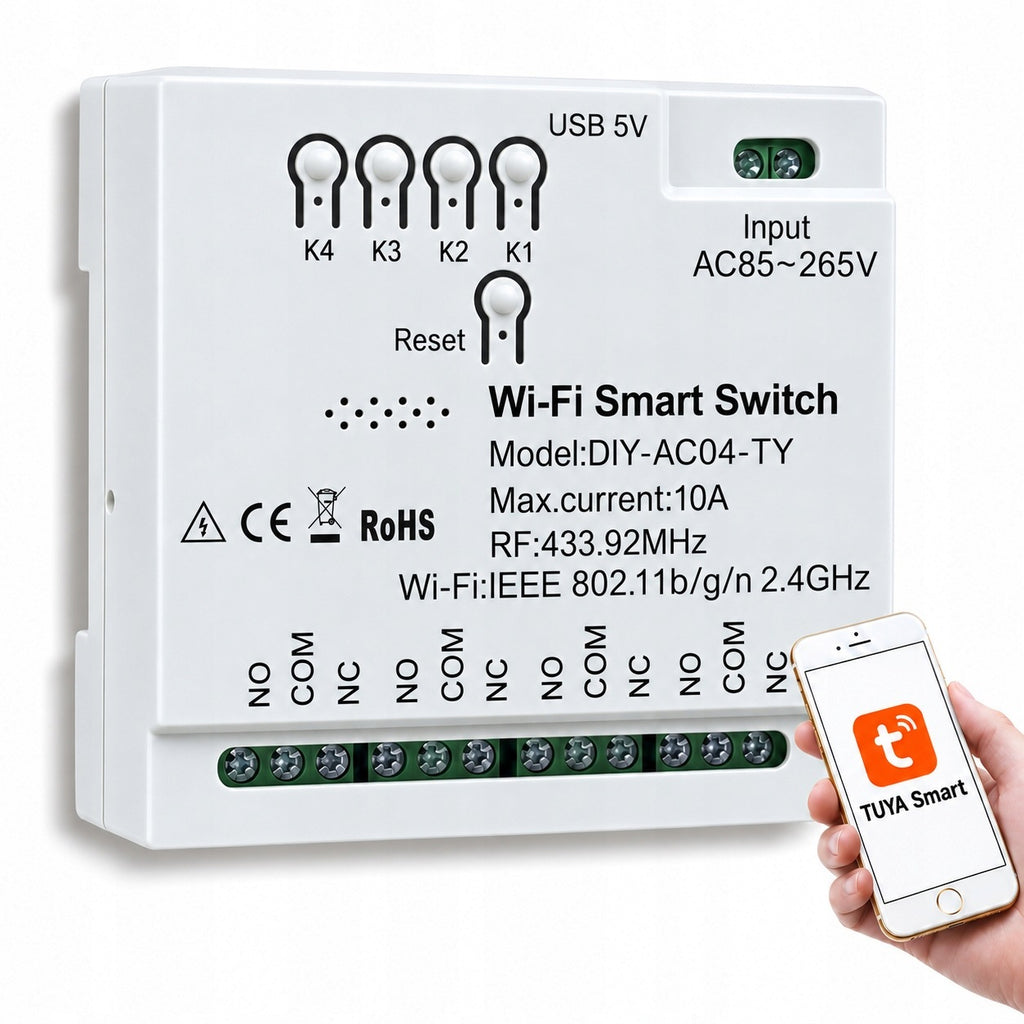

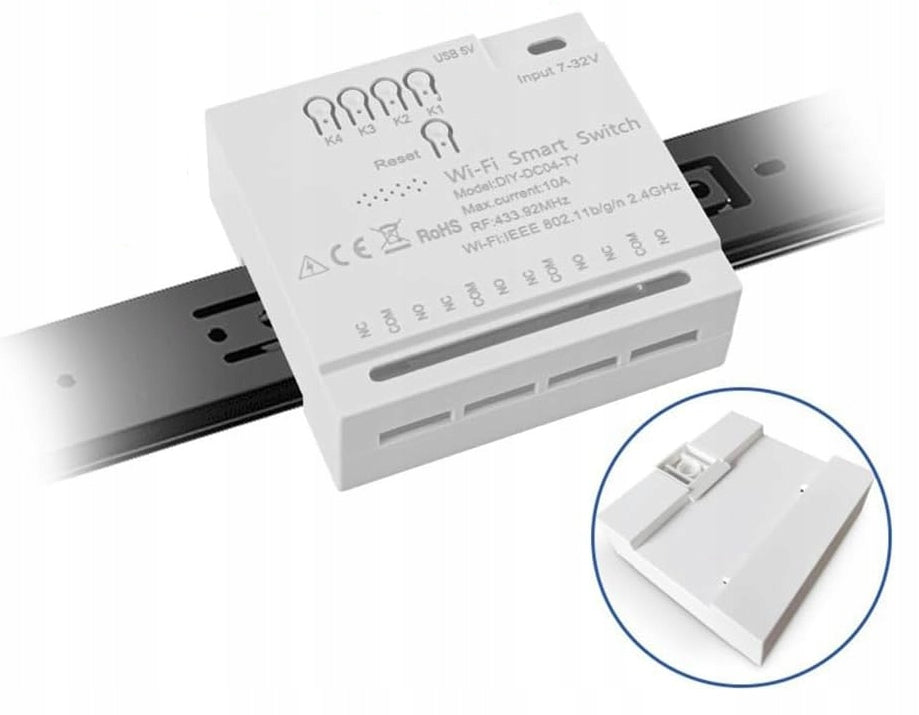

WiFi relė TUYA, 4 kanalai, NC/NO, RF 433MHz, be įtampos, AC

Trumpai apie prekę

Prekė: WiFi relė TUYA, 4 kanalai, NC/NO, RF 433MHz, be įtampos, AC. Kategorija: Automatizavimo moduliai.

• Gamintojas: no brand
• Modelis: Krasław

One controller – four independent channels for gate, gate, roller shutters, motors and home automation.

The module has 4 relays with potential-free NO / NC / COM contacts. It allows remote control via the TUYA Smart or Smart Life application, RF 433,92 MHz remote control, buttons on the housing and external wired buttons.

• 4 independent relay channels
• dry contacts NO/NC/COM
• 85 – 250 V AC or 5 V DC microUSB power supply
• 2.4 GHz Wi-Fi – without Zigbee gateway
• TUYA Smart and Smart Life
• 433,92 MHz RF remote control receiver
• Inching pulse mode
• Interlock lock mode
• schedules, timers and automations

Potential-free outputs and four independent channels allow the module to be used in many installations.

• sliding and swing gates
• wickets and electric strikes
• Entry automation
• furnaces and heating systems with control input
• irrigation systems – up to 4 zones
• ventilation and recuperation
• alarm systems
• contactor control
• roller shutters and directional motors
• lighting and home automation

When controlling the gate, COM + NO terminals and impulse mode are most often used. The relay can then transmit to the control panel a signal corresponding to the short-term pressing of a traditional button.

Before installation, check the control panel manual and confirm that it has an input designed to control the potential-free contact.

• Timer – automatic on or off after a specified period of time
• Schedule – action according to fixed hours and days of the week
• Circulate – cyclic on and off at specified intervals
• IF/THEN scenes – response to events from other TUYA devices
• State memory – configuration of channel behavior after power restoration

The controller can work with compatible TUYA ecosystem devices and Google Assistant and Amazon Alexa voice assistants.

• Device type: 4-channel relay controller
• Number of relays: 4
• Output type: potential-free / dry contact
• Contacts: NO / NC / COM
• Power supply: 85 – 250 V AC
• Alternative power supply: 5 V DC microUSB, minimum 1 A
• Single channel load: maximum 10 A
• Total load of all channels: maximum 16 A
• Contact load: 10 A / 250 V AC or 10 A / 30 V DC
• Maximum single circuit power at 230 V: to 2200 W for resistive load
• Wi-Fi: 2.4 GHz
• Radio communication: RF 433,92 MHz
• Application: TUYA Smart / Smart Life
• Voice Assistants: Google Assistant, Amazon Alexa
• Working temperature: from -10°C to 50°C
• Dimensions: 82 × 76 × 29 mm

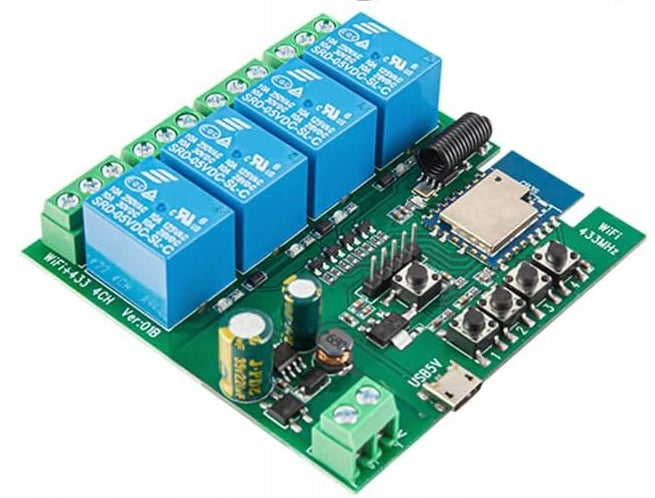

• Relay type: 4 × SRD-05VDC-SL-C
• Wi-Fi chip: CB3S
• External buttons: pins K1, K2, K3, K4, COM
• Zigbee gateway required: no

Does the driver have 4 independent channels?

Yes. Each of the four relays can be controlled separately.

Are the outputs voltage-free?

Yes. Each channel has potential-free NO/NC/COM contacts.

Can the controller be powered directly by 230 V?

Yes. The mains input supports voltage from 85 to 250 V AC.

Can I power my device via USB?

Yes. Alternatively, 5 V DC power supply via microUSB with a minimum capacity of 1 A can be used.

Can you connect 230 V and microUSB at the same time?

No. Only use one selected power supply method.

Does the 230 V power supply appear on the outputs?

Not automatically. The outputs are potential-free and are not internally connected to the voltage supplying the controller.

Is the controller suitable for a gate or gateway?

Yes, if the control panel has a compatible input controlled by a momentary short circuit of the potential-free contact.

Does the controller have impulse mode?

Yes. The Inching function allows you to set the channel to turn off automatically after 1 second to 60 minutes.

Can I control the blinds or motor?

Yes, after properly connecting and configuring the Interlock lock. The function prevents simultaneous activation of opposite directions.

Does the device work with 5 GHz Wi-Fi?

No. A 2.4 GHz Wi-Fi network is required.

Do I need a Zigbee gateway?

No. The driver connects directly to your Wi-Fi router.

Can you control the RF remote?

Yes. Compatible RF 433,92 MHz remote control is required. The remote is not included.

Does the remote work without the Internet?

Yes. RF control is local and does not use internet connection.

Can external buttons be connected?

Yes. On the board there are pins K1, K2, K3, K4 and COM.

Does the controller remember the state of the channels after power failure?

In the app, you can configure channel behavior when power is turned on again.

The value of 10 A refers to the maximum load of a single channel. The total current of all channels should not exceed 16 A.

For inductive loads such as motors, pumps and drives, it is recommended not to exceed about 1/4 of the maximum value provided for the resistive load.

Devices with higher current consumption should be controlled indirectly using a properly selected contactor.

The controller can be powered by mains voltage. Assembly should be done by an electrician or a person with the appropriate qualifications.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	switch
Parametry	Series	Sterownik P4o-W
Parametry	Power supply	mains
Parametry	Communication	WiFi
Parametry	Brand	no brand
Parametry	Additional features	WiFi connection
Parametry	Manufacturer code	Krasław
Parametry	EAN (GTIN)	721820773089
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE,WEEE
