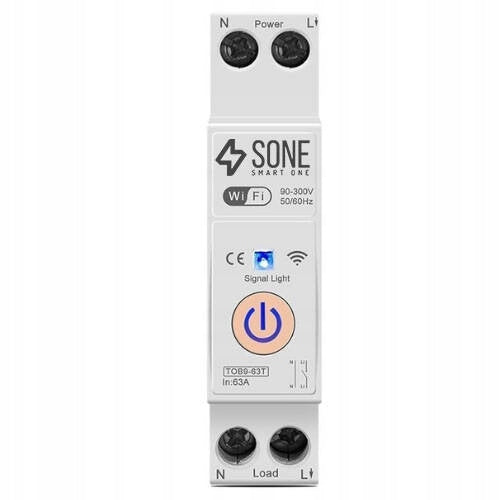

WiFi relių jungiklis TUYA, 16A, DIN bėgelio valdiklis

Trumpai apie prekę

Prekė: WiFi relių jungiklis TUYA, 16A, DIN bėgelio valdiklis. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sone
• Modelis: Przekaźnik WIFI 16A TUYA SMART ON OFF



The module enables remote control of electrical devices via TUYA or Smart Life applications. The relay offers a wide range of automations, work schedules, and alarms, giving you complete control over your power supply.

Thanks to automation functions, devices can be controlled remotely depending on the conditions, and hwork schedules enable precise planning of their operation time, which allows optimal use of energy resources and ensuring continuity of operation of the installation.

The most important information:

• Free app
• Remote control via Tuya app and Smart Life
• Communication: WiFi 2,4GHz
• Compatibility: Apps available for Android and iOS
• Automation: Work schedules, scenes
• Dimensions: 18 x 50 x 82mm, for DIN rail 35mm
• Operating temperature: -20°C to +60°C
• Maximum current: 63A (short-term)
• Maximum continuous current: 16A
• Power supply voltage: AC 90V – 300V
• State settings after voltage failure
• Indicator diode
• Recording of events
• Service security - attachment lock
• Our device has settings and status memory after power loss!
• Easy pairing
• Control from anywhere on earth

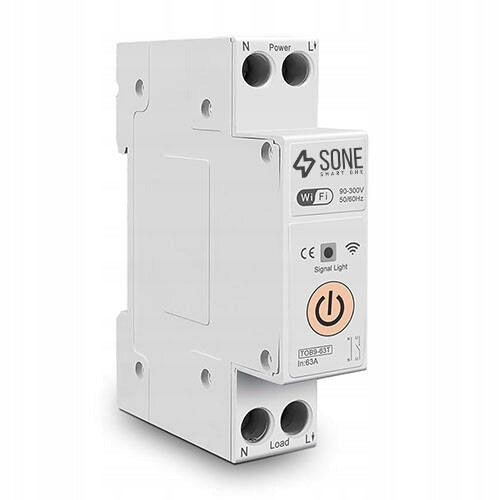

Assembly and dimensions

The relay is mounted on a standard DIN rail with a width of 35mm.

Please note that the relay must operate in an electrical network protected by an overcurrent circuit breaker and a residual current circuit breaker.

Dimensions: 18 x 50 x 82mm.

Supported functions

• Remote control of electrical devices
• Communication via WiFi 2,4GHz
• Compatible with TUYA and Smart Life apps
• Automation of work schedules
• Timer the ability to set a countdown that will turn off or on after a set time
• Scenes and automations – controlling the device on the basis of conditions, e.g. turn on after sunset
• Monitoring and recording of events
• Our device has settings and status memory after power loss!
• Protection against accidental disconnection

Connection diagram

Our relays are the perfect solution for a wide range of applications, including oservice of light bulbs, heaters or submersible pumps. Thanks to their versatility and automation capabilities, users can conveniently control the operation of these devices, ensuring optimal conditions for their operation and energy savings.

Schedule

• Schedule - allows you to schedule specific hours to turn devices on and off.
• Sunset and Sunrise - control devices based on hours of sunrise and sunset. This allows the user to automatically schedule devices to turn on and off in harmony with the natural cycles of the day.
• Cyclic shutdown mode

Settings

• Timer (countdown) the ability to set a countdown that will turn off or on after a set time
• Relay status settings after power loss - on/off/remember state
• Backlighting of the button
• Child lock - Service protection - attachment lock

Protection against accidental disconnection

Our sensor has the function of protection against accidental disconnection, before each switching off/on the relay we get an additional notification to confirm the execution of the action.

Creating scenes

By clicking the scene icon you will move to the scene settings. The scene is otherwise automatic action that will perform itself. With the ability to connect other devices, you can use them to e.g. start lighting when the door opens.

Technical data:

• Power supply voltage: AC 90V – 300V
• Relay Rated Current (Short): 63A
• Maximum continuous current: 16 A
• Frequency: 50/60Hz
• Power consumption of the device: < 0.3W
• Device dimensions: 18 x 50 x 82mm
• DIN rail: 35mm
• Operating temperature: -20°C to +60°C
• Communication: WiFi 2,4GHz

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	control panel
Parametry	Series	TUYA WIFI
Parametry	Power supply	mains
Parametry	Communication	WiFi
Parametry	Brand	Sone
Parametry	Number of communication channels	1
Parametry	Additional features	WiFi connection
Parametry	Manufacturer code	Przekaźnik WIFI 16A TUYA SMART ON OFF
Parametry	EAN (GTIN)	5905954837656
Parametry	Packaging status	original
Parametry	Batteries included	no
