WiFi ritininių žaliuzių valdiklis FOX, 1 kanalo, 230V, F&F

Trumpai apie prekę

Prekė: WiFi ritininių žaliuzių valdiklis FOX, 1 kanalo, 230V, F&F. Kategorija: Išoriniai moduliai.

• Gamintojas: F&F
• Modelis: WI-STR1S2-P

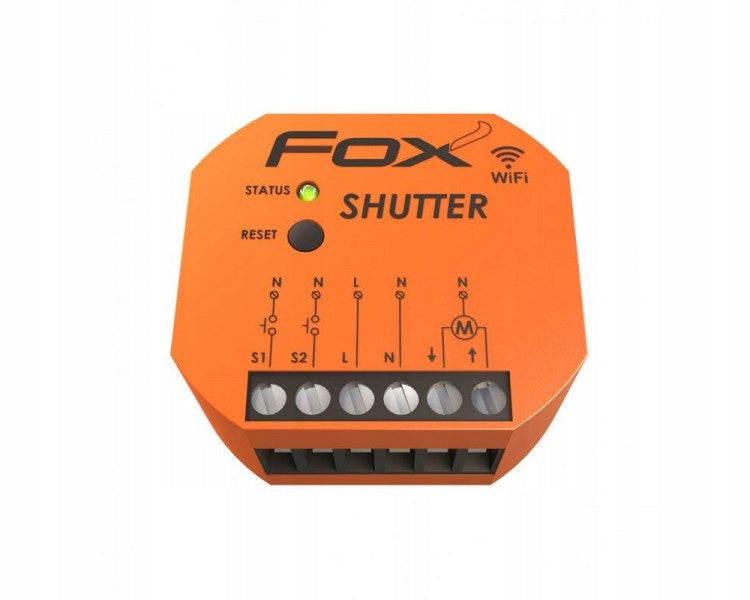

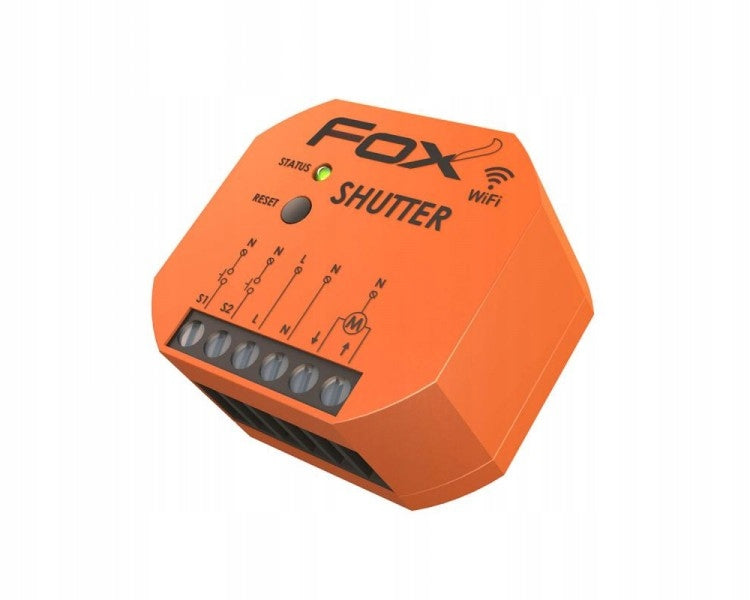

SHUTTER - is a roller shutter or blind controller with the possibility of smooth control of lamellas. Thanks to the active power measurement function, it is not necessary to manually calibrate the roller shutter movement times*. The application allows you to implement "quick steps" i.e. lift – lower, and adjust the angle of the blind lamella to -90ᣞ➱ 0ᣞ➱ 90ᣞ. In the case of blinds, after lowering or lifting them, the controller sets the lamellas to the angle in which the lamellas were a moment earlier.

Features of the module

• Single roller shutter control with a 230 V AC motor up to 320 W;

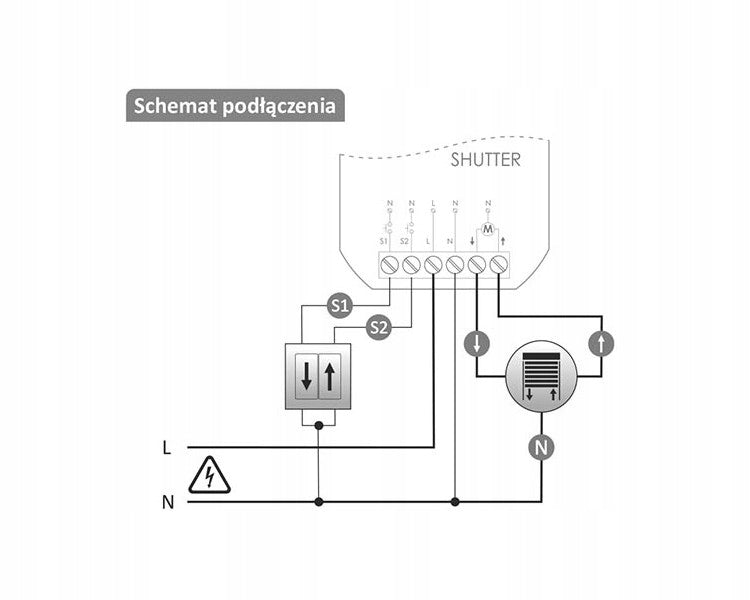

• Possibility of local connection of one or two buttons for direct control of roller shutter operation;
• Control of the opening level of the roller shutter and control of the degree of inclination of the lamellas;
• To set the set level of opening the roller shutter and inclination of the lamellas is served by mobile application and time programmers;
• Built-in clock with power backup and own copy of the work program, guaranteeing correct operation also without a Wi-Fi connection;
• REST API support, which enables the integration of the controller with other home automation systems;
• Electric roller shutter motor protection;
• Built-in thermal protection;
• Convenient installation in an installation box with a diameter of fi 60 mm.

FOX - Wi-Fi control system

Easy to install and powerful wireless home automation system.

To control devices, the FOX system uses the free mobile application, which is available for iOS and android devices.

The application allows you to manage installed modules in a simple and intuitive way. Thanks to the use of home Wi-Fi network and F&F cloud, you have the continuous ability to control devices at home from anywhere in the world where there is access to the Internet.

If you don’t want to control Fox from outside your home, you can opt out of using the F&F cloud and still enjoy full functionality only on your local Wi-Fi or Bluetooth network.

• Power supply voltage: 85÷265 V AC
• Control input: 85÷265 V AC
• Control pulse current: less than 1 mA
• Maximum load current (AC-1) - rated current: AC motor - max. 320 IN
• Maximum load current (AC-1) - maximum current (instantaneous): AC-1: 6 A; AC-3: 1,5 A
• Moisture (non-condensing): less than 90%
• Radio frequency: 2,4 GHz
• Transmission: WI-FI
• Radio power (IEEE 802.11n): below 13 dBm
• Connection: screw terminals 2,5 mm²
• Tightening torque: 0,4 Nm
• Working temperature: 0÷45°C
• Dimensions: Ø54 (48×43 mm), height: 25 mm
• Assembly: in flush-mounted box Ø60
• Degree of protection: IP20

Note!!!

Shipping time

The specified lead time is automatically averaged by Allegro based on our previous projects – we have no influence on its presentation.

Standard shipping takes up to 2 business days (max. 48 hours) from the moment of placing the order.

In most cases, packages are shipped the same day, however, depending on the time of purchase, the type of delivery or factors beyond our control (e.g. courier delays) – shipping may take place the next business day.

If there is a longer deadline in the offer, it means that the product is temporarily unavailable and we expect delivery (usually 3 to 7 days).

In urgent cases, please let us know – we are always trying to help.

Photos of products

Pictures are illustrative – do not suggest the parameters visible on the labels.

The full and current specification is always in the offer description.

Storage stock

We sell on several platforms at the same time.

For this reason, it may happen that the state update will be delayed, which may increase the lead time.

Returns

Returned products must be in new condition – no signs of use, assembly or programming.

Otherwise, the refund amount will be reduced proportionally.

The cost of returning the goods to the seller is borne by the buyer. The value of the refundʈʋ will be reduced by the cost of transport.

⚡ Electrical equipment

Connection and commissioning should be made by a qualified electrician with appropriate permissions.

Incorrect installation or use may result in electric shock or damage to the device.

Specifications
