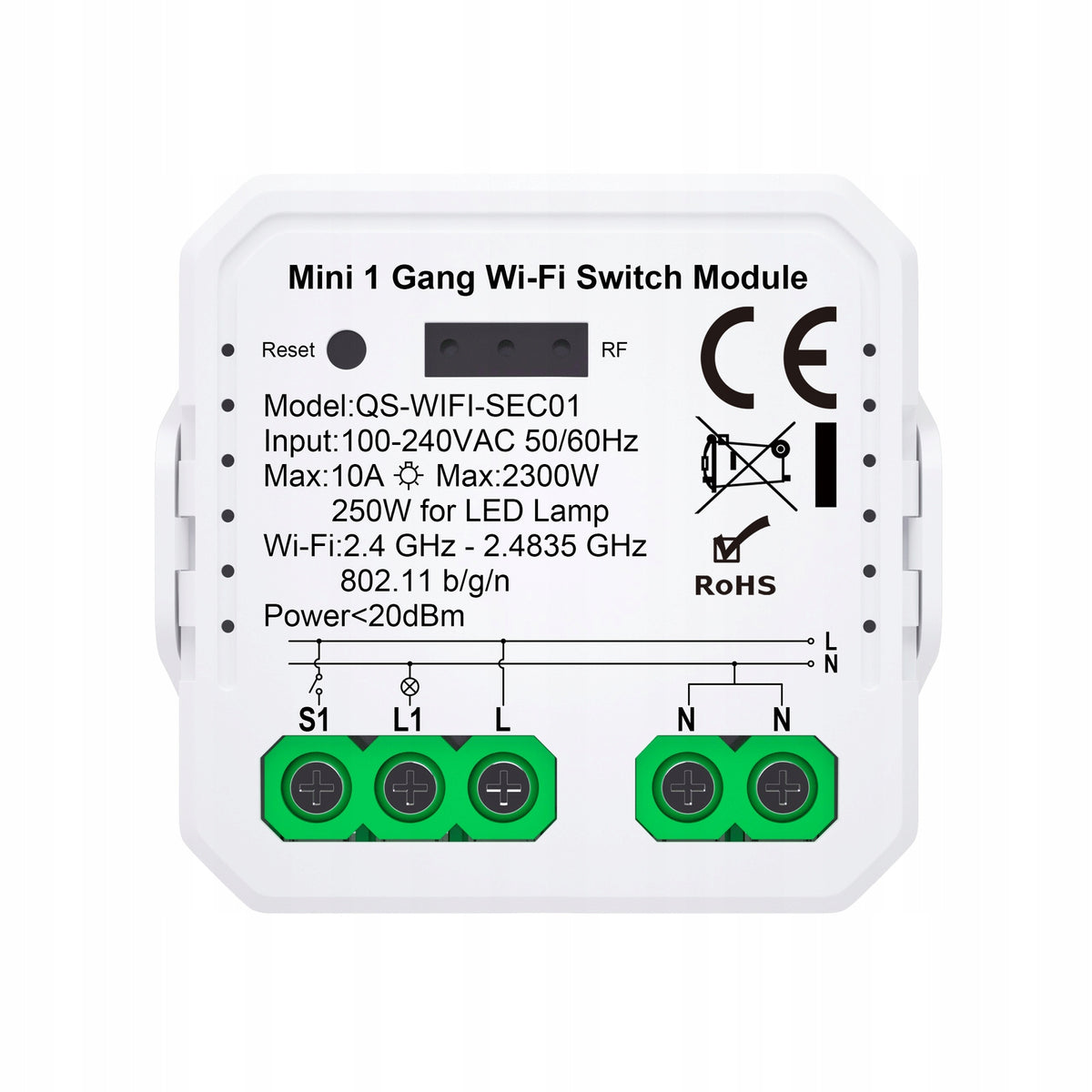

WiFi šviesos relė Tuya/Smart Life, vieno kanalo, V3

Trumpai apie prekę

Prekė: WiFi šviesos relė Tuya/Smart Life, vieno kanalo, V3. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sone
• Modelis: SB512

Admissible module, Tuya WiFi lighting controller for ON/OFF control: ceiling lighting, wall lamps, LED strips using mobile devices, installation is very simple and intuitive.

Control your lighting with schedules, scenes, from the app or classically from the button on the wall.

With Wi-Fi connectivity, you can control the light or device connected to the relay, directly from the app on your smartphone.

Wi-Fi control is done using the Tuya or Smart life application or another application. (free download for Android and iOS). The device works with applications and voice assistants: Google Home, Amazon Alexa and Home Assistant.

TUYA WIFI RELAY Relay Key Information

• Free App
• Wireless remote control of lighting
• Small size 40x40x18mm
• Maximum power: 2300W or (250W LED)
• Cooperation with classic switches
• Control from anywhere in the world with WIFI
• Works with MONOSTABLE and BISTABLE connectors
• Reading Parameters in the application (whether the light is on)
• Our device has settings and status memory after power loss!
• Easy pairing
• Concealed installation (in a can), on a DIN rail or on a wall
• Timer - countdown time
• Schedule - setting specific hours of covering and uncovering the blind
• Scenes (automations) - control against specific conditions, e.g. Turn on outdoor lighting every day 30 minutes after sunset.

Remote control and compact size

Remote controlled module for controlling WiFi lighting, up to power up to 2300W and 250W LED light on one channel. It will allow you to control the light while connected to a Wifi network or remotely from anywhere in the world. In addition, you can set a schedule, timer or stopwatch functions that will save on bills automatically turning off the lighting, as well as intelligent scenes such as turning on several lights at the same time or turning off the light after a set time. The compact size of 40x40x18mm (40x40x23mm with clip) will also allow you to install in a flush-mounted box (for convenient installation - we recommend 60mm depth).

Connection diagram with stair or cross connectors

• Turn on and off outdoor lighting specific time (Schedule)
• Turn off lighting when leaving the house based on location settings
• Control several lights with a single switch, e.g. going to sleep.
• Turning off all lighting in the house when going to sleep, or going to work - a very useful feature that saves energy

Our controller has a dedicated connector for connecting the RF module, which allows remote control via remote control. This allows you to conveniently control your device without the need for an app.

✅ Easy installation – just connect the RF module.

✅ Full compatibility – works with the remote control available in our offer.

✅ Quick control – turn on and off with one click.

Pilot offer number: 16267600476

Numerofert RF module: 13955200651

CONTROL TURN OFF (ON/OFF)

1. LED bulbs
2. Halogens
3. Classic bulbs
4. Floodlights
5. LED Strips
6. LED Hoses

Supported functions:

• Turn on/off the remote light using the app
• Turn on/off the local light manually with the button
• Timer - setting the time to turn on
• Schedule - on/off according to the set plan
• Scene - setting the control dependence on the time of day or other factors selected by us
• OUR DRIVER PROVIDES A PREVIEW OF WHETHER THE LIGHT IS ON
• DIN rail mounting
• Flush-mounted installation (for convenience - we recommend 60mm depth)
• Remembering the status after power failure

Possibility to choose the type of switch

Our controller is compatible with monostable (bell) and stable (traditional) switches. You can easily adjust the settings in the app by selecting the appropriate button mode.

Available options:

• Button – a standard button mode that works when pressed.
• Flip – the switch changes state after each press.

Technical specification:

• Communication: Wifi
• Voltage: 100-240V
• Maximum current: 10A
• Dimensions: 40x40x18mm
• Maximum power: 2300W/250W LED
• Operating temperature: -10 to +40 degrees

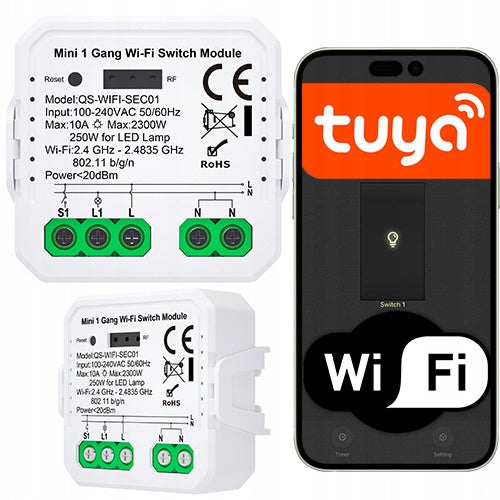

Application and ecosystem TUYA and SMART LIFE

The device works with Tuya Smart and Smart Life – popular applications for IoT devices (Internet of Things)

Simple addition of the device - just hold down the button on it and search for it in the application.

The TUYA and SMART LIFE ecosystems are:

• The application works in Polish, you can add and control various smart devices in it
• The application works with a very wide range of devices
• Nearly 10 000 manufacturers
• 310 000 devices compatible with the application
• 30 categories that can include, among others: lighting, monitoring, air conditioning, heating
• The application is free and constantly developed with new features.
• Applications can be downloaded to iOS and Android devices.

Above all, it is intuitive operation and simple installation



Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	control panel
Parametry	Series	Przekaźnik światła Wifi 1ch
Parametry	Communication	WiFi
Parametry	Brand	Sone
Parametry	Number of communication channels	1
Parametry	Additional features	WiFi connection
Parametry	Manufacturer code	SB512
Parametry	EAN (GTIN)	5906952652661
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
