Žalias linijinis lazeris 50 mW, 520 nm, IP67, LAMBDAWAVE

Trumpai apie prekę

Prekė: Žalias linijinis lazeris 50 mW, 520 nm, IP67, LAMBDAWAVE. Kategorija: Lazeriniai gulsčiukai.

• Gamintojas: no brand
• Modelis: LWPRO-520-50-RLINE-SET

DO NOT CONNECT DIRECTLY TO 230VAC! Please read the LASER DESCRIPTION and DOCUMENTATION before purchasing, especially the POWER SUPPLY VOLTAGE section. Power supplies are sold separately - links at the bottom of the offer.

HOW TO CHOOSE A LASER - all the information you need is provided in this offer. All TECHNICAL PARAMETERS are given in the LASER DOCUMENTATION .

The LWPRO green 50mW industrial line laser is ideal for positioning the material or marking the cutting line on industrial machines, e.g. sawmills , wood saws or stone machines . The use of a line laser significantly increases the comfort of work and reduces material waste .

Thanks to the IP67 tightness class and a stainless steel housing , the laser can easily work in dusty or splashed areas, including in particular on machines where the processed material is cooled with water or other coolant.

• Colour: green
• Output power: 50mW
• Wavelength: 520nm
• Symbol: LWPRO-520-50-RLINE
• Manufacturer: LAMBDAWAVE
• Line thickness: 2-3mm (5m distance)
• Supply voltage: 9V-26V DC
• Power connector: M8, male, 3 pin
• Full waterproof and dustproof: IP67 rated
• Housing: stainless steel
• Diameter: 20mm
• Length: 100mm (without power connector)
• Operating temperature: -20°C - 60°C
• Lifetime: >20000h

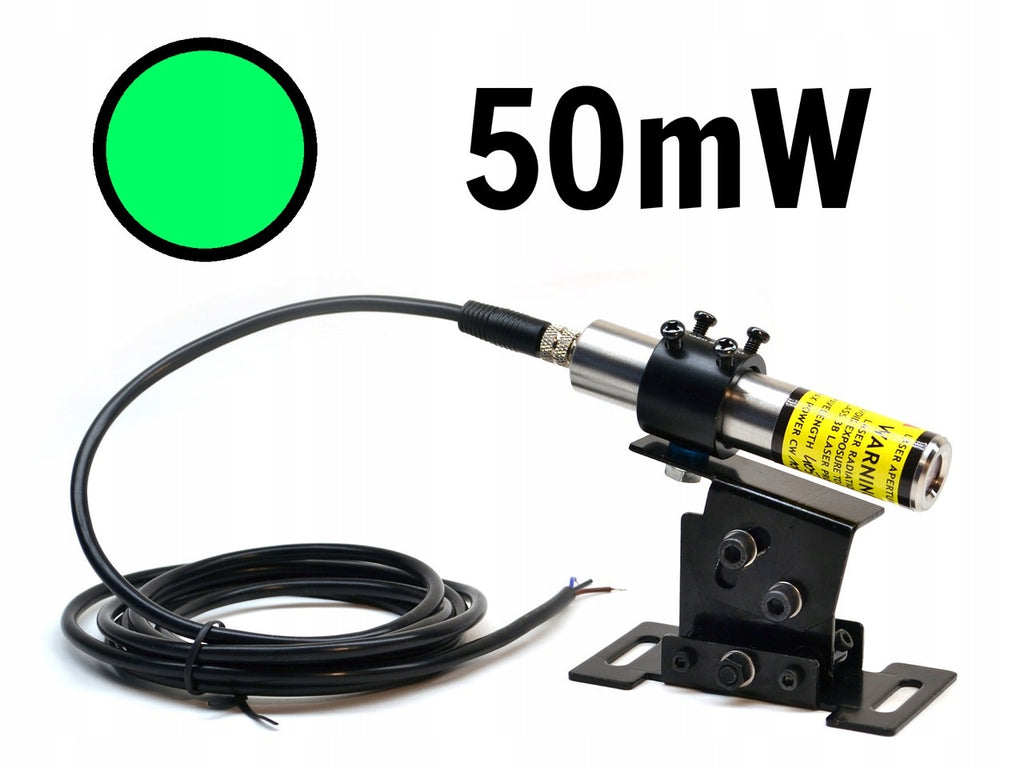

The set in this auction includes:

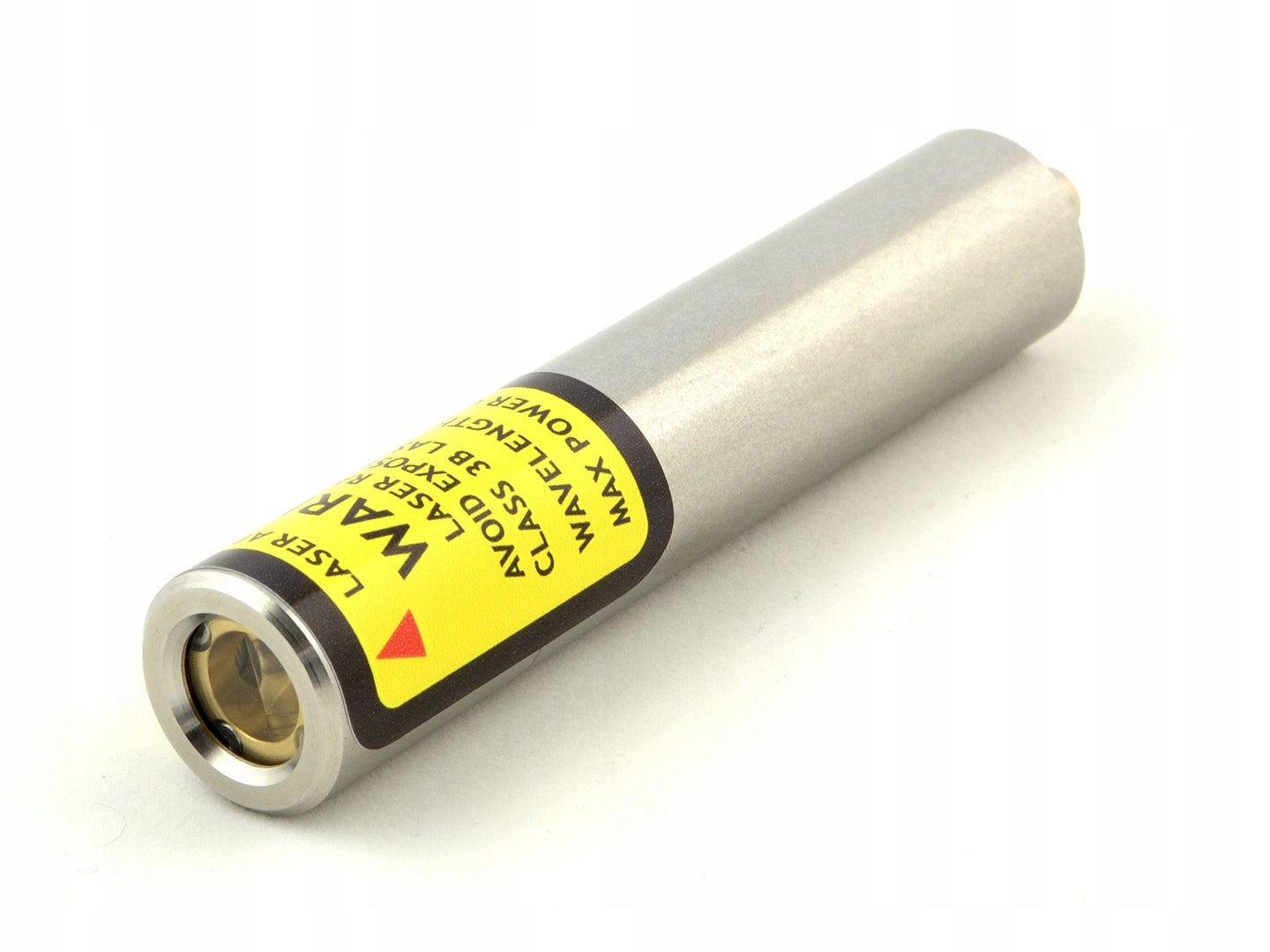

• Line laser LWPRO-520-50-RLINE

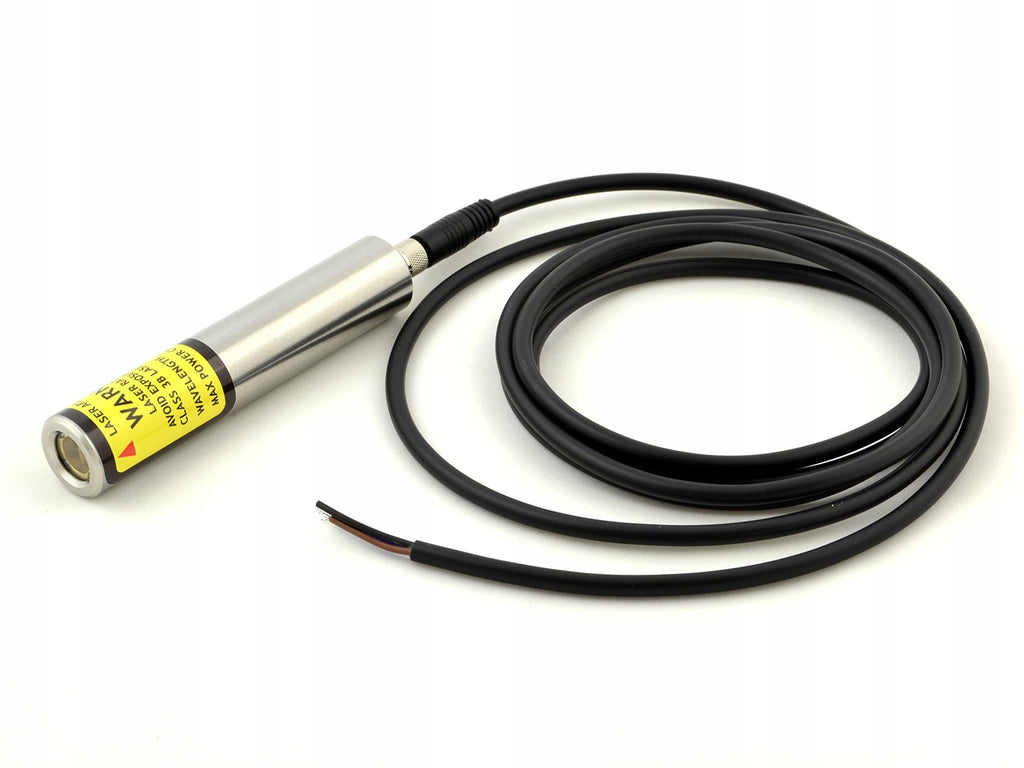

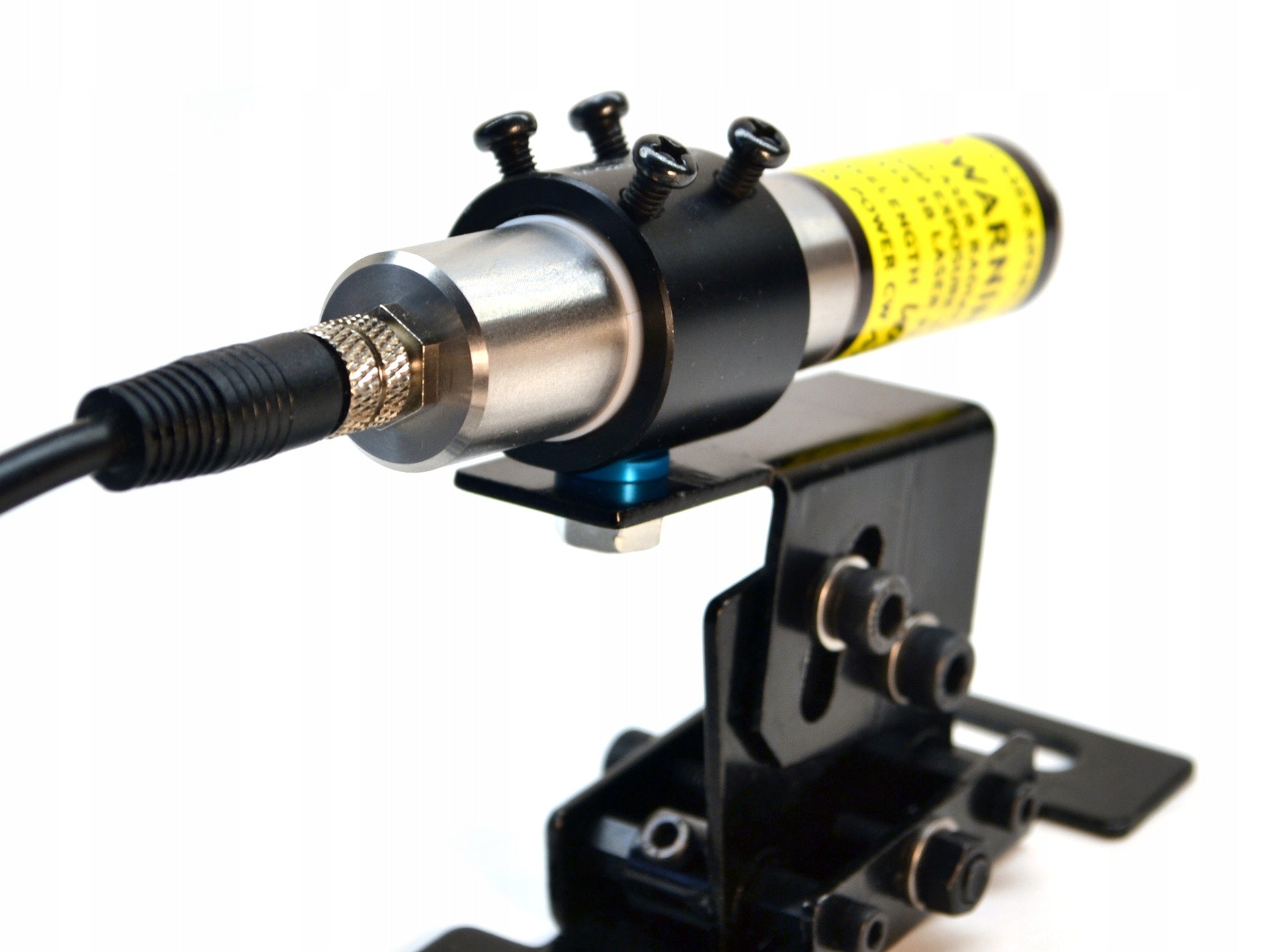

• M8 power cord , 2m long

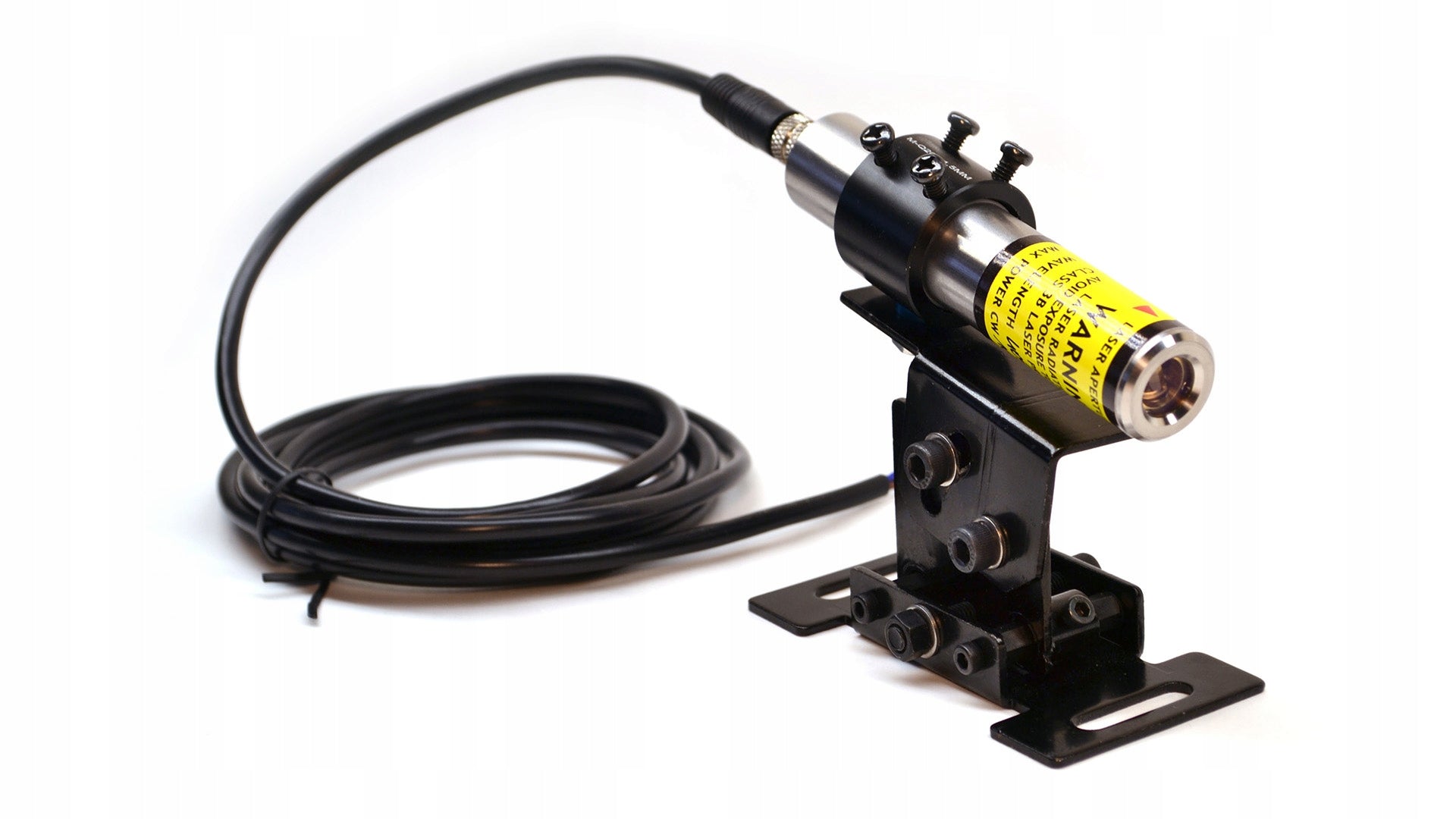

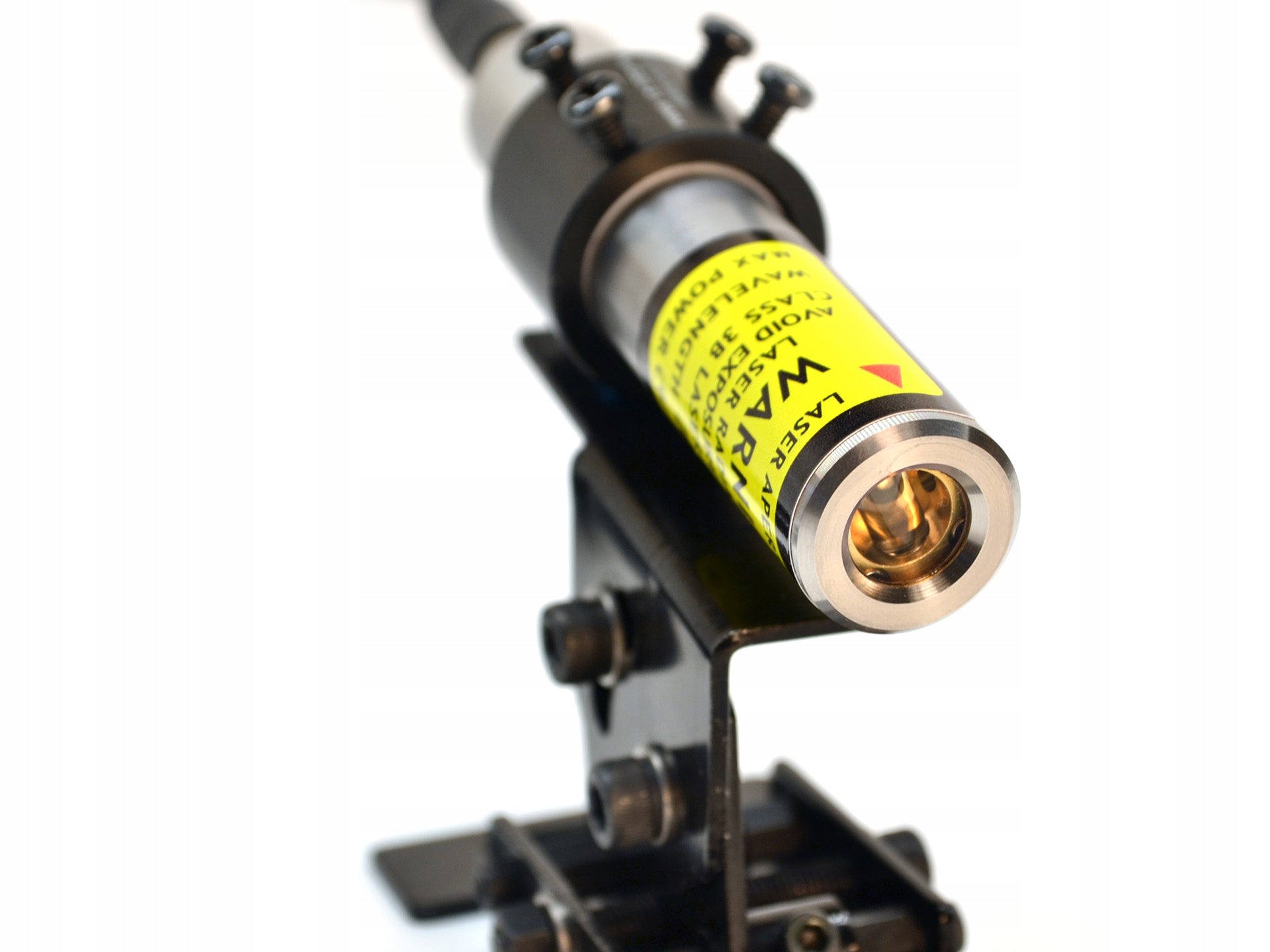

• 20mm mount

Longer cables are available in our other auctions. Lasers with other powers and colors available at our other auctions or made to order . 375nm , 405nm (purple), 445nm , 450nm , 462nm (blue), 488nm (turquoise), 505nm , 515nm , 520nm (green), 633nm , 638nm , 658nm , 670nm , 685nm (red), 705nm , 785nm , 808nm , 830nm , 850nm , 905nm , 940nm , 980nm (infrared). Power range from 1mW to 5000mW .

Full module documentation in PDF format is available on our website:

https://www.docs.lambdawave.eu/datasheets/LWPRO-520-50.pdf

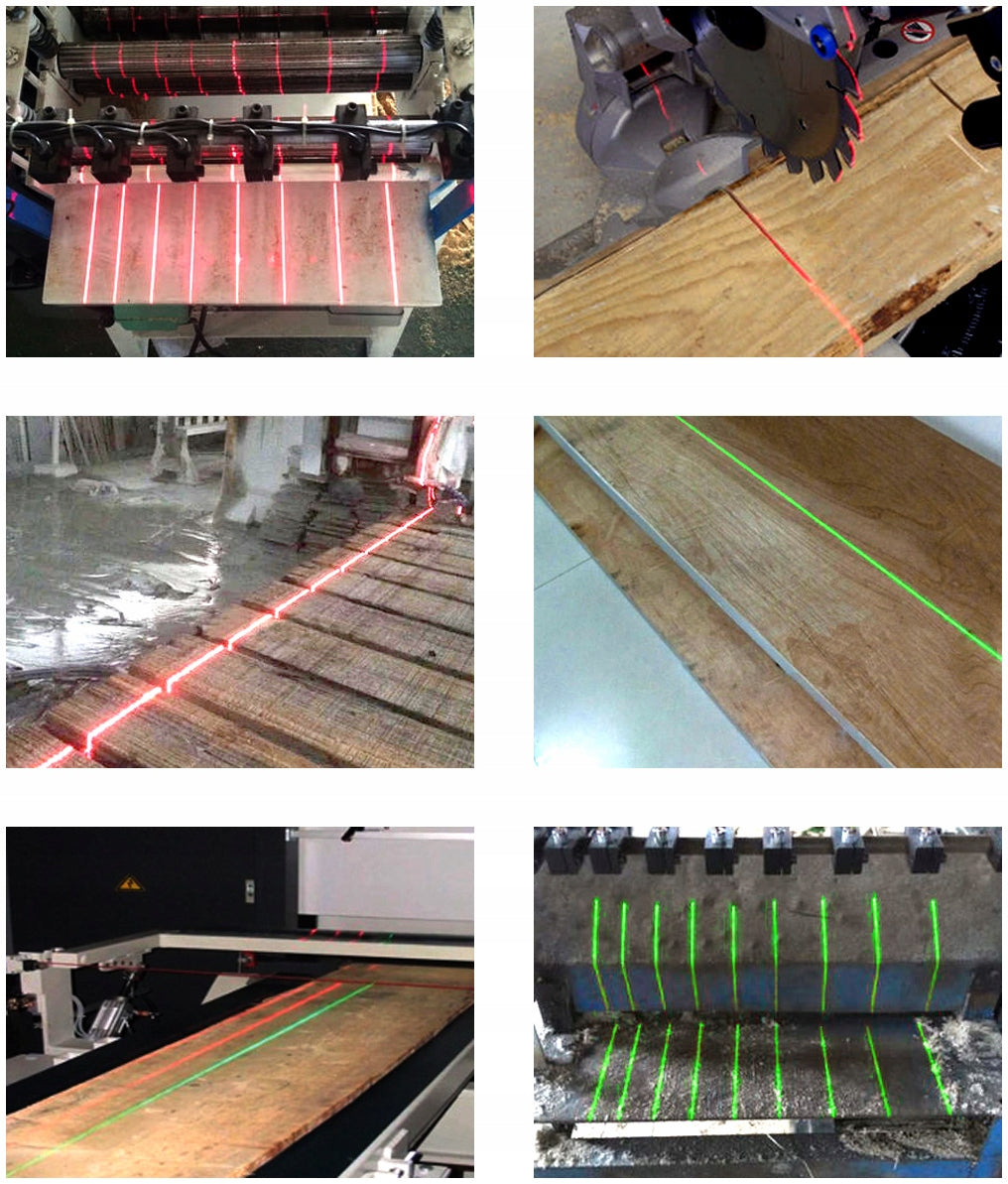

• Woodworking: sawmills, saws, multi-saws.

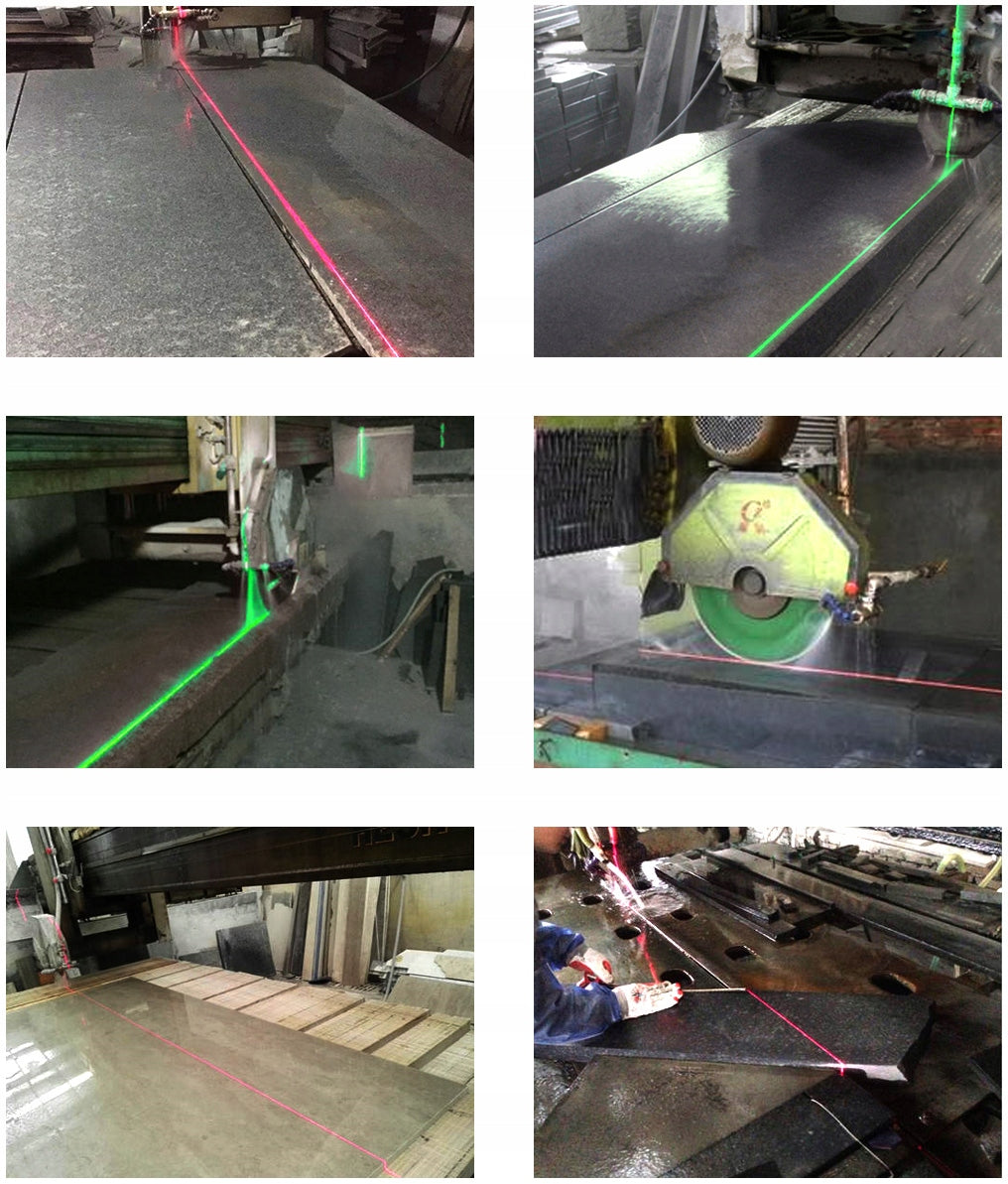

• Stone machines: saws, multi-saws, grinding machines.
• Textile industry: sewing machines, embroidery machines, presses.
• Industrial automation
• Production lines

The achievable length of the line

• Office conditions or a standardly lit hall: a clear line up to about 5m long
• Working outdoors under a roof or a well-lit workplace in a hall: a clear line up to approx. 2 m long
• Working outdoors in sunlight: clear line up to about 0.2m

We are the only manufacturer of line lasers in Poland - the rest of the products offered on Allegro, without exceptions , are Chinese products!

We do not import laser modules from China. The power systems, control software, housings and optics mounts used in our LWPRO lasers are 100% our own design . Thanks to this, we are able to meet the highest requirements of our customers, and the production of lasers in Poland means that we are 100% sure of the highest quality of our lasers.

We have almost a thousand satisfied customers . We export our lasers to several countries around the world .

In the photo: LAMBDAWAVE LWPRO laser modules ready for final assembly - housings, power supply systems, optics and laser diodes.

We are absolutely convinced of the top quality of our LWPRO line lasers .

Due to the fact that we are a manufacturer , we can easily adapt our product to specific customer requirements. Changing the output power, using different optics or replacing the power connector is possible even when ordering one piece . Making the laser in a different housing or modifying the power supply system are also possible, although they make economic sense with a larger order.

Laser radiation can be very dangerous to the human eye. Never look into the beam directly or through optical instruments. Be especially careful when using the laser module indoors, especially on reflective surfaces. Never aim the laser beam at people , animals , vehicles or aircraft .

The laser module sold is an electronic component intended to be built into the final device and which is not subject to the IEC 60825-1 standard. The device in which the laser module will be built or with which it will be integrated must be tested for safety and meet the requirements described in the IEC 60825-1 standard. The laser module sold in accordance with the IEC 60825-1 standard belongs to the 3B safety class, but after the correct installation of the laser on the machine ensuring the maintenance of a safe distance from the machine operator, the device with a built-in laser will be classified as a 2M class laser device.

1. Exit window made of AR-coated optical glass - easy to clean and scratch resistant.
2. Housing made of stainless steel - trouble-free operation in a dusty and wet environment, also in an aggressive environment. IP67 tightness class.
3. Line generating lens made of optical glass - clear and sharp line. On request - Powell lens , generating a line of uniform brightness.
4. The center of the module is made of brass - excellent heat dissipation and high thermal stability.
5. Glass, 3-element collimator with AR coating - clear and sharp line.
6. Seals - trouble-free operation in a dusty and wet environment, IP67 tightness class.
7. Laser diode - depending on the color - Osram , Sharp , Mitsubishi or Nichia - long and trouble-free operation in a wide range of temperatures.
8. Laser diode power supply system designed and manufactured by LAMBDAWAVE with a built-in microprocessor - wide range of supply voltages, high efficiency, thermal protection , against reverse polarity of power supply, soft-start, UVLO, OVLO, ESD. On request - the ability to remotely switch on and adjust the laser power - potentiometer, TTL digital signal, analog signal, e.g. 0-5V , 0-10V , 2-10V , current signal e.g. 0-20mA , 4-20mA , RS485 , Modbus , CAN , analog or digital modulation up to 200kHz .
9. M8 industrial power connector - trouble-free operation in a dusty and wet environment, IP67 tightness class. On request - other connectors according to customer specifications, e.g. M12 or cable gland.

Below are typical configurations with the expected line length and lighting conditions

Office conditions, standardly lit hall:

• Line to 0.5m: Green 520nm 1-5mW, Red 638nm 1-10mW, Red 658nm 1-10mW.
• Line up to 2m: Green 520nm 30mW, Red 638nm 50mW, Red 658nm 100mW.
• Line up to 5m: Green 520nm 50mW, Red 638nm 100mW, Red 658nm 200mW
• Line up to 10m: Green 520nm 100mW, Red 638nm 200mW.

Work outside, under a roof or in the shade, work in a hall with strong lighting:

• Line to 0.5m: Green 520nm 5-10mW, Red 638nm 10-50mW, Red 658nm 10-50mW.
• Line up to 2m: Green 520nm 50mW, Red 638nm 100mW, Red 658nm 150mW.
• Line up to 5m: green 520nm 100mW, red 638nm 150mW.
• Line up to 10m: Green 520nm 200mW, Red 638nm 200mW.

Outdoor work, sunlight:

• Line up to 0.5m: Green 520nm 50-100mW, Red 638nm 100-200mW, Red 658nm 200mW.
• Line up to 2m: green 520nm 100-200mW, red 638nm 200mW.

The visibility of the laser line depends on:

• laser power
• The wavelength (color) of the laser
• Line lengths
• Line thicknesses
• The color of the processed material
• Ambient lighting conditions

The laser power directly affects the brightness of the line. More power - a brighter line .

The wavelength (color) of the light affects the brightness of the line because the human eye has different sensitivity to different colors. The highest sensitivity is in the vicinity of green , lower in the vicinity of red (638nm, 658nm), and very low in the vicinity of violet (405nm). For example - the green laser 520nm 10mW has a similar brightness as the red laser 638nm 20-30mW and a similar brightness as the red laser 658nm 50-100mW.

The length of the line affects the brightness of the line, because the longer the line, the lower the brightness per unit area for the same laser power. The longer the line, the lower the brightness of the line , which must be compensated by increasing the laser power. The length of the line depends on the positioning of the laser on the machine. The farther from the workpiece, the longer the line .

Line thickness affects line brightness in the same way as line length. The thicker the line, the less visible it is . LWPRO lasers typically generate a line 2-3mm thick at a working distance of up to 10m. In special applications , where the distance to the material is small - up to 2 m - and constant , we can set a lower line thickness at the module production stage. With a working distance of 1m, it is possible to obtain lines with a thickness of less than 1mm .

The color of the processed material can be significant if it is intense. For example , if only blue material is being processed, it makes sense to use a blue laser , even though a green laser of the same power is theoretically much brighter . Why? The material has a blue color because it reflects blue light and absorbs other colors.

Ambient lighting conditions have a great influence on the visibility of the laser line. It is one thing to work in standard office or hall conditions (300-500 lux lighting), another to work outside in a shaded place or in a well-lit workplace indoors (1000-2000 lux), and yet another thing to work in full sun ( 30000-100000 lux). The brighter the working environment, the more laser power is needed to make the line clearly visible .

Line visibility calculators

If you want to compare the brightness of two lasers , for example to check how the wavelength (color) affects the brightness at the same power, such a calculator can be found on our website:

https://docs.lambdawave.eu/tools/relative_brightness_calculator.html

If you know the lighting conditions (illuminance in lux) where you want to place the laser , you can calculate the line contrast directly. A fairly well visible line starts with a contrast (in the calculator - Weber contrast) 1:1. A clearly visible line requires a contrast of 3:1-5:1. The line visibility calculator can be found on our website:

https://docs.lambdawave.eu/tools/line_visibility_calculator.html

• Material positioning
• Determination of the cutting line

• Material positioning
• Determination of the cutting line

• Material positioning
• Determination of the cutting line
• Positioning of details

• Storage
• Positioning
• Production lines
• 3D scanning
• entertainment industry

Log saw, log saw, stone saw and similar applications - typical hall conditions:

• green 520nm - 5-10mW per meter of line
• red 638nm - 10-20mW for each meter of line
• red 660nm - it doesn't make sense, red 638nm is 3x brighter at the same power
• other colors - it makes no sense

Log saw, log saw, stone saw and similar applications - outdoor, shaded, sheltered conditions:

• 2-3x more than in indoor conditions

Full bright sun, clear sky, outdoor use without any shade:

• green 520nm - over 50mW for each meter of line
• red 638nm - over 100mW for each meter of line
• obtaining a visible line longer than 3-4 m in full sun is practically impossible

Power supplies :

• For DIN rail, 12V: offer number Allegro 10005424941 (paste this number into the Allegro search engine)
• For DIN rail, 24V: offer number Allegro 10005418182 (paste this number into the Allegro search engine)

• To the socket, 12V, M8 cable, 3-pin, length 1.45m: Allegro offer number 11391344012 (paste this number into the Allegro search engine)
• To the socket, 12V, cable M12, 4-pin, length 1.45m: on request (use the "Ask a question" option)

Power cords:

• M8 connector, 3-pin, length 2m: Allegro offer number 10619383619 (paste this number into the Allegro search engine)
• M8 connector, 3-pin, length 5m: Allegro offer number 8680405267 (paste this number into the Allegro search engine)
• M8 connector, 3-pin, length 10m: Allegro offer number 13529999951 (paste this number into the Allegro search engine)
• M8 connector, 3-pin, length 20m: Allegro offer number 13530000097 (paste this number into the Allegro search engine)

• M12 connector, 4-pin, length 2m: offer number Allegro 12955885855 (paste this number into the Allegro search engine)
• M12 connector, 4-pin, length 5m, length 10m, length 20m: on request (use the "Ask a question" option)

Fixings :

• Industrial mount, for 20mm laser, fixed to the plane, adjustment of the beam angle and position in X: offer number Allegro 9351042369 (paste this number into the Allegro search engine)
• 20mm laser mount, 20mm rod mount: Allegro offer number 13995454816 (paste this number into the Allegro search engine)
• 20mm laser mount, 12mm rod mount: Allegro offer number 13995454959 (paste this number into the Allegro search engine)
• Laboratory mount, for 12mm laser, attached to the optical table, adjustable in 3 axes: Allegro offer number 10979946485 (paste this number into the Allegro search engine)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Maximum working range	5 m
Parametry	Laser color	green
Parametry	Manufacturer code	LWPRO-520-50-RLINE-SET
Parametry	EAN (GTIN)	5903990661228
Parametry	Product weight with unit packaging	0.75 kg
