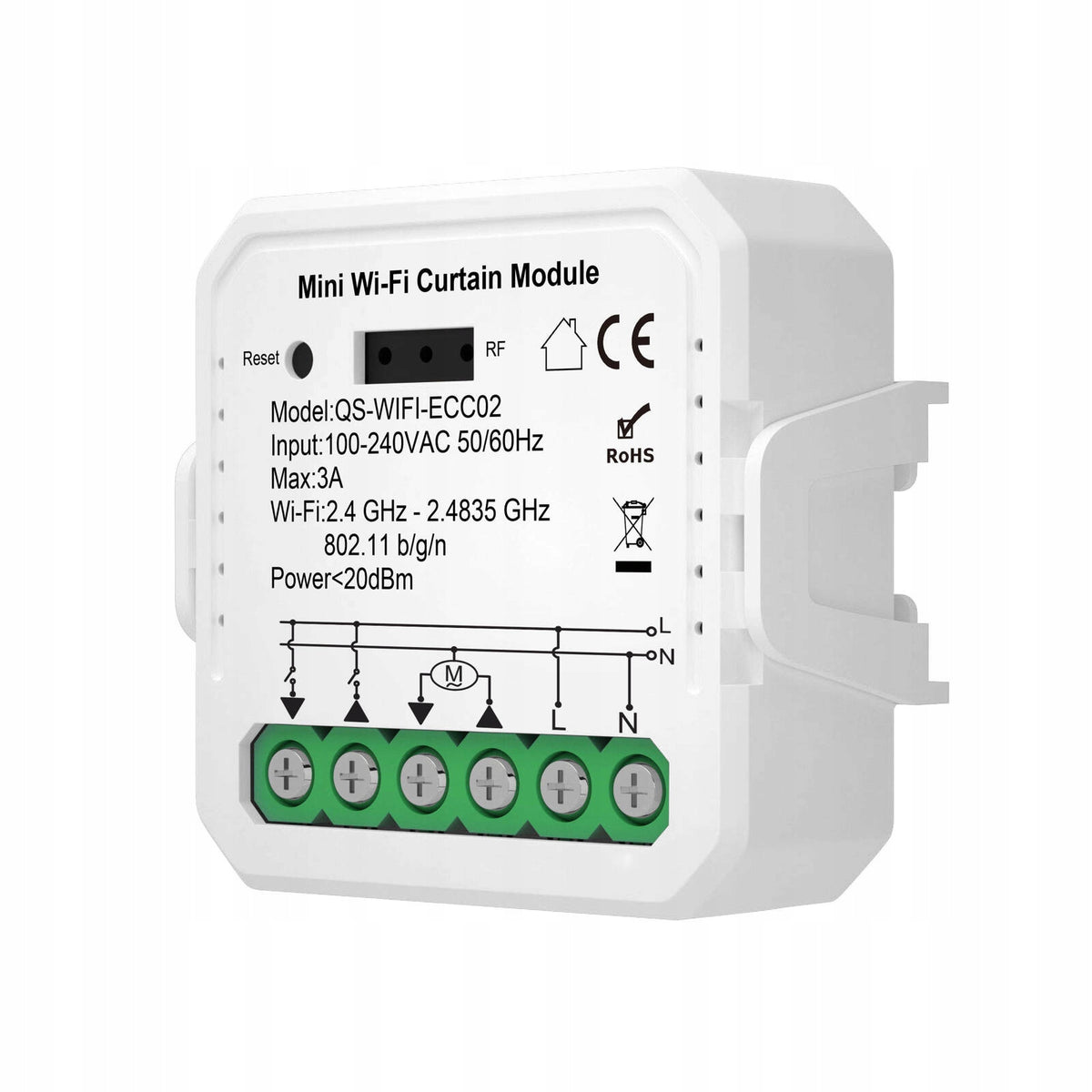

Žaliuzių valdiklis TUYA WiFi, įleidžiamas, procentinis valdymas, V3

Trumpai apie prekę

Prekė: Žaliuzių valdiklis TUYA WiFi, įleidžiamas, procentinis valdymas, V3. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sone
• Modelis: sterownik rolet

⚡MINI receipt module, Tuya WiFi roller shutter control unit for controlling: blinds, curtains with mobile devices, installation is very simple and intuitive.

⚡Control blinds with schedules, scenes, from the app or classically from the button on the wall.

⚡EXPANDABLE WITH RF MODULE - FOR REMOTE CONTROL

⚡With Wi-Fi connectivity, you can control blinds or curtains directly from the app on your smartphone.

⚡Control via Wi-Fi is done using the Tuya or Smart life application or another application. (free download for Android and iOS). The device works with applications and voice assistants: Google Home, Amazon Alexa and Home Assistant.

• Wireless remote control of blinds
• Control without having to hold the button
• Percentage control
• POSSIBILITY TO ADD RF433MHz MODULE to control THE REMOTE CONTROL
• Maximum power 3A(720W)
• Control from anywhere in the world with WIFI
• Works with MONOSTABLE and BISTABLE connectors - (EACH BUTTON TYPE)
• Reading Parameters in the application
• Extremely small size 39x39x18mm
• Easy pairing -built-in bluetooth module (BLE)
• Installation wall mounted (in a can), on a DIN rail in a switchgear or on a wall
• Quick calibration - the ability to enter one time, recommended time of opening the blind
• Schedule - setting specific hours of covering and uncovering the blind
• Scenes (automations) - control against specific conditions, e.g. Remove the blinds at 7:30 and close the blinds 30 minutes after sunset

Remotely controlled module for WiFi roller shutters up to power up to 720 W with the function of adjustment of the percentage of opening of the roller shutter will allow you to control the obscuration while connected to the Wifi network or remotely from anywhere on earth. In addition, you can set a schedule that will cover or reveal the blind at the time you set, as well as smart scenes such as exposing windows at a fixed time or covering after a certain time after sunset. The compact size of 39x39x18mm will also allow you to install in a flush-mounted box (for convenient installation - we recommend 60mm depth).

By buying a remote control (not included) you will also receive a radio communication module, after installation in one of the controllers, you can define in the application that you want to control the entire group of blinds, i.e. all blinds on one floor of the house or in specific rooms

Each of the controllers has an outlet for installing an RF (radio) radio module✅

• You can find the pilot in the offer (13955218372)
• Additional module can be found in the offer (13955200651)

Our V3 roller shutter controller is equipped with a built-in Bluetooth Low Energy (BLE) communication module that automatically recognizes the device in the TUYA environment.

To add a device, just click the "+" button - thanks to direct Bluetooth communication with your smartphone, the application will immediately find a new device.

After confirming the WiFi password, click the "add" button - the device will be paired.

As one of the few - our V3 module has the ability to choose the type of button that you have MONOSTABLE (bell) OR BISTABLE (classic) This gives you the opportunity not only to match each roller shutter connector (switch) on the market but also the way it works e.g. You can set that when you click the bell button, the blind will go down, but you can also set that the blind goes down only when you hold it.

• Opening and closing of blinds or curtains at specific time (Schedule)
• Closing blinds leaving the house based on location settings
• Covering windows on sunny days so as not to overheat the rooms
• Closing roller shutters or awnings when the wind exceeds a given value, e.g. 3,6 m/s to protect them from damage

• Closing/Opening blinds and curtains remote via app
• Closing/Opening blinds and curtains local manually with the button
• Timer - setting the time to turn on
• Schedule - obscuring and uncovering according to the set plan
• Scene - setting the control dependence on the time of day or other factors selected by us, e.g. insolation
• PERCENTAGE CONTROL
• Assembly on DIN rail
• Assembly in flush-mounted box (for convenience - we recommend 60mm depth)

• From the home screen (without entering the driver) - photo on the left and in the middle
• From the home screen percentage or by selecting closed / open
• After entering the controller with the help of arrows
• After entering the slider driver percentage

The device works with Tuya Smart and Smart Life – popular applications for IoT devices (Internet of Things)

Simple addition of the device - just hold down the button on it and search for it in the application.

The TUYA and SMART LIFE ecosystems are:

• The application works in Polish, you can add and control various smart devices in it
• The application works with a very wide range of devices
• Nearly 10 000 manufacturers
• 310 000 devices compatible with the app
• 30 categories that include, among others: lighting, monitoring, air conditioning, heating
• The application is free and constantly developed with new features.
• Applications can be downloaded to iOS and Android devices.

And above all, intuitive operation and simple installation
