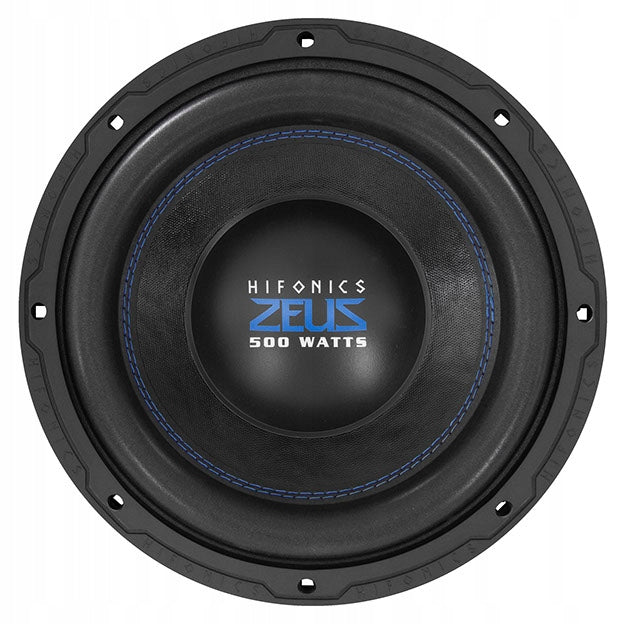

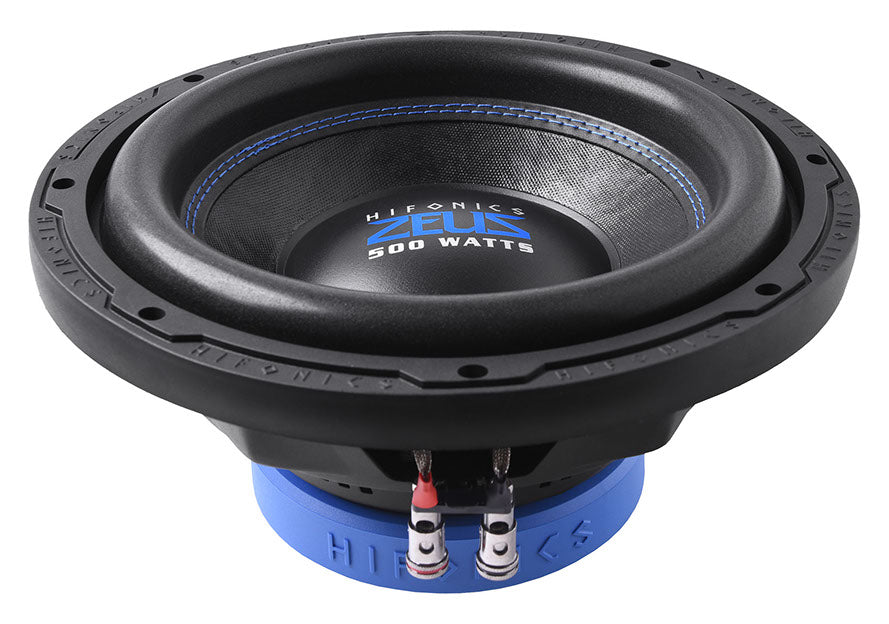

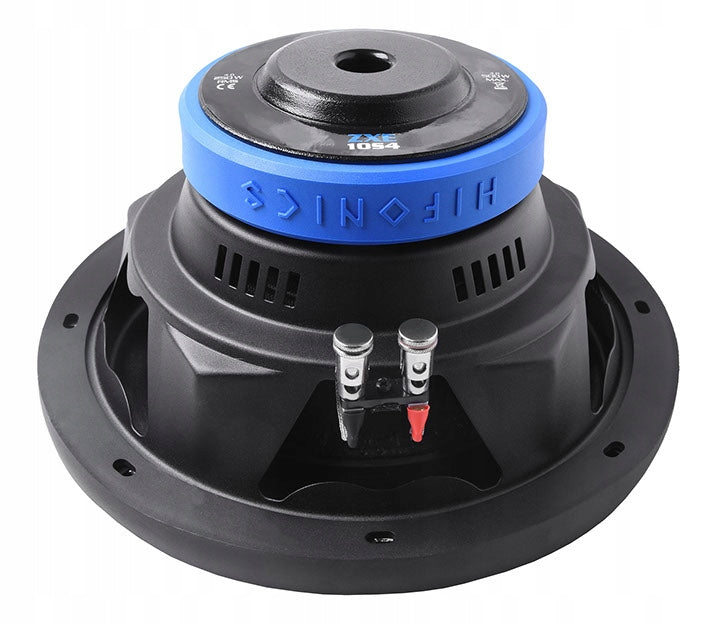

Žemų dažnių garsiakalbis HiFonics ZXE10S4, 25 cm, 250W, 4 Ω

Trumpai apie prekę

Prekė: Žemų dažnių garsiakalbis HiFonics ZXE10S4, 25 cm, 250W, 4 Ω. Kategorija: 250 mm.

• Gamintojas: HiFonics
• Modelis: ZXE10S4

ZXE subwoofers from HiFonics are the beginning of the adventure with the ZEUS series. Carefully designed and manufactured two models with diameters of 25 and 30 cm allow you to deliver a solid dose of bass in low-budget installations without the need for low-quality drivers.

Technical data and product parameters can be downloaded in the Additional information tab

Components used in the production of ZXE series subwoofers show that HiFonics does not save when designing even a budget series of its subwoofers. 64 mm coils, efficient Y34 magnetic systems with a diameter of 140 mm, enlarged diaphragms allowing the diaphragm to tilt +/- 16 mm Max, or finally hand-made coated paper membranes sewn to the spring with a double stitch, of course blue thread. Details were also taken care of - the magnet is protected by a blue cover, spring-loaded clamps were used to connect the wires.

The T/S parameters have been designed so that using ZSE subwoofers it is possible to build excellent ventilated boxes, but also medium-sized closed enclosures. It is even possible to use a subwoofer in a free-air application.

Basic information HiFonics Zeus ZXE10S4

Double magnet Y35 with a diameter of 140 mm

Coil diameter 64 mm 4 Ohm X-max +/- 16 mm

Unpressed paper coated membrane double stitched with suspension

Steel basket with optimal cooling holes

Blue Rubber Magnet Cover

• Product parameters: Speakers HiFonics ZXE10S4
• Speaker type: subwoofer
• Speaker diameter: 250 mm
• Installation depth: 120 mm
• Diameter of mounting hole: 238 mm
• Nominal Impedance: 4 Ohms
• RMS power: 250 Watt
• Maximum power: 500 Watt
• Masks included: no

Specifications
