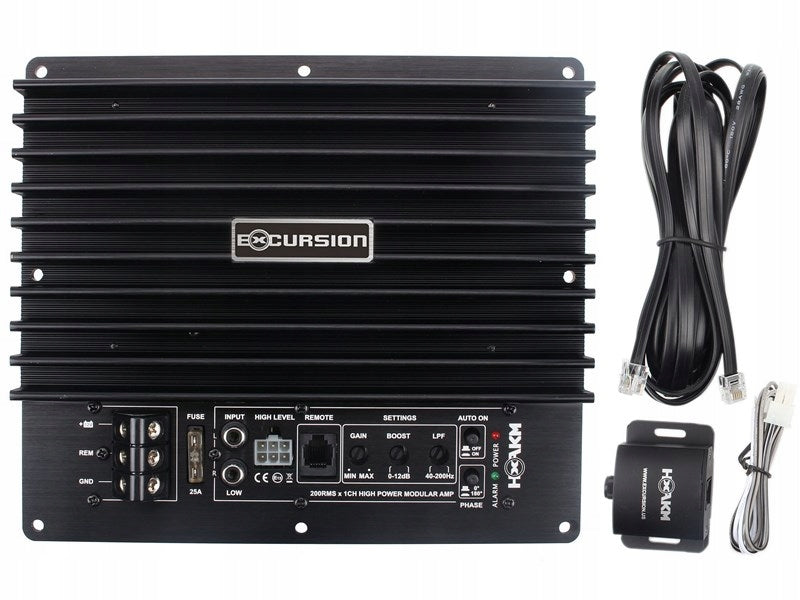

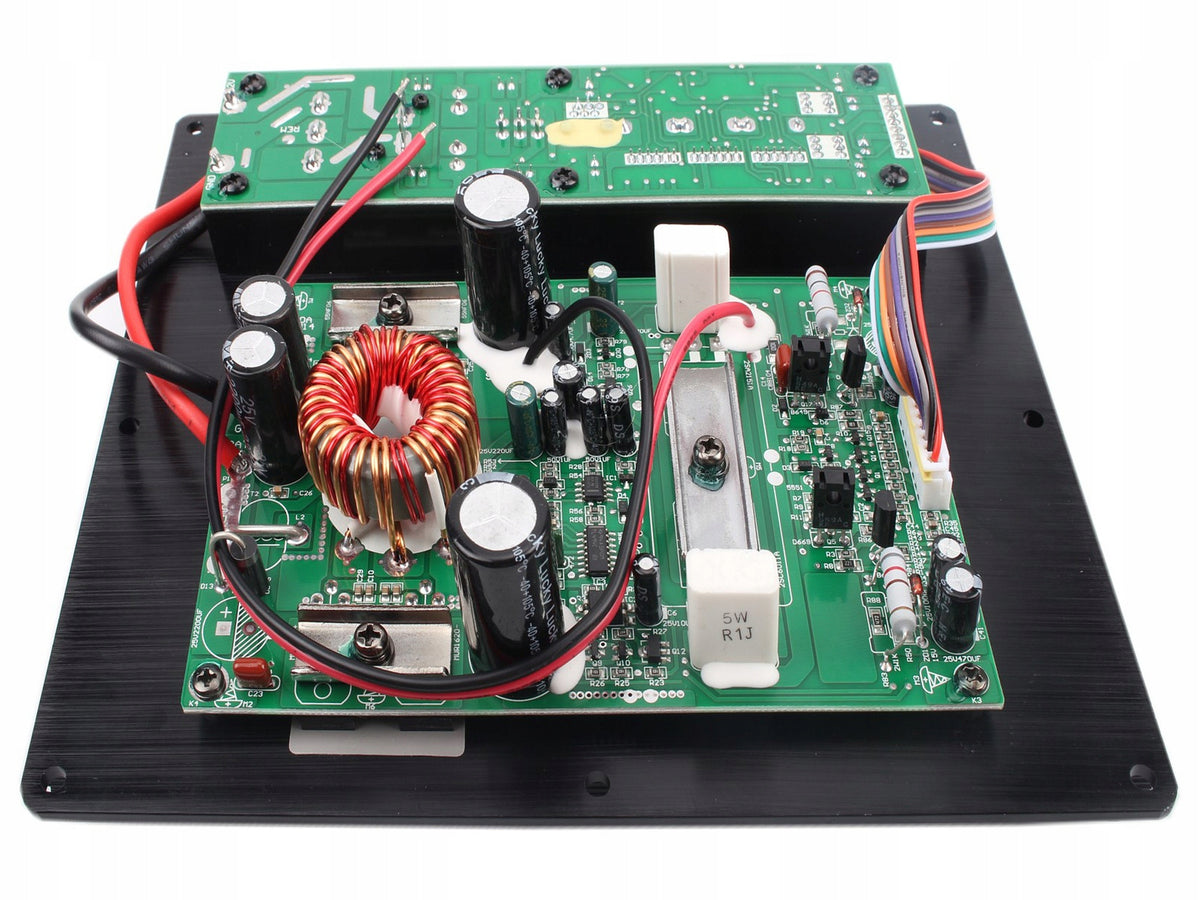

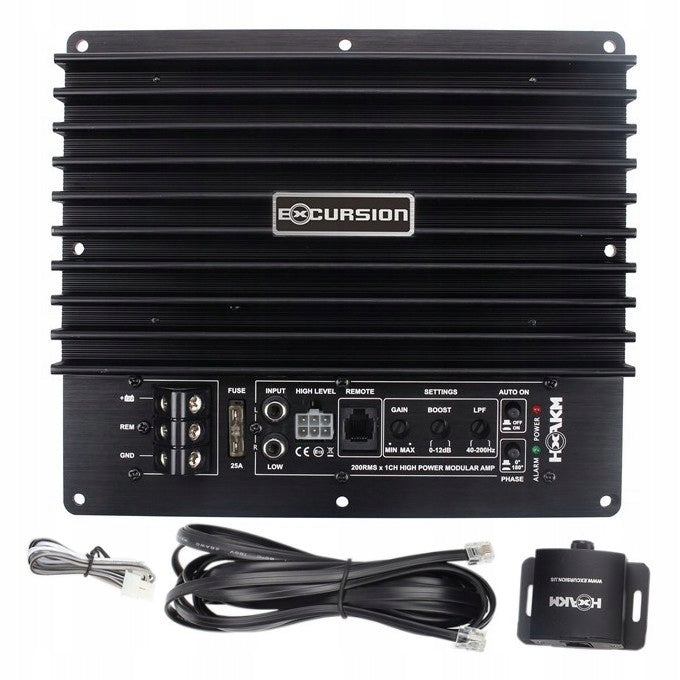

Žemų dažnių kolonėlė Excursion HXA-KM 200W su integruotu stiprintuvu PILOT

Trumpai apie prekę

Prekė: Žemų dažnių kolonėlė Excursion HXA-KM 200W su integruotu stiprintuvu PILOT. Kategorija: Stiprintuvai.

• Gamintojas: Excursion
• Modelis: Excursion HXA-KM

Wired remote control included

___________

Set of renowned German brand EXCURSION

GENERAL SPECIFICATION

• Number of Channels: 1
• Power howl. RMS/4Ω (e.g. power 14,4V): 1x120 W
• Power howl. RMS/2Ω (e.g. power 14,4V): 1x200 W
• Power howl. RMS/1Ω: not supported

• Frequency Response: 20 - 300 Hz
• Max. THD distortion level: 0,4 %
• Signal/Noise (S/N Ratio): > 90 dB
• Input sensitivity for RCA (LOW Level) signal: 0,3 - 4,5 V
• Input sensitivity for speaker signal (HIGH Level): 1,0 - 12,0 V

ID: U152

INCLUDED

• Car Amplifier
• Wired remote control
• Factory packaging

• LPF low-pass filter with smooth adjustment: 40 - 200 Hz
• High-pass filter (Subsonic) permanently attached: 20 Hz
• Bass BOOST - smooth adjustment of low frequency gain: 0 - 12dB /45Hz
• PHASE - Audio Signal Phase Change Switch: 0 / 180 Degree
• Audio signal input INPUT LOW LEVEL (RCA level)**: 2 RCA jacks (right/left channel).
• INPUT HIGH LEVEL audio signal input (speaker level)**: 6-pin socket + plug with connector connected to speaker cables

Power connector for cables up to 10 mm2:

• +12V - connector for connecting a constant supply voltage +12V
• GND - connector for connecting the power mass (-12V)
• REM - connector for connecting the "Remote" cable from the radio player for controlling the switching on and off of the amplifier

AUTO ON/OFF - switch for selecting the method of switching on and off the amplifier:

• - OFF position, if the amplifier is controlled by supplying +12V control voltage from the radio player to the REM connector
• - ON position, if the amplifier is controlled automatically when an audio signal is detected on the speaker cables (only works when using the HIGH LEVEL signal input).
• REMOTE - socket for connecting the subwoofer's remote volume level controller (regulator with cable is included).
• POWER / ALARM indicator lights - during normal operation, the green indicator light shines. If there is a problem (e.g. The short-circuit detection protection on the wires will work), the red light will light up.
• Operating voltage: 10-15 V
• Fuse: 25 A
• Dimensions: 183 x 210 mm

Specifications
