Žemųjų dažnių garsiakalbio dėžė HIFONICS 30 cm, MDF, su Crunch ir laidais

Trumpai apie prekę

Prekė: Žemųjų dažnių garsiakalbio dėžė HIFONICS 30 cm, MDF, su Crunch ir laidais. Kategorija: Stiprintuvai.

• Gamintojas: Crunch
• Modelis: STAGE 1210

• AERO BR MDF Box with HIFONICS ZXE12S4 Speaker
• Crunch GPX500.2 amplifier
• Set of cables 10mm2

The ZXE subwoofers from HiFonics are the beginning of the adventure with the ZEUS series. Carefully designed and manufactured, they allow you to deliver a solid dose of bass in low-budget installations without the need for low-quality drivers.

Components used in the production of ZXE series subwoofers show that HiFonics does not save when designing even a budget series of its subwoofers. 64 mm coils, efficient Y34 magnetic systems with a diameter of 140 mm, enlarged diaphragms allowing to tilt the membrane +/- 17 mm Max, or finally hand-made coated paper membranes sewn to the spring with a double stitch, of course blue thread.

The box has a powerful bassreflex.

NOTE!! As a few items on display, we have in stock so orders are processed immediately!!

The T/S parameters have been designed so that using ZSE subwoofers it is possible to build excellent ventilated boxes, but also medium-sized closed enclosures. It is even possible to use a subwoofer in a free-air application.

• Basic information HiFonics Zeus ZXE12S4
• Double magnet Y35 with a diameter of 140 mm
• Coil diameter 64 mm 4 Ohm X-max +/- 17 mm
• Unpressed paper coated membrane double stitched with suspension
• Steel basket with optimal cooling holes
• Blue Rubber Magnet Cover

Technical data:

• Continuous power: 300 W rms
• Peak power: 600 W
• Sensitivity (@2.83 V): 89 dB
• Coil diameter: 2,5” (64 mm)
• Impedance: 4 oHm

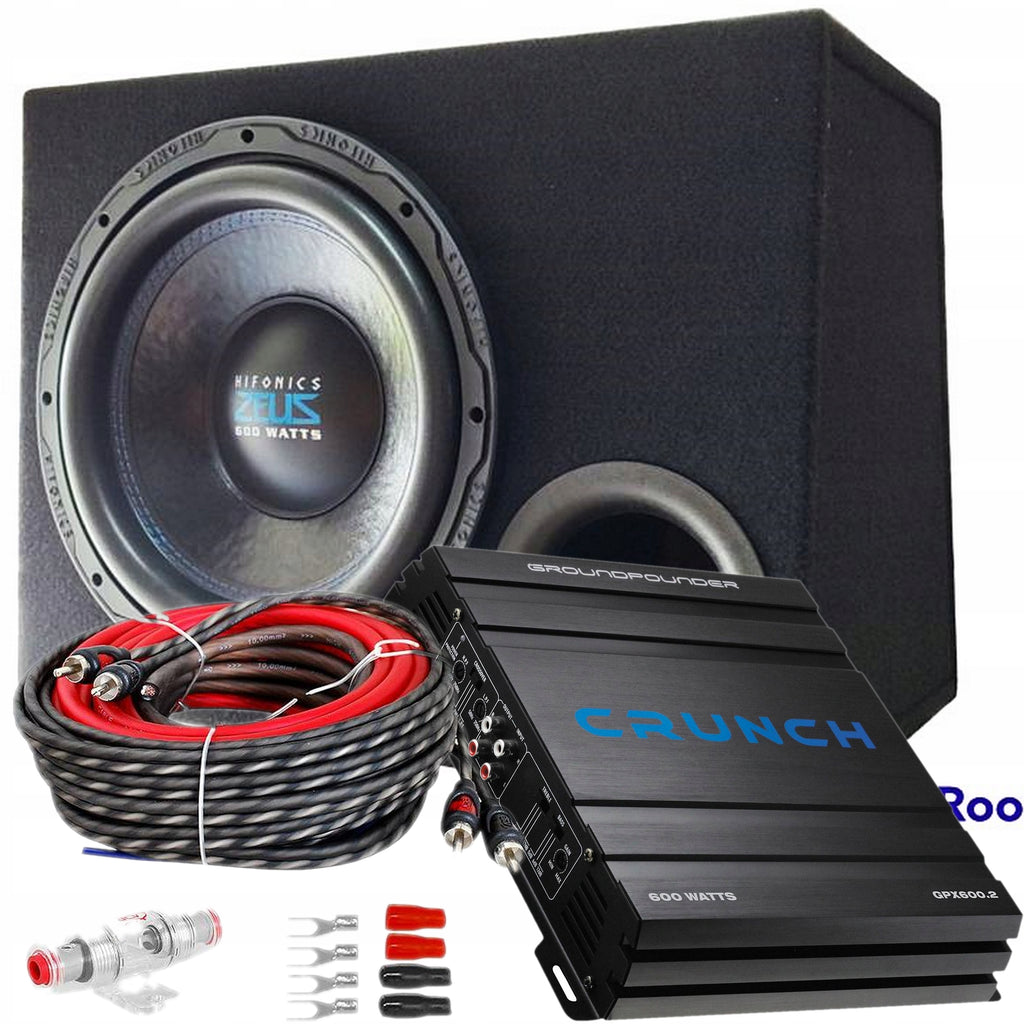

Included:

• HIFONICS ZXE12S4 subwoofer + bassreflex housing

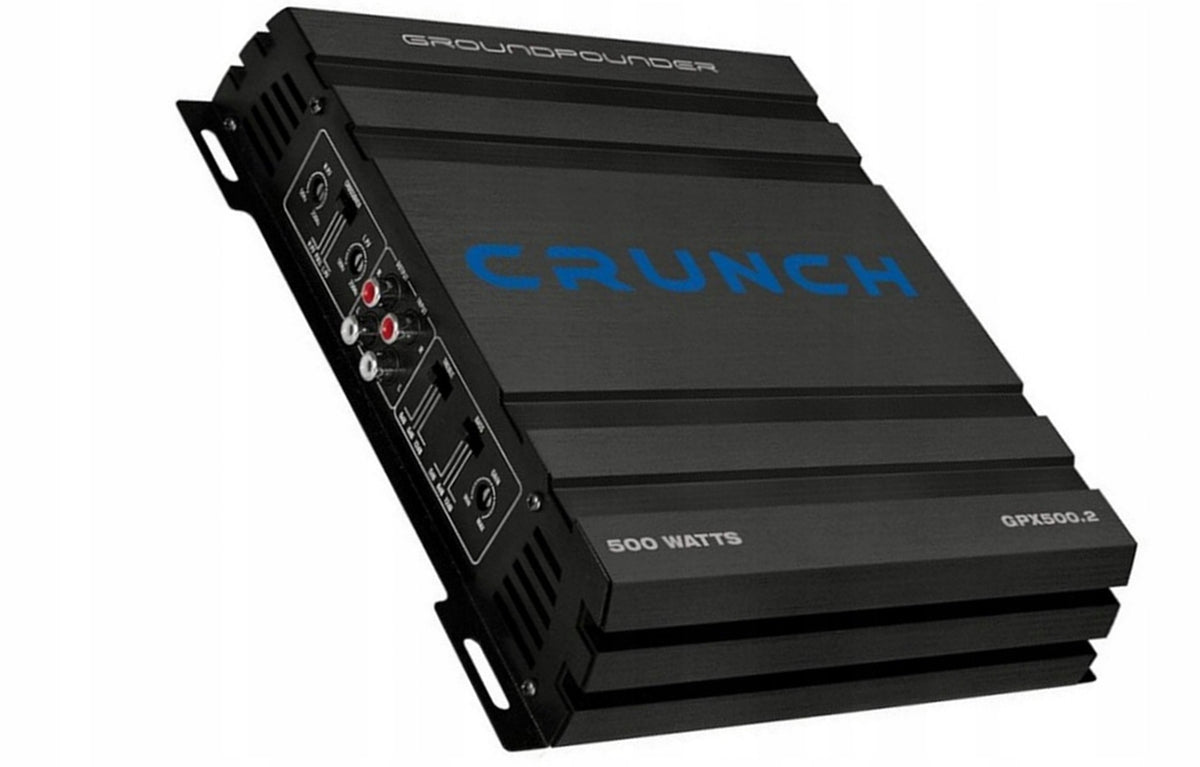

• Amplifier Crunch GPX500.2
• Cables 10mm2

Product Features:

• Musical power 500W
• Power rms 250W
• Large current reserve
• 2 channel
• Ideal for powering a subwoofer or a good set of speakers
• Extensive crossover
• Decent metal housing, brushed aluminum top
• High-quality RCA connectors

Use to power the subwoofer.

The amplifier has the ability to bridge, i.e. combine the power of the left and right channels to power one woofer. The built-in low-pass crossover allows you to correctly set the frequency response so that the subwoofer receives sound with the appropriate frequency response.

In this setting, the low-pass crossover cuts off high frequencies that the subwoofer does not carry, so that it does not heat up unnecessarily, and uses all the power to process the bass band. In addition, it is possible to raise low frequencies.

Ease of configuration and settings, at a very attractive price, makes it an excellent proposition for debutants starting their adventure with music in the car.

REN10KIT Cables:

• power cable - cross section 10mm2 (length. 5m)
• 10mm2 mass cable (L. 1m)
• INTERKONEKT cable (RCA) double shielded
• additional separate vein triggering the amplifier
• fuse holder AGU 40A
• large set of gold-plated tips (forks and eyelets)
• rubber gasket for sealing engine bulkheads, tips, insulation, etc.

Specifications
