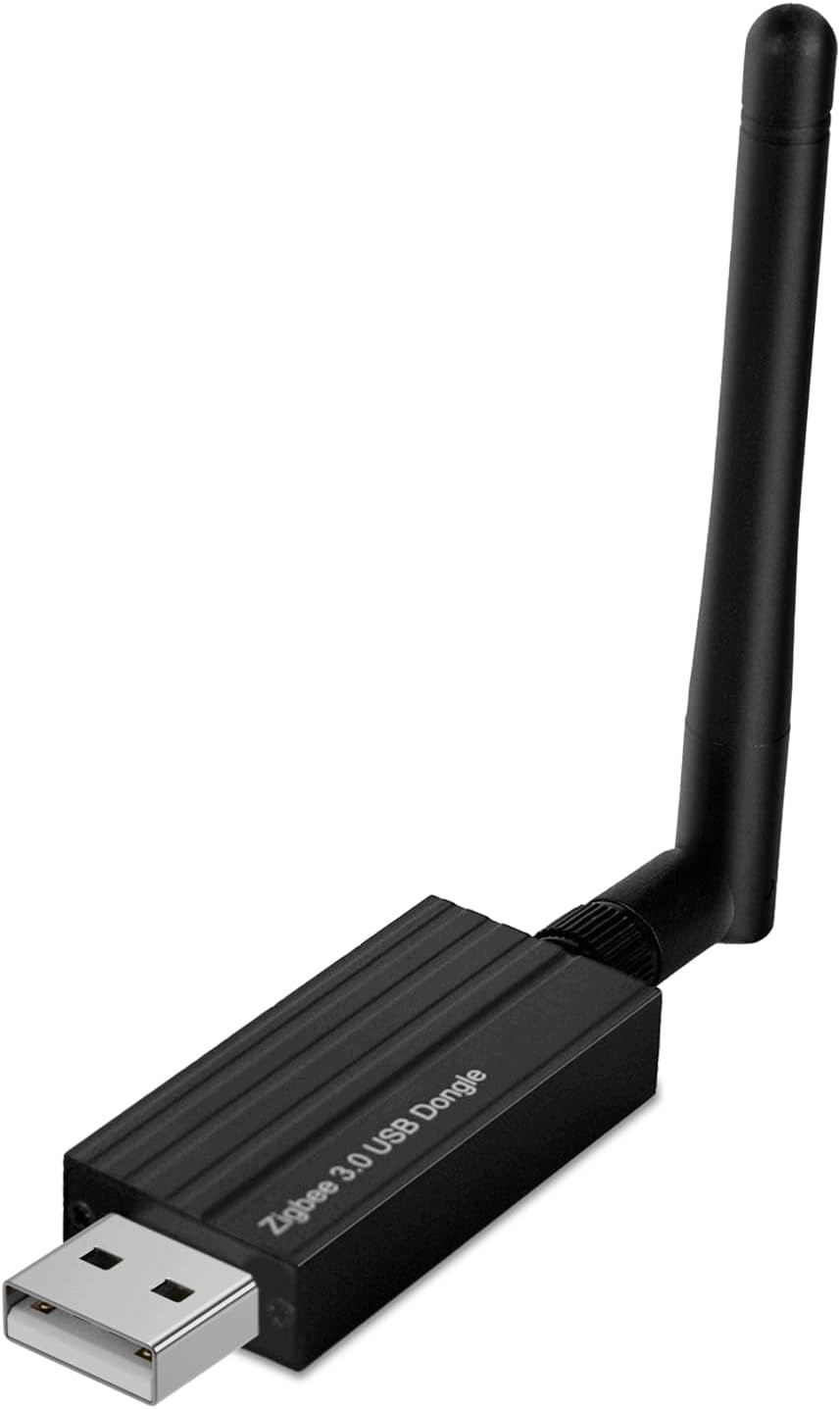

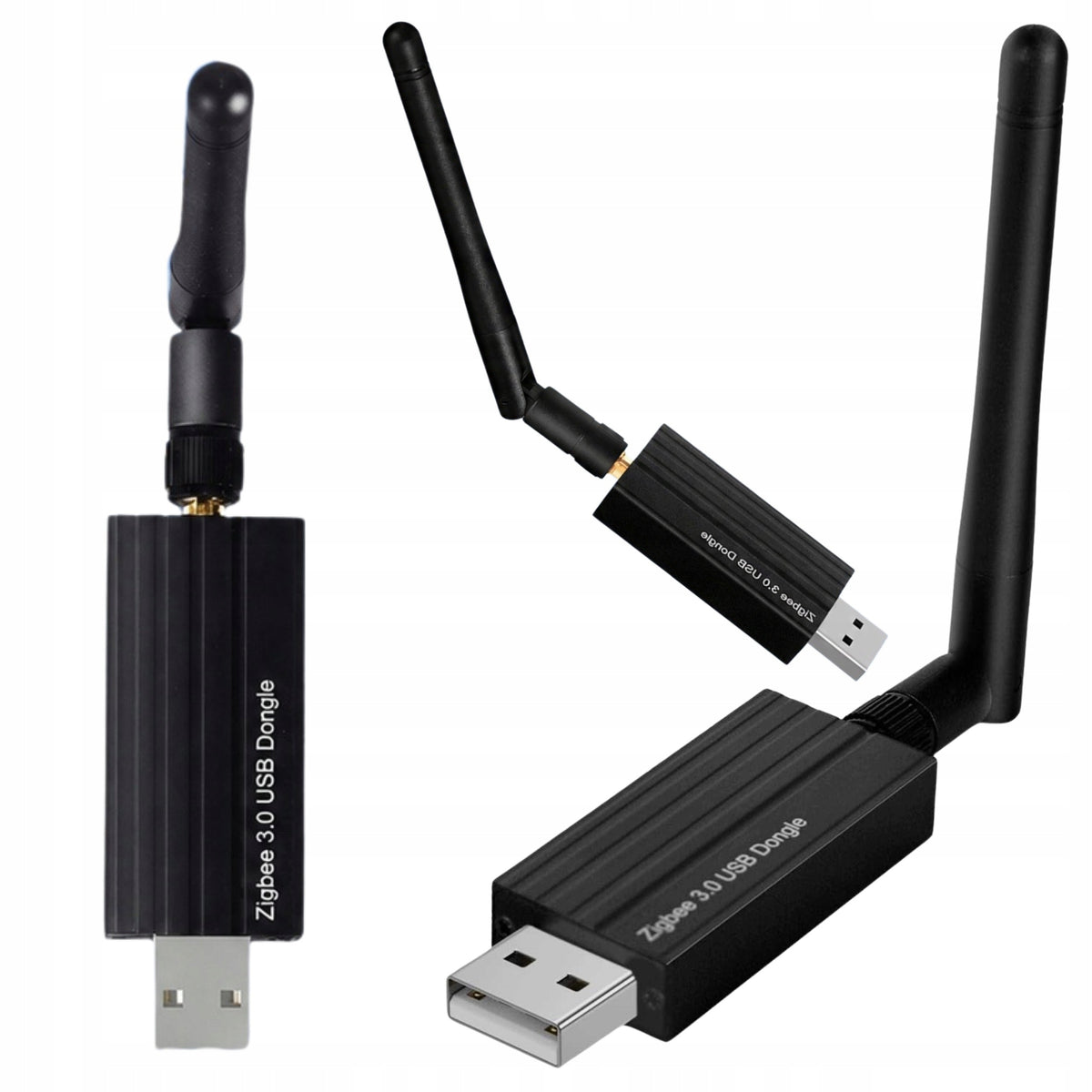

Zigbee 3.0 koordinatorius HAOZEE CC2652P1, USB-A, suderinamas su Home Assistant, Zigbee2MQTT, ZHA

Trumpai apie prekę

Prekė: Zigbee 3.0 koordinatorius HAOZEE CC2652P1, USB-A, suderinamas su Home Assistant, Zigbee2MQTT, ZHA. Kategorija: Centriniai blokai.

• Gamintojas: no brand
• Modelis: HZ-DONGLE

✔ Zigbee 3.0 ✔ CC2652P1 ✔ Home Assistant ✔ Zigbee2MQTT ✔ ZHA ✔ SMA Outdoor Antenna ✔ Local Control

✦ Key features

• ✔ Universal Zigbee 3.0 coordinator – allows you to create your own Zigbee network and connect devices from different manufacturers.
• ✔ TI CC2652P1 + CH340C – a powerful platform designed to support extensive Smart Home installations.
• ✔ Preloaded Z-Stack 3.x.0 coordinator software – the device is prepared to work with Zigbee2MQTT or ZHA.
• ✔ Output power up to +20 dBm – stable communication with sensors, switches and other Zigbee devices.
• ✔ External antenna with SMA connector – the ability to set the antenna in a favorable position.
• ✔ Aluminum housing – helps reduce interference from your computer and other USB devices.
• ✔ Support Home Assistant, Zigbee2MQTT, ZHA and openHAB.

🏠 One network for devices of different brands

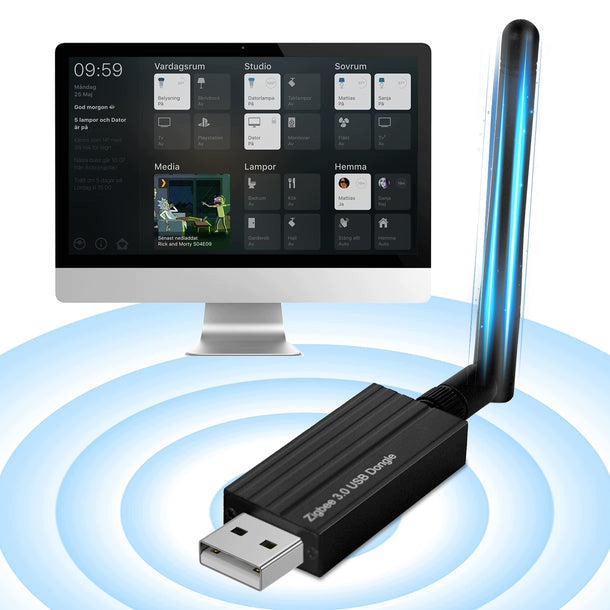

HAOZEE HZ-DONGLE can act as the central coordinator of the Zigbee network when connected to a computer, home server or Raspberry Pi. It allows you to locally manage compatible sensors, outlets, switches, lighting controllers and other automation components.

One device can replace several separate gateways designed for different brands, as long as the connected devices are supported by the platform of your choice, e.g. Zigbee2MQTT or ZHA.

📡 Strong signal, thanks to external antenna

The coordinator uses the CC2652P1 chip offering output power up to +20 dBm. The detachable antenna is connected via a standard SMA connector, which makes it easy to position away from the metal housing of the computer.

The aluminum housing helps reduce the impact of interference generated by devices located near the USB port. According to the HomeBrainz card, the antenna used has a gain of 5 dBi.

⚙ Home Assistant, Zigbee2MQTT and ZHA

The device can work as a coordinator in:

• ✔ Home Assistant by ZHA,
• ✔ Zigbee2MQTT,
• ✔ openHAB,
• ✔ systems based on Raspbian, Ubuntu, Linux, Windows and macOS.

By default, the factory software supports up to 21 devices directly connected, with the possibility of increasing the limit to 32, and after proper configuration up to 128 devices. The actual number depends on the network topology, Zigbee routers, software and configuration.

📦 Contents of the set

• ✔ USB coordinator HAOZEE Zigbee 3.0 Dongle Plus
• ✔ Detachable SMA antenna
• ✔ Instruction manual.

⚙ Specification

Manufacturer: HAOZEE

Model: HZ-DONGLE / HZ-Dongle

Type of device: Zigbee USB coordinator / gateway

Communication standard: Zigbee 3.0

Main layout: TI CC2652P1

USB Converter: CH340C

Factory software: Z-Stack 3.x.0 Coordinator

Output power: to +20 dBm

Frequency: 2,4 to 2,48 GHz

Antenna: external, detachable

Antenna connector: SMA

Antenna gain: 5 dBi

Interface: USB

Compatibility: Home Assistant, Zigbee2MQTT, ZHA, openHAB

Operating Systems: Raspbian, Ubuntu, Linux, Windows, macOS

Housing material: aluminium and plastic

Color: black

Dimensions of the adapter itself: about 70 × 25 × 10 mm

Weight of the device: about 30 g

Power supply: from USB port

Battery: not required
