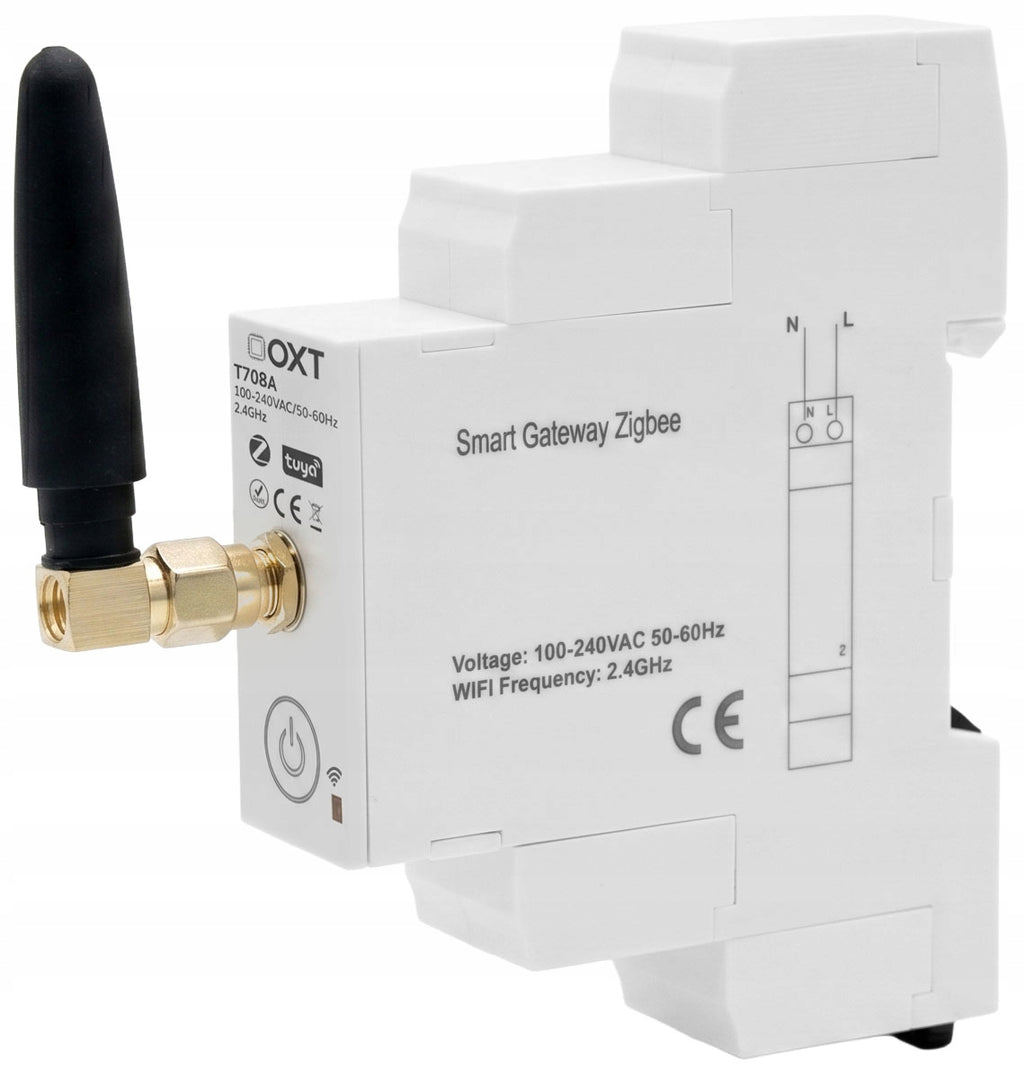

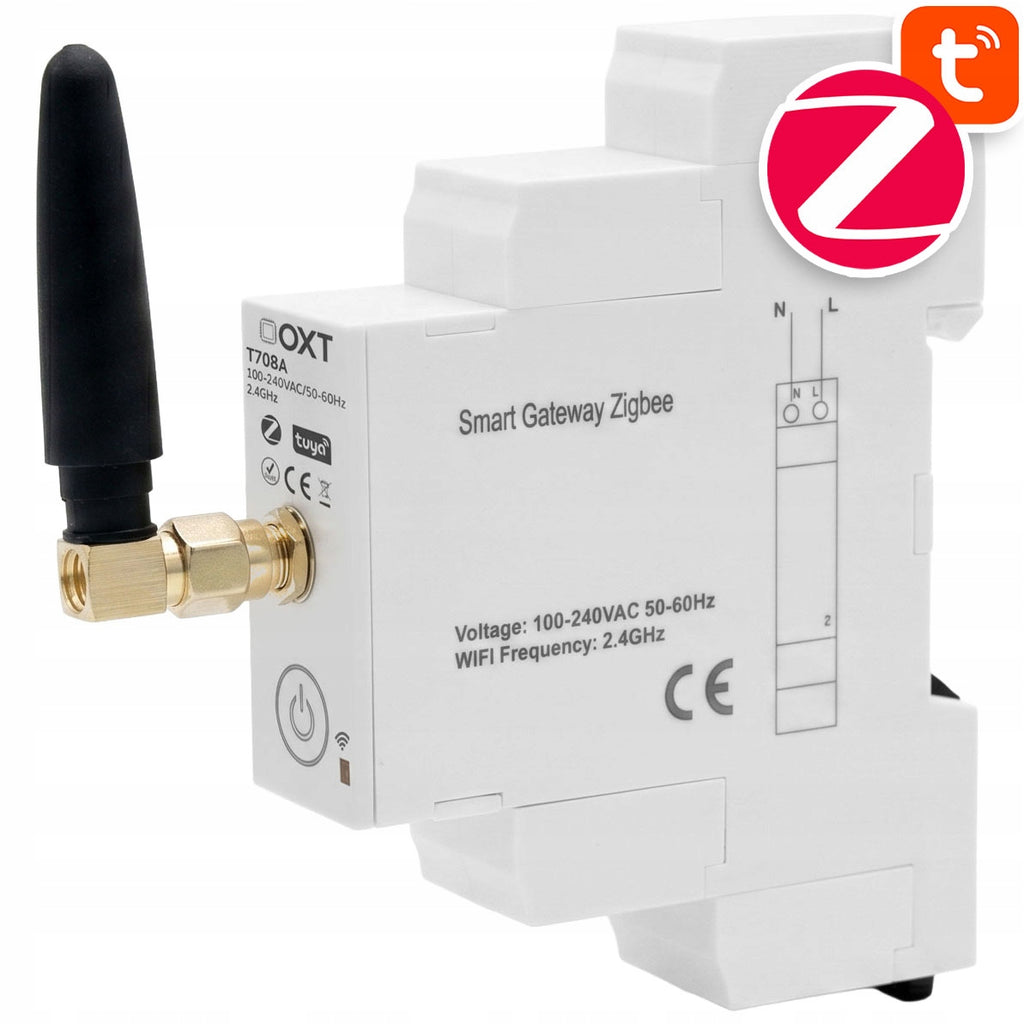

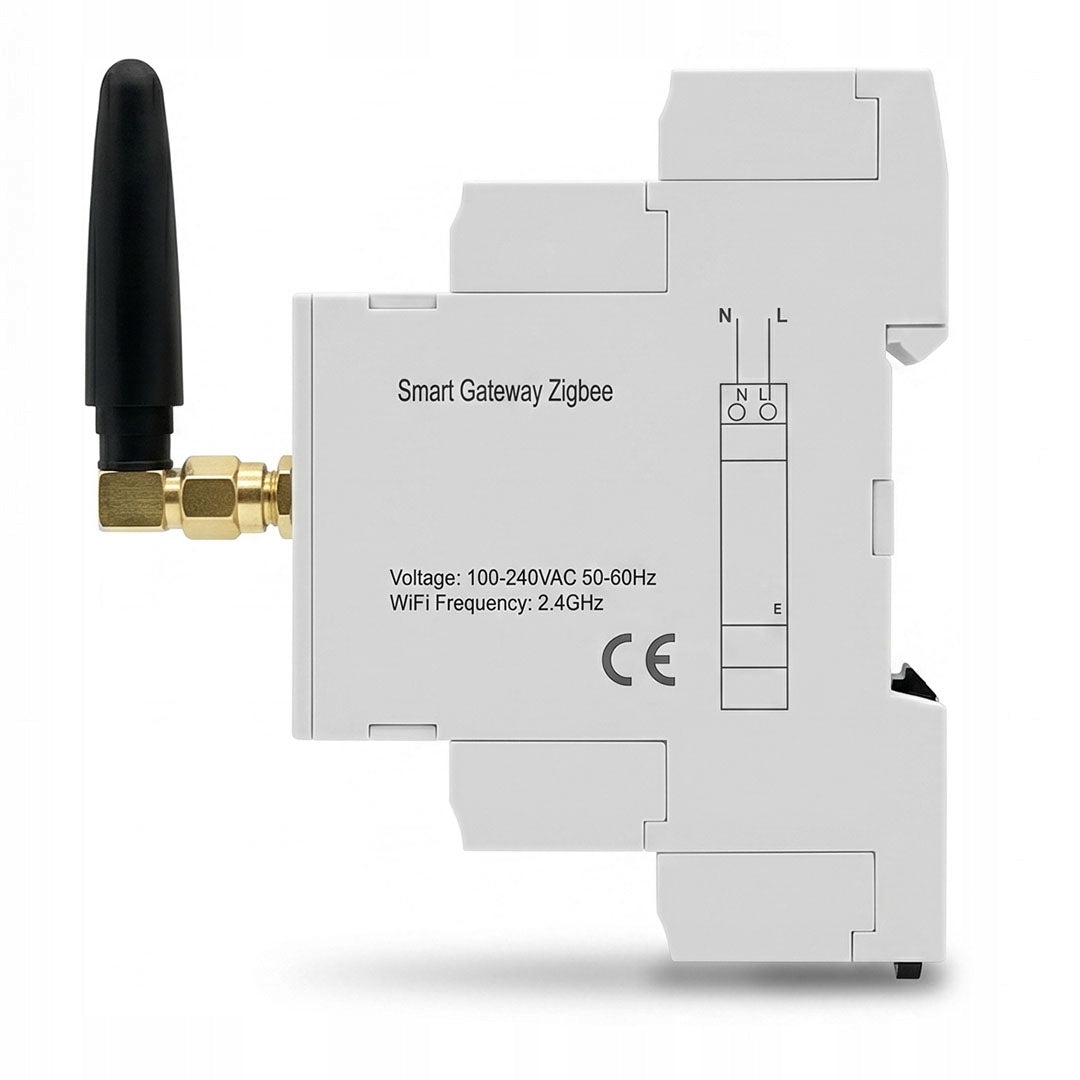

ZigBee DIN bėgio valdiklis su WiFi antena, TUYA Smart Life, OXT

Trumpai apie prekę

Prekė: ZigBee DIN bėgio valdiklis su WiFi antena, TUYA Smart Life, OXT. Kategorija: Centriniai blokai.

• Gamintojas: OXT
• Modelis: T708A

ZigBee Gateway for DIN Rail with Antenna

Tuya / Smart Life | Enhanced Range | Switchgear Mount | ZigBee

• ✅ External antenna for maximum signal range and stability
• ✅ Professional installation in DIN rail switchgear
• ✅ Supports up to 50 ZigBee devices simultaneously
• ✅ Stable "heart" of your smart home with stronger transmission
• ✅ Allows you to create advanced local automations

▶ Why a version with a dedicated antenna?

• Better communication in cabinets: Metal switchgears can suppress the signal. The external antenna solves this problem, guaranteeing a secure connection even in difficult conditions.

• Increased range: The antenna allows for more stable operation of devices away from the switchgear, eliminating dead zones in your home.

▶ Functions of the Head Office

• Communication switch: Allows ZigBee devices (sensors, controllers) to communicate with each other and perform automations.
• Local storage: Your scenarios and automations run faster and more stable, and when the internet runs out.

▶ Construction

• Standard DIN 35mm: Fits any modern fuse box.
• Permanent power supply: Connected directly to the AC 100-240V installation – no hanging cables and plug-in power supplies.
• Compact housing: Takes up little space in the switchgear, leaving space for other modules.

⭐ ZigBee Protocol

What sets ZigBee apart from classic WiFi is the appropriately long battery life for battery-powered devices (unachievable with classic WiFi) and signal relaying through 230V powered accessories.

Additionally, selected ZigBee devices (powered by 230V mains) become part of a Mesh network. This means that if a particular module cannot connect directly to the ZigBee gateway, it communicates with it through the nearest other accessory in the system. Devices powered by 230V, such as PSMART, Aqara, OXT, Sonoff, TUYA, 230V sockets, or light bulbs, act as repeaters in the ZigBee ecosystem.

This allows for the creation of an extensive network that can operate over much greater distances than classic WiFi.

ℹ Specification

Connectivity and Transmission

• Protocol: ZigBee 3.0
• Communication: WiFi 2.4 GHz + External Antenna
• Working range: up to 35 meters (enhanced by antenna)

Electrical parameters

• Power supply: AC 100-240V 50/60Hz

Construction and Assembly

• Assembly: DIN rail 35mm
• Material: Fireproof PC
• LED indicators: Power and connection status
• Antenna length: 50mm
• Antenna thickness with screw-on mount: 18mm

Working conditions

• Working temperature: -10°C – 60°C

ℹ Included

• ZigBee 3.0 gate for DIN rail TUYA
• External antenna (tightened)
• User manual

Product code: T708A
