Zigbee, Ethernet, WiFi vartai SLZB-06M, suderinami su Home Assistant ir Zigbee2MQTT

Trumpai apie prekę

Prekė: Zigbee, Ethernet, WiFi vartai SLZB-06M, suderinami su Home Assistant ir Zigbee2MQTT. Kategorija: Centriniai blokai.

• Gamintojas: SMLIGHT
• Modelis: SLZB-06m

Product Information

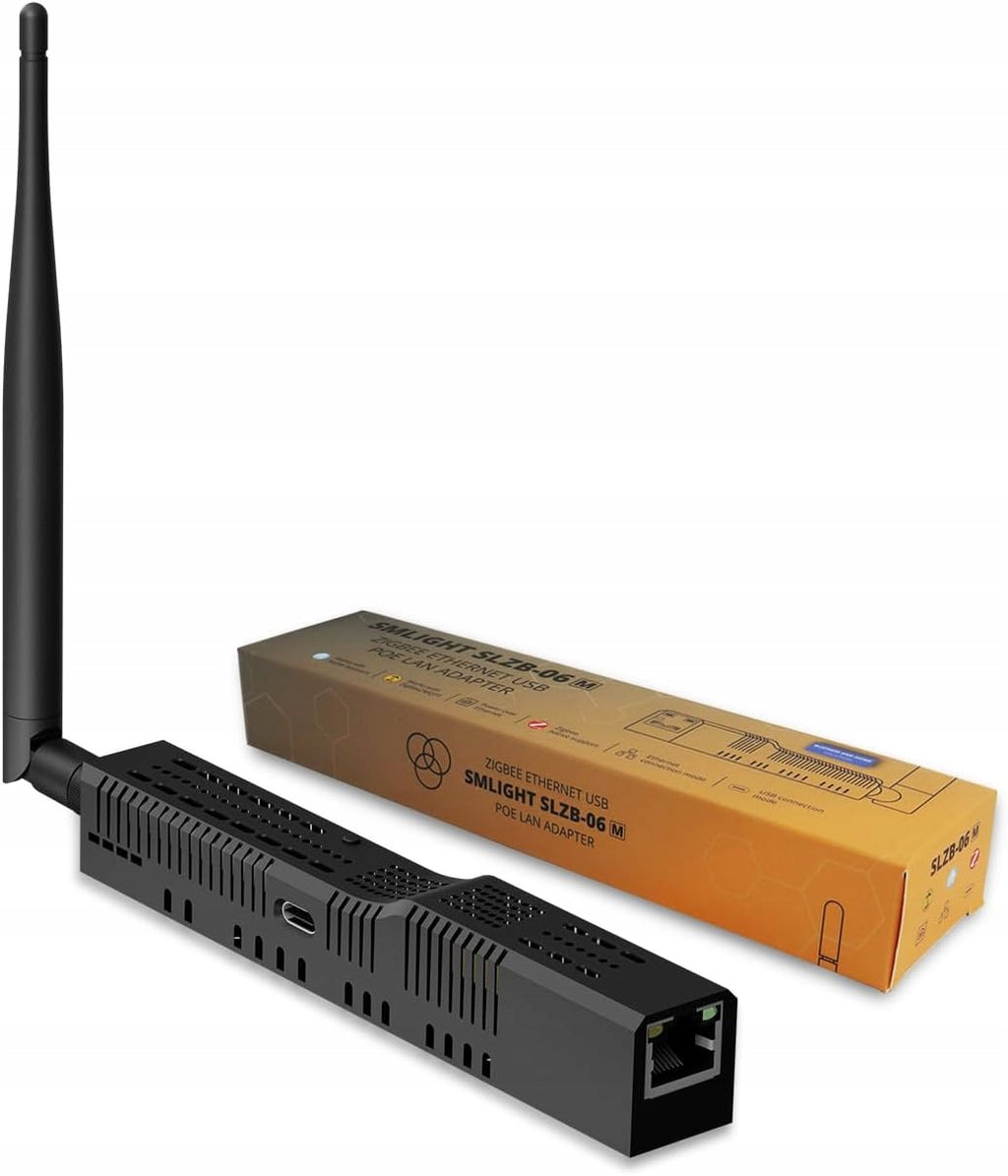

The Zigbee 3.0 SLZB-06MU gateway enables central management of your smart home via Home Assistant, ZHA or Zigbee2MQTT. Three connection methods – Ethernet LAN, WiFi or USB Type-C – allow you to tailor the installation to any network infrastructure. The built-in +20 dB signal amplifier combined with the +5 dB antenna ensures stable coverage even in large spaces. The device is built on an EFR32 chip with a Cortex-M33 80 MHz core and 96 kB RAM, which translates into smooth operation with a large number of terminal devices. 4,4/5 star rating based on 66 user reviews.

⚡ FLEXIBLE CONNECTION AND POWER SUPPLY

The gateway supports three communication modes selected by the firmware or physical button. Ethernet LAN connection guarantees the lowest latency and reliability in fixed installations. WiFi eliminates the need for wiring in hard-to-reach places. The USB Type-C port is used for both data and power transmission. In addition, the connector supports Power over Ethernet – one cable transfers signal and energy, which simplifies installation in switchboards or racks. The 82 g weight and compact dimensions allow you to mount the device anywhere - the set includes double-sided tape and screws with spacer flanges.

📡 ENHANCED RANGE AND MULTIMODE

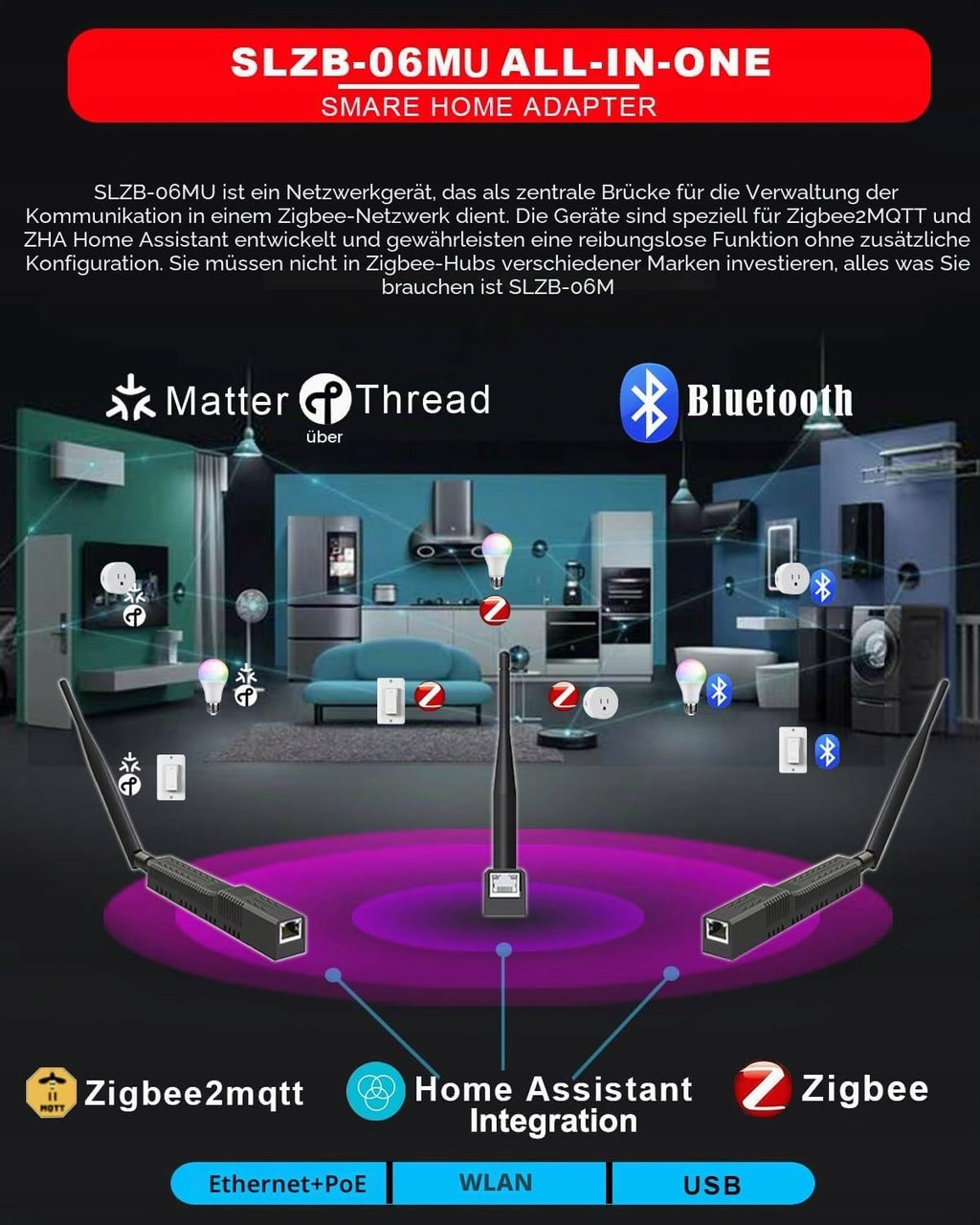

SLZB-06MU works as a coordinator, router or Zigbee signal repeater. The +20 dB amplifier in combination with an external +5 dB antenna significantly extends the range of the mesh network – useful in multi-level homes, office buildings or thick wall installations. The EFR32 chip provides native compatibility with the ZHA Home Assistant ecosystem and full support for Zigbee2MQTT. Experimental support for Matter over Thread opens the path of integration with the latest smart home standard. The ability to add multiple coordinators to a single Home Assistant instance allows you to cover separate buildings, floors, or remote rooms under a single control panel with a signal.

🏠 FOR WHOM THIS DEVICE IS

🏡 Home Assistant Enthusiasts – native integration of ZHA and Zigbee2MQTT without additional bridges

🔧 Smart home system installers — PoE, DIN rail or tape mounting, flexible network topology

🏢 Multi-building property users – multiple gateways under one server, consistent Zigbee network

⚙ IoT DIYers – open firmware, experimental Thread/Matter, mesh expansion

📦 CONTENTS OF THE SET

✓ SLZB-06MU gate

✓ External antenna +5 dB

✓ Double-sided tape (2 pieces)

✓ Mounting screws (2 pieces)

✓ Spacer flanges / mounting helper

✓ MicroUSB – USB Type-C cable

✓ User manual (may not be in Polish)

⚠ WORTH KNOWING

• Instruction may not include Polish

• Matter over Thread support has experimental status

• PoE power requires a switch or injector compliant with the 802.3af/at standard

• Compatibility confirmed with Linux systems; Windows is not supported

• Weight: 82 g (0,18 pounds converted to metric)
