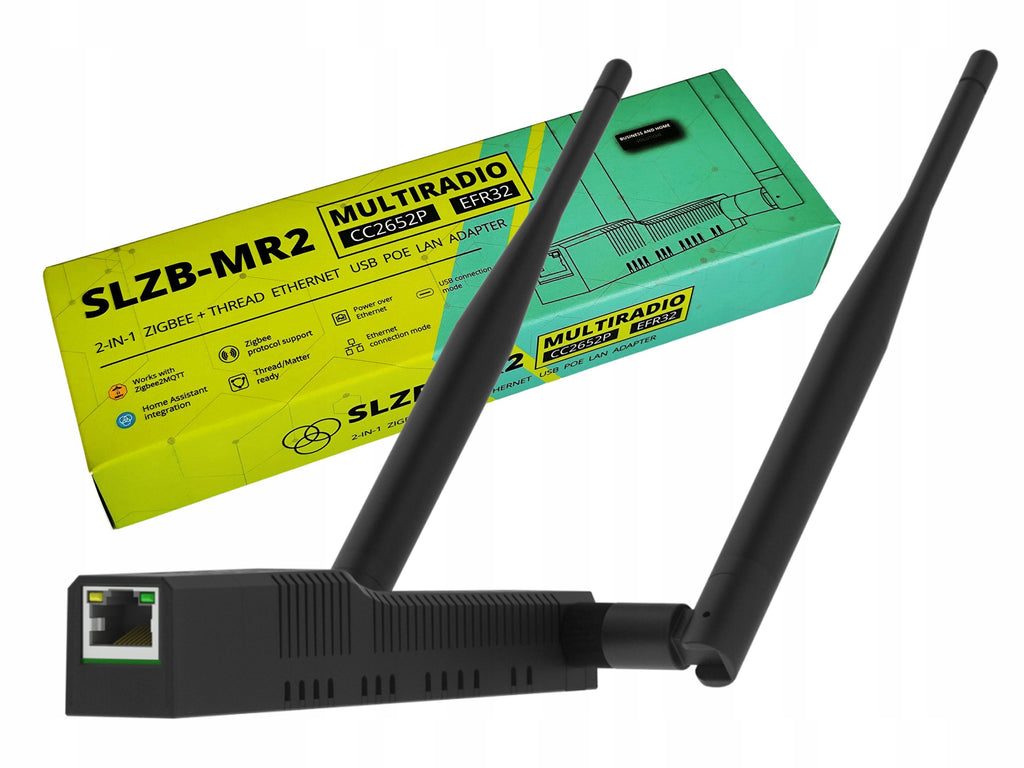

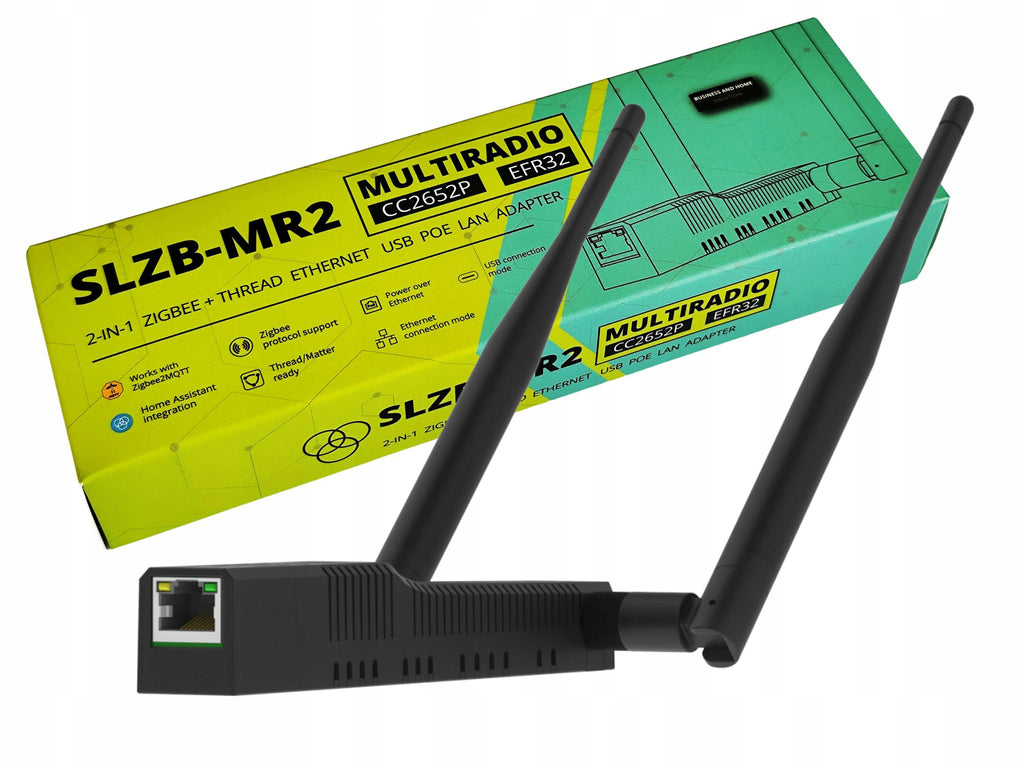

ZigBee ir Thread adapteris SLZB-MR2U su ESP32, CC2652P, EFR32MG21, PoE, WiFi, LAN

Trumpai apie prekę

Prekė: ZigBee ir Thread adapteris SLZB-MR2U su ESP32, CC2652P, EFR32MG21, PoE, WiFi, LAN. Kategorija: Centriniai blokai.

• Gamintojas: SMLIGHT
• Modelis: SLZB-MR2U

⭐U Series

This is an improved edition of the flagship coordinators, introducing key hardware fixes for professional smart home installations:

• Hardware Flow Control: The introduction of hardware flow control for the radio system (SoC) eliminates errors in data transmission, significantly increasing stability under heavy network load.
• Native USB mode: The device can work as a classic USB "dongle", where the radio module is visible directly in the system (Native USB-series), which minimizes latency.
• USB-over-IP (Passthrough): A unique feature that allows remote access to other USB devices (e.g. ZWave) connected to the coordinator directly via LAN.
• Full customization: The new ESP32-S3 processor enables m.in. programmatic control of LEDs at the RJ45 socket.

✅ Two radio chips: CC2652P and EFR32MG21

✅ Multiradio - ZigBee and Thread simultaneously

✅ Communication via USB, WiFi, Ethernet - PoE

✅ USB PassThrough (U Version): a solution for transmitting USB signal over Ethernet

⭐ SLZB-MR2 - Multiradio Coordinator

Meet SLZB-MR2U – advanced ZigBee and Thread coordinator of the latest generation from SMLIGHT. This device combines two powerful chipsets: Texas Instruments CC2652P and Silicon Labs EFR32MG21, providing full ZigBee 3.0 and Thread (Matter-over-Thread) support in one compact solution. The perfect choice for anyone who builds a smart home and expects maximum freedom and compatibility.

⭐ Key features of SLZB-MR2U

• Full ZigBee 3.0 and Thread (Matter-over-Thread) support – the ability to work both protocols simultaneously or switch between them.
• Compatible with Zigbee2MQTT, ZHA, Home Assistant and OpenThread Border Router – easy integration with popular smart home platforms.
• Multifunctionality and flexibility – choose the operating mode (USB, Ethernet, PoE) and ecosystem without the restrictions imposed by closed solutions.
• Powerful antennas – two external SMA antennas (one for each radio) and a PCB antenna for Wi-Fi and Bluetooth ensure stable coverage even in large spaces.
• Low power consumption – up to 1,5 W when both radios are operating simultaneously.
• Compact, durable housing – can be mounted on the wall, DIN rail or with double-sided tape. Comes with a set of screws and mounting accessories.
• Intuitive operation – changing the operating mode with one button or via the web panel. 6 independent LEDs indicate the status of the device.
• Security and OTA updates – secure password access, use a VPN and update radio firmware and ESP32 remotely through your browser.
• User-friendly and DIY – detailed instruction, multi-language support, pin outputs for ESP32 and CC2652P for advanced users.

• Radio Chipsets: CC2652P (TI), EFR32MG21 (Silicon Labs)
• Supported protocols: Zigbee 3.0, Thread (Matter-over-Thread), Wi-Fi, Bluetooth, Ethernet
• Transmission power: +20 dBm (both radios)
• Memory: CC2652P: 144+8 kB RAM, 704 kB Flash; EFR32MG21: 96 kB RAM, 1024 kB Flash
• Power Supply: PoE 48V, USB-C 5V DC
• Energy consumption: up to 1,5 W
• Antennas: 2x SMA external (2,4 GHz), PCB for Wi-Fi/Bluetooth
• Connections: USB-C, Ethernet
• Housing: ABS, ventilated, wall mounting/DIN/tape
• LED indicators: 6 independent LEDs
• Button: Multifunction (mode change, reset, etc. )

• Multiprotocol without compromise – Zigbee and Thread support in one device, without lock on a specific manufacturer.
• Plug & Play – the device is pre-programmed, ready to use right out of the box.
• Updates and remote control – change operating modes, update firmware, and manage your device from anywhere.
• Stability and reliability – confirmed by thousands of users and the use of proven components.

SLZB-MR2 will work in any smart home, office or IoT project, where flexibility, reliability and ease of integration count. Whether you're building a Zigbee network, experimenting with Matter-over-Thread, or want to be able to switch between ecosystems, this device will meet your expectations.

SLZB-MR2 – Your universal Zigbee and Thread coordinator. Bet on the future of smart home!

The product is designed, developed and tested in Ukraine.

✅ Detailed technical specification of SLZB-MR2U

➡ Texas Instruments CC2652P

• Zigbee 3.0 support (compatible with Zigbee2MQTT [Z2M] and Zigbee Home Automation [ZHA])
• Thread support (Matter-over-Thread, compatible with Open Thread Border Router)
• Ideal for Zigbee networks, also great for Thread networks
• Transmission power +20 dBm with built-in PA amplifier
• 144 kB + 8 kB RAM, 704 kB Flash

➡ Silicon Labs EFR32MG21

• Zigbee 3.0 support (compatible with Zigbee2MQTT [Z2M] and Zigbee Home Automation [ZHA])
• Thread support (Matter-over-Thread, compatible with Open Thread Border Router)
• Ideal for Thread networks, also great for Zigbee networks
• Transmission power +20 dBm
• 96 kB RAM, 1024 kB Flash

➡ Antennas

• Two external SMA antenna connectors (one for each radio SoC)
• PCB Antenna for Wi-Fi and Bluetooth
• Includes 2 high-end 2,4 GHz antennas

➡ Power supply

• PoE power supply, 48V POE support
• Power supply via USB-C (5V DC)
• Low power consumption – up to 1,5 W (when both radio systems are operating)

➡ Housing

• Compact, durable ABS housing with ventilation
• Compatible with DIN rail and wall mounting (3D models)
• Possibility of quick installation with double-sided tape

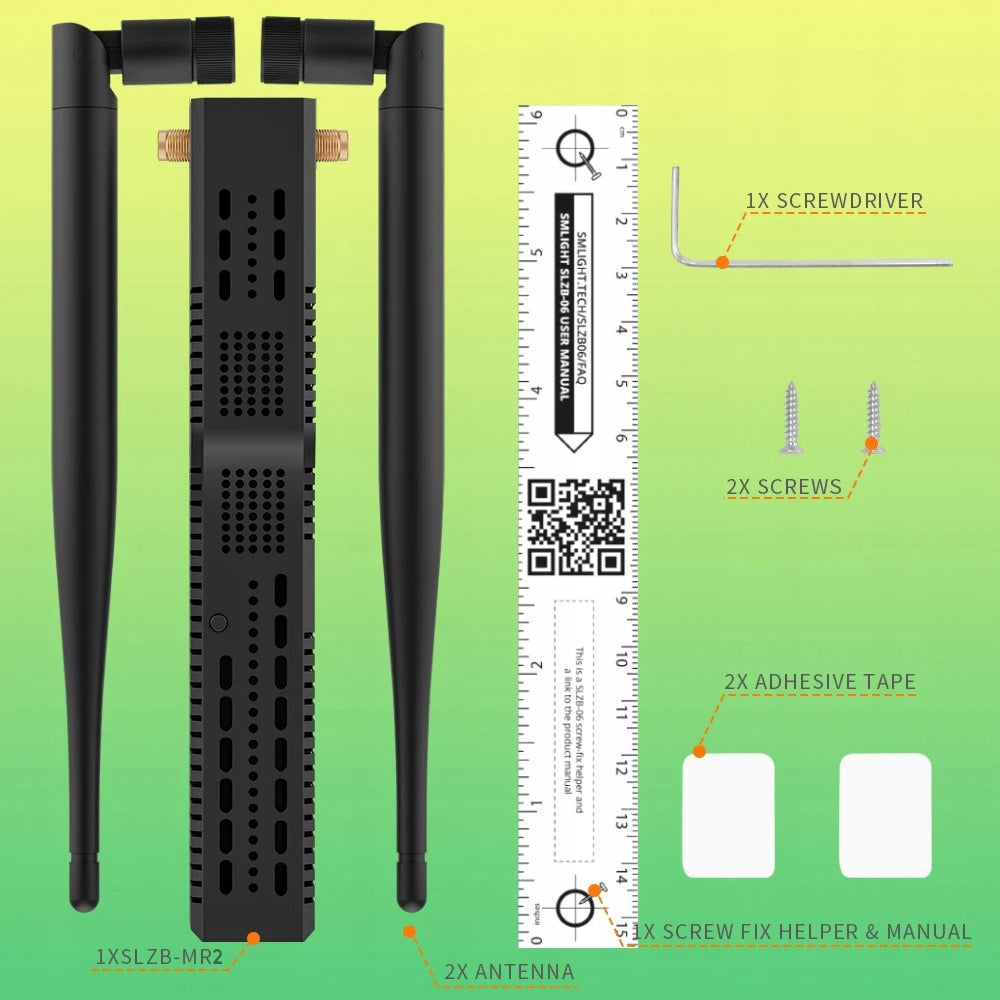

• Easy mounting on screws – mounting kit (screws, screwdriver, ruler) included

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	SMLIGHT
Parametry	Series	SLZB
Parametry	Kind	control switchboard
Parametry	Power supply	mains
Parametry	Communication	ZigBee
Parametry	Additional features	WiFi connection
Parametry	Product weight with unit packaging	0.1 kg
Parametry	Manufacturer code	SLZB-MR2U
Parametry	EAN (GTIN)	5999572034283
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
