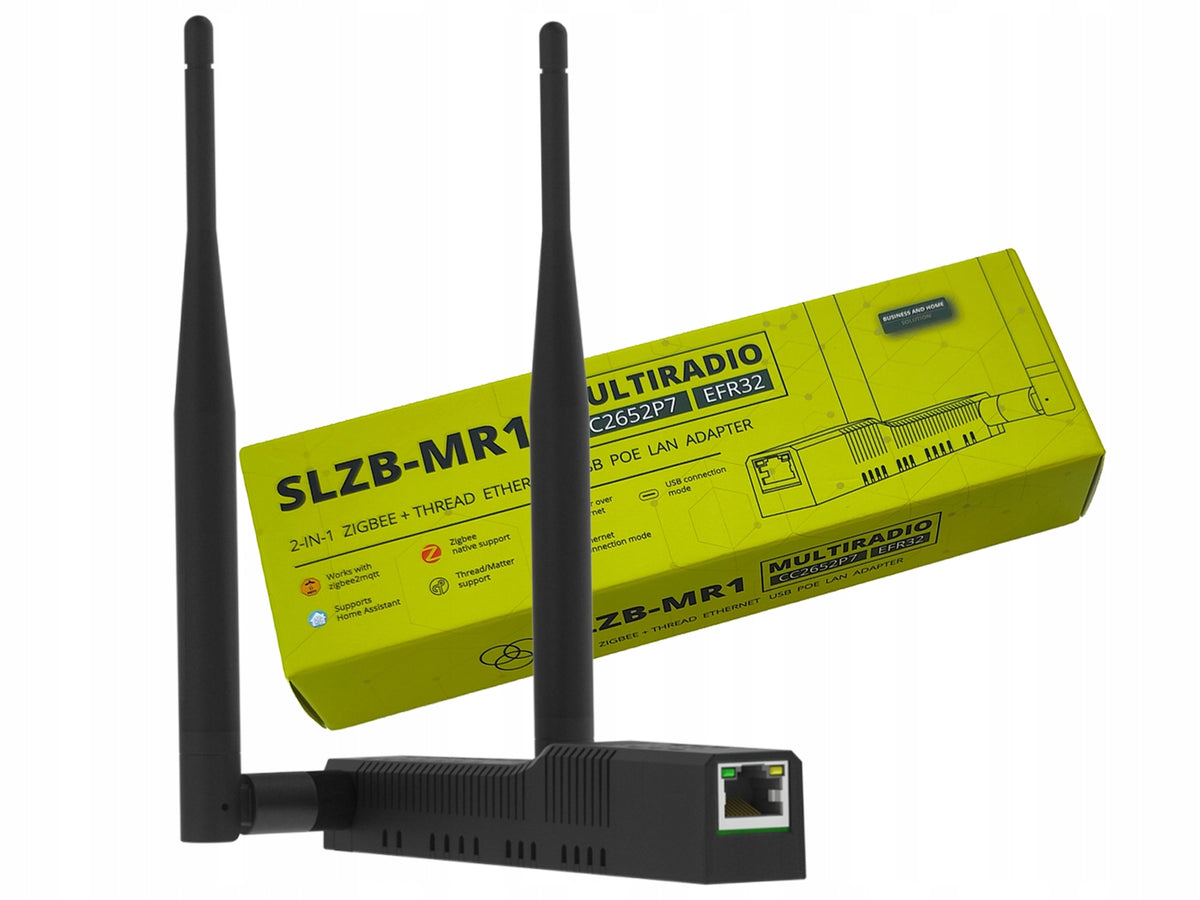

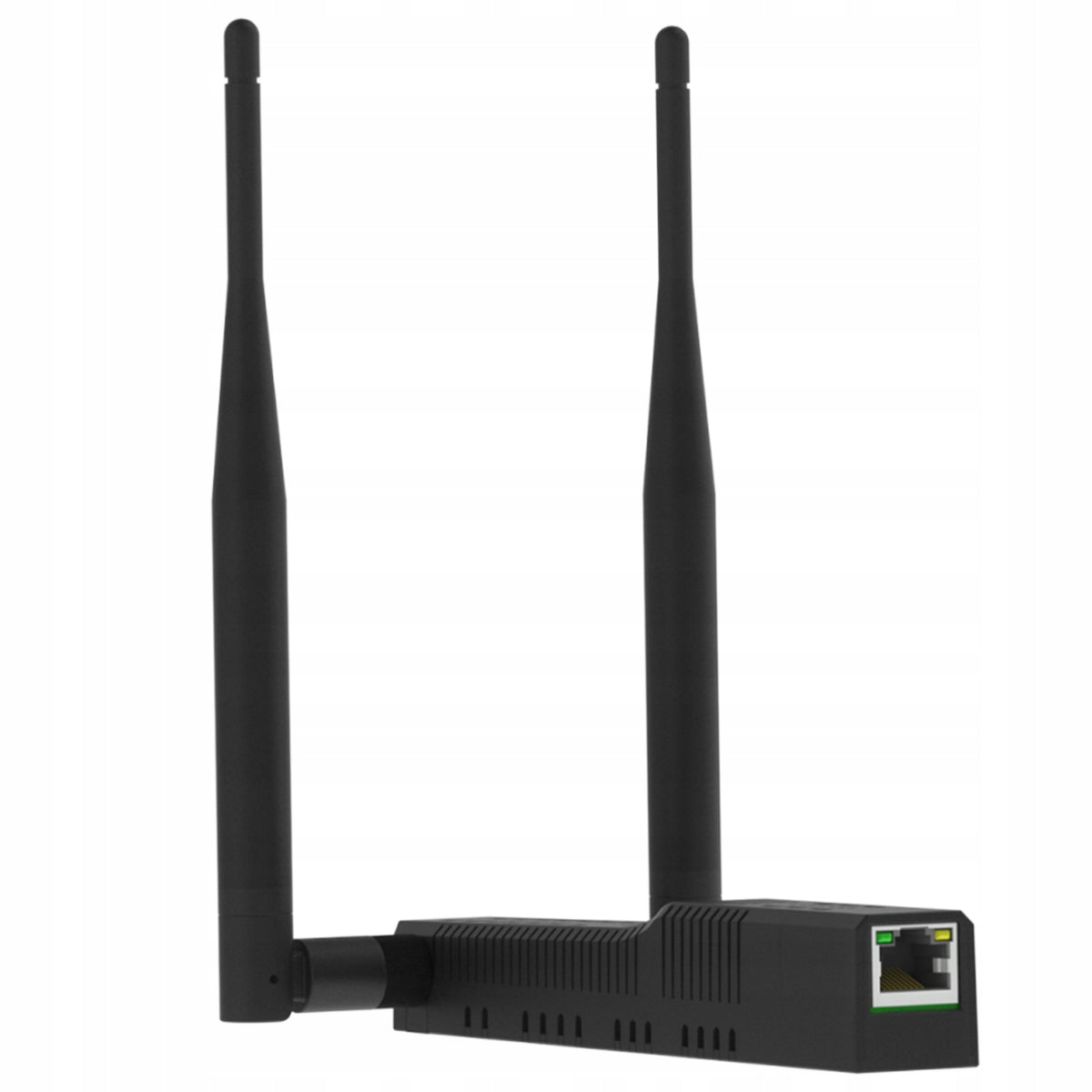

ZigBee ir Thread multiradio adapteris SLZB-MR1U, CC2652P7 & EFR32MG21, PoE, WiFi, LAN

Trumpai apie prekę

Prekė: ZigBee ir Thread multiradio adapteris SLZB-MR1U, CC2652P7 & EFR32MG21, PoE, WiFi, LAN. Kategorija: Centriniai blokai.

• Gamintojas: SMLIGHT
• Modelis: Koordynator Multiradio SLZB-MR1 ZigBee Thread

✅Two radio chips: CC2652P7 and EFR32MG21

✅Multiradio - ZigBee and Thread simultaneously

✅Communication via USB, WiFi, Ethernet - PoE

✅ USB PassThrough (U Version): a solution for transmitting USB signal over Ethernet

Meet SLZB-MR1U – advanced coordinator of ZigBee and Thread of the latest generation from SMLIGHT. This device combines two powerful chipsets: Texas Instruments CC2652P7 and Silicon Labs EFR32MG21, providing full support for the ZigBee 3.0 and Thread (Matter-over-Thread) networks in one compact solution. The perfect choice for anyone who builds a smart home and expects maximum freedom and compatibility.

Key features of SLZB-MR1U

• Full ZigBee 3.0 and Thread (Matter-over-Thread) support – the ability to work both protocols simultaneously or switch between them.
• Compatible with Zigbee2MQTT, ZHA, Home Assistant and OpenThread Border Router – easy integration with popular smart home platforms.
• Multifunctionality and flexibility – choose the operating mode (USB, Ethernet, PoE) and ecosystem without the restrictions imposed by closed solutions.
• Powerful antennas – two external SMA antennas (one for each radio) and a PCB antenna for Wi-Fi and Bluetooth ensure stable coverage even in large spaces.
• Low power consumption – up to 1,5 W when both radios are operating simultaneously.
• Compact, durable housing – can be mounted on the wall, DIN rail or with double-sided tape. Comes with a set of screws and mounting accessories.
• Intuitive operation – changing the operating mode with one button or via the web panel. 6 independent LEDs indicate the status of the device.
• Security and OTA updates – secure password access, use a VPN and update radio firmware and ESP32 remotely through your browser.
• User-friendly and DIY – detailed instruction, multi-language support, pin outputs for ESP32 and CC2652P7 for advanced users.

• Radio Chipsets: CC2652P7 (TI), EFR32MG21 (Silicon Labs)
• Supported protocols: Zigbee 3.0, Thread (Matter-over-Thread), Wi-Fi, Bluetooth, Ethernet
• Transmission power: +20 dBm (both radios)
• Memory: CC2652P7: 144+8 kB RAM, 704 kB Flash; EFR32MG21: 96 kB RAM, 1024 kB Flash
• Power Supply: PoE 48V, USB-C 5V DC
• Energy consumption: up to 1,5 W
• Antennas: 2x SMA external (2,4 GHz), PCB for Wi-Fi/Bluetooth
• Connections: USB-C, Ethernet
• Housing: ABS, ventilated, wall mounting/DIN/tape
• LED indicators: 6 independent LEDs
• Button: Multifunctional (mode change, reset, etc. )

• Multiprotocol without compromise – Zigbee and Thread support in one device, without lock on a specific manufacturer.
• Plug & Play – the device is pre-programmed, ready to use right out of the box.
• Updates and remote control – change operating modes, update firmware, and manage your device from anywhere.
• Stability and reliability – confirmed by thousands of users and the use of proven components.

SLZB-MR1 is suitable for any smart home, office or IoT project, where flexibility, reliability and ease of integration count. Whether you're building a Zigbee network, experimenting with Matter-over-Thread, or want to be able to switch between ecosystems, this device will meet your expectations.

SLZB-MR1 – Your universal Zigbee and Thread coordinator. Bet on the future of smart home!

The product is designed, developed and tested in Ukraine. SMLIGHT quality guarantee.

➡ Texas Instruments CC2652P7

• Zigbee 3.0 support (compatible with Zigbee2MQTT and ZHA)
• Thread support (Matter-over-Thread, compatible with Open Thread Border Router)
• Ideal for Zigbee networks, also great for Thread networks
• Transmission power +20 dBm with built-in PA amplifier
• 144 kB + 8 kB RAM, 704 kB Flash

➡ Silicon Labs EFR32MG21

• Zigbee 3.0 support (compatible with Zigbee2MQTT and ZHA)
• Thread support (Matter-over-Thread, compatible with Open Thread Border Router)
• Ideal for Thread networks, also great for Zigbee networks
• Transmission power +20 dBm
• 96 kB RAM, 1024 kB Flash

➡ Supported protocols:

• Zigbee 3.0 (Zigbee2MQTT, ZHA) – simultaneously with Thread
• Thread (Matter-over-Thread) – simultaneously with Zigbee
• Support for parallel or switched operation in multi-radio environments
• Wi-Fi
• Bluetooth
• Ethernet

➡ Connectivity:

• USB-C for data and power transmission
• Ethernet connector

➡ Software:

• Radio firmware support
• Compatible with TI Z-Stack (for CC2652P7)
• Compatible with SL Ember/EZSP stack (for EFR32MG21)
• Updating radio firmware via web interface
• SLZB-OS system
• SLZB-OS compatibility versions 2.6.8dev26, 2.8.3 and later (does not support versions between 2.6.8 and 2.8.3)

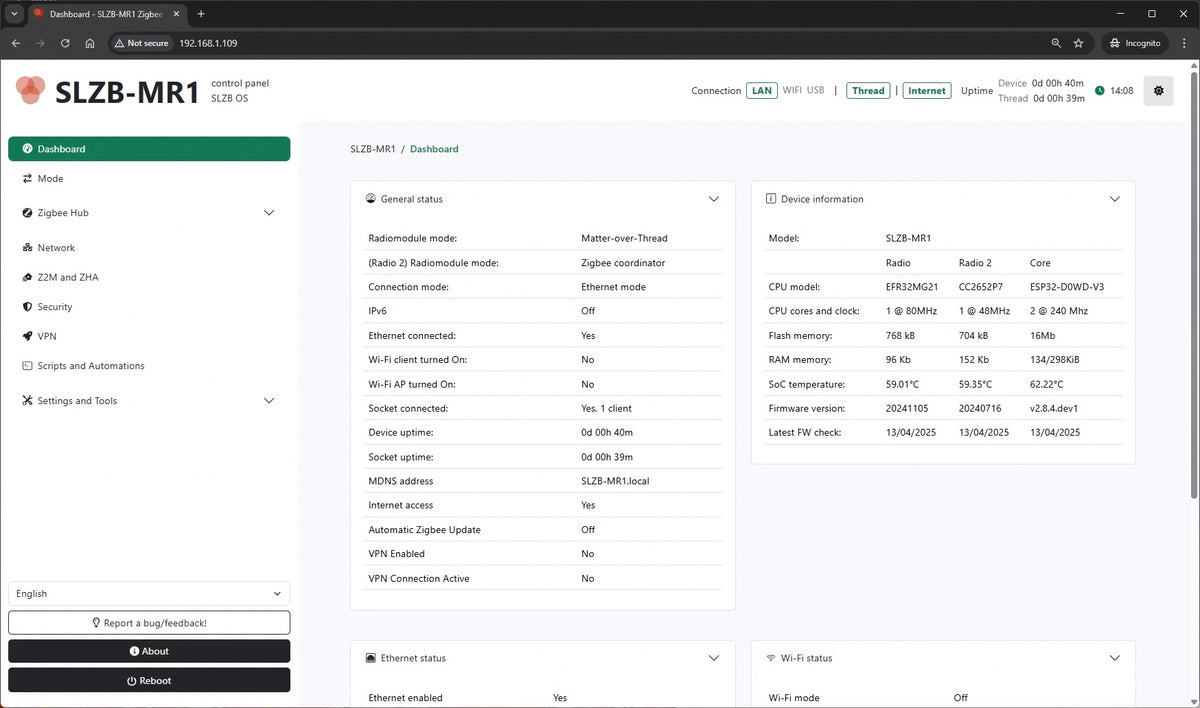

• SLZB-OS features: VPN, over 20 languages, scripting support, network settings, security, dashboard, zHub mode, mode switch, OTA updates and more

➡ Antennas:

• Two external SMA antenna connectors (one for each radio SoC)
• PCB Antenna for Wi-Fi and Bluetooth
• Includes 2 high-end 2,4 GHz antennas

➡ Power supply:

• PoE power supply, 48V POE support
• Power supply via USB-C (5V DC)
• Low power consumption – up to 1,5 W (when both radio systems are operating)

➡ Housing:

• Compact, durable ABS housing with ventilation
• Compatible with DIN rail and wall mounting (3D models)
• Possibility of quick installation with double-sided tape
• Easy mounting on screws – mounting kit (screws, screwdriver, ruler) included

➡ LED indicators and peripherals:

• Independent LEDs for each radio (6 LEDs in total: 2 for main SoC, 2 for CC2652P, 2 for EFR32)
• Multifunctional button: supports multiple functions (switching modes, reset, etc. )
