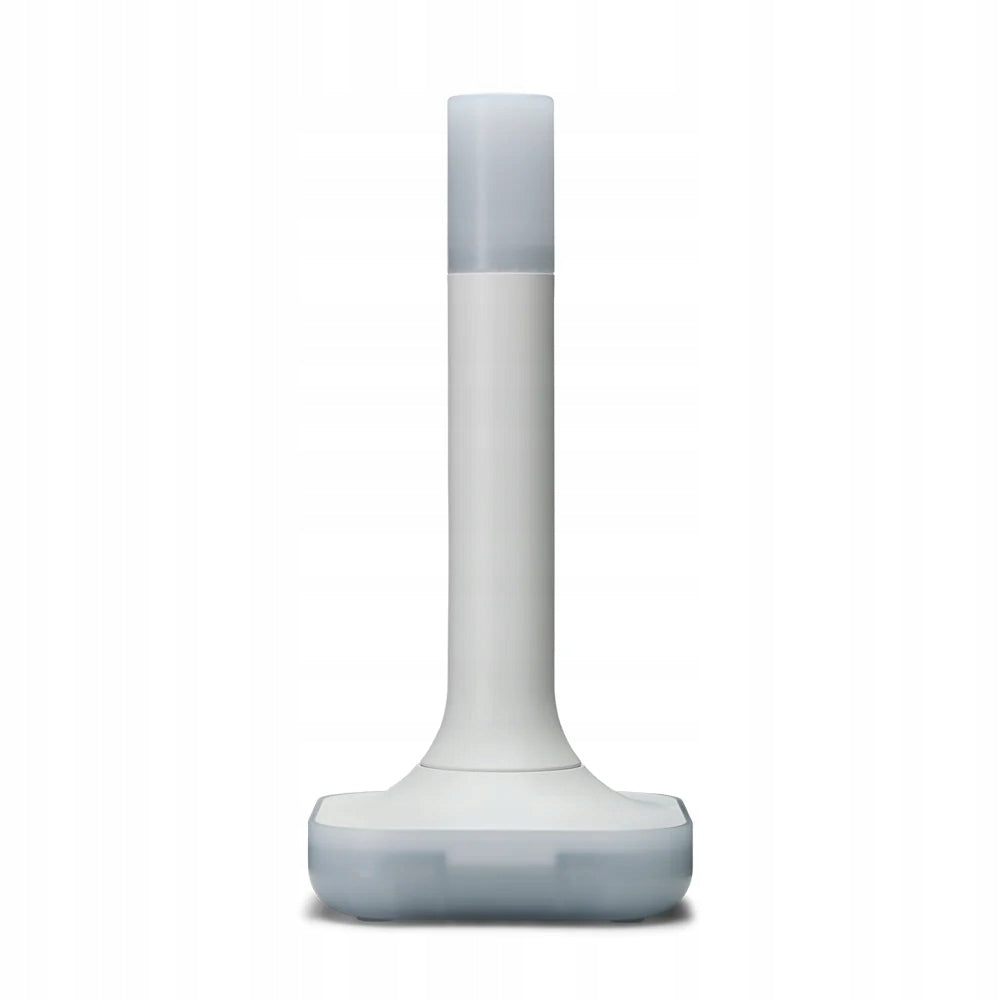

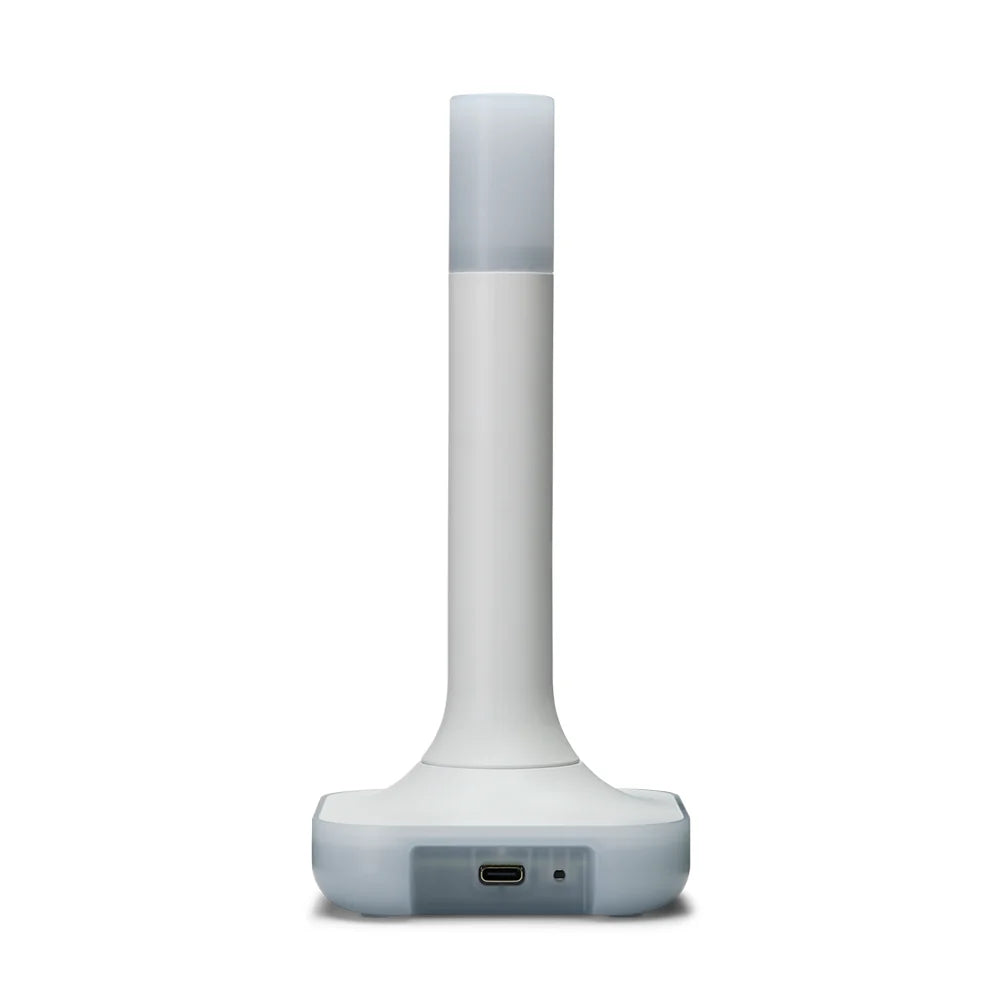

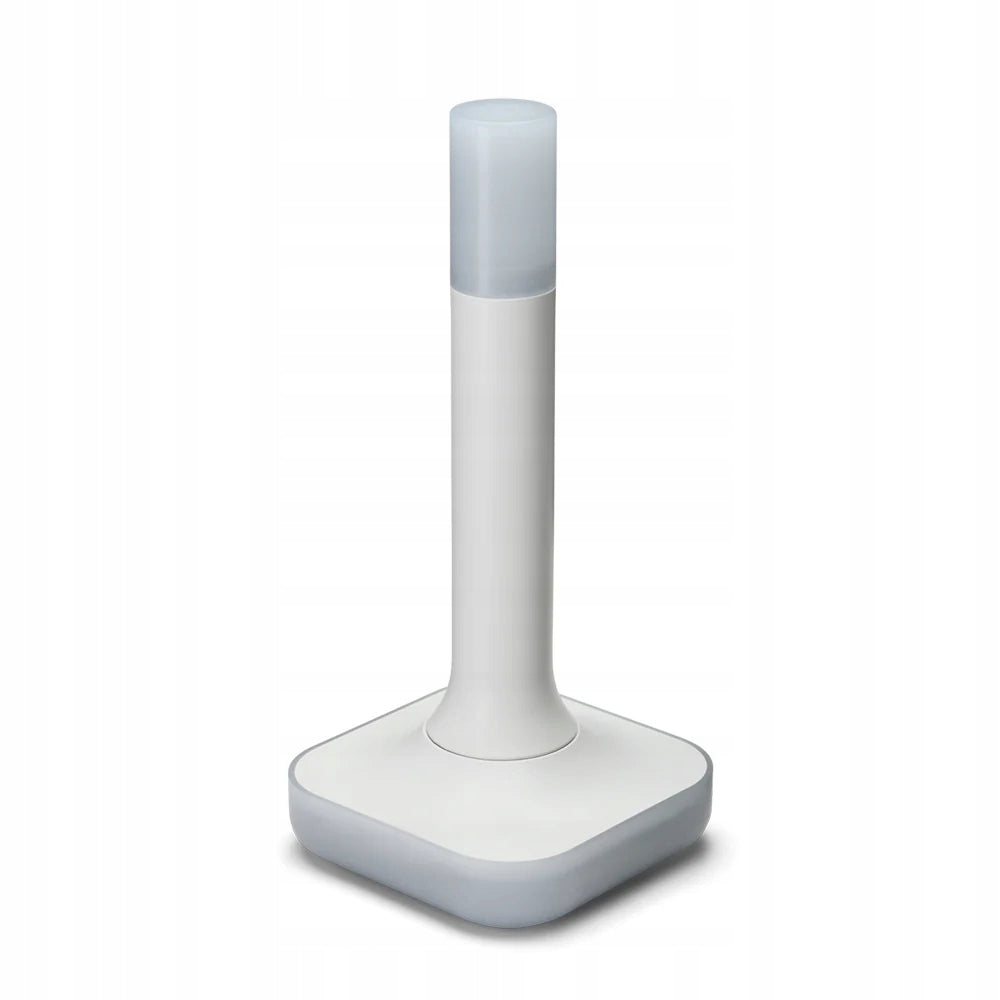

Zigbee ir Thread vartai ZBT-2 Nabu Casa, skirti Home Assistant

Trumpai apie prekę

Prekė: Zigbee ir Thread vartai ZBT-2 Nabu Casa, skirti Home Assistant. Kategorija: Centriniai blokai.

• Gamintojas: no brand
• Modelis: ZBT-2

Zigbee and Thread adapter

The easiest way to get started with Zigbee or Thread – fast, stable and designed by the creators of Home Assistant.

Why it is worth

Home Assistant Connect ZBT-2 is a modern Zigbee or Thread adapter that significantly simplifies the construction of a smart home. It allows you to easily launch your local network of Zigbee, Matter or Thread devices using the full power of Home Assistant and ensuring maximum responsiveness and stability.

Key features and benefits

• Optimized antenna for the best possible connection to Zigbee or Thread devices.
• 4x faster performance compared to the previous generation of the adapter, and thus a clearly better response of connected devices.
• The latest Silicon Labs MG24 chip for high performance and stability of Zigbee and Thread networks.
• Open platform of the second generation – full freedom for users and integrators.
• Plug and play – fast Zigbee or Thread network migration with intuitive Home Assistant wizard.
• The ability to create a new Zigbee or Thread network in minutes.
• Reduction of the number of hubs in the house – ZBT-2 allows you to connect existing Zigbee, Thread and Matter devices without additional bridges.
• Support for a wide range of devices – from classic Zigbees to the latest Matter devices.
• Full integration with Home Assistant, including automatic OTA updates.

• Support for ZHA, Zigbee2MQTT and OpenThread Border Router.



Detailed description of functionality

The ZBT-2 provides extremely stable and fast connections thanks to its optimized antenna and the new MG24 processor. It allows you to seamlessly connect sensors, switches, lighting and Matter devices via Thread. It is an ideal partner for Home Assistant Green, but it will also work with the Raspberry Pi.

With the Home Assistant wizard, you can easily move your existing Zigbee or Thread network and launch a new one in minutes if needed. The device works locally, provides greater responsiveness and reduces the load on your home Wi-Fi network.

Applications and use cases

• Building a smart home based on Zigbee or Thread.
• Integration of Matter devices via Thread.
• Expand sensor, lighting and automation networks without the need for multiple hubs.
• Upgrade your existing Zigbee-based installation (Hue, IKEA, Tuya and more).
• IoT projects with maximum stability and low latency.

Technical parameters

• Model: NC-ZBT-9741
• SoC: Silicon Labs MG24 and ESP32-S3 (USB-series bridge)
• USB power supply and communication: USB-C, 5 V DC, 500 mA
• Supported protocols: Zigbee 3.0, Thread
• Supported Regions: all Zigbee and Thread 2,4 GHz bands
• Frequency: 2400-2483.5 MHz
• Broadcasting power: 10 dBm (Europe), 8 dBm (pozostałe regions)
• Antenna gain: 4.16 dBi
• Characteristics: omnidirectional antenna
• Device dimensions: 83 × 83 × 179 mm
• Weight: 157 g
• Housing material: Polycarbonate
• Working conditions: for internal use only, 0 to 65°C (antenna −40 to +85°C)

Contents of the set

• Antenna
• Basis
• USB-C cable 1.5 m
• Quick Start Guide
