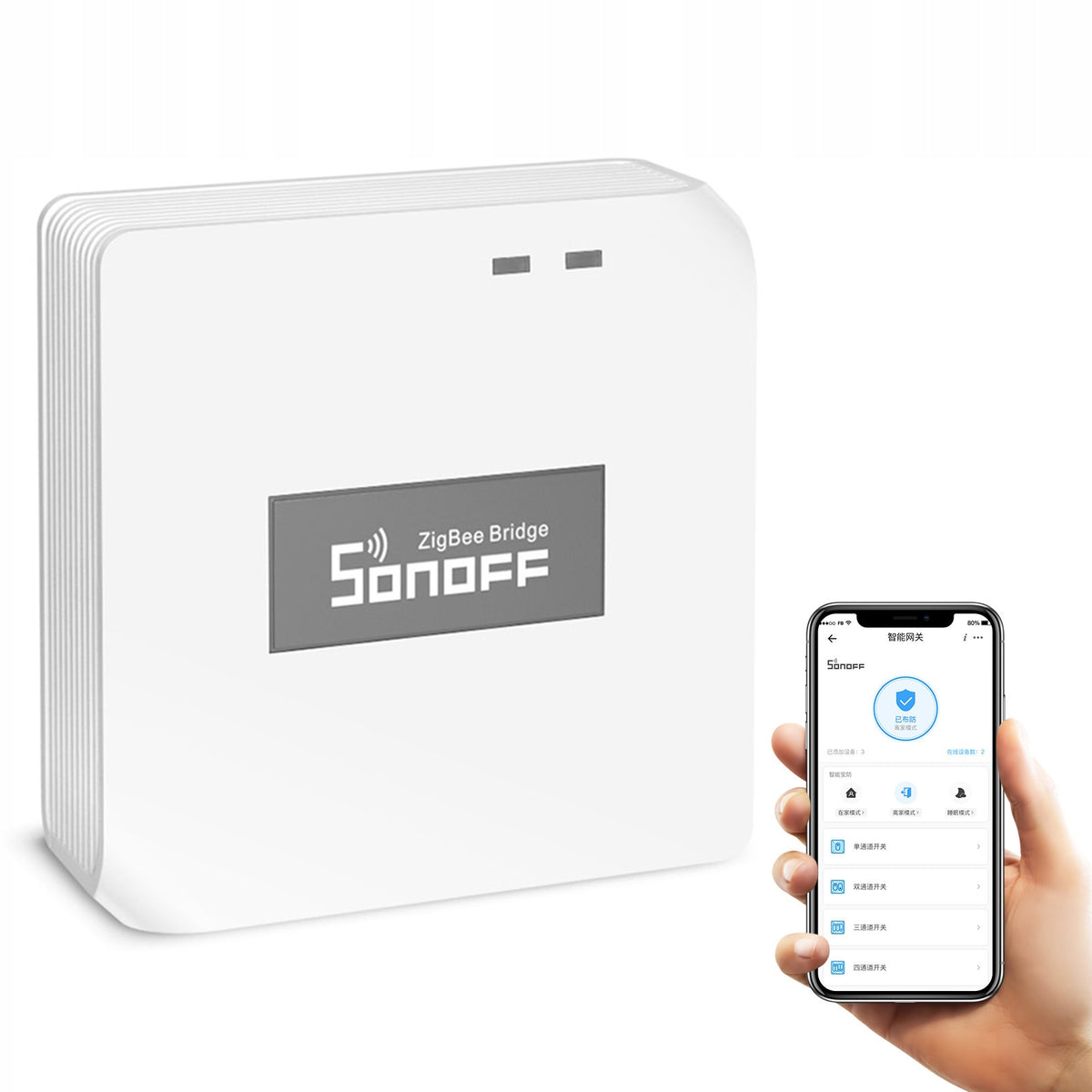

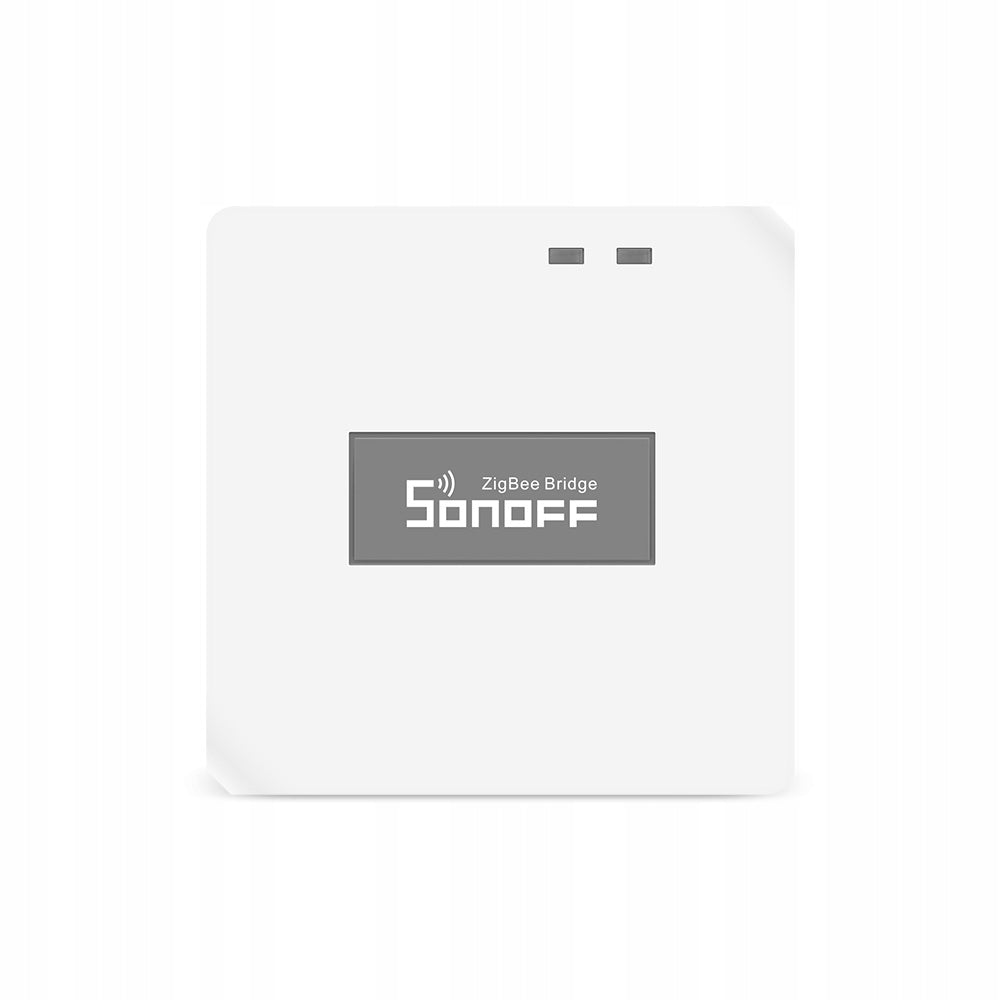

Zigbee ir Wi-Fi valdiklis Sonoff Zigbee Bridge Pro, 2 vnt.

Trumpai apie prekę

Prekė: Zigbee ir Wi-Fi valdiklis Sonoff Zigbee Bridge Pro, 2 vnt.. Kategorija: Centriniai blokai.

• Gamintojas: Sonoff

ATTENTION! Look at the sets.

Local ZigBee gateway for your devices provides local high-speed WiFi + ZigBee Mesh connectivity, greater automation capabilities, local memory for parameters and devices.

With a powerful processor and secure WiFi connectivity, this gateway has the ability to connect up to 32 ZigBee devices!

Discover completely new possibilities of the eWelink system

Small temperature and humidity sensors, long-lasting on the battery sensors of opening or movement. Rapid response of motion sensors to events many new possibilities in automation.

WiFi and ZigBee devices fully interact in the application and can be automated together.

Unlike WiFi devices, most automation takes place locally on your gateway rather than in the cloud, giving you a huge advantage of runtime and functionality capabilities.

The power control panel is via MicroUSB port. The cable and power supply are not part of the kit.

Basics of ZigBee protocol operation:

• The ZigBee protocol works on a well-propagated 2.4 GHz frequency
• ZigBee connectivity is MESH connectivity, which means that each ZigBee Router powered by the network acts as a relay for other devices. If the remote sensor does not have ZigBee Gateway connectivity, it is enough that it has radio communication with the ZigBee Router ZR device, such as the Sonoff Basic R3 ZigBee, which has gateway connectivity. The devices work in a lattice connection chain, which gives reliability and reliability of connection.
• ZigBee devices and sensors consume very little energy, which gives a long service life on battery power.
• Devices using the ZigBee protocol connect to the control panel in case of a state change in 0,2 seconds. Wifi devices take about 5 seconds to connect to the network after a state change.
• The ZigBee gateway and ZigBee devices allow for much wider and longer storage of parameter data and device history. Door opening history, temperature history, motion detection history recorded for months back.

Specification:

• System: RTL8196E
• Software: eWelink
• ZigBee 3.0 protocol
• WiFi connectivity 802.11 b/g/n/ 2.4 GHz
• ZigBee Connectivity: 2.4-2.485 GHz IEEE 802.15.4
• Power Supply: 5V/1A (No Power Supply Included)
• Operating temperature: -10-55 ℃
• Operating humidity: 10%-90% RH (non-condensing)
• Storage temperature: -20-60 ℃
• Storage humidity: 5%-90% RH (non-condensing)
• Net weight: 35 g
• Dimensions: 62x62x20 mm

The set includes:

• Sonoff ZB Bridge
• Packaging
• Sales document

Product code: SZ100
