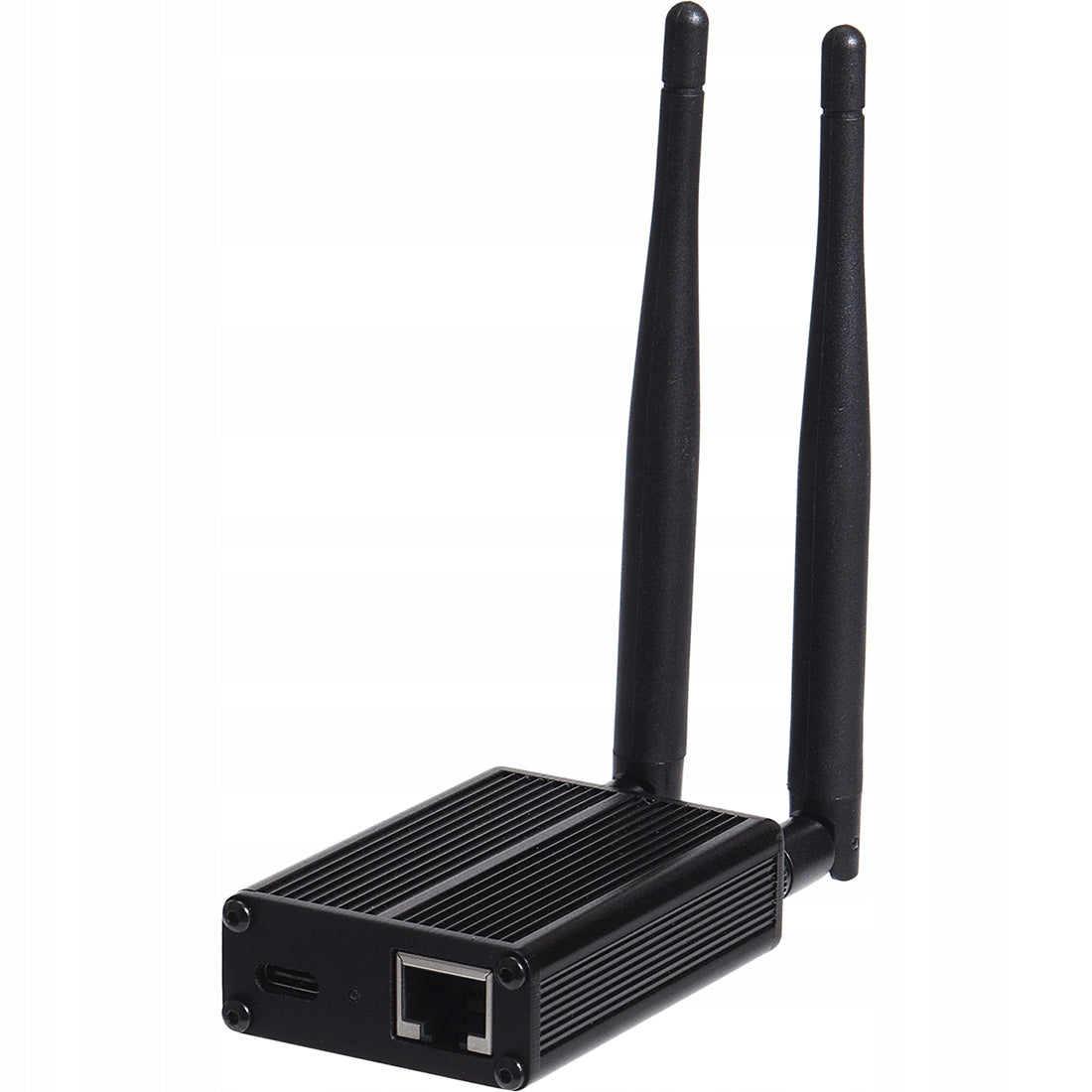

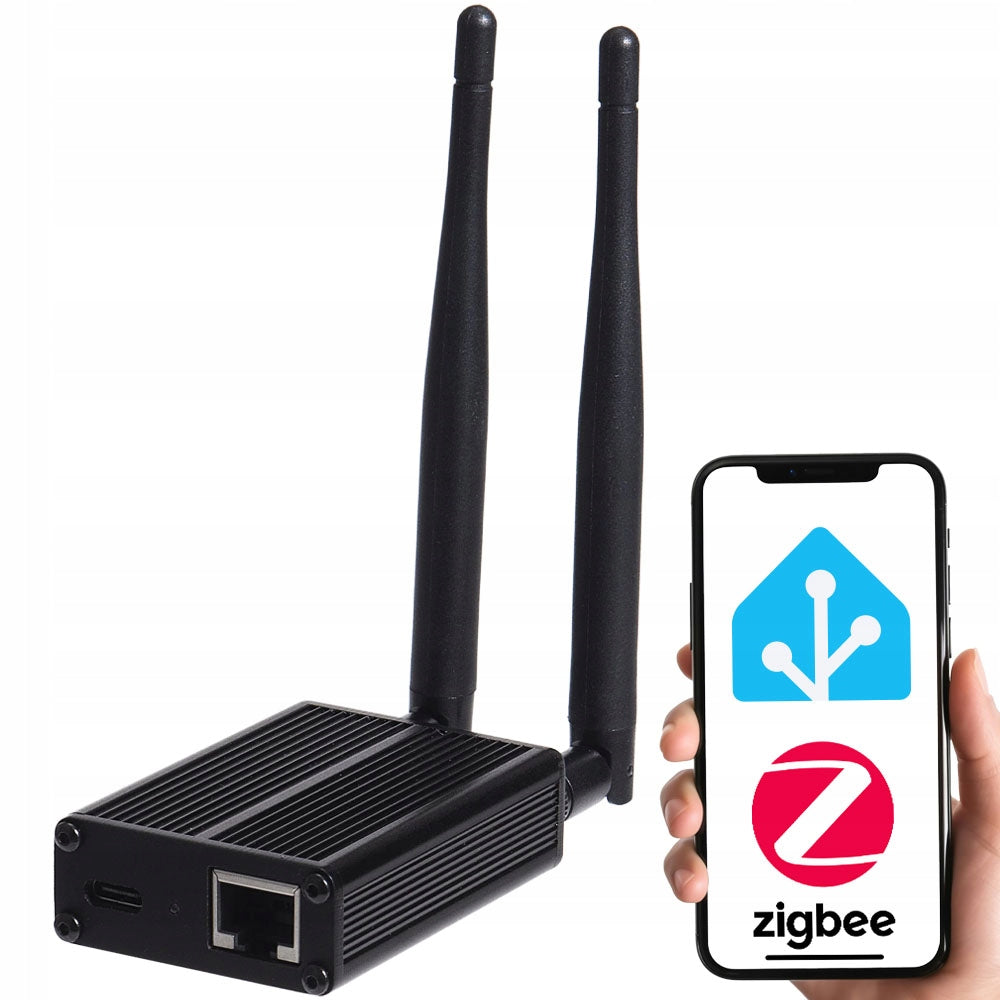

ZigBee ryšio adapteris CC2652P, USB, suderinamas su ZigBee2MQTT ir ZHA

Trumpai apie prekę

Prekė: ZigBee ryšio adapteris CC2652P, USB, suderinamas su ZigBee2MQTT ir ZHA. Kategorija: Centriniai blokai.

• Gamintojas: no brand
• Modelis: H32

▶ CC2652P | Home Assistant | OpenHAB | +5 dBi

▶ Connectivity and Power Supply

The device offers flexible connection and power options, adapted to modern smart home installations:

• Two operating modes: Choosing between a stable Ethernet (LAN) connection and a standard USB-C.

• PoE support (802.3af): Possibility of power supply and data transmission with one network cable (requires adapter, e.g. U011).

▶ Performance and Range

The components used guarantee stable operation of a large number of devices and excellent signal coverage:

• Chipset: Efficient CC2652P chip.

• Antenna system: Two external rotating antennas SMA +5dBi

▶ Compatibility and Software

The device is ready to work in the most popular home automation ecosystems:

• Standard ZigBee 3.0: Full cooperation with a wide range of devices from different manufacturers.

• Zigbee2MQTT: Preloaded coordinator software – works right out of the box.

• Ecosystems: Ideal for users of Home Assistant or OpenHab.

ℹ How to start using the H32 gateway?

1. Choose how to connect and power.

You can connect the device in three ways:

• WiFi: Allows you to place the gateway anywhere within the range of the 2.4 GHz network.

• Ethernet (network cable): Provides the most stable connection. If your network supports this, you can use PoE to transfer data and power simultaneously. It may be needed for this, e.g. PoE Adapter: U011, which you will find in our offer or in related products.

• USB: Connect the device directly to your computer or Raspberry Pi using the USB-C cable.

If you are not using PoE (Power over Ethernet), connect the 5V-1A power supply to the USB-C port.

2. Check status LEDs

Observe the light on the housing to make sure that the device is working properly:

• Green flashing: The device is waiting for configuration (WiFi/Ethernet mode).

• Green constant: The WiFi/Ethernet connection has been successfully configured.

• Blue constant: The USB connection has been successfully configured.

3. Configure your device through your browser

• Once the gateway is connected to your network, open your web browser and enter the address: http://dongle.local

• In this panel, you can manage settings, monitor the Zigbee network and perform automatic updates of the software.

4. Integrate with Smart Home

• The gateway is compatible with popular platforms such as Home Assistant, Zigbee2MQTT and OpenHAB.

• It allows you to control a wide range of Zigbee devices, such as sensors, cameras and thermostats.

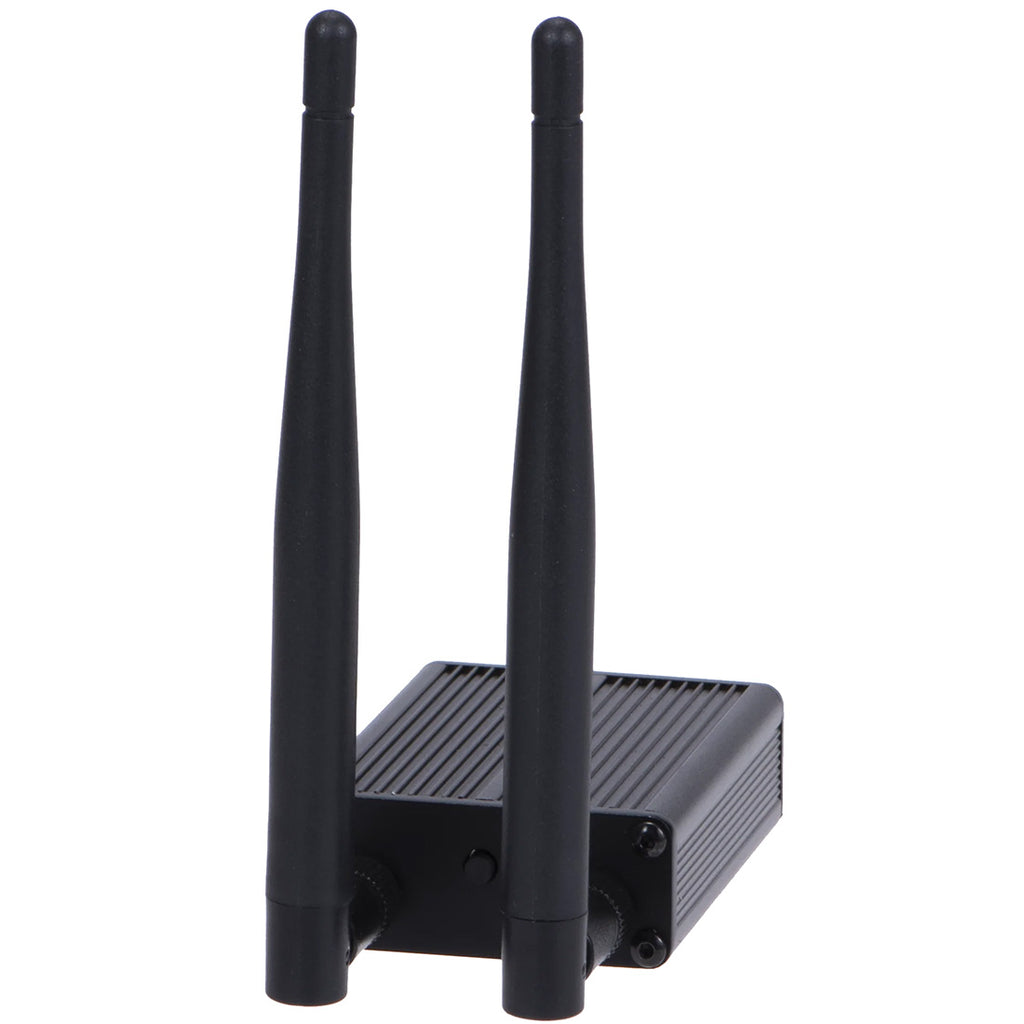

• Set up two external antennas (can be rotated 360°) for the best signal coverage in your home.

• ✅ Multi-device integration – support for Tuya, Aqara, Sonoff and other ZigBee 3.0 to Home Assistant systems.

• ✅ Local control, privacy and security – all control is done locally, without the cloud (Zigbee2MQTT).

• ✅ Reduction of interference – separation of the coordinator from the computer/server reduces electromagnetic noise.

▶ Function button:

• Short press: turns the LED on or off.

• Holding for more than 3 seconds: switches between USB and network mode.

• Hold for more than 10 seconds: resets the device to factory settings.

▶ Control Unit and System

• Application: Home Assistant
• CPU: 240 MHz
• RAM: 16 MB

▶ Communication and Reach

• ZigBee module: CC2652P
• WiFi module: ESP32 V3
• Protocols: ZigBee 3.0
• Antenna amplification: +5 dBi
• Range: Up to 200 m (open space)
• Device support: More than 100 (depending on network)

▶ Interfaces and Power

• Ethernet: RJ45 (PoE-enabled) [requires adapter, e.g. U011]
• USB: USB-C port

▶ Construction and Working Conditions

• Housing: Aluminium
• Working temperature: -10°C ~ 60°C
• Dimensions: 115 x 96 x 19 mm (with antennas)

▶ Compatibilities of the platform:

• Home Assistant (Zigbee2MQTT)

• OpenHAB

• Jeedom

• Domoticz

▶ Included

• Dongle ZigBee2MQTT / USB-C gateway

• 2x SMA antenna +5 dBi

• Packaging

Product Code: H32

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Series	ZigBee2MQTT Home Assistant
Parametry	Kind	control switchboard
Parametry	Power supply	mains
Parametry	Communication	ZigBee
Parametry	Manufacturer code	H32
Parametry	EAN (GTIN)	5906203624669
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE,WEEE
