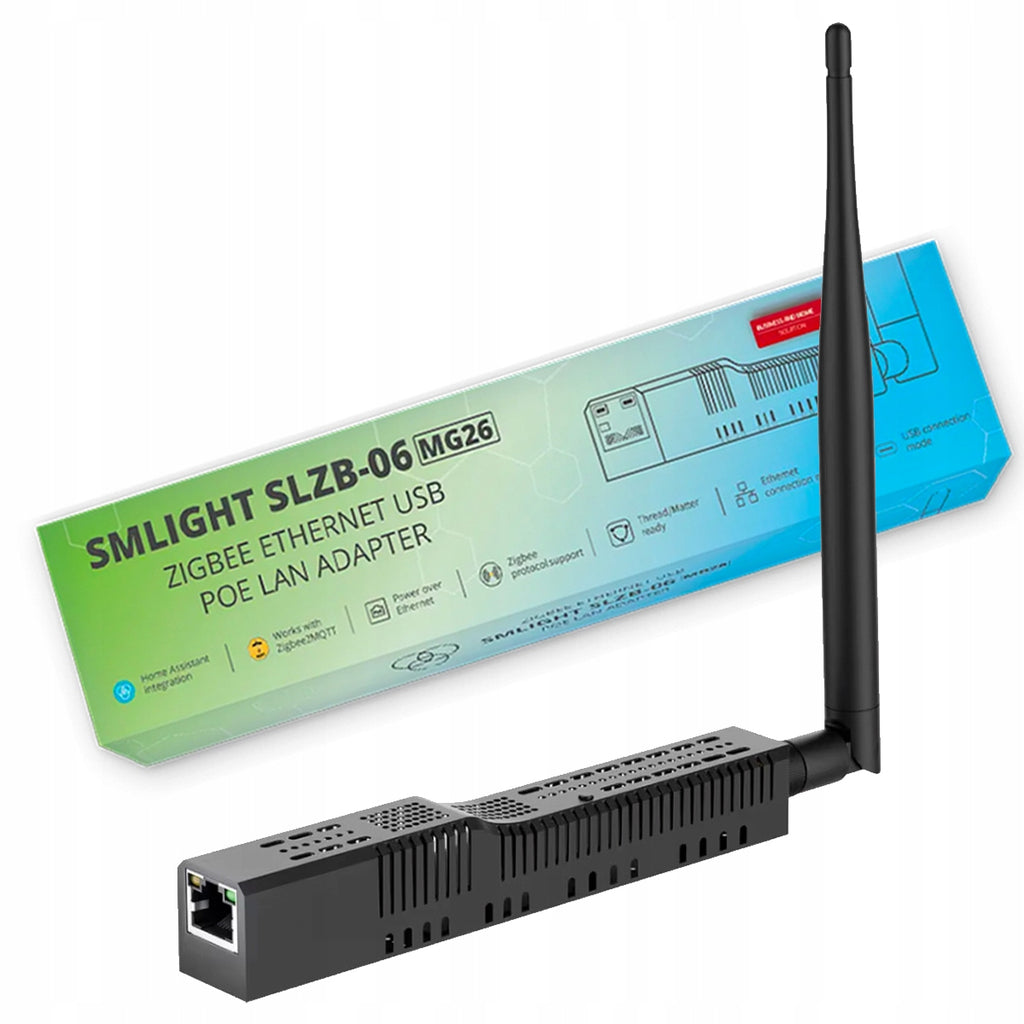

Zigbee tinklo adapteris SLZB-06mg26 su EFR32MG26, Ethernet, PoE, USB, LAN ir WiFi

Trumpai apie prekę

Prekė: Zigbee tinklo adapteris SLZB-06mg26 su EFR32MG26, Ethernet, PoE, USB, LAN ir WiFi. Kategorija: Centriniai blokai.

• Gamintojas: pcblab.io
• Modelis: SLZB-06mg26

Dedicated for integration with ZHA (ZigBee Home Assistant)

The SLZB-06mg26 adapter is an advanced Zigbee/Thread coordinator that works via Ethernet (PoE), USB or WiFi. Based on the EFR32MG26 chip from Silicon Labs and ESP32 from Espressif. The device is ready for immediate use right out of the box. The SLZB-06mg26 coordinator is compatible with the Home Assistant app via ZHA and ZigBee2MQTT (beta).

✅ Chip EFR32MG26 – More power, more possibilities

✅ WiFi (ESP32)

✅ PoE and Type-C power supply.

✅ Has support for Thread and Matter-over-Thread

• via WiFi (ESP32)
• via USB-C port

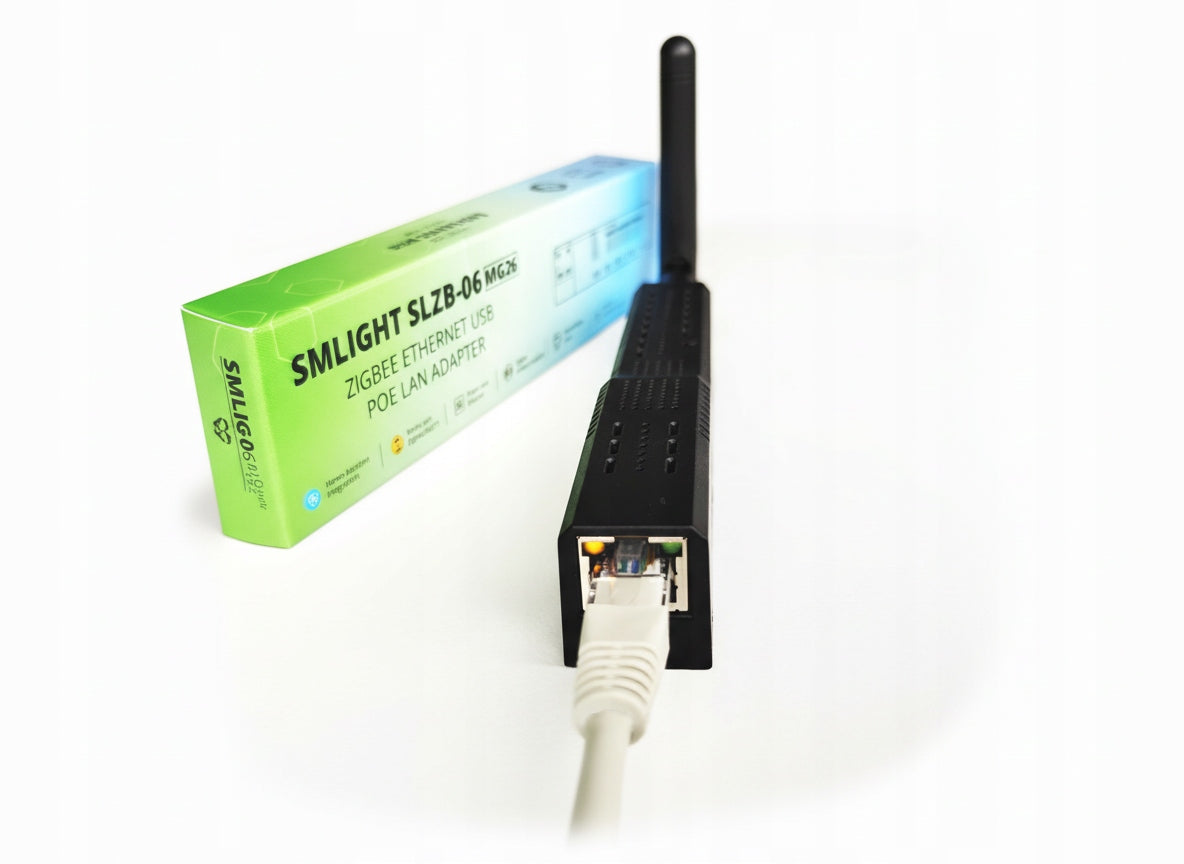

• via RJ45 port - Ethernet - PoE power supply

• Support up to 200 devices at the same time!
• Support for Home Assistant
• Compatible with ZHA
• Compatible with ZigBee2MQTT
• Thread support (and Matter-over-Thread)
• Communication via WiFi, USB or Ethernet
• Adapter based on EFR32MG26 chip with +20dB amplifier
• External antenna +5dBi
• Power via PoE or USB
• OTA updates

✅ Zigbee Hub Mode - control Zigbee devices directly from the built-in web interface or via MQTT

✅ IPv6 support (for Pro users).

✅ Option to disable mDNS for network stability.

✅ Illuminate syntax in the script editor.

✅ Faster Zigbee/Thread startup, improved configurations and automatic refresh.

The EFR32MG26 chip from Silicon Labs offers a number of advantages that make it an ideal choice for a variety of IoT applications.

Here are some of the main advantages:

• High Performance: This chip is equipped with a 32-bit ARM Cortex-M33 core, which operates at a frequency of up to 80 MHz for efficient signal processing.
• Large memory: It has up to 1536 KB of flash memory and 256 KB of RAM, which allows you to support demanding applications and leaves room for future development.
• High radio performance: Supports radio operations at 2,4 GHz with a maximum output power of up to 20 dBm.
• Low power consumption: Designed for energy efficiency, with low power consumption in both active and sleep mode.
• Security: Equipped with Secure Vault™ technology, which provides a high level of IoT security.
• AI/ML accelerator: It has a hardware AI/ML accelerator that allows you to speed up your machine learning tasks.

These features make the EFR32MG26 chip adapter an excellent choice for smart homes, lighting, building automation and other IoT applications.

Blue LED – operating mode

Default operation: Enabled when the device is running in Zigbee to USB mode, disabled when the device is in Zigbee to Ethernet mode.

Yellow LED – power supply

Default operation: lights up when the device is connected to a power source.

Green LED – connection with Zigbee2MQTT

Default operation: lights up when Zigbee2MQTT successfully connects to the device and establishes a Zigbee network.

Red LED – reserved for future use with Zigbee2MQTT

The SLZB-06Mg24 adapter can be powered in two ways, according to the following standards:

1. Power over Ethernet (PoE)

   Standard: IEEE 802.3af (15W)

   Allows you to power your device directly through an Ethernet cable, which simplifies installation and eliminates the need for additional power cables

2. USB type C

   Standard: DC5V (5V power supply)

   Important Notes:

   Type-C to Type-C cable cannot be used

   High-speed chargers cannot be used

Zigbee 3.0/Thread main chip

• EFR32MG26 (Silicon Labs)
• ARM Cortex-M33 processor @ 80 MHz
• Memory: 1536 KB Flash, 256 KB RAM

Main control chip

• ESP32 (Espressif)
• Dual-core processor @ 240 MHz
• Memory: 520 KB SRAM, 448 KB ROM

USB/UART converter

• CP2102N (Silicon Labs)

SoC Ethernet

• LAN8720 (Microchip)

Zigbee/Thread signal amplification

• Output Amplifier: +20 dB
• External antenna: +5 dBi, rotated in three dimensions

Support for connections and power

• Ethernet: Yes (RJ45)
• WiFi: Yes (2.4 GHz)
• PoE: Yes (IEEE 802.3af, 15W compliant)
• USB Type-C: Yes, for data transfer and power supply

Zigbee/Thread

• Coordinator Zigbee
• Router Zigbee
• Thread support (and Matter-over-Thread)

Supported protocols and integrations

• Zigbee to Ethernet: Yes
• Zigbee to USB: Yes
• Support for ZHA: Yes, ready to use (out-of-the-box)
• Support for Zigbee2MQTT: In testing phase (beta)
• Support for Thread (and Matter-over-Thread – beta)

Software and updates

• Pre-flashed: Yes, ready to go out of the box
• Opensource: Yes, open-source software available
• Remote updates for Zigbee/Thread and ESP32 via web interface

Useful functions

• Compact design: Yes (160 x 22 x 24 mm)
• Four LEDs: Blue, Yellow, Green, Red (for different functions)
• Physical button to change operating mode and other settings

Operating environment

• Operating temperature: +5°C – +35°C

The SLZB-06Mg26 is a versatile Zigbee/Thread adapter designed for flexibility and efficiency in smart home or office installations. With its advanced EFR32MG26 chip and support for various operating modes and protocols, this device is ideal for integration into modern automation systems.

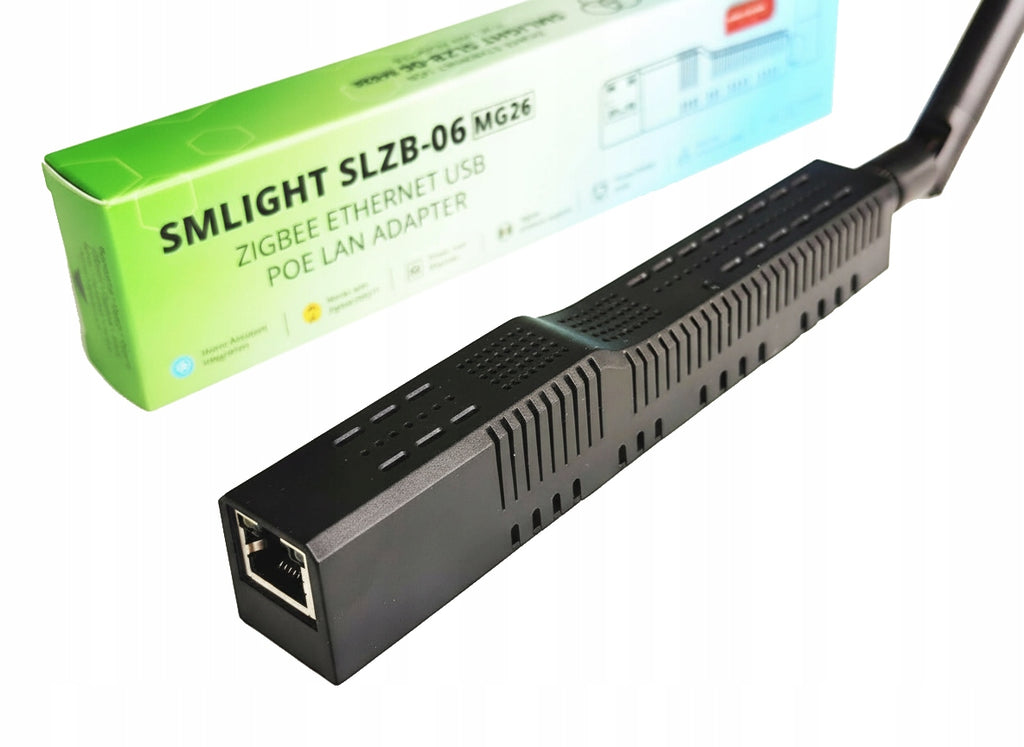

• SMLIGH coordinator SLZB-06mg26
• 5dB antenna;
• 2x mounting screws;
• 2x adhesive tapes;
• 1x screwdriver;
• Measuring cup for precise determination of the mounting hole
• Instructions in the form of a QR code
