Zigbee tinklo valdiklis Coordinator SLZB-06p10U, CC2674P10, Ethernet, PoE, USB, LAN, WiFi

Trumpai apie prekę

Prekė: Zigbee tinklo valdiklis Coordinator SLZB-06p10U, CC2674P10, Ethernet, PoE, USB, LAN, WiFi. Kategorija: Centriniai blokai.

• Gamintojas: SMLIGHT
• Modelis: SLZB-06p10U

⭐U Series

This is an improved edition of the flagship coordinators, introducing key hardware fixes for professional smart home installations:

• Hardware Flow Control: The introduction of hardware flow control for the radio system (SoC) eliminates errors in data transmission, significantly increasing stability under heavy network load.
• Native USB mode: The device can work as a classic USB "dongle", where the radio module is visible directly in the system (Native USB-series), which minimizes latency.
• USB-over-IP (Passthrough): A unique feature that allows remote access to other USB devices (e.g. ZWave) connected to the coordinator directly via LAN.
• Full customization: The new ESP32-S3 processor enables m.in. programmatic control of LEDs at the RJ45 socket.

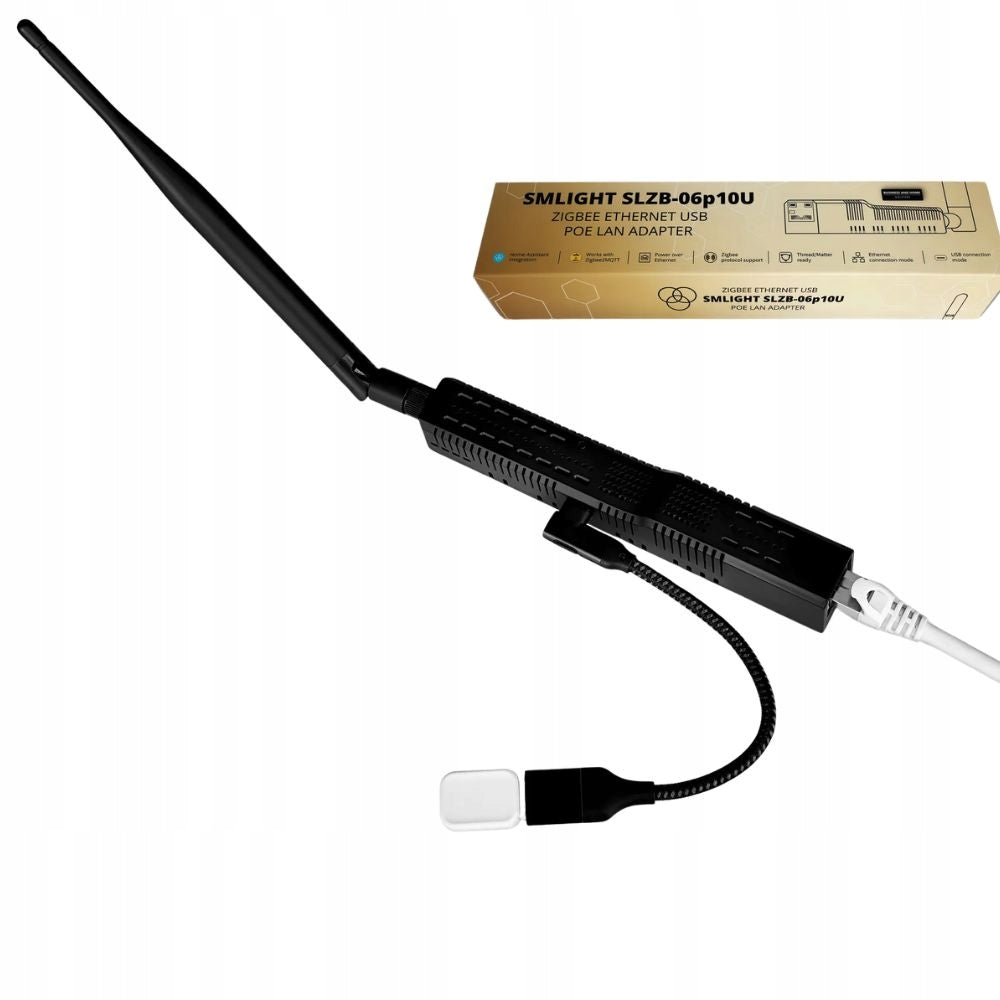

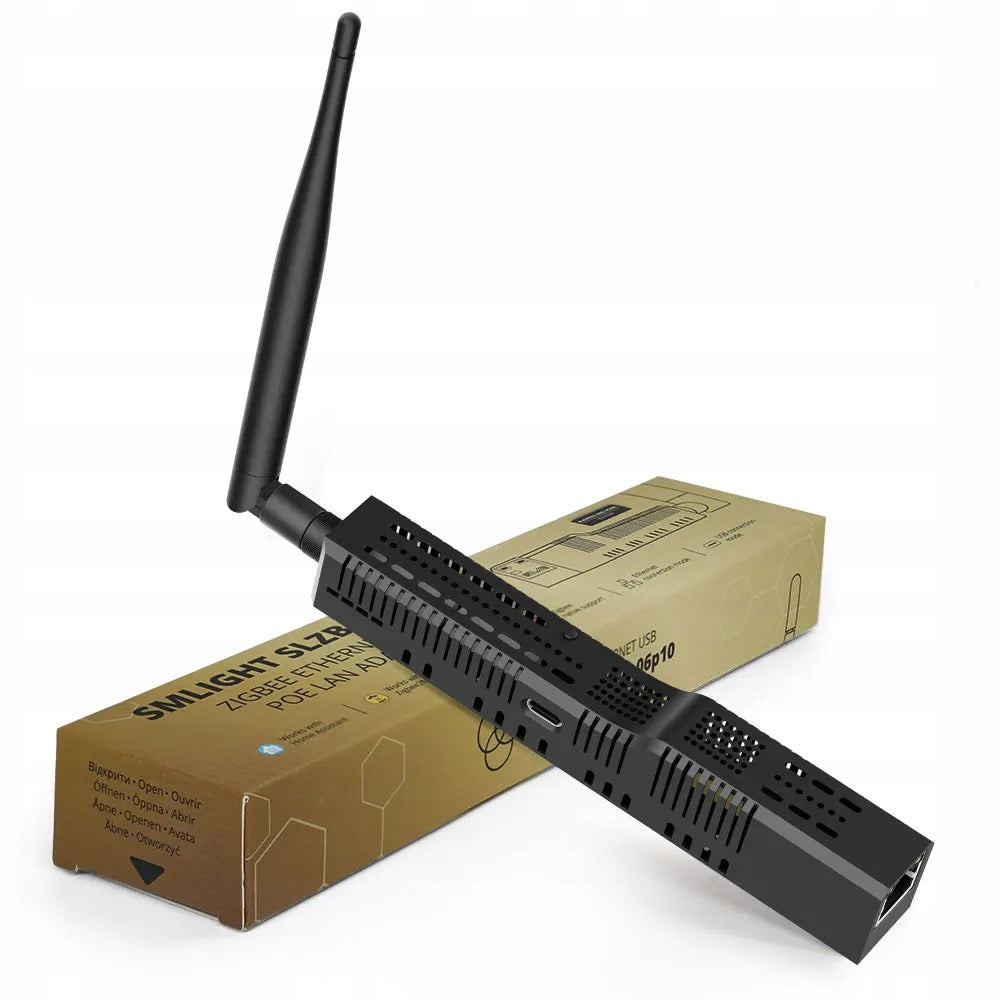

⭐Adapter SLZB-06p10U SMLIGHT - CC2674P10

The SLZB-06p10U adapter is an advanced Zigbee coordinator that works via Ethernet (PoE), USB or WiFi. Based on the CC2674P10 chip from Texas Instruments and ESP32 from Espressif. The device is ready for immediate use right out of the box. The SLZB-06p10U coordinator is compatible with the Home Assistant application via ZigBee2MQTT0 and ZHA. It has support for MATTER-OVER-THREAD.

✅The only device on the market with the CC2674P10 chip

✅Support up to 400 devices with one controller

SLZB-06p10U communication with the Internet

• via WiFi (ESP32)
• via USB-C port
• via RJ45 port - Ethernet - PoE power supply

⭐Software SLZB-06p10U

• Zigbee: with firmware from Koenkk (Koen Kanters).
• ESP/LAN: open-source community-supported software (see official website);

⭐Advantages of the coordinator SLZB-06p10U

• Support up to 400 devices at once!
• Support for Home Assistant
• Compatible with ZHA
• Compatible with ZigBee2MQTT
• Support for MATTER-OVER-THREAD
• Communication via WiFi, USB or ETHERNET
• Adapter based on CC2674P10 with +20dB amplifier
• External antenna +5dB
• Power via PoE or USB
• OTA updates

⭐Zigbee LAN coordinator SLZB-06p10U allows

• Free choice of coordinator location. The location of the coordinator is independent of the server and may be located away from the server;
• Proportionate increase in the maximum number of Zigbee devices on the network. The number of possible devices operating in a smart home system increases proportionally with the number of coordinators. One CC2674P10 module can connect about 400 devices.
• Reliable extension of Zigbee network coverage. If you have a large area that needs to be covered by a Zigbee network, relying only on devices in router mode is not as secure as trusting an additional LAN coordinator. Because any failure or disconnection of the Zigbee router will disable the devices for which it was a trigger connecting element. Thanks to this, it is possible to connect even distant, unrelated objects, for example, various apartments, houses, house, garage, etc. with one server;

SLZB-06p10U Zigbee LAN PoE USB WiFI coordinator based on CC2674P10 and ESP32 is a Zigbee TCP/IP coordinator used to control Zigbee devices in smart home systems using the Home Assistant and Zigbee2MQTT or ZHA applications.

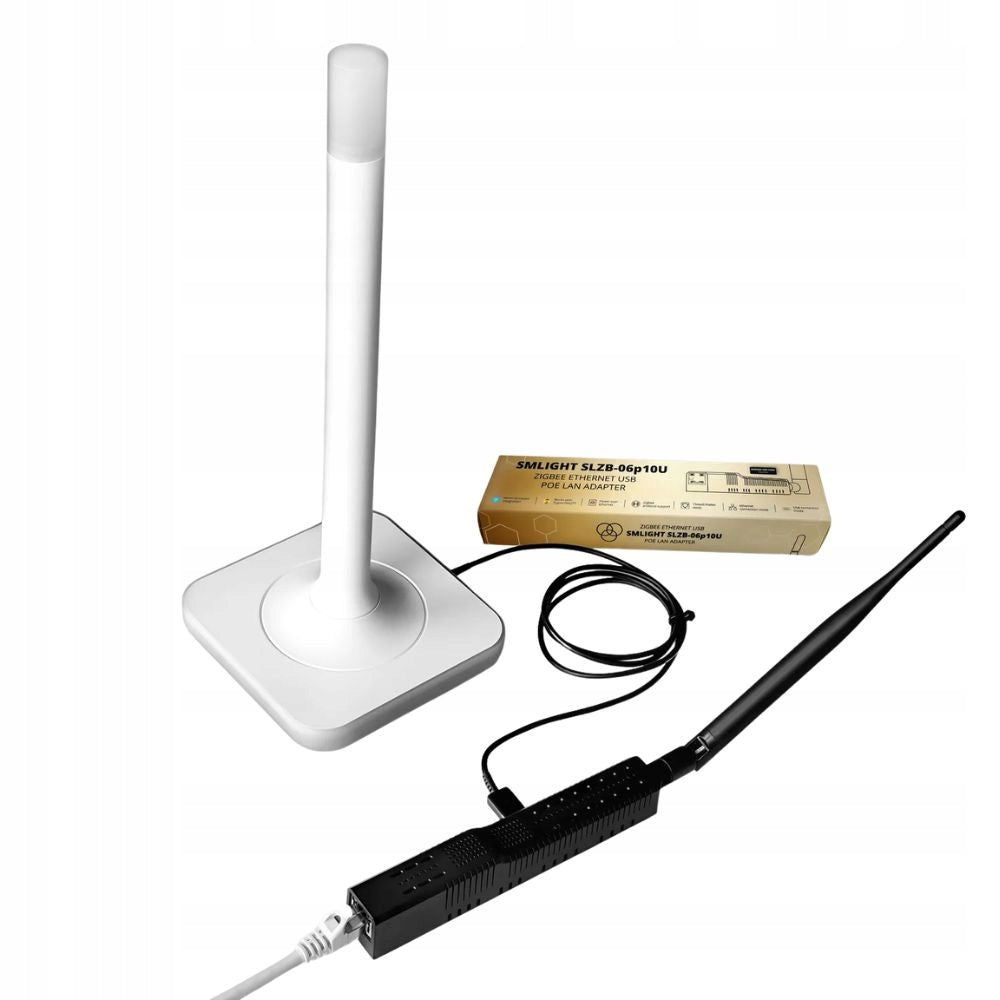

⭐Included

• SMLIGH SLZB-06p10U Zigbee LAN coordinator;
• 5dB antenna;
• Instructions in the form of a QR code
• 2x mounting screws;
• 2x adhesive tapes;
• 1x screwdriver;

⭐ Specification

Main chip Zigbee 3.0 CC2674P10 Texas Instruments

• 48 MHz Arm Cortex-M33 CPU
• 1024 KB Flash
• 256 KB ROM
• 296 KB RAM
• 8 KB cache SRAM

Main WiFi chip: ESP32 Espressif

• Dual-core processor
• 520 KB SRAM
• 448 KB ROM
• USB/UART Converter: CP2102
• Ethernet SoC: LAN8720
• Output signal amplification: +20dB
• Additional antenna amplification: +5dB
• Ethernet Support: Yes
• WiFi Support: Yes
• PoE Support: Yes
• Support PoE:Standard: IEE802.3af (15W)
• USB Type-C Control: Yes
• Autoboot ESP32: Yes
• Pre-flashed: Yes
• Zigbee 3.0 operating modes: Coordinator and Router
• Zigbee to Ethernet: Yes
• Zigbee to USB: Yes
• Support for Zigbee2MQTT: Yes, ready to use (out-of-the-box)
• ZHA support: Yes, ready to use (out-of-the-box)
• Compact dimensions: Yes
• Open Source Software: Yes

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Brand	SMLIGHT
Parametry	Series	ZigBee
Parametry	Kind	control switchboard
Parametry	Power supply	mains
Parametry	Communication	ZigBee
Parametry	Batteries included	no
Parametry	Manufacturer code	SLZB-06p10U
