Zigbee tinklo valdiklis SONOFF Z-Wave 800 PoE Dongle Max MZG23, LAN, WiFi, USB

Trumpai apie prekę

Prekė: Zigbee tinklo valdiklis SONOFF Z-Wave 800 PoE Dongle Max MZG23, LAN, WiFi, USB. Kategorija: Centriniai blokai.

• Gamintojas: Sonoff
• Modelis: Dongle-MZG23

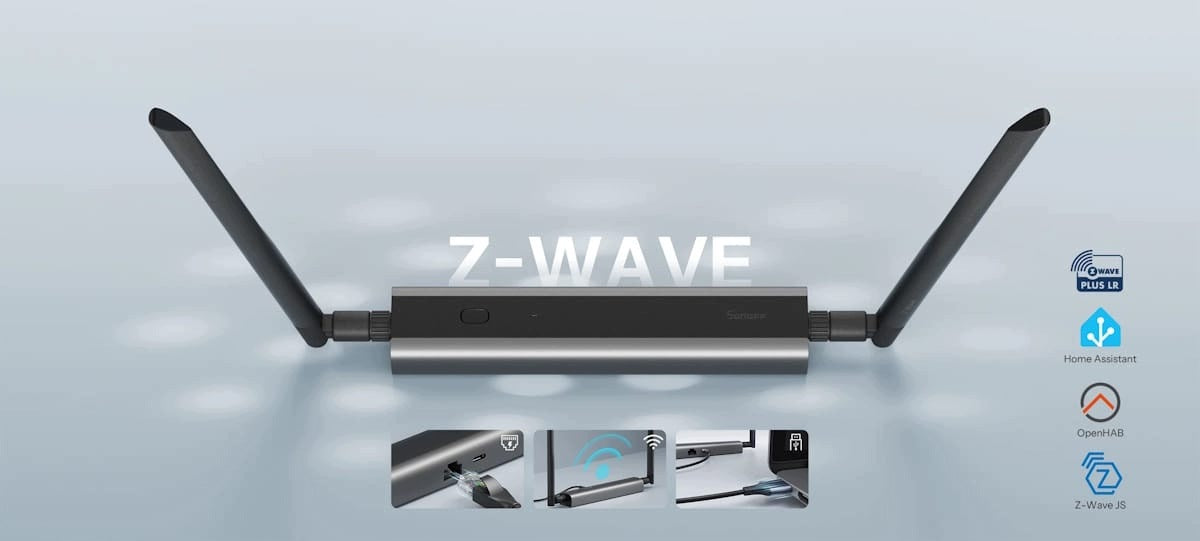

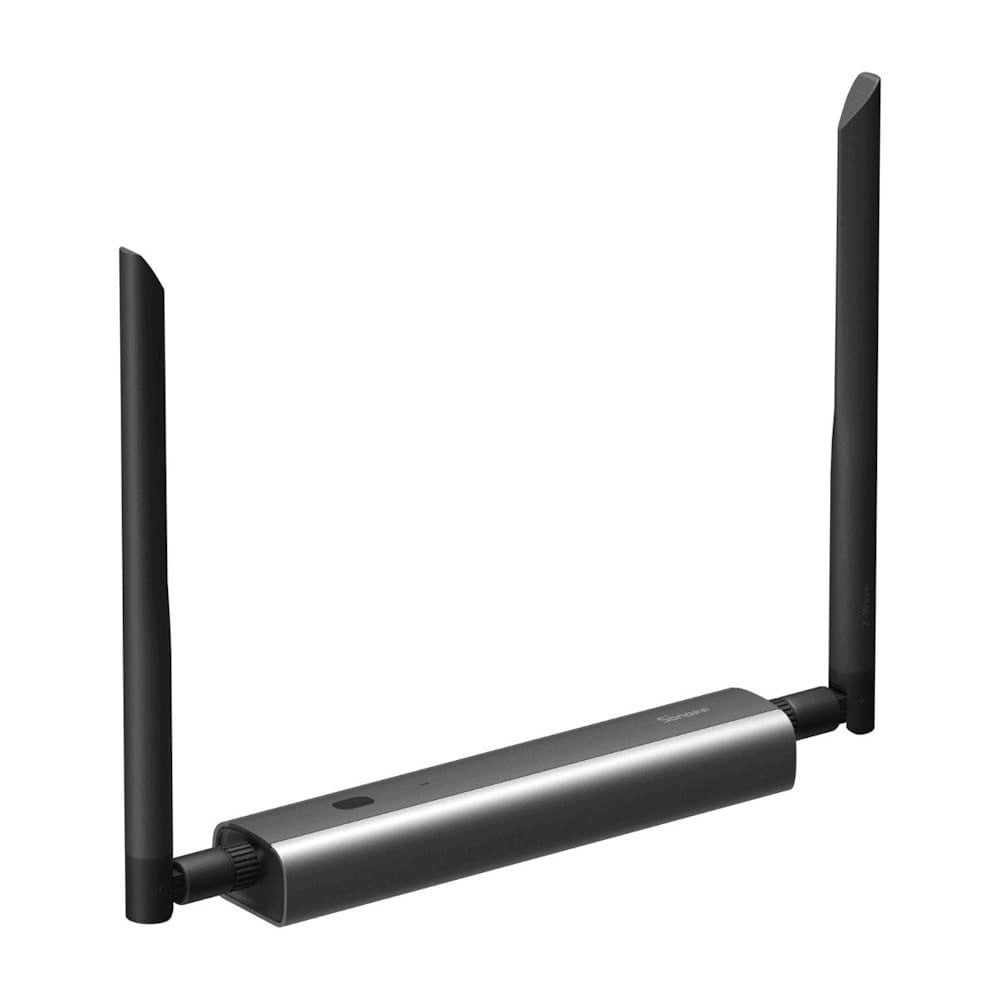

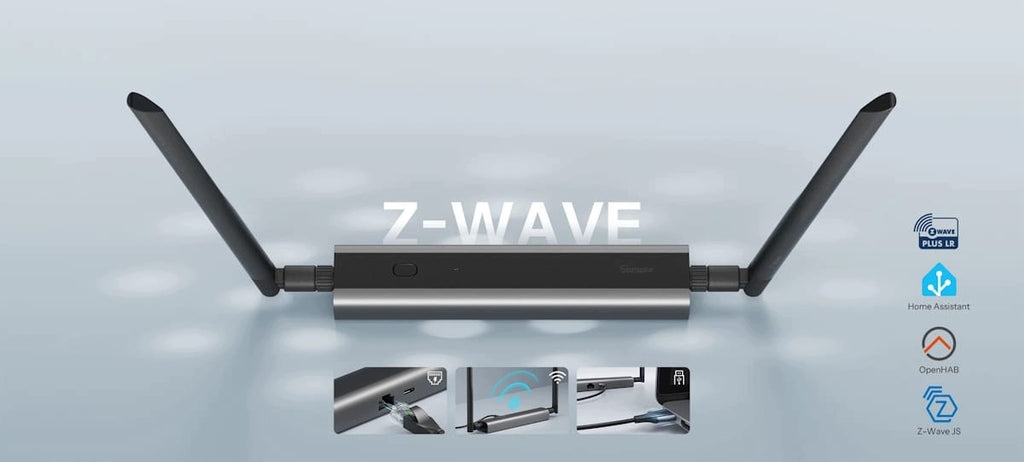

SONOFF Z-Wave 800 PoE Dongle Max (Dongle-MZG23)

SONOFF Z-Wave 800 PoE Dongle Max advanced coordinator designed for stable and safe local control of the smart home. The device based on a two-chip architecture (EFR32ZG23 + ESP32D0WDR2) supports the latest Z-Wave S2 security protocols and Z-Wave Long Range Network (ZWLR). Full compatibility with platforms such as Home Assistant, openHAB and Z-Wave JS, as well as a built-in Ethernet port with PoE support, provide great opportunities in building advanced, wired and wireless home automation.

Key features:

• High performance: Two chip architecture (EFR32ZG23 + ESP32D0WDR2) for lightning-fast response.
• Advanced security: Full support for Z-Wave S2 standard.
• Long communication range: support for Z-Wave Long Range (ZWLR) technology with stable long-distance connection and 360-degree antenna.
• Flexible connectivity and power supply: Ethernet port with PoE support, Wi-Fi communication and USB Type-C connector.
• Durable construction: Aluminum housing for easy heat dissipation and corrosion resistance.
• Local management: built-in LAN web console for configuration, secure updates and privacy protection.
• Open ecosystem: seamless integration with Home Assistant, openHAB and Z-Wave JS.

Multiple connection options for free installation

The Z-Wave 800 Dongle Max coordinator can establish a connection via Ethernet interface, Wi-Fi network or traditional USB cable. This provides flexibility in planning installation in the building – whether you place it in the living room, bedroom or hide it in the RACK closet in the basement, the module will easily cover the house with a smart grid signal.

Easy integration with Home Assistant

The module allows you to manage the Z-Wave system directly from the central panel of the Home Assistant interface. Use the standard MQTT protocol to make the capabilities of the device available in the system, enjoying real-time monitoring and precise control of connected sensors and accessories.

Technical specification

• Model: Dongle-MZG23
• Power Supply (USB Type-C): 5V⎓1A
• Power Supply (PoE RJ45): 48V⎓0.25A
• Wireless connectivity: Z-Wave, Wi-Fi IEEE 802.11b/g/n 2.4GHz
• Working temperature: from -10°C to 60°C
• Housing material: Aluminium, polycarbonate (PC) + ABS
• USB local interface: Type-C
• Network interface: RJ45
• Color: Dim gray (dark grey)

Contents of the set

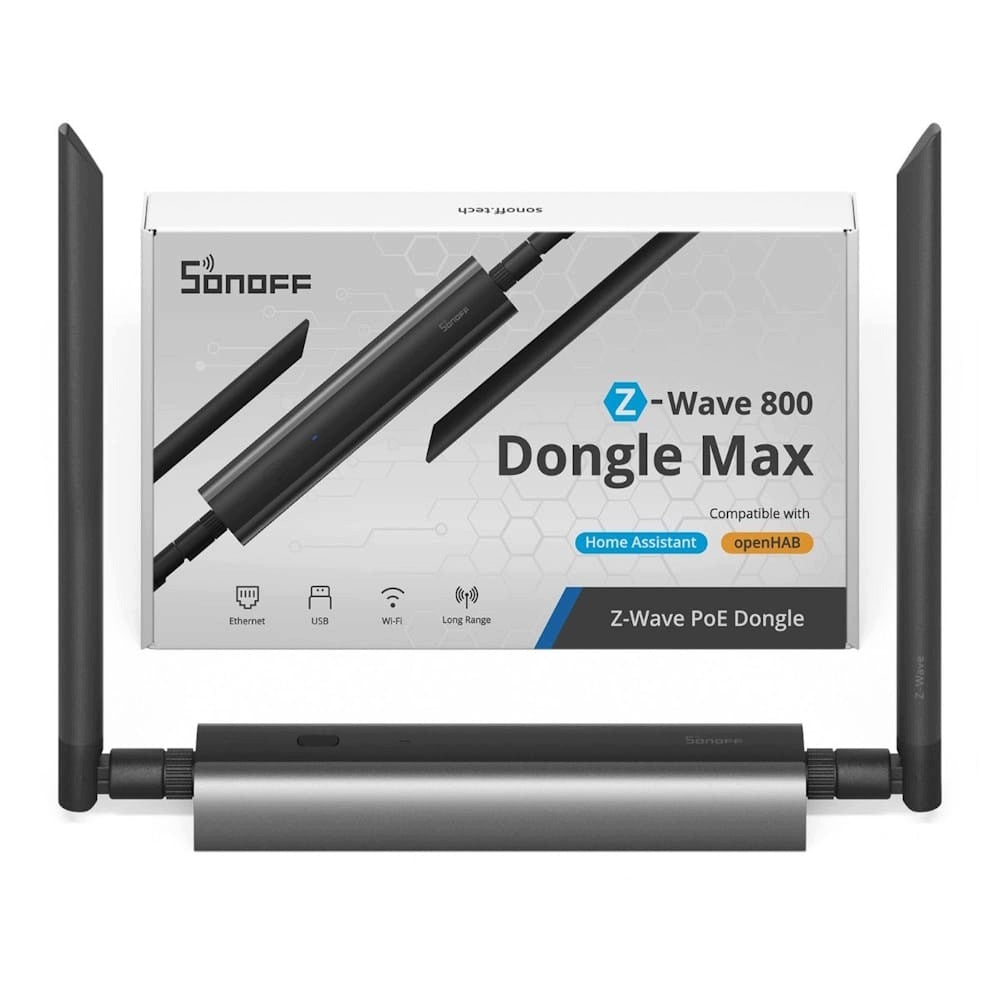

1. SONOFF Z-Wave 800 PoE Dongle Max (Dongle-MZG23)
2. Adjustable Z-Wave Antenna (360°)
3. Mounting elements provided by the manufacturer
