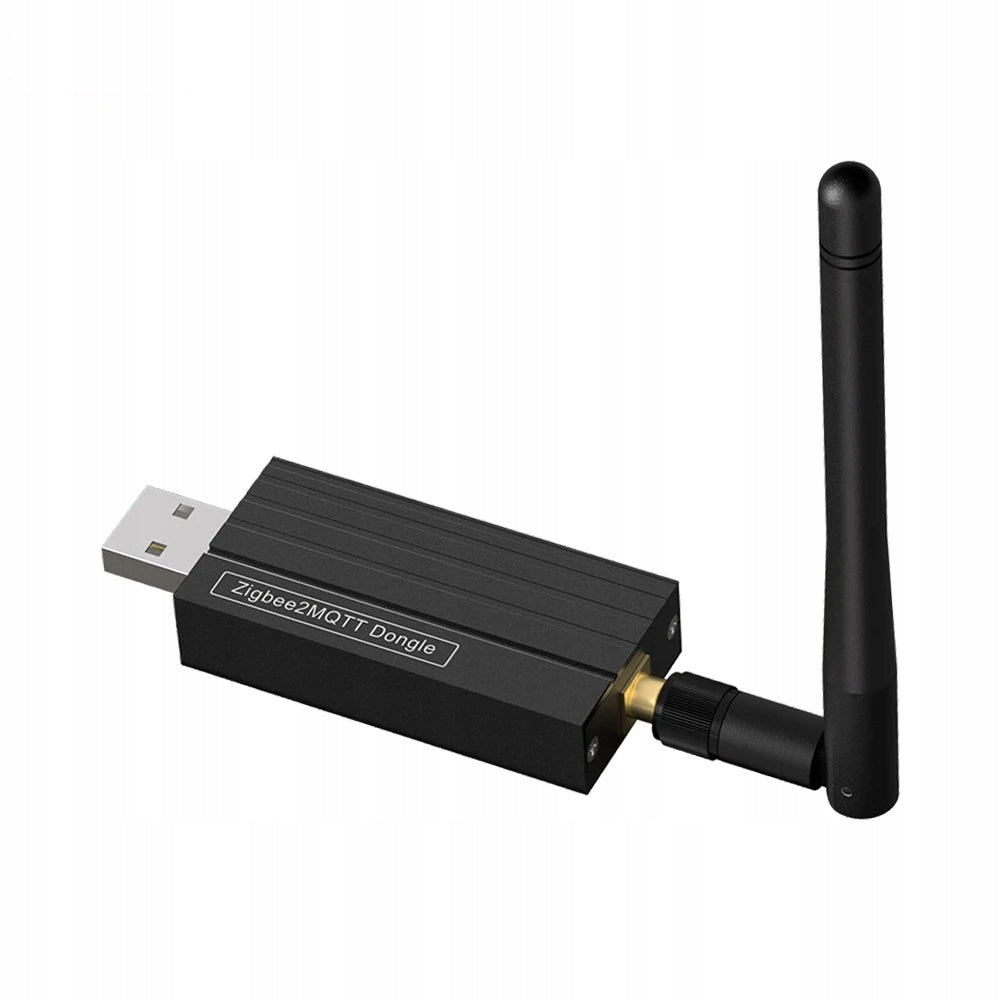

Zigbee USB valdiklis CC2652P su antena, suderinamas su Home Assistant ir ZigBee2MQTT

Trumpai apie prekę

Prekė: Zigbee USB valdiklis CC2652P su antena, suderinamas su Home Assistant ir ZigBee2MQTT. Kategorija: Centriniai blokai.

• Gamintojas: no brand
• Modelis: ZG-808Z

Ability to work as a Zigbee signal amplifier

The Zigbee/Thread coordinator enables the integration of devices with open smart home platforms such as Home Assistant (Zigbee2MQTT, ZHA, Thread) and OpenHAB. It acts as a central element of the Zigbee or Thread network, allowing for convenient device management.

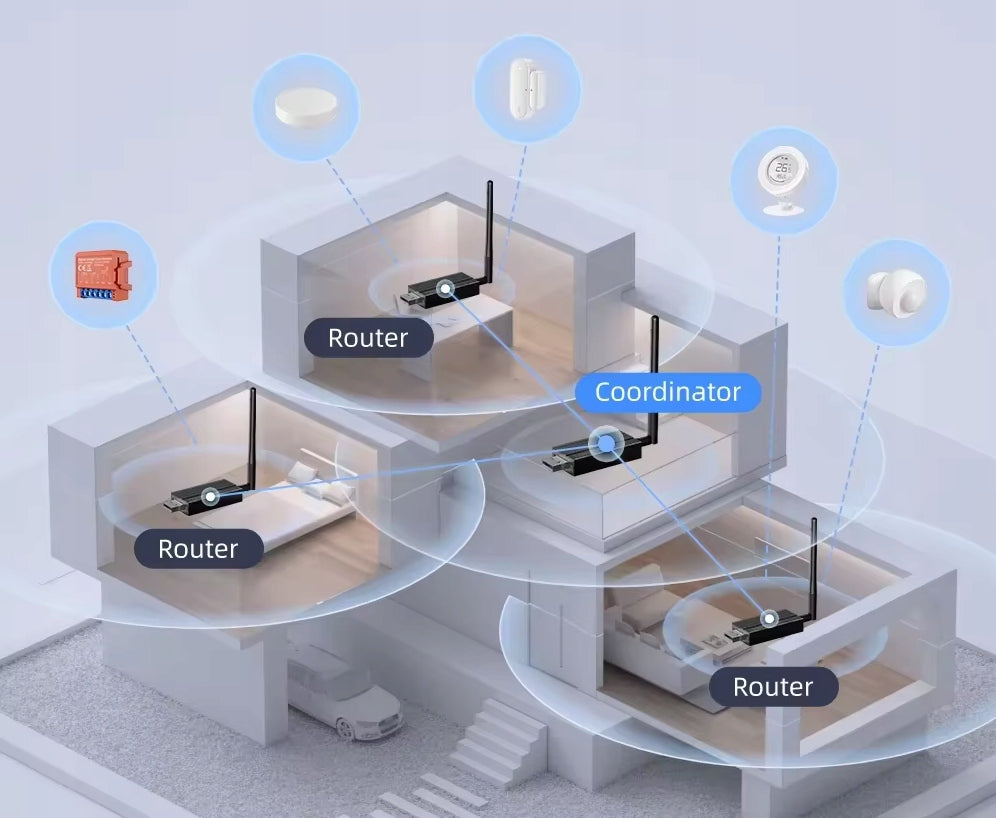

The device can also be easily reprogrammed and used as a Zigbee (router) signal amplifier, allowing you to increase the range and stability of your network.

Simply connect the dongle to your computer or Raspberry Pi to start communicating with Zigbee/Thread devices and create automations in your smart home.

Ready to Go

The device comes with pre-installed CC2652 firmware, allowing it to function as a Zigbee coordinator right out of the box.

You can safely update the firmware to:

• a Zigbee signal booster (router)
• a Thread coordinator (OpenThread)

For firmware updates, the XZG Multi-tool is recommended:

https://mt.xyzroe.cc/

Supported browsers: Google Chrome, Microsoft Edge

Specifications

• Model: ZG-808Z
• Chipset: Texas Instruments CC2652
• Default Firmware: CC2652P_launchpad_coordinator
• Optional Firmware:
• Zigbee router (CC2652P_launchpad_router)
• Thread RCP (CC2652P_ot_RCP)
• Home Assistant Support: ZHA, Zigbee2MQTT, Matter Thread*
• OpenHAB Support

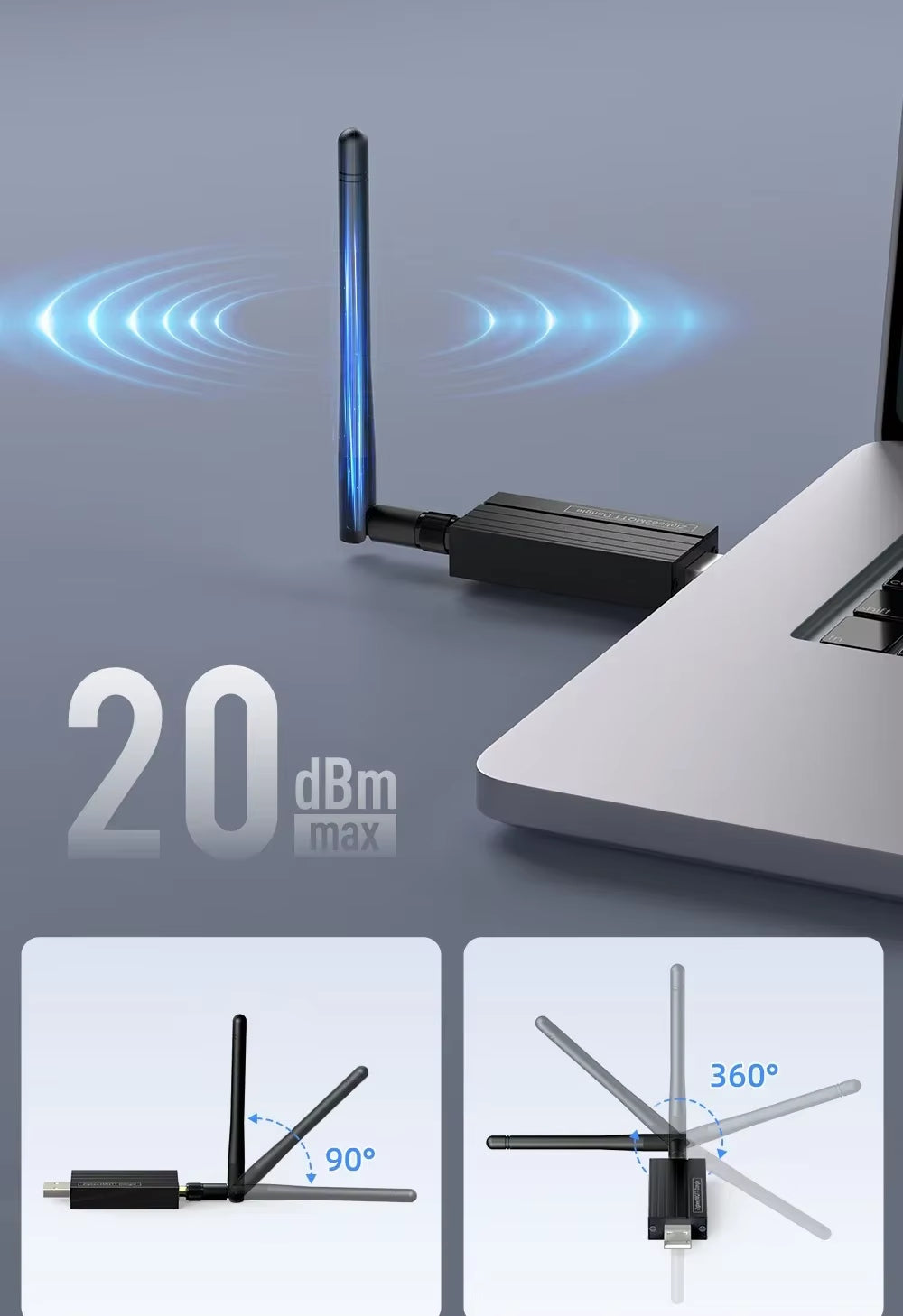

• Output Power: 20 dBm
• Antenna: 5 dBi
• Baud Rate: 115200

* requires firmware update

Installation instructions

Note:

• The product is designed for advanced users – requires knowledge of Home Assistant configuration.
• It is recommended to use a USB extension cable to reduce interference.
• Uploading software by methods other than the indicated tool may result in loss of warranty.

Example of configuration (configuration.yaml): series: port: /dev/ttyUSBX baudrate: 115200 adapter: zstack

(X should be replaced with a suitable port – Home Assistant → System → Hardware)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Series	ZG-808Z
Parametry	Kind	control switchboard
Parametry	Power supply	mains
Parametry	Communication	ZigBee
Parametry	Manufacturer code	ZG-808Z
Parametry	EAN (GTIN)	652805784564
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Additional features	radio communication,WiFi connection
