Zigbee valdiklis SONOFF ZBBridge-U, WiFi/LAN, palaiko iki 256 įrenginių

Trumpai apie prekę

Prekė: Zigbee valdiklis SONOFF ZBBridge-U, WiFi/LAN, palaiko iki 256 įrenginių. Kategorija: Centriniai blokai.

• Gamintojas: Sonoff
• Modelis: ZB Bridge-U

POWERFUL ZIGBEE 3.0 GATEWAY WITH MATTER SUPPORT

SONOFF Zigbee Bridge Ultra ZBBridge-U is an advanced smart home control panel that allows you to manage and integrate Zigbee devices with popular Matter ecosystems.

The gateway can support an extensive network of up to 256 devices. Connects to your home network wirelessly via 2,4 GHz Wi‑Fi or wired via RJ45 Ethernet port.

THE MOST IMPORTANT ADVANTAGES

• Zigbee 3.0 support
• Matter bridge function
• ability to manage up to 256 devices
• cooperation with the eWeLink application
• Connection via Wi‑Fi 2,4 GHz or Ethernet cable
• RJ45 10/100 Mbps network port
• powerful dual-core 1,5 GHz processor
• 1 GB DDR4 RAM
• 8 GB of internal eMMC memory
• range up to 200 m in open space in Turbo mode
• The ability to create intelligent scenes and automate
• function of the control panel
• built-in audible alarm
• Push notifications sent to your phone
• power supply via modern USB-C connector
• compact and aesthetic housing

CONNECTION TO THE ECOSYSTEM MATTER

Matter Bridge lets you share compatible Zigbee devices across popular smart home systems.

Depending on your platform and configuration, the gateway can work with, among other things:

✔ Apple Home

✔ Amazon Alexa

✔ Google Home

✔ Samsung SmartThings

✔ eWeLink application

A compatible Matter controller or hub is required to use Matter. The gateway, Matter controller and phone should be on the same local network.

SUPPORT UP TO 256 DEVICES

ZBBridge-U allows you to create an extensive smart home network, including compatible:

• motion and presence sensors
• temperature and humidity sensors
• reeds for doors and windows
• smart sockets
• relays and switches
• wireless buttons
• elements of the alarm system

The gateway supports Zigbee devices by SONOFF and compatible devices operating in the eWeLink ecosystem. Before purchasing additional devices, you should check their compatibility with the current manufacturer compatibility list.

LONG RANGE AND STABLE COMMUNICATION

In standard mode, the gate offers a range of up to 100 m in open space. When Turbo mode is turned on, the range can reach up to 200 m in open ground.

The actual range inside the building depends on the number and thickness of the walls, radio interference and the placement of the devices. The network can be extended using compatible devices acting as Zigbee routers.

EFFICIENT COMPONENTS

The gateway is equipped with Zigbee EFR32MG21 chip, dual-core 1,5 GHz processor, 1 GB DDR4 RAM and 8 GB eMMC memory.

This configuration ensures smooth operation of devices, scenes and extensive smart home automation.

WI‑FI OR WIRED LAN CONNECTION

SONOFF Zigbee Bridge Ultra can be connected to the network in two ways:

✔ wirelessly via 2,4 GHz Wi‑Fi

✔ wired via RJ45 10/100 Mbps Ethernet port

The Ethernet connection provides particularly stable and fast communication, which is important in more complex home automation systems.

FUNCTION OF THE CONTROL PANEL

The gateway can act as a local element of the security system. When connected to the appropriate sensors and configured scenes, it can trigger an audible alarm and send notifications to your phone.

Protection modes can be activated, among others, from the application, wireless button or properly configured NFC tag.

CONTENTS OF THE SET

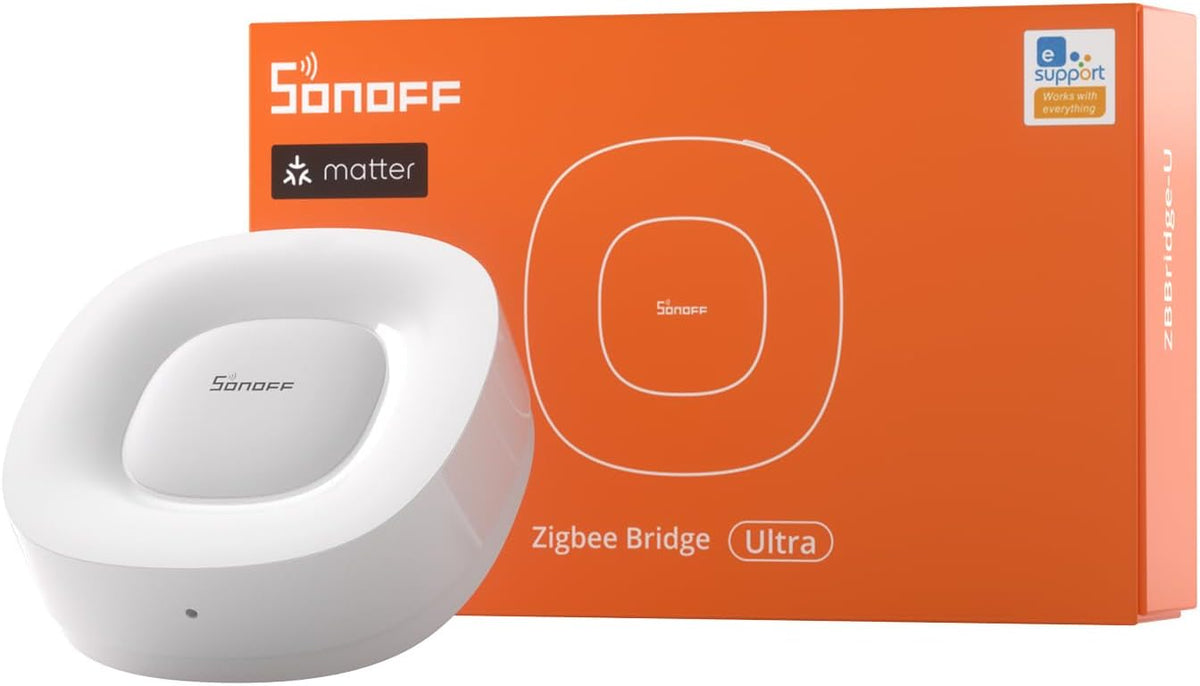

• SONOFF Zigbee Bridge Ultra ZBBridge-U
• Ethernet network cable – 1 m
• USB-C cable – 1 m
• abbreviated manufacturer's manual
• original packaging

IMPORTANT INFORMATION

The kit does not include a USB AC adapter. A 5V/1A USB power adapter with a USB-A connector suitable for the included cable is required for power supply.

The declared range of up to 200 m applies to open space and Turbo mode operation. The range inside the building depends on the ambient conditions.

Specifications
