ZigBee vartai DIN bėgiui, WiFi, TUYA Smart Life, OXT

Trumpai apie prekę

Prekė: ZigBee vartai DIN bėgiui, WiFi, TUYA Smart Life, OXT. Kategorija: Centriniai blokai.

• Gamintojas: OXT
• Modelis: T708

ZigBee 3.0 gateway for DIN rail

Smart Home control panel | Tuya Smart Life | Switchgear mounting | ZigBee 3.0

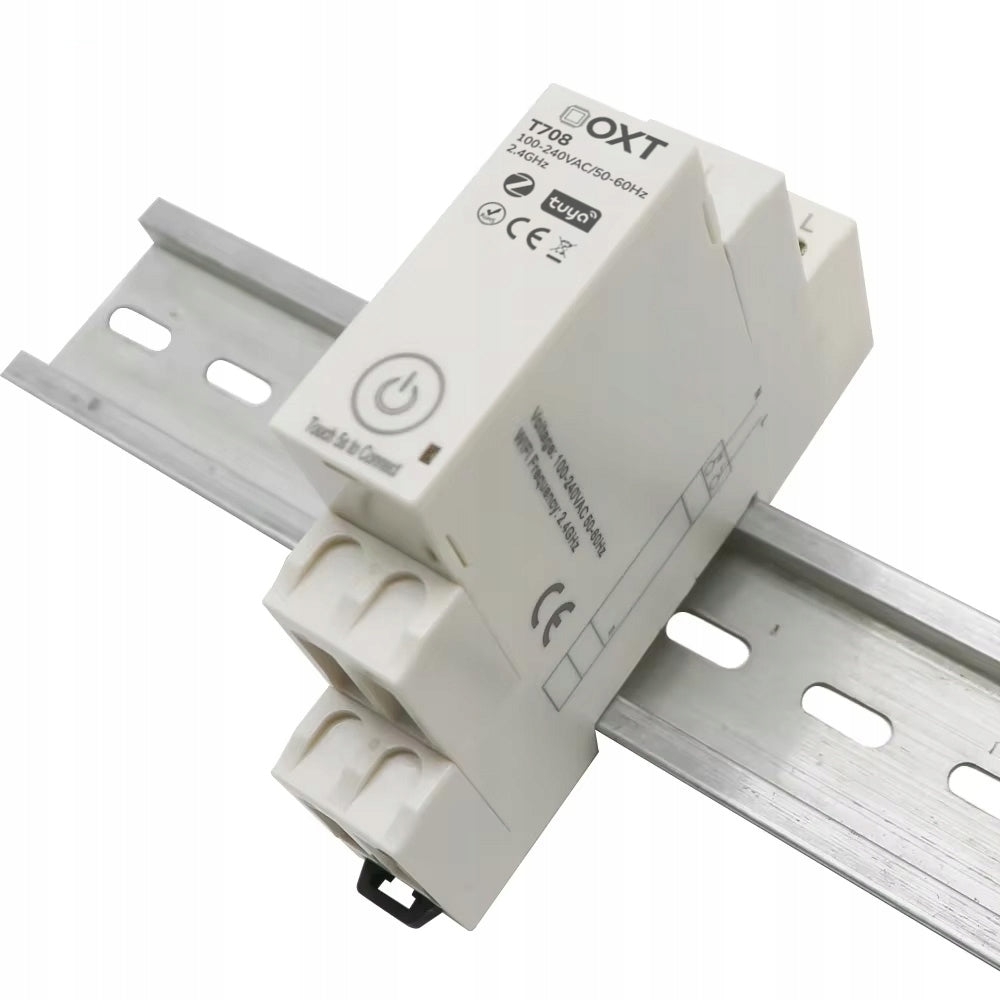

• ✅ Professional installation in DIN rail switchgear

• ✅ Support for up to 50 ZigBee devices simultaneously

• ✅ Stable "heart" of your smart home

• ✅ Allows you to create advanced local automation

▶ Why DIN rail version?

• Aesthetics and order: The gate does not occupy an outlet in the room and does not dust on the shelf – it is securely closed in an electrical cabinet
• Constant power supply: Connected directly to the installation, which eliminates the risk of accidental disconnection from the current

▶ Functions of the Head Office

• Communication switch: Allows ZigBee devices (sensors, controllers) to communicate with each other and perform automations
• Local storage: Your scenarios and automations (e.g. "if traffic, turn on the light") they work faster and more stable, and when the Internet runs out

▶ Construction

• Standard DIN 35mm: Fits any modern fuse box
• Wide voltage range: Direct AC 100-240V power supply
• Compact housing: Takes up little space in the switchgear

ℹ What do you gain with ZigBee Gateway?

• WiFi relief: Your sensors do not connect directly to your router, which prevents your home internet from freezing

• Security: ZigBee communication is encrypted and extremely energy efficient

• MESH: Any ZigBee device powered permanently (e.g. roller shutter controller) acts as a repeater and duplicates the signal from this gate further

⭐ ZigBee Protocol

What sets ZigBee apart from classic WiFi is the appropriately long battery life for battery-powered devices (unachievable with classic WiFi) and signal relaying through 230V powered accessories.

Additionally, selected ZigBee devices (powered by 230V mains) become part of a Mesh network. This means that if a particular module cannot connect directly to the ZigBee gateway, it communicates with it through the nearest other accessory in the system. Devices powered by 230V, such as PSMART, Aqara, OXT, Sonoff, TUYA, 230V sockets, or light bulbs, act as repeaters in the ZigBee ecosystem.

This allows for the creation of an extensive network that can operate over much greater distances than classic WiFi.

ℹ Specification

• Protocol: ZigBee 3.0
• Communication: WiFi 2.4 GHz (for connection to router)
• Power supply: AC 100-240V 50/60Hz
• Assembly: DIN rail 35mm
• LED indicators: Power and connection status
• Material: Fireproof PC
• Working temperature: -10°C - 60°C
• Working range: 20-25 meters

ℹ Included

• ZigBee 3.0 gate for DIN rail TUYA
• User manual

Product code: T708
